Horizontal Double Piston Centrifuge Nitrocellulose Separation Pushing Centrifuge Machine
PUSHER CENTRIFUGE
Pusher centrifuges are used for continuous solid-liquid separation. They enable the products to be dewatering with high efficiency. Quality of final product can be increased by using various washing modes. Pusher centrifuges are used in purification of bulk chemicals, plastics production, processing of minerals and minerals, fiber industry and food processing.
We design and manufacture pusher centrifuges which will provide a long holding time, low material loss, low crystal breakage, dense solid material washing, minimal damp salt cake, and corrosion resistant due to the salt corrosive structure.
Feature:
Continuous operation with large capacity
Ideal washing effect
Low moisture content of cake
Less solid content loss and crystal broken
Suitable for abrasion filtering cake
Specification
| Domestic Model | P-80 |
| International Model | HR800 |
| Basket Diameter (mm) | 740/828 |
| Length Of Filtering Area (mm) | 300/300 |
| Max Solid Loading Capacity (kg) | 160 |
| Max. Speed (r/min) | 1500 |
| Max.G.Force | 932/1043 |
| Length of Stroke (mm) | 50 |
| Pushing Times | 30-108 |
| Main Motor | 55~90KW |
| Oil Motor | 37~55 KW |
| Working Oil Pressure MPa | 8 |
| Feeding Capacity t/h | 12~65 |
| Net Weight (kg) | 6500 |
If you want to know more please contact me:Cathy Tel:+8613130722088(WhatsApp)

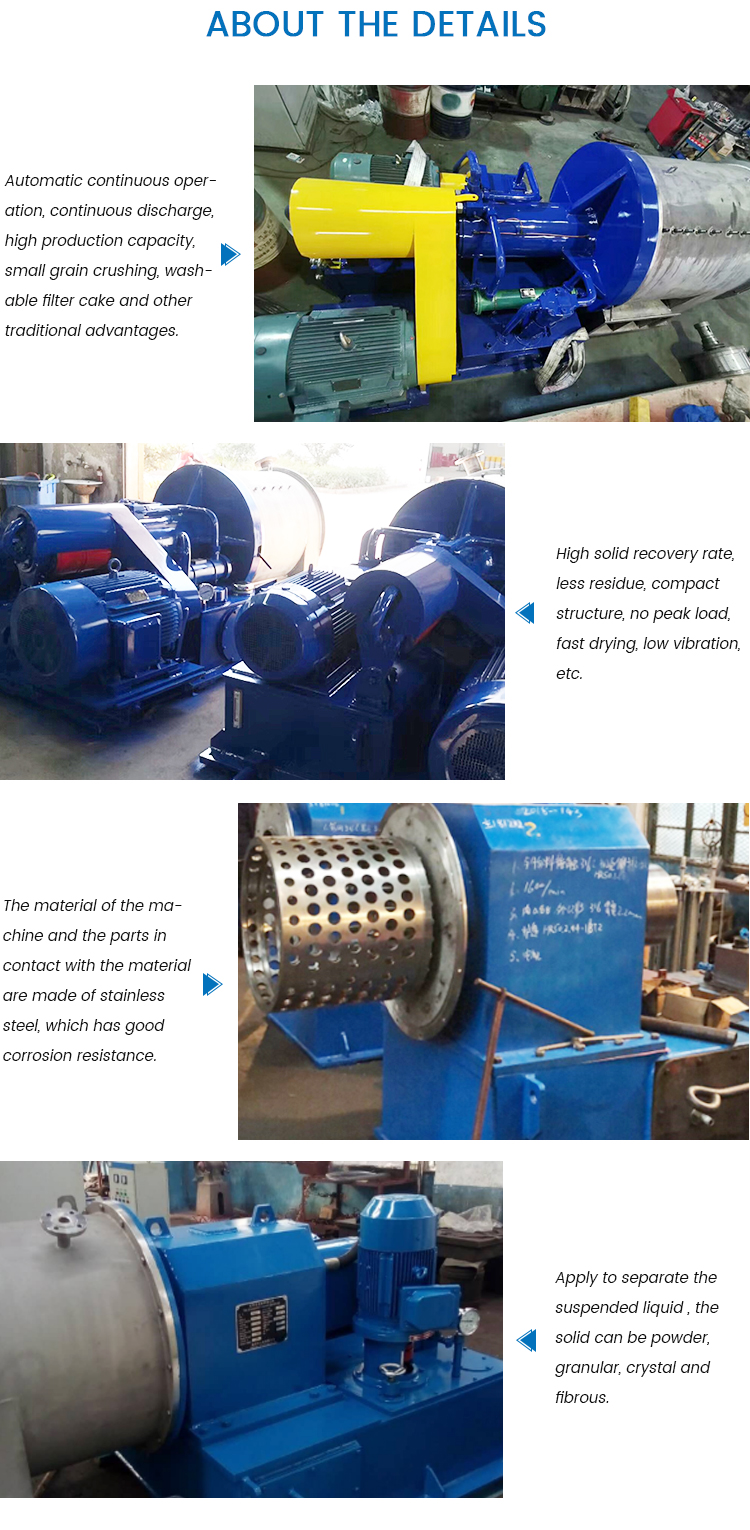

Details Images
