With the advantages of horizontal decanter centrifuge is thought to be an optimal .
Products Details

After years of solid and rapid development, Shenzhou has grown into one of the most professional and influential enterprises in China. horizontal decanter centrifuge We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product horizontal decanter centrifuge or our company.New type of material is used in horizontal decanter centrifuge.

As a driven company,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has been developing products on our own on a regular basis, one of which is Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge.It is the newest product and bound to bring benefits to customers. The continued success of our product has been built upon consistent and competitive pricing, quality workmanship, quick response time and outstanding customer service. The design of Centrifuge Machine For Used Oil Coconut Oil Centrifuge Separator Palm Oil Industry Centrifuge is carefully thought to fit the market trend, keeping us one step ahead of other manufacturers. It is made of raw materials that have been tested by our QC inspectors. By processing those materials with improved technologies, we ensure the product has so many advantages .Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge will bring convenience and benefits to customers.

Place of Origin:ChinaType:Centrifuge
Product Type:PlantCondition:New
Video outgoing-inspection:ProvidedMachinery Test Report:Provided
Marketing Type:New Product 2022Warranty of core components:1 Year
Core Components:PLC, Bearing, Gearbox, MotorBrand Name:Shenzhou
Voltage:380V/50HZ,3PhasePower:Model
Weight:750Dimension(L*W*H):Model
Warranty:1 YearKey Selling Points:Easy to Operate
Applicable Industries:Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works , Food & Beverage Shops, Chemical plant, pharmaceutical plantShowroom Location:Thailand, Sri Lanka

Product Description
Centrifuge Machine For Used Oil Coconut Oil Centrifuge Separator Palm Oil Industry Centrifuge
Operating principle:
Centrifuge Machine For Used Oil Coconut Oil Centrifuge Separator Palm Oil Industry Centrifuge
Palm oil is one of the two most important vegetable oils in the world’s oil and fats market. Whatever the step in the palm oil milling process (clarification, POME, fertilizer, composting, biogas), a solid/liquid separation phase is needed to meet the requirements applying to the final product. The Shenzhou decanter centrifuge is the right solution to meet the separation needs (two and three phases) of palm oil producers and users.

The liquid phase of the Shenzhou decanter centrifuge is discharged under pressure (1.5 to 2 bar) in both 2- and 3-phase configurations by means of a skimmer (also named “pipette”) that can be adjusted at millimeter intervals during operation. The flexibility of the ANDRITZ pipette design allows the user to adjust removal of liquid phase instantly without having to stop the machine or loosen any nuts. This enables the palm oil mill operator to extract the best oil quality or to adapt to any change in process conditions. The system provides better separation and optimizes the yield.
Scope of application:

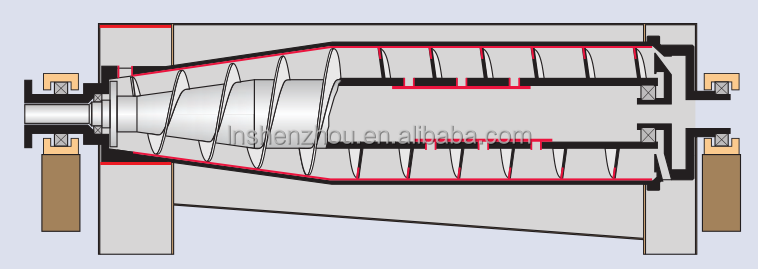

BEST PROTECTION AGAINST WEAR FOR EXTENDED
DECANTER LIFE CYCLE Centrifuge Machine For Used Oil Coconut Oil Centrifuge Separator Palm Oil Industry Centrifuge
The shenzhou decanter centrifuge offers the best combination of protection and moderate costs, enabling the customer to select the best fit from the wide range of options available. The different zones and elements in a decanter centrifuge that may be Specially designed 2- and 3-phase decanters for the palm oil miller subject to higher wear are protected by a carefully composed selection of wear protection means. A variety of materials ensure that your operations are able to withstand high temperatures as well as heavyduty and corrosive products. • To protect the bowl, the inner surface has strips or grooves, depending on machine size and application. Bowl outlets are protected with easily replaceable bushings. • To protect the screw conveyor, the inside of the feed chamber is coated with tungsten carbide spray or protected with TurboWISE polyurethane inserts. Feed chamber outlets are equipped with replaceable bushings, and the screw conveyor blade has replaceable tiles made of tungsten carbide. Good wear protection is a strategic, long-term investment with a guaranteed return. • To protect the solids casing, the receiving surface has a thick stainless steel plate. Exchangeable wear parts mean fewer repairs and less downtime, both of which lead directly to reduced maintenance costs.

EASY DISMANTLING Centrifuge Machine For Used Oil Coconut Oil Centrifuge Separator Palm Oil Industry Centrifuge
While you are saving time in production, there is no need to lose time during maintenance! The inline design of the shenzhou decanter centrifuge allows easy dismantling (requiring only basic lifting equipment and an operator). This configuration saves expenses for maintenance and handling

Specification
Model
Diameter(mm)
Lenght(mm)
Max speed
L/D ratio
G-force
Capacity(m3/h)
Main motor power(Kw)
Weight(kg)
Dimension
(mm)
LW250*1000
250
1000
5000
4
2722
0.5-5
7.5
950
2120*1250*680
LW300*900
300
900
4200
3
2964
1-6
11
1160
2150*1300*900
LW300*1200
300
1200
4000
4
2784
2-6
11
1350
2450*1300*900
LW355*1160
355
1160
3600
3.3
2576
2-8
15
1400
2470*1350*830
LW355*1460
355
1460
3600
4
2576
2-10
15
1800
2750*1350*830
LW400*1200
400
1200
3200
3
2294
3-12
18.5
1800
2730*1600*1080
LW400*1600
400
1600
3000
4
2016
3-15
22
2000
3130*1600*1080
LW450*1800
450
1800
2800
4
1976
4-25
37
2500
3320*1700*1130
LW500*2000
500
2000
2800
4
1750
5-35
45
4000
3520*1800*1170
LW530*1855
530
1855
2600
3.5
2006
5-38
55
4680
3885*1350*1600
LW530*2120
530
2120
2400
4
1709
5-40
55
4800
4150*1350*1600
LW550*2000
550
2000
2800
4
2414
6-40
55
5700
4570*1380*1600
LW650*1950
650
1950
2200
3
1761
6-45
75
5000
4840*1510*1720
LW650*2600
650
2600
2000
4
1456
6-65
90
6000
5490*1510*1720
LW720*2160
720
2160
2000
3
1612
7-80
120
6000
5200*1600*1800
LW720*2880
720
2880
2000
4
1306
7-90
120
8000
3100*1600*1800
LW800*2400
800
2400
1800
3
1451
20-100
150
12000
5820*2000*1300
LW800*3200
800
3200
1800
4
1451
20-120
150
1300
7100*2000*1300
Main technical features

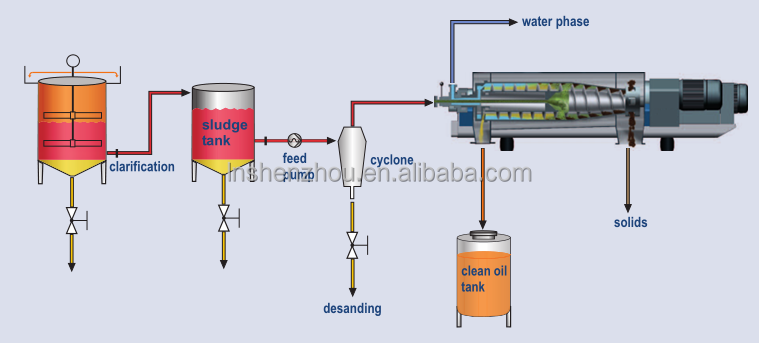

CONVENTIONAL/UNDERFLOW PROCESS The unique design of shenzhou decanter centrifuges, such as the combination of open flight, TurboWISE, and adjustable feed port, results in gentle product feed and entirely eliminates shear force in the product. As a result, oil recovery is improved because there is less stress and turbulence. In addition, the pipette device makes it easier to adapt the required oil purity and keep oil losses in the heavy phase in check.

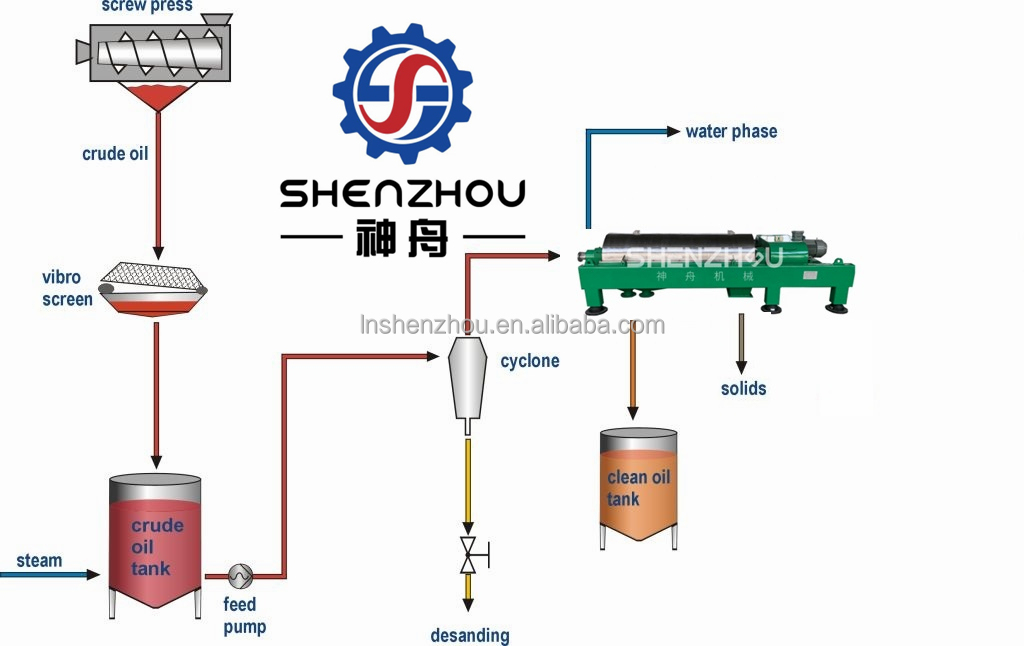

CRUDE OIL PROCESS SHENZHOU uses the combination of a 3-phase decanter and nozzle separator to achieve a total oil loss of <0.4% to fresh fruit bunch (FFB). After skimming the oil, crude oil with an oil content of approximately 25% is fed to the decanter centrifuge, which splits the crude palm oil into oil with up to 95% purity and solid cake with a maximum oil loss of 4% w/w. The heavy phase, which still contains emulsion, is treated with an SHENZHOU nozzle separator. The high g-force of the nozzle separator (approx. 5,000 g) helps to break up of a portion of the emulsion and keep the oil loss at the nozzle discharge to between 0.6 and 0.8%.
Production workshop

Screw production1

Screw production2:

.

High speed dynamic balance detection1

High speed dynamic balance detection2

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
FAQ
Q1.What's your advantage? Why we choose you?
A:1) More than 50 years experience of centrifuge & separator production and R&D.We have the most professional techniques and team. More advantage in price
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use famouse good quality materials and the best production process

Q2.What's the Payment?
A:T/T would be better with quick transfer and few bank fees. LC could also be accept, but the
procedure is complex and the fee is high. You can also use Western Union and Paypal.

Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.

Q4.How long is the warranty period ?
A:12 months.
