Shenzhou | Custom disc separators suppliers

Name: Shenzhou | Custom disc separators suppliers
Uploaded: 2023-01-29T07:41:14+08:00
Duration: 7 s
Description: Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has always been guided by the needs of its customers.

Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has always been guided by the needs of its customers.

SEND INQUIRY NOW

Products Details

Shenzhou has developed to be a professional manufacturer and reliable supplier of high-quality products. Throughout the whole production process, we strictly implement the ISO quality management system control. Since established, we always adhere to independent innovation, scientific management, and continuous improvement, and provide high-quality services to meet and even exceed customers' requirements. We guarantee our new product disc separators will bring you a lot of benefits. We are always standby to receive your inquiry. disc separators We have professional employees who have years of experience in the industry. It is them that provides high-quality services for customers all over the world. If you have any questions about our new product disc separators or want to know more about our company, feel free to contact us. Our professionals would love to help you at any time.Shenzhou is available with diversified style preferences.

With the effort of excellent designers,Disc Type Milk And Cream Separator With Strong Separating Capacity has unique style in its shape and appearance. At Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd，customer satisfaction and professional service as well as competitive prices are very important to us, a happy customer is what we strive to achieve. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will provide high-quality services, and bring customers a better experience. In this way, the company can continue to strengthen its future strength in technological innovation and strive to create complete products Ecological chain.

Place of Origin:	China	Type:	Separating Plant
Condition:	New	Video outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot product
Warranty of core components:	1 Year	Core Components:	Bearing, Motor
Brand Name:	Shenzhou	Voltage:	220v/300v/380v/optional
Power:	Model	Weight:	1200
Dimension(LWH):	variable	Warranty:	1 Year
Key Selling Points:	Easy to Operate	Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops, Advertising Company, Pharmaceutical plant, Chemical plant
Showroom Location:	None

Product Description

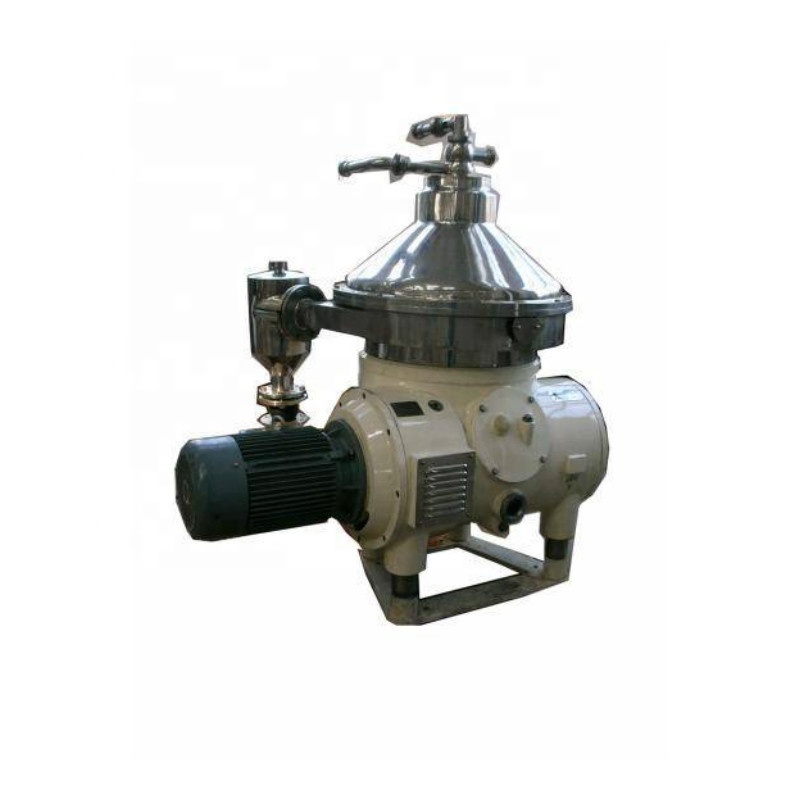

Disc Type Milk And Cream Separator With Strong Separating Capacity

The separator mainly consists of inlet/outlet, drum, cover, vertical shaft, cross shaft, base, motor and automatic control box, etc.

The DHNZ series centrifugal cream separators have been sepeially designed for the separation of the whey and of the buttermilk from dairy production,and are designed for the small and medium size dairy industries. The DHNZ series cream separator from SHENZHOU have been designed to create a soft separation environment which could ensure the active ingredient in the material is not destroyed. Max. capacity: 10,000 L/h

Model	Treatment capacity (L/H)	Inlet Pressure (Mpa)	Outlet pressure (Mpa)	Motor power (Kw)	Weight (Kg)	Outline dimension (mm)
DHN360	2000-5000	0.05	0.1-0.35	7.5	1200	153011501500
DHN470	5000-10000	0.05	0.1-0.4	15	1600	180012001750
DHN550	10000-20000	0.05	0.1-0.4	22	2300	195015501960
DHN616	25000-35000	0.1	0.3	37	3000	218517282082

Specification

Model	DHNZ360
Treatment capacity (L/H)	2000-5000
Inlet Pressure (Mpa)	0.05
Outlet pressure (Mpa)	0.1-0.35
Motor power (Kw)	7.5
Weight (Kg)	1200
Outline dimension (mm)	153011501500

Application area:
* 1Warm milk separation
* 2 Cold milk separation
* 3 Whey separation
* 4 Buttermilk separation
* 5 Milk and whey clarification
* 6 Milk standardisation

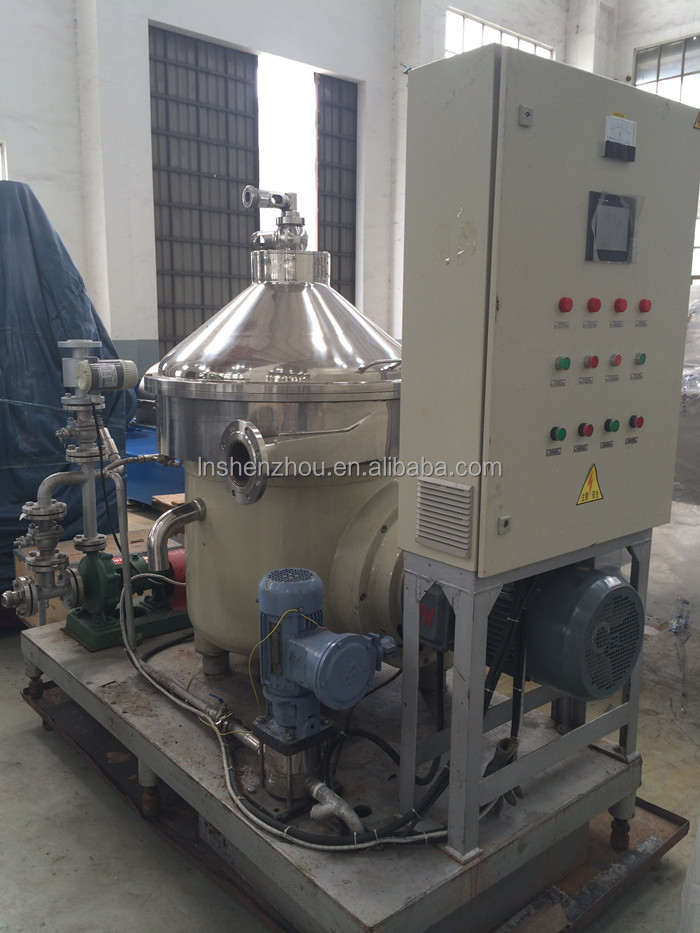

This series cream separator come complete with control unit, electric motor, inlet and outlet devices, set of erosion-protective parts, illuminated sight glass box for light phase outlet, vibration switch, base plate, set of tools and standard set of spares

Working Principle

How does Disc Separator work?
The disc separator is in vertical structure. The drum is mounted on the upper end of the vertical axis, which is driven by a motor and rotates at a high speed. There is a set of disc - shaped parts that are stacked together in the drum, with a small gap among them. When the suspension (or emulsion), which is pumped into the drum by feeding tube located in the center of the drum, pass through the gap between the discs, solid particles (or droplets) would settle down to form sediment (or liquid layer) on the disc by centrifuge force, and then the sediment slid along the surface of the disc and separated from the disc to accumulate in the largest diameter of the drum. At last, the separated liquid discharged from the outlet. The disc is utilized to shorten the settling distance of solid particles or droplets, enlarge the settlement area of the drum, and improve the production capacity of the separator. The solids accumulated in the drum are removed from the drum by manual after the machine stop, or out of the drum in the case of a dregs machine without stopping.

Main Structure

Powerful Motor provide power through the thermal coupling to drive drum in high-speed rotating around the main axis. And the liquid material is carried by feeding pipe located in the upper center into the bottom of the drum, and then led in the porthole below the disc and driven to the drum wall. Under centrifugal force, solid- liquid-liquid do the below motion to complete thorough separation:solid phrase, which is heavier than liquid, would sink into the inner wall of the drum for sediment formation; light liquid flow in centripetal pump, and be discharged by liquid outlet; The heavy liquid tends to the drum wall along the cone inside the disc, and then flows upward through through the heavy liquid concentric pump to be discharge from the outlet.

Due to the double-conical design of the inner cavity of the drum, it can compress the slag and increase its concentration.
Besides, some nozzles is mounted around the drum to spray slurry sediment, whose number and aperture are determined on the properties of the suspension, the degree of concentration and the amount of treatment.
In order to improve the slag concentration, recovery device is configured with this disc separator to the discharged sediment for reuse. For the solid concentration of the slag can be increased by 5~20 times than that of the feeding materials.
The processing capacity of the separator is up to 30t/h, which is suitable for suspension with solid phrase in diameter of 0.1~100 microns and concentration less than 10% (maximum to 25%).

Company Profile

Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!

Packing & Delivery

wooden case

FAQ

1. who are we?
We are based in Liaoning, China, start from 1980 sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine

4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
