Clients can greatly benefit from the product for its stable performance, long functional life.
Products Details
  • Feedback
  • With strong R&D strength and production capabilities, Shenzhou now has become a professional manufacturer and reliable supplier in the industry. All our products including separator are manufactured based on the strict quality management system and international standards. separator Today, Shenzhou ranks the top as a professional and experienced supplier in the industry. We can design, develop, manufacture, and sell different series of products on our own combining the efforts and wisdom of all our staff. Also, we are responsible for offering a wide range of services for customers including technical support and prompt Q&A services. You may discover more about our new product separator and our company by directly contacting us.By means of contrast, separator presents a set of features such as .

    With the help of our technicians and workers,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has finally developed the quality-guaranteed product. The product is called Shenzhou Large Capacity Rock Salt Separation Double Stage Pusher Centrifuge. The Shenzhou Large Capacity Rock Salt Separation Double Stage Pusher Centrifuge launched by the company are made using the company's newly developed advanced technology, which perfectly solves the long-standing pain points of the industry. In order to be able to successfully meet the challenges,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will continue to forge ahead on the road of technological innovation. In addition, it will also work hard to analyze the changing needs of the market and create better products for customers according to their needs.

    Place of Origin:ChinaType:Separation
    Condition:NewVideo outgoing-inspection:Provided
    Machinery Test Report:ProvidedMarketing Type:Hot product
    Warranty of core components:1 YearCore Components:Motor
    Brand Name:ShenzhouVoltage:380V,50HZ,3Phase
    Power:modelWeight:4000
    Dimension(L*W*H):modelWarranty:1 Year
    Key Selling Points:Easy to OperateApplicable Industries:Salt industry
    Showroom Location:NoneAfter-sales Service Provided:Video technical support
    Name:2stage Pusher CentrifugeOPERATION:Automatic Continuous
    Application:Solid Liquid Separation

    Product Description

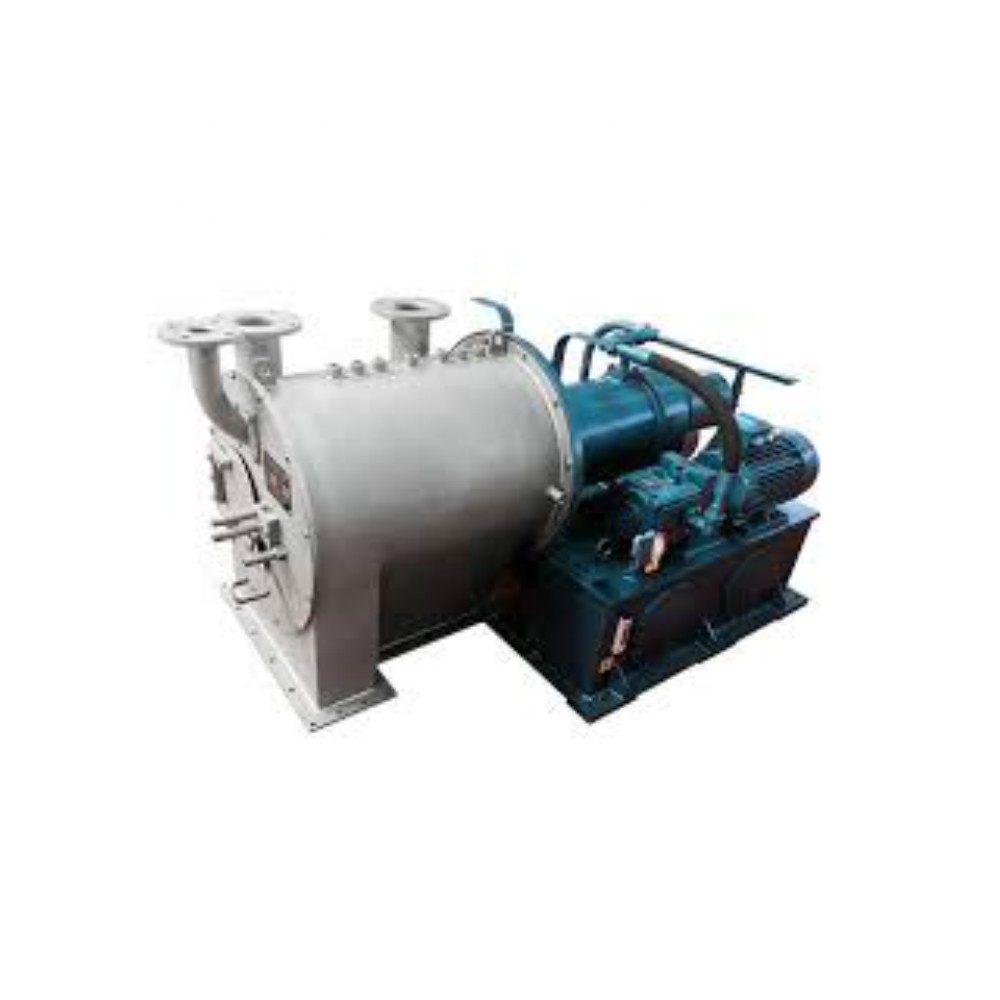

    Shenzhou Large Capacity Rock Salt Separation Double Stage Pusher Centrifuge
    Application: Sea salt and mineral salt dewatering
    Advantages: Full automatic, large capacity
    Bearing: Famous brand, such as SKF
    MOC: SS316, DSS2205
    Separation effection: Moisture in the cake less than 4%


    It is suitable for the material with solid content 40-60%,particle size larger than 0.15mm,widely used in the mineral salt ,sea salt and chemical field as CuSO4.5H2O,etc.

    Two-stage Pusher Centrifuge is a kind of perforated basket centrifuge, both continuous and effective. The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket. Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket .The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed. Afterwards, the cake is continuously discharged out of the basket.
    In case of high purity for the solid product, the effective washing can be carried out in the centrifuge. If necessary, the
    washing agent and the mother-liquor can be discharged separately.

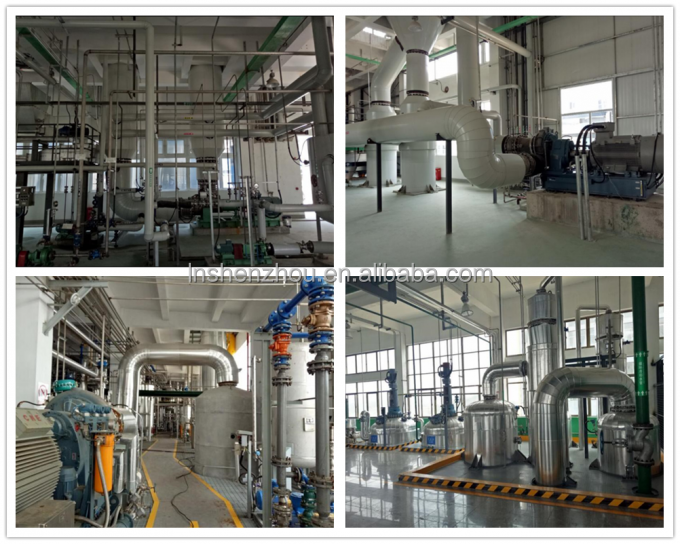

    Salt Production Line


    ·Crushing and Washing
    The 'four washings and three crushings' production process represents the highest level of refined salt produced by the Chinese crushing method, of which four washes are:
    ——One-stage spiral washing
    ——Secondary spiral washing
    ——Vertical mixing and washing
    - countercurrent washing
    Three powder is:
    - primary crush
    - wet crushing
    - dry crushing
    Through the reasonable combination of wet pulverization and dry pulverization, various washing methods are matched to each other to ensure that the product salt reaches a high quality.

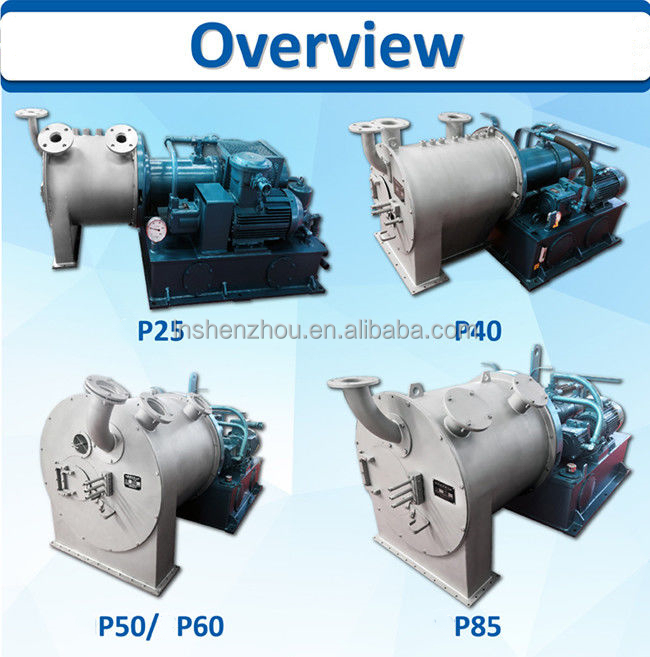

    Specification
    Domestic Model
    P-40
    P-50
    P-60
    P-85
    P-100
    International Model
    HR400
    HR500
    HR630
    HR850
    HR1000
    Basket
    Diameter (mm)
    290/360
    438/500
    560/630
    740/828
    920/1000
    Length Of Filtering Area (mm)
    180/180
    180/180
    240/240
    300/300
    310/350
    Max Solid Loading Capacity (kg)
    25
    80
    80
    160
    300
    Max. Speed (r/min)
    2500
    2000
    1900
    1500
    1300
    Max.G.Force
    1015/1260
    981/1120
    1132/2174
    932/1043
    871/946
    Length of Stroke (mm)
    50
    50
    50
    50
    50
    Pushing Times
    30~80
    40-80
    40-108
    30-108
    30-80
    Motor
    Main Motor
    11~18.5KW
    37~55 KW
    45~75KW
    55~90KW
    75~132KW
    Oil Motor
    4~7.5 KW
    15~30Kw
    22~37kw
    37~55 KW
    45~75 KW
    Working Oil Pressure MPa
    2.5
    2
    8
    8
    8
    Net Weight (kg)
    2480
    4050
    4260
    6500
    9000
    Working Weight (kg)
    3000
    4500
    4800
    7000
    9800
    Elastic Weight (kg)
    800
    4000
    4200
    6000
    8000
    Feeding Capacity t/h
    0.5~9
    1~20
    16~40
    12~65
    16~75
    Solid Water Content After Separation ( Dehydration)
    2.5 % ( sea salt )
    3 % ( sea salt )
    4 % ( sea salt )

    4-5 % ( sea salt )
    Details Images
    Feature:
    Continuous operation with large capacity
    Ideal washing effect
    Low moisture content of cake
    Less solid content loss and crystal broken
    Suitable for abrasion filtering cake
    Typical separation
    1.Chemical Industry: gypsum, thiamin, salt, ferric sulfate, boric acid, borax, rubber additive, dye, heavy oil and other chemical products.
    2.Food industry: kitchen salt, sodium glutamate, food additive, Chemical seasonings, sugar
    3.Pharmaceutical:Extraction of vitamin, biotic, traditional Chinese medicine and other various drugs
    4.Mine and Metallurgy: Copper, zinc, minerals, and metal refining
    5. Environmental Protection: with acid discharge, pure water sludge and sewage sludge, etc

    Application


    This type of centrifuge is well used to separate suspension with its solid size is over 0.1mm and density is over 30%.It can be used in chemical,light,pharmacy and food industry to produce sodium chloride ammonium fluoride ammonium bicarbonate, sodium sulphate, urea, caffeine, polyethylene, polystyrene, oxalate, nitrate.
    Product packaging
    Company Profile
    Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
    FAQ
    1. who are we?
    We are based in Liaoning, China, start from 2018,sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine

    4. why should you buy from us not from other suppliers?
    We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery;
    Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
    Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
    Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
