Shenzhou - Dairy Milk Production Line,Fresh Milk Processing Plant,Dairy Processing Machine Production Line equipment

To keep our company competitive in the industry, we have been continuously improving our capabilities in technology innovation. We mainly apply the upgraded technology to the manufacturing process of Dairy Milk Production Line,Fresh Milk Processing Plant,Dairy Processing Machine.It has a broader application ranges now and can be seen mainly in the field(s) of Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge.

SEND INQUIRY NOW

Model Number:: LYNN

Type:: Other

Processing Line

Filling Machine

Silo

Application fields:: Dairy products factory

Other

shipping:: Support Sea freight · Land freight

Customization:: Customized logo (Min. Order: 1 Units) , Customized packaging (Min. Order: 1 Units) , Graphic customization (Min. Order: 1 Units)

SEND INQUIRY NOW

Products Details

Everyone needs Dairy Milk Production Line,Fresh Milk Processing Plant,Dairy Processing Machine, and we can offer you the best quality product of the world. Our technical team has many years of experience in this field and can provide professional opinions, suggestions and solutions experience. When customers encounter technical problems, they can provide door-to-door service. We offer a range of design services to help you get exactly what you want.

Applicable Industries:	Garment Shops, Food & Beverage Factory, Farms, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Other	Showroom Location:	None
Video outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product 2022	Warranty of core components:	1 Year
Core Components:	PLC, Motor	Condition:	New
Place of Origin:	China	Brand Name:	LYSZ
Voltage:	220V/380V	Power:	22 KW
Weight:	2800 KG	Dimension(LWH):	2200mm2100mm2200mm
Warranty:	1 Year	Key Selling Points:	Long Service Life
Material:	Stainless Steel 304/316L	Certification:	CE

Product Description

Dairy Milk Production Line,Fresh Milk Processing Plant,Dairy Processing Machine

Remark for technics
1. Milk receiving technics
Fresh milk is collected from milk tank car mostly, a small parts is from leglin. The fresh be tested by density, acidity,
temperature, fat. The certified milk will be filtrate and measured, then be stored in temporary tank. The milk cooling down by PHE
to storage tank or next stage.
2 milk pre-processing technics
a. For whole milk powder: milk from storage tank, after measured to temporary tank. Be transferred to condense stage by pump.
b. For whole sugar powder: Milk from storage tank, be transferred to PHE by pump after measure. Heating to 45-60 ℃ and be feed to
mixing tank. Dissolving sugar and feed to sugar tank. Sugar syrup mixing with milk in mixing tank, and be feed to temporary tank.
c. For whole mixing powder: Milk from storage tank, be transferred to PHE by pump after measure. Heating to 45-60 ℃ and be feed to
mixing tank. Dissolving additive and feed to temporary tank. mixing with milk in tank, after homogenizer in 15Mpa pressure be feed
to temporary tank.
3 condense technics
Transfer milk(12%) to balance tank of evaporator, heating and to 2ed effective heating room,
then go to 1st effective heating room. The sterilizing temperature is 86~94℃, keeping time for 24 seconds, then go to first
effective evaporate room (temperature is 68-70℃) , transferred by pump to second effective room( temperature is 46-50℃). The
consistency could be 45%.
4 Spray drying technics
Condensed milk(45%) be transferd by high pressure pump to drying tower. The milk be sprayed to mist state and meet the hot
wind(160~170℃),become powder quickly and flow down to cone bottom of the tower, then go to flow bed dryer and mixing with
lecithin(1%), the small powder will be big and drying, cooling down to 30~35℃ and in powder tank.
5 packing technics
The milk powder be feeded to packing machine by air, after packing in bags and transferred
by conveyer to storage room. Form milk to powder, all of them in closed equipment, So
without any pollution.
6 CIP system
CIP is controlled by PLC, the liquid level,temperature,acidity is monitored. All
equipment ,piping,valves could by clear by CIP. The evaporator clear by themselves system.
Drying Tower cleared by pressure pump and warm water.
5.7 Control system
All line is controlled by computer with PLC. The main data is flux, temperature and liquid level. All control is done in control
room.

Specification

item	value
Applicable Industries	Garment Shops, Food & Beverage Factory, Farms, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Other
After Warranty Service	Online support, Field maintenance and repair service
Local Service Location	None
Showroom Location	None
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Ordinary Product
Warranty of core components	1 Year
Core Components	PLC, Motor
Condition	New
Place of Origin	China
Brand Name	LIAOYANG SHENZHOU
Voltage	220V/380V
Power	22 KW
Weight	2800KG
Dimension(LWH)	2200mm2100mm2200mm
Certification	CE
Warranty	1 Year
	Field maintenance and repair service
Key Selling Points	Long Service Life
Material	Stainless Steel 304/316L

Details Images

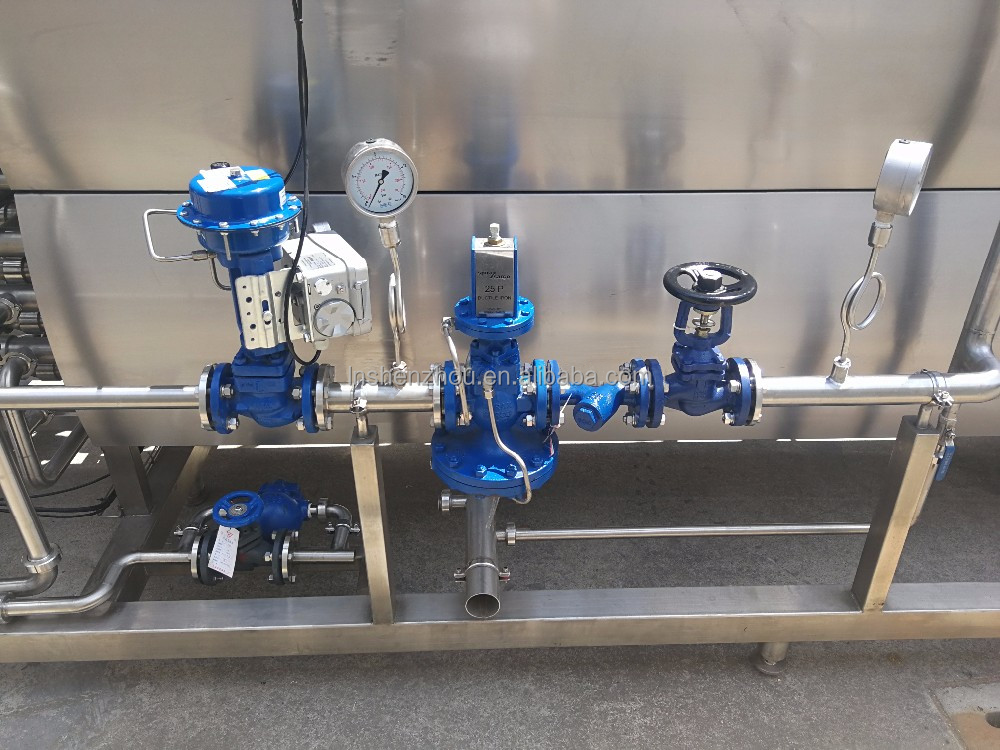

Steam Control system

Steam Control System is an inportant part of Pasterurizer, It contains steam rate adjustable valve, plunger valve, steam pressure
reducing valve, steam trap and steam filter. A good steam control system can guarantee the machine working stable. All of the
steam valves are come from Spirax Sarco (England).

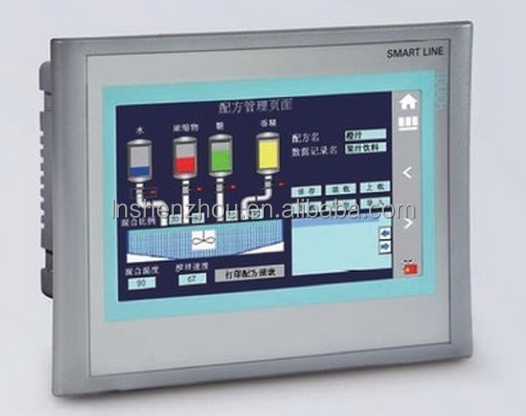

Control Panel

Created for operators of every experience level, our integrated automation software is connected to a 10.1" touch screen
interface, which gives operators an overview of the pasteurizer, including temperatures, pressures etc. Its performance is
displayed in real time and, if there is a fault, the operator receives an immediate alert. If the automation solution is
integrated in the line, the whole line can be viewed from one interface.

Divert System

The temperature of the product is verified both before and after the holding cell. Product can only continue out of the
pasteurizer if it has been heated to the right temperature and held for the right length of time in the holding cell. If this is
not the case, a signal is automatically sent to the divert valve, and the product is diverted back to the balance tank for
recirculation.

Smart Balance Tank

A smart balance tank equipped with CIP washing ball, high level/low level transmitter. When the product at high level in the
balance tank, the feeding pump will automaticlly stop. When the product at low level in the balance tank, the product pump will
automaticlly stop.

Packing & Delivery

wooden case

Company Profile

Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
