    Shenzhou | OEM chemical decanting equipment wholesale suppliers

    Several tests were performed at each stage of production to ensure consistency in product quality.
    SEND INQUIRY NOW
    Products Details
  • Feedback

    • Set up years ago, Shenzhou is a professional manufacturer and also a supplier with strong capabilities in production, design, and R&D. chemical decanting equipment If you are interested in our new product chemical decanting equipment and others, welcome you to contact us.Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will take the whole responsibility if any damages occurred to chemical decanting equipment during transportation.

    Buy top of the line quality of Separating Type High Speed Solid Liquid Liquid 3 Phase Tubular Centrifugal Separator Machine at low prices from some of the best manufacturers of the products. It is designed to meet the industry standard. In the future, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will make full use of the wisdom of our talents and update our technologies to keep up with the trends, to make our dream of being a world-famous company come true.

    Place of Origin:ChinaType:Centrifuge
    Condition:NewVideo outgoing-inspection:Provided
    Machinery Test Report:ProvidedMarketing Type:New Product 2021
    Warranty of core components:1 YearCore Components:PLC, Engine, Motor
    Brand Name:LYSZVoltage:Depend on model choosing
    Power:Depend on model choosingWeight:450
    Dimension(L*W*H):Depend on model choosingWarranty:1 Year
    Key Selling Points:Easy to OperateApplicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
    Showroom Location:None

    Product Description
    Tubular centrifuge is a kind of fine separation equipment. It is specialized for solid-liquid separation and liquid-liquid-solid separation for small solid particles and similar specific gravity difference. It is the equipment selected by food, pharmaceutical, chemical and biological products industries.
    Classification of tubular centrifuges:

    Our tubular centrifuges have different types, one is GQ two-phase solid-liquid separation model, i.e. clarification type; the other is GF three-phase solid-liquid-liquid separation model, i.e. separation type.

    The selection of model should be based on the actual material characteristics.
    Working Principle:
    The tubular centrifuge is composed of sliding bearing assembly, drum assembly, liquid collecting plate assembly, machine head assembly, body, etc. The power of the motor is transmitted to the belt pulley and the main shaft on the machine head through the belt and pressure pulley, so as to drive the drum to rotate around its own axis at high speed, forming a strong centrifugal force field on the inner wall of the drum. The material is injected into the drum through the bottom feed port, and under the strong centrifugal force, the material liquid is forced to move in layers. The light liquid is in the center of the drum, flows to the upper part of the drum, and is recovered through the liquid collecting tray; the heavy solid is thrown on the inner wall of the drum, and is manually discharged after shutdown.

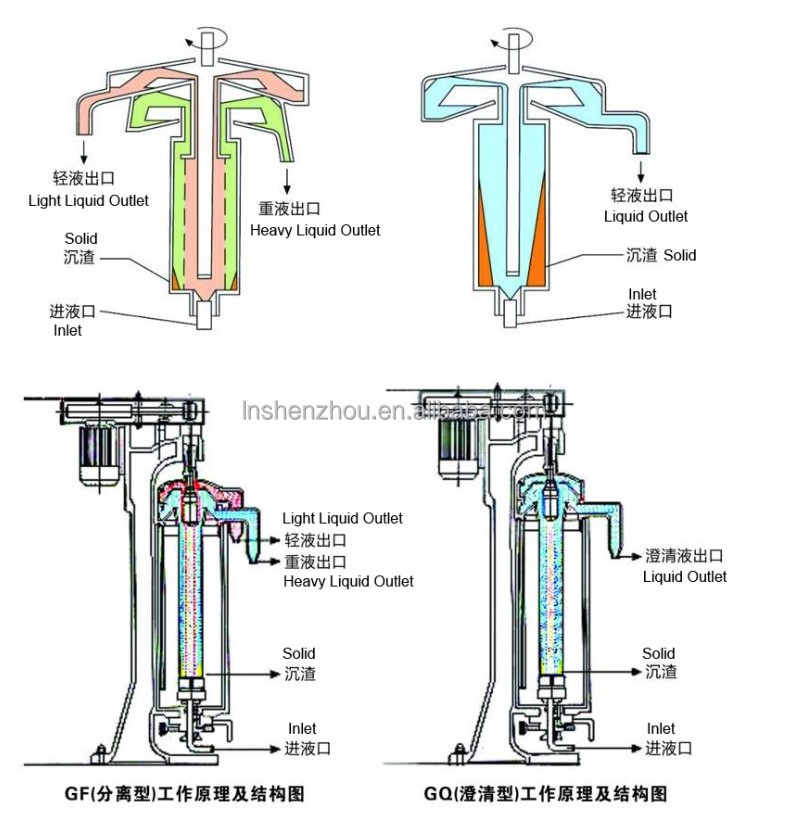

    Two Different Types of Separation Structure Chart:
    Application Field
    GQ Model-Two Phase: Used to separate all kinds of suspensions which are difficult to separate. It is especially suitable for
    solid-liquid separation with small concentration, high viscosity, fine solid particles and small solid-liquid gravity difference.
    For example, the clarification of various pharmaceutical solutions, such as glucose chlorhexidine, malic acid, various oral
    liquids, and Rhizoma Menispermi clarification; coal tar, graphite slag removal, protein, algae belt, pectin extraction; molasses refining; blood separation, vaccine mycelium, various glucose sedimentation, paint, dye, resin, rubber solution purification, Traditional Chinese medicine: separation and clarification of plant extract.
    GF Model-Three Phase: Used for separation of various kinds of emulsions, especially for liquid-liquid separation with little
    difference in weight between two phases and liquid-liquid-solid separation containing a small amount of impurities. For example, transformer oil, turbine oil, lubricating oil, fuel oil, dye, grease, saponification. Purification of various micro powder materials various oral and pharmaceutical solutions, separation of plasma biopharmaceuticals and extraction of plasma from animal blood, purification of edible oil, caipan soaking solution, tea polyphenols, soybean phospholipid concentrate, oil-water separation and sewage treatment, etc.
    Product Parameters
    Model
    GF/Q45
    GF/Q75
    GF/Q105
    GQY125
    GQ150
    Bowl diameter
    45 mm
    75 mm
    105 mm
    125 mm
    142mm
    Effective height in bowl
    280 mm
    430 mm
    730 mm
    735 mm
    700 mm
    Settling volume in bowl
    0.45 L
    2 L
    5.5 L
    7.4 L
    10 L
    Bowl speed
    0-28000 r/min
    16770 r/min
    16000 r/min
    15000 r/min
    14000 r/min
    Max separation factors
    0-19800
    20000
    15025
    15500
    15570
    Nozzle diameter
    2.3 mm
    2.3.5 mm
    4.6.8.10 mm
    6.8.10 mm
    8.10.12 mm
    Inlet pressure
    >0.05 Mpa
    >0.05 Mpa
    >0.05 Mpa
    >0.05 Mpa
    >0.05 Mpa
    Throughput
    ≈100 kg/h
    ≈500 kg/h
    ≈1200 kg/h
    ≈2000 kg/h
    ≈3000 kg/h
    Motor type
    Series motor
    Y90S-2
    Y90S-2
    Y90L-2
    Y100L-2
    Motor power
    0.6 kw
    1.5kw
    2.2 kw
    3.0 kw
    3.0 kw
    Motor speed
    0-4500 r/min
    2840 r/min
    2880 r/min
    2880 r/min
    2880 r/min
    Size
    580*650*750mm
    800*400*1200 mm
    800*700*1400 mm
    850*500*1600 mm
    800*700*1600 mm
    Weight
    120Kg
    300Kg
    400Kg
    610Kg
    520Kg

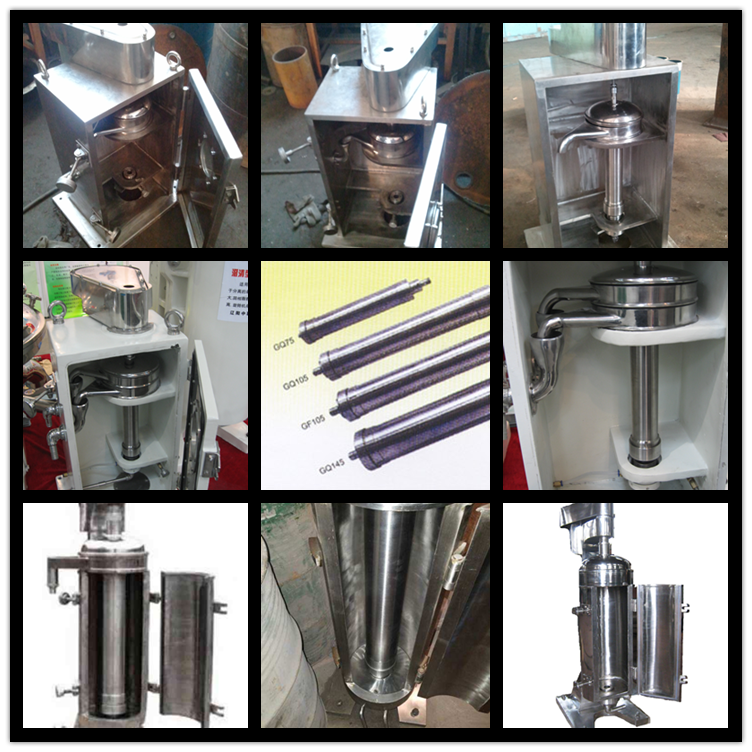

    Detailed Images
    Packing & Delivery
    wooden case
