Shenzhou | Shenzhou mini centrifuge makers

The performance of the product is assessed by third-party professional testing.

SEND INQUIRY NOW

Products Details

Relying on advanced technology, excellent production capabilities, and perfect service, Shenzhou takes the lead in the industry now and spreads our Shenzhou all over the world. Together with our products, our services are also supplied to be the highest-level. mini centrifuge We have been investing a lot in the product R&D, which turns out to be effective that we have developed mini centrifuge. Relying on our innovative and hard-working staff, we guarantee that we offer customers the best products, the most favorable prices, and the most comprehensive services as well. Welcome to contact us if you have any questions.It receives a double reputation from customers and the market.

We know what you need therefore we bring you sugar cane juice extractor machine/separator orange juice machine material for the manufacturing and processing of daily used product in home, offices and industries.Our is pure and high quality providing best results and longer support throughout your use.Moreover We can offer you exquisite quality, state of the art services. It's designed out of the needs of our customers. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will introduce more advanced and innovative technology, and will gather more professional talents together.

Place of Origin:	China	Type:	Separating Plant
Condition:	New	Video outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot product
Warranty of core components:	1 Year	Core Components:	Bearing, Motor
Brand Name:	Shenzhou	Voltage:	220v/300v/380v/optional
Power:	Model	Weight:	variable
Dimension(LWH):	variable	Warranty:	1 Year
Key Selling Points:	Easy to Operate	Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops, Advertising Company, Pharmaceutical plant, Chemical plant
Showroom Location:	None	Material:	Stainless Sheel
After-sales Service Provided:	Video technical support, Online support	After Warranty Service:	Video technical support, Online support
Local Service Location:	None	Certification:	CE BV ISO

Product Description

Sugar Cane Juice Separator Disc Stack Centrifuge In Solid - Liquid Separation

Factory use sugar cane juice separator disc stack centrifuge in solid-liquid separation

Description

During the manufacturing of wine, fruit wine and medicated wine, the clarification process plays an important role. Timely and effective clarification is decisive to the wine flavor and freshness. In the long run, therefore, it will determine the final
quality and market price of wines.

The separators made by SZ can meet the requirements in the above industries, because the individualized process control can realize maximized processing efficiency during the processing.

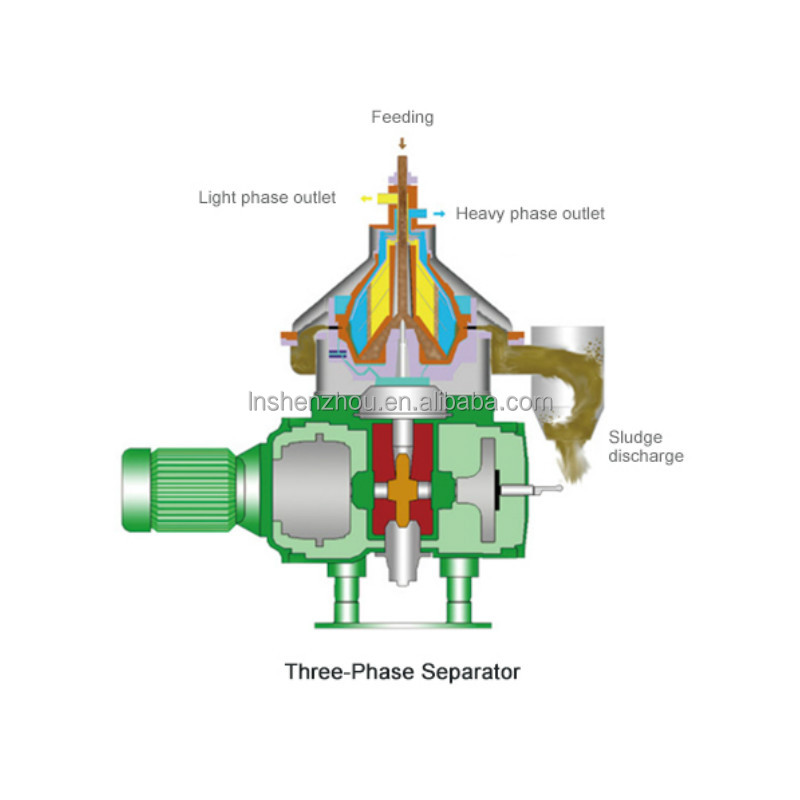

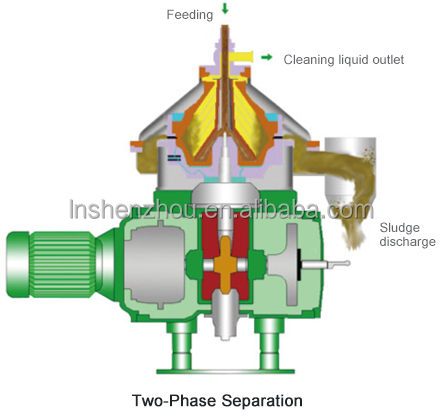

Main Structure

Powerful Motor provide power through the thermal coupling to drive drum in high-speed rotating around the main axis. And the liquid material is carried by feeding pipe located in the upper center into the bottom of the drum, and then led in the porthole below the disc and driven to the drum wall. Under centrifugal force, solid- liquid-liquid do the below motion to complete thorough separation:solid phrase, which is heavier than liquid, would sink into the inner wall of the drum for sediment formation; light liquid flow in centripetal pump, and be discharged by liquid outlet; The heavy liquid tends to the drum wall along the cone inside the disc, and then flows upward through through the heavy liquid concentric pump to be discharge from the outlet.

Due to the double-conical design of the inner cavity of the drum, it can compress the slag and increase its concentration.
Besides, some nozzles is mounted around the drum to spray slurry sediment, whose number and aperture are determined on the properties of the suspension, the degree of concentration and the amount of treatment.
In order to improve the slag concentration, recovery device is configured with this disc separator to the discharged sediment for reuse. For the solid concentration of the slag can be increased by 5~20 times than that of the feeding materials.
The processing capacity of the separator is up to 30t/h, which is suitable for suspension with solid phrase in diameter of 0.1~100 microns and concentration less than 10% (maximum to 25%).

This special design separator has the full automatic control box which used for safety protection and equips and also been equipped with advanced automatic vibration tester which can view vibrating value at any time. We can make separating and discharging to the best affection from regulating separation parameter directly at the screen.

1. Continuous feeding

2. High separation factor

3. Automatic residue discharging

4. Concise bowl design without frequent washing

5. Hydraulic coupling driving with longer service

6. PLC system automatic control

Specification

Model	Treatment capacity (L/H)	Inlet pressure (Mpa)	Outlet pressure (Mpa)	Motor power (Kw)	Weight(Kg)	Outline dimension (mm)
SZBY211	2000-5000	0.05	0.1-0.4	15	1600	180012001750
SZBY214	3000-10000	0.1	0.1-0.4	22	2300	195015501960
SZBY616	5000-15000	0.2	0.1-0.4	45	3400	238017302060

Advantage

1. Operating stability

2. Completely sealed up of the inlet and outlet system

3. Perfect separating affection

Company Profile

Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!

Packing & Delivery

wooden case

Our philosophies of development
* Based on continuous strengthen oursleves with full of innovative ideas
* 5% of sales revenue is allocated into intensive research
* 8% of workforce is allocated into development activity
* Plenty of patent and good quality new products

FAQ

1. who are we?
We are based in Liaoning, China, start from 1980 sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine

4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian

Our service

1. Professional Engineer wil recommend you the most suitable model according to your requirement.

2. Supply reference process flow chart .

3. Supply on-site installation and operation test

4. Integration for control system and process

5. Customized size and structure

6. 12Months guarantee period from machine arriving date.

7. Sufficient spare parts in stock are available .

8. Technicians are availabled for overseas service.

9. 24 hours technical consultation .

10. The customer could get trained by our experienced tecnician.

11. Routine tracing will be done timely.

12. Guide you do the normal maintenance.

13. Suggestions and any comments &reflection from customer would be treated in priority.

14. Markting team will visiting if you need.
