Shenzhou - waste water oil separator/coalescer oil water separator Centrifuge & Separator

The successful research and development of the waste water oil separator/coalescer oil water separator not only deeply analyzes the actual needs of the target customers, but also combines its own superior resources.It can be extensively used for Separation Equipment.

SEND INQUIRY NOW

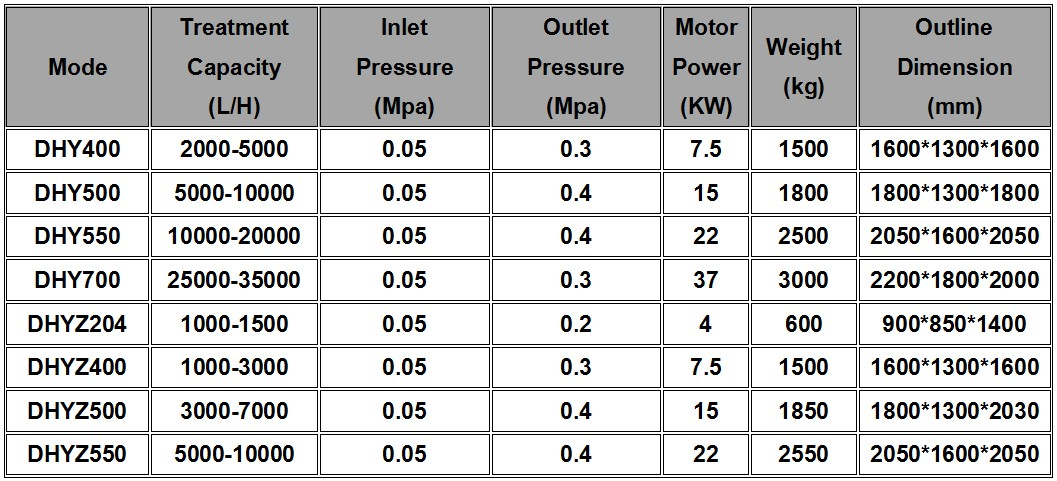

Model Number:: DHY400

shipping:: Support Sea freight · Land freight

Customization:: Customized logo (Min. Order: 1 Units) , Customized packaging (Min. Order: 1 Units) , Graphic customization (Min. Order: 1 Units)

SEND INQUIRY NOW

Products Details

We are specialized in manufacturing waste water oil separator/coalescer oil water separator, etc. for over many years. It is delicately designed to comply with the industry standard. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd are full of passion for what we are doing now. Nurtured by the corporate culture of unity and integrity, every employee is optimistic and constantly looking for more and better methods to manufacture the products. Our vision is to create benefits for our partners and customers.

Place of Origin:	Liaoning, China	Type:	Centrifuge
Product Type:	Soap	Condition:	New
Video outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2020	Warranty of core components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump	Brand Name:	LYSZ
Voltage:	220V/380V/customized	Power:	7.5KW
Weight:	1500	Dimension(LWH):	160013001600mm
Warranty:	1 Year	Key Selling Points:	High Productivity
Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company	Showroom Location:	None

Product Description

Inside the drum is a set of disc-shaped parts, which are nested and folded together. There is a small gap between the discs. The suspension (or emulsion) is added to the drum by the feed pipe at the center of the drum. When the suspension (or emulsion) flows through the gap between the discs, the solid particles (or droplets) settle on the discs under the action of the centrifuge to form sediment (or liquid layer). The sediment slides along the surface of the disc and separates from the disc and accumulates in the place with the largest inner diameter of the drum.

The separated liquid is discharged from the outlet of the drum. The function of the disc is to shorten the settling distance of solid particles (or droplets) and expand the settling area of the drum. The disc installed in the drum greatly improves the production capacity of the separator. The solid accumulated in the drum shall be removed manually after the separator is shut down, or discharged from the drum without shut down through the slag removal mechanism.

There are two operations of disc centrifuge:

1. Liquid solid separation (i.e. separation of bottom concentration suspension), which is called clarification operation, that is two-phase separation.
2. Liquid-liquid separation (or liquid-liquid-solid) separation (i.e., the separation of emulsion) is called separation operation,
that is three-phase separation.

The disc separator is specially used for the two-phase and three- phase separation. The two-phase separation is to separate the suspended solid from liquid or two liquids which have the different specific gravity and are immiscible. The three-phase separation is to separate the two immiscible liquid phases and a phase of solid at the same time.
This automatic discharging separator has the traits as high rotating speed, operating stability, completely sealed up of the
inlet and outlet system, lower noise and fine separating effect. Centripetal pump system designed by our professional designer has the traits as stable outlet pressure, large regulating sphere and operating easily. It has professional automatic domination case with safety protection device and advanced automatic vibrating testing instrument which can view vibrating number at any time. We can make the best separating and discharging by adjusting separating parameter directly at the screen.

Title goes here.

1.) High speed, stable operation, all import and export systems are sealed, noise is low, and separation effect is good.
2.) The professionally designed centripetal pump system has stable output pressure, large adjustment range and convenientoperation.
3.) The drum has a special structure, which has a large processing capacity and good degreasing and clarifying effect.
4.) Professionally designed automatic control cabinet, can observe the vibration value of the equipment at any time.

The materials are transmitted to the heart parts of this machine, the inside of the drum. Under the action of strong centrifugal force, the materials (mixed liquid) pass through the intervals of a group of disk pieces bundles, and then, regarding the neutral hole of the disk pieces as the interface, the liquid with higher density (heavy phase) moves outward the neutral hole along the disk pieces, among which, the heavy residues accumulate in the sediment area, and the heavy phase flows to the large centripetal pump. The liquid with lower density (light phase) moves inward and upward along the disk pieces wall and gathers in the small centripetal pump. The heavy phase and light phase output by the large centripetal pump and small centripetal pump respectively.

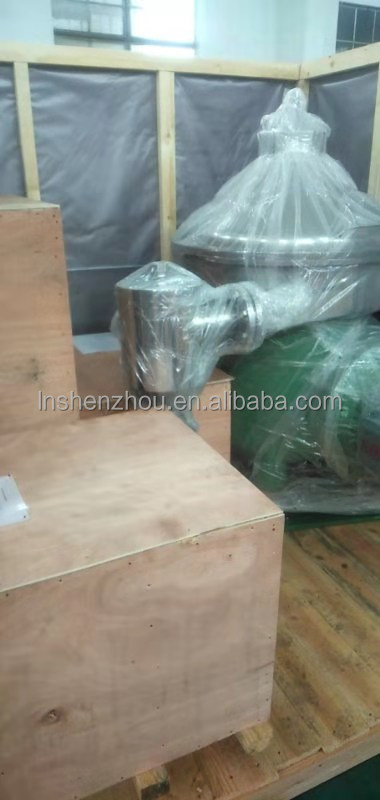

Packing & Delivery

wooden case

Company Profile

Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!

FAQ

1. who are we?
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine

4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
