GF 105 Tubular centrifuge for coconut oil separation delivery to Vietnam.
High Speed Tubular Centrifuge, also called Tubular Bowl Separator, is a kind of fine separation equipment suitable for suspensions with thin concentration, fine particles, and small density difference solid-liquid separation, or liquid-liquid-solid separation. It is indispensable equipment for pharmaceutical, food, chemical, biological product, fermentation broth, beverages, blood products and other industries. High Speed Tubular Centrifuge working principle is that materials with different specific gravity are subject to different centrifugal forces when rotating at high speed, so as to achieve the purpose of separation.
The GQ type is mainly used for a variety of difficult-to-separate suspensions in the separation industry, and is especially suitable for the separation of solid-liquid two-phase separations with thin concentration, fine particles and small specific gravity differences.
The GF type is mainly used for various difficult-to-separate suspensions in the separation industry, and is especially suitable for liquid-liquid separation with small specific gravity differences and liquid-liquid-solid three-phase separation with a small amount of impurities.

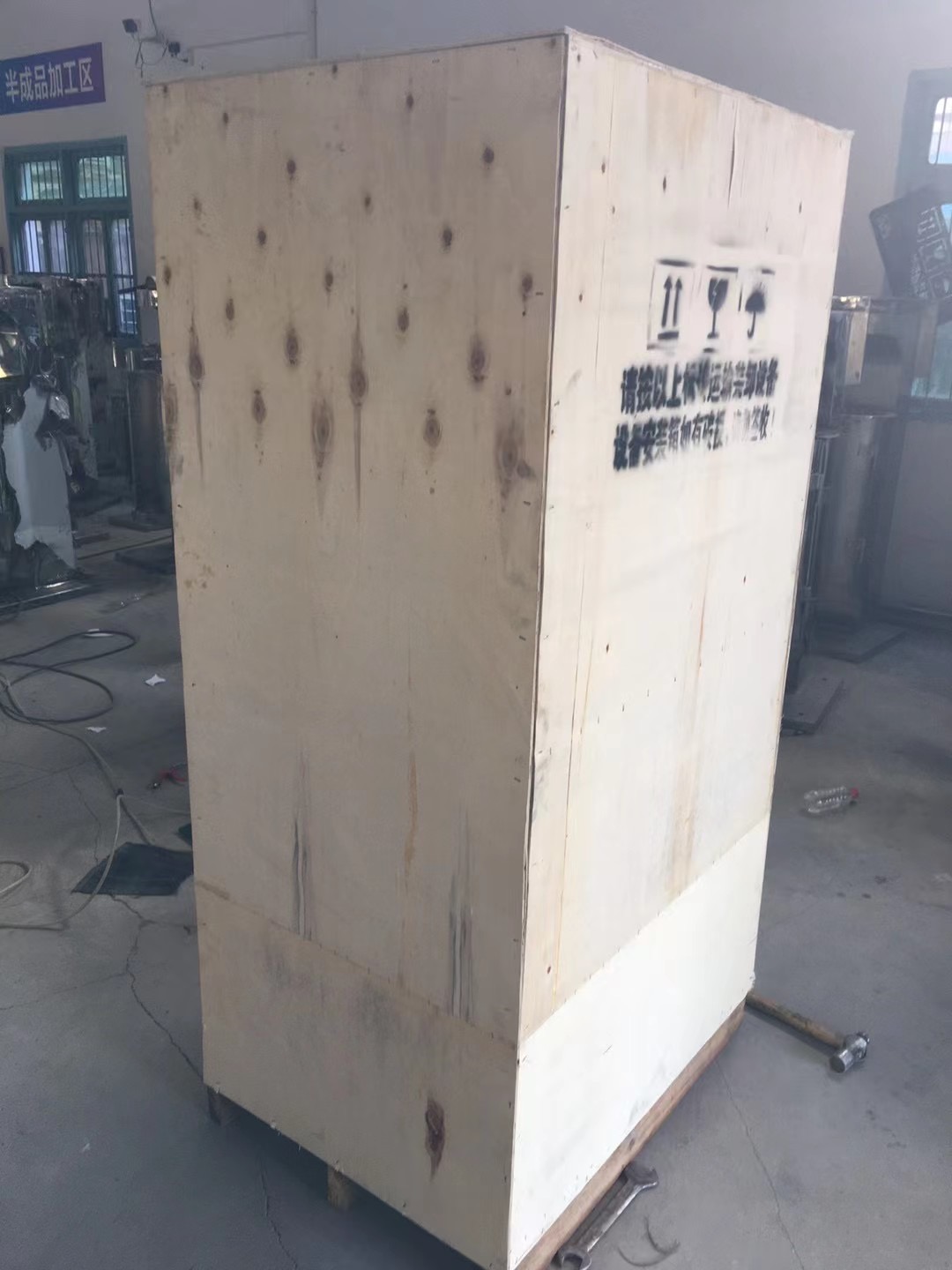

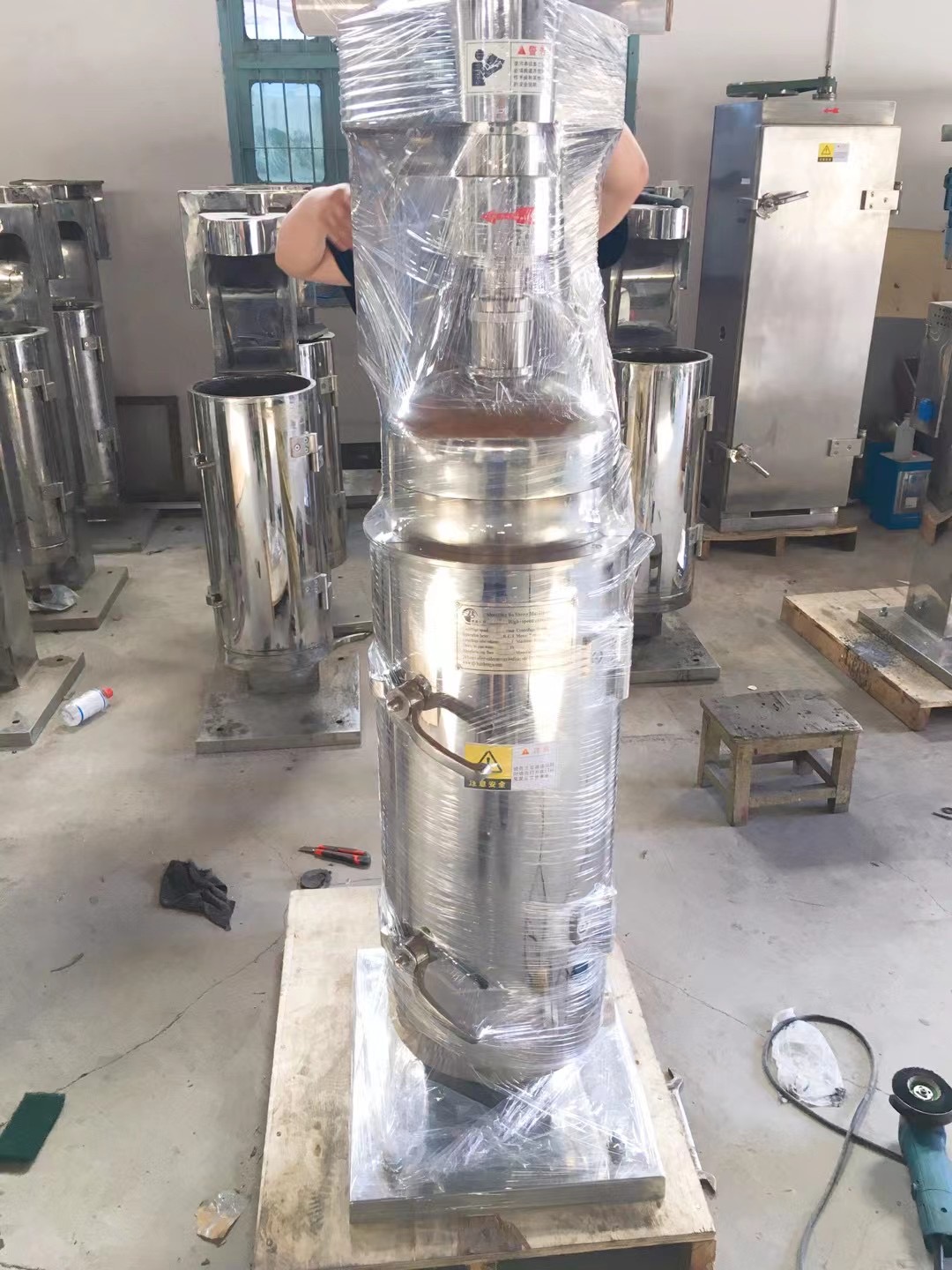

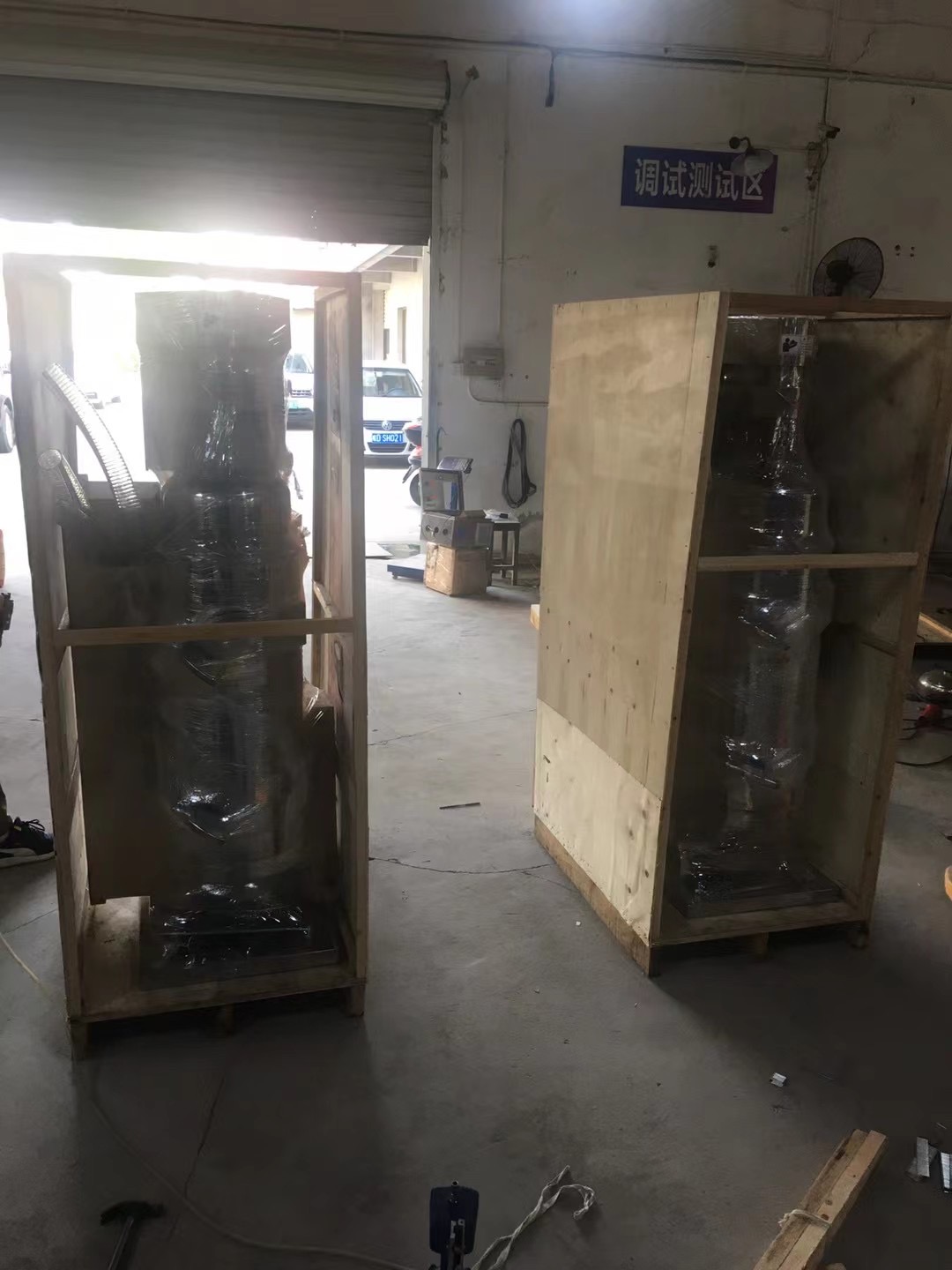

Our GF105 Tubular centrifuge specially used for remove coconut milk and impurities from coconut oil,get clear coconut oil.This set will delivery to Vietnam next week for coconut oil separation too.

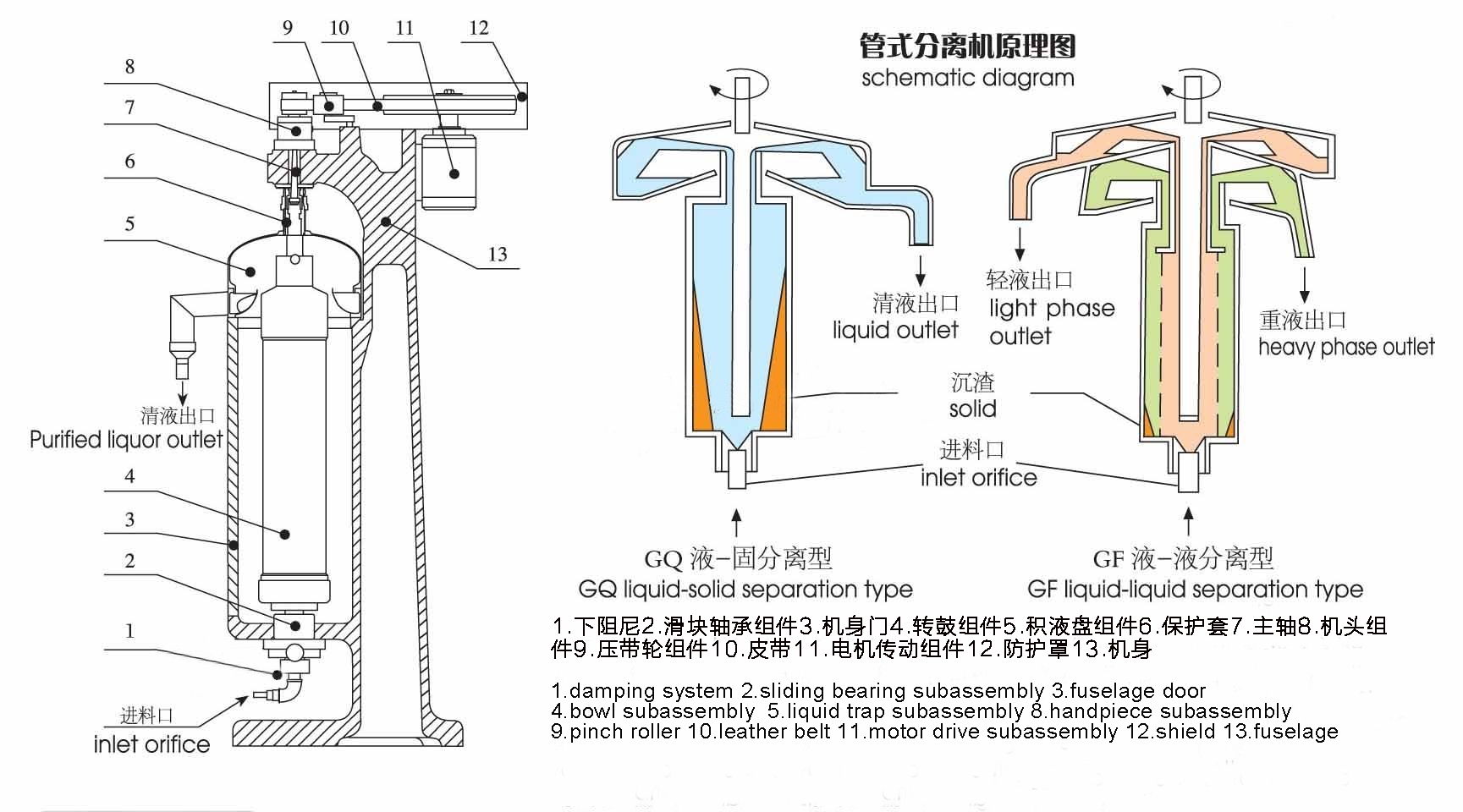

Working Principle Of GF 105 Tubular centrifuge :
The Stainless Tubular Centrifuge of machine body, driving part, bowl, liquid collecting pan and liquid-in bearing seat etc.
The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifuge force.
Heavy liquid forms outer ring and light liquid forms inner ring. They flow to the top of the bowl and discharge from their respective outlet. And the little solid is settled on the wall of the bowl and discharged manually after the machine stops.
Applications Of GF105 Tubular centrifuge:
It is mainly used for the liquid liquid separation or liquid liquid solid separation. For examples:
1) Separation of blood (plasma and hemoglobin separation)
2) Vegetable and animal oil separation (vegetable oil degum, de-soap, fish oil polishing
3) sea buckthorn oil, essential orange oil, essential rose oil etc extraction and separation
4) Waste water handling, waste oil treatment
5) milk separation, coconut oil separation

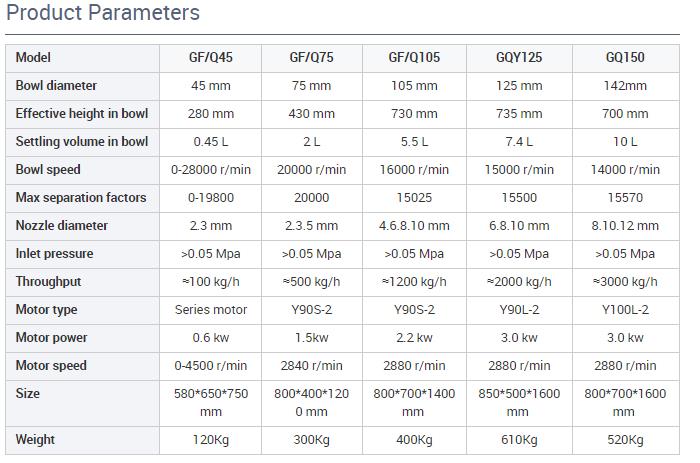

Technial parameter please check the following information:
Welcome all who care engaged in the separation and filtration to work with us,and we are also looking for the qualified world wide agents to provide better service and deep marketing.
