GF/GQ series tubular bowl centrifuge
GF SERIES: used for separating various emulsions, especially for liquid- liquid separation with a small proportion of two-phase and liquid-liquid- solid separation with a small amount of impurities, such as transformer oil, turbine oil,lubricating oil, fuel oil, dye, grease, saponification, all kinds of powder materials, all kinds of oral liquid, all kinds of pharmaceutical liquid, 920 separation; Separation of plasma biological drugs and extraction of plasma from animal blood; Edible oil, CAI pan soak liquid, tea Phenol, soybean concentrated phospholipid refining, oil and water separation and sewagetreatment.
GQ SERIES: it is used for separating all kinds of suspension which is difficult to be separated. It is especially suitable for
solid-liquid separation with small concentration, high viscosity, fine solid phase particles and small difference in solid-liquid weight. For example, all kinds of liquid medicine, grapes clarification of sugarwash bitide, malic acid, oral liquid and beancurd root; Coal tar, graphite slag removal; Extraction of various proteins, algal bands and pectin; Refining molasses; Blood separation, vaccine mycelium, each settlement of seed glucose; paint, dye, various resins, rubber solution purification.

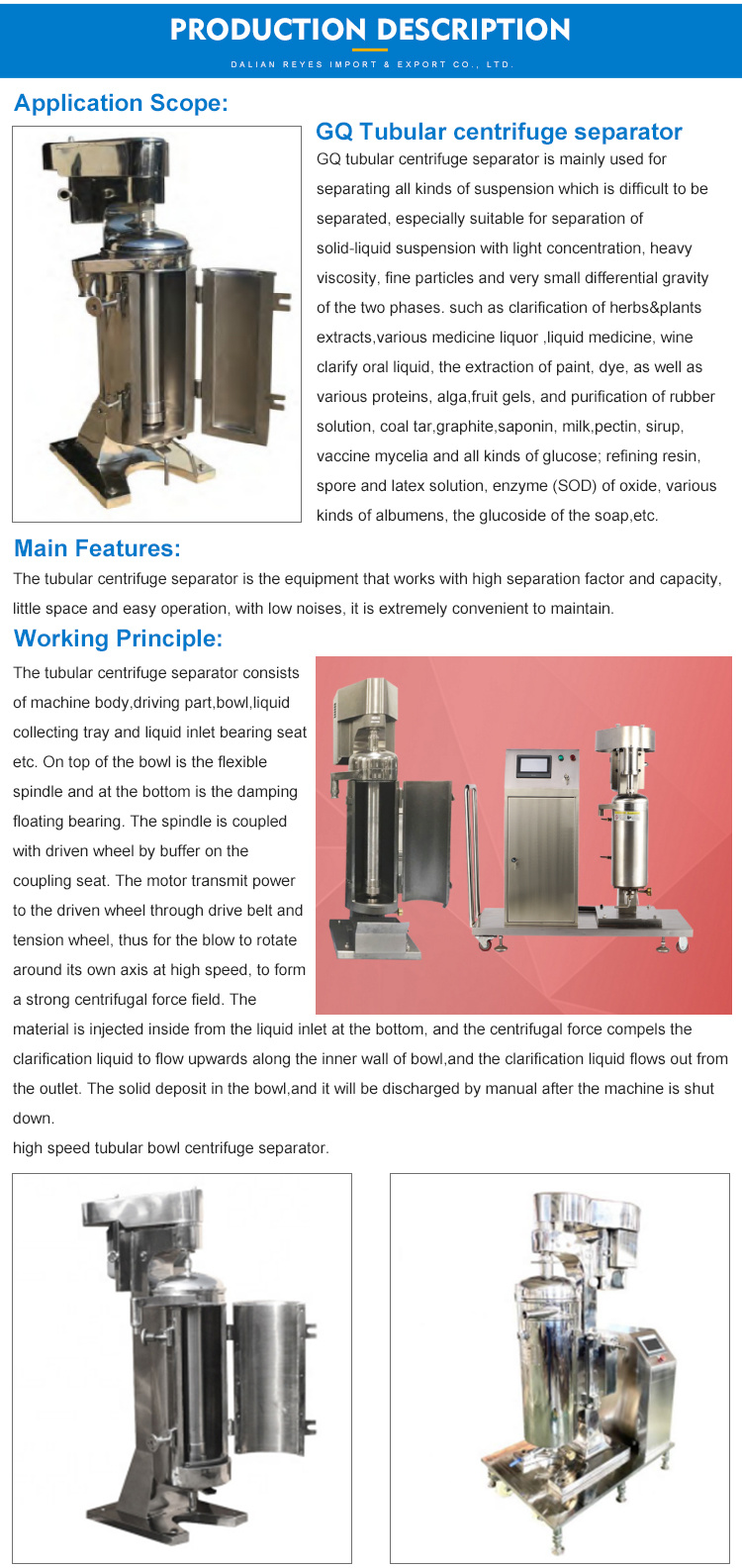

Working Principle:
Tubular Centrifuge consists of machine body, driving part, bowl, liquid collecting tray and liquid inlet bearing seat etc. On top of the bowl is the flexible spindle and at the bottom is the damping floating bearing. The spindle is coupled with driven wheel by buffer on the coupling seat. The motor transmit power to the driven wheel through drive belt and tension wheel, thus for the blow to rotate around its own axis at high speed, to form a strong centrifugal force field. The material is injected inside from the liquid inlet at the bottom, and the centrifugal force compels the clarification liquid to flow upwards along the inner wall of bowl, and the clarification liquid flows out from the outlet. The solid deposit in the bowl and it will be discharged by manual after the machine is shut down.
Application:
It is used for separating various emulsion, especially adaptable for liquid-liquid separation with slight gravity difference and liquid-liquid-solid separation with a little foreign matter, such as separation of various oil and micropowder, extract liquid from plants, separation of plasma and cell,separation of milk cream.
(1) Oil separation(Avocado oil,Biodiesel, Coconut oil ,vegetable oil degumming ,de-soap, dewater, oil and water separation etc)
(2) Clarifying process for liquid solid product (oral liquid)
(3) Extraction of protein, seaweed and jelly(plant extraction, herb extraction,pigment extraction)
(4) Refined molasses
(5) Separation of blood
(6) Settlement of bacteria (yeast, E.coli, lactobacillus, bacillus subtilis, nitrobacter etc)
(7) Purifying paint, dye, various resin
(8) Processing of granular, crystalline and fibrous suspensions
(9) Separation of filterable and non-filterable sludge.
Welcome all who care engaged in the separation and filtration to work with us,and we are also looking for the qualified world wide agents to provide better service and deep marketing.
