Professional enzyme separation tubular centrifuge equipment manufacturers
GQ type two phase solidliquid separator is suitable for solid content lower than 2% solution ,widely used for juice ,herb,medicine , bacteria ,fermentation liquid ,clarification process . After separation , the solid will collect in the drum .Then stop the centrifuge and take out the drum for solid discharge .
Product Introduction:
Enzyme separation tubular centrifuge equipment
GQ Type tubular centrifuge is composed of main body, transmission device, drum, liquid collecting tray, and liquid-feeding bearing base. There is a flexible main axis on the top of drum, and a damping floating bearing at its bottom. With the linked buffering device, the main axis is connected with the passive wheel. Through the conveyor and the fastening wheel, motor provides power for the passive wheel, so the drum rotates around itself axis by high speed, and form strong centrifuge force field. Materials are launched from the bottom feeding inlet, by the centrifugal force, liquid flows upward along the drum wall, and is separated to layers because their different density.
GQ type two phase solidliquid separator is suitable for solid content lower than 2% solution ,widely used for juice ,herb,medicine , bacteria ,fermentation liquid ,clarification process . After separation , the solid will collect in the drum .Then stop the centrifuge and take out the drum for solid discharge .

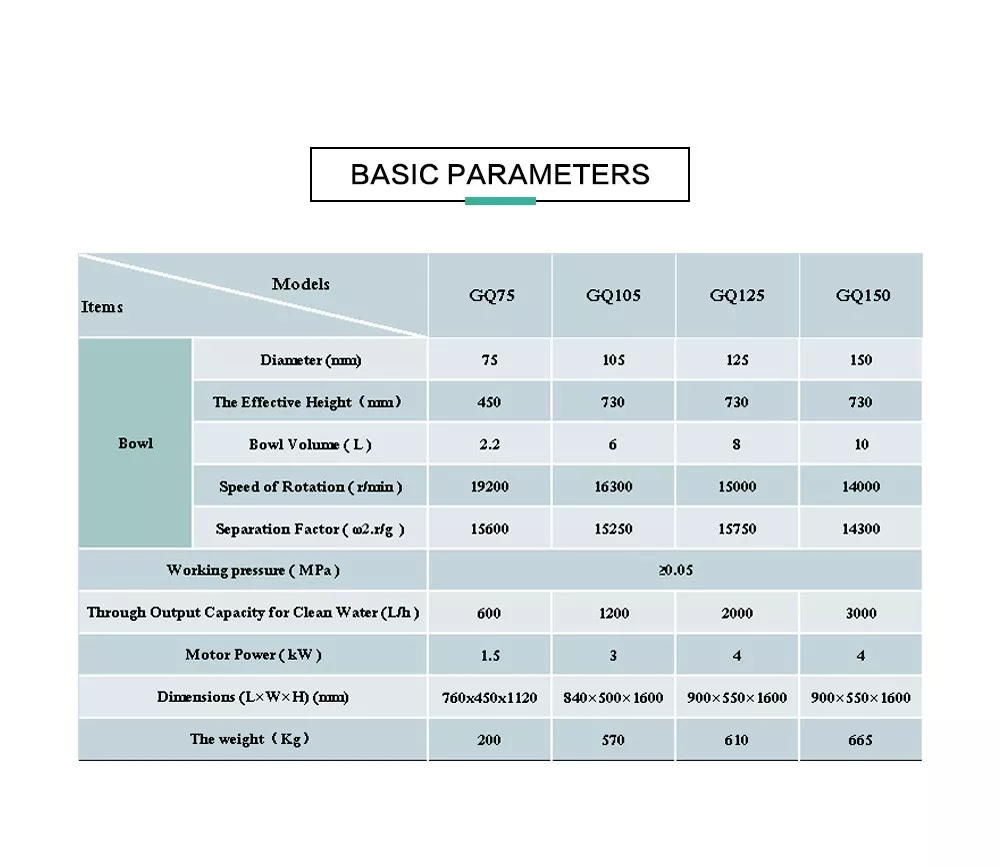

Technical Parameter:
Certifications and Patents
