| Place of Origin: | China | Type: | Centrifuge |
| Product Type: | Plant | Condition: | New |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Bearing, Gearbox, Motor | Brand Name: | Shenzhou |
| Voltage: | 380V/50HZ,3Phase | Power: | Model |
| Weight: | 2000 | Dimension(L*W*H): | Model |
| Warranty: | 1 Year | Key Selling Points: | Easy to Operate |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works , Food & Beverage Shops, Chemical plant, pharmaceutical plant | Showroom Location: | None |
| Material: | Stainless Steel | | |

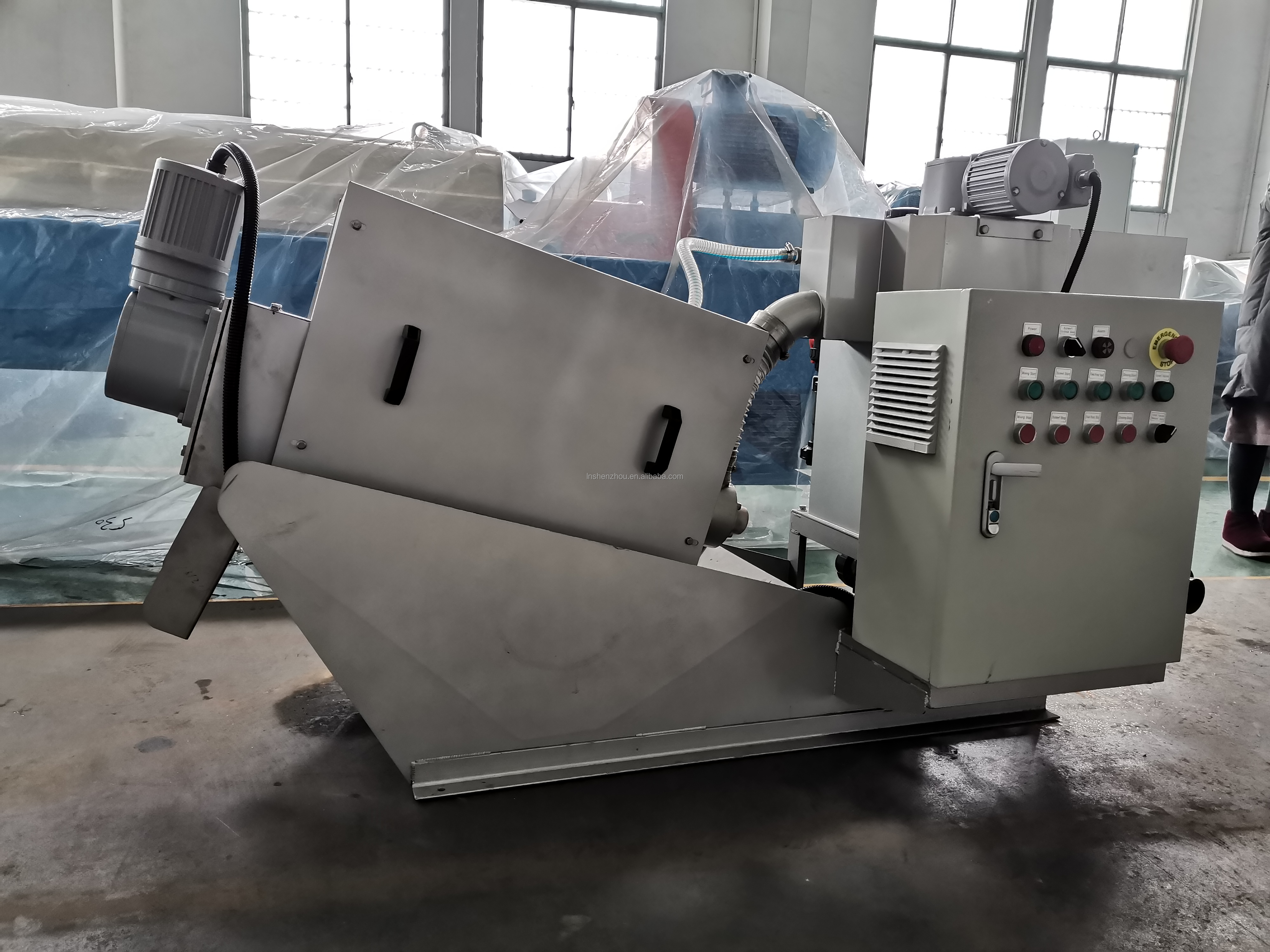

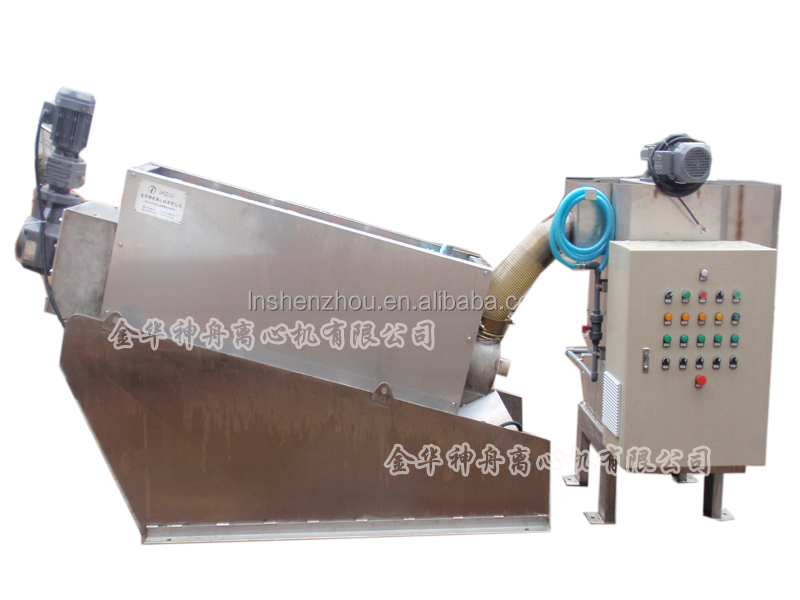

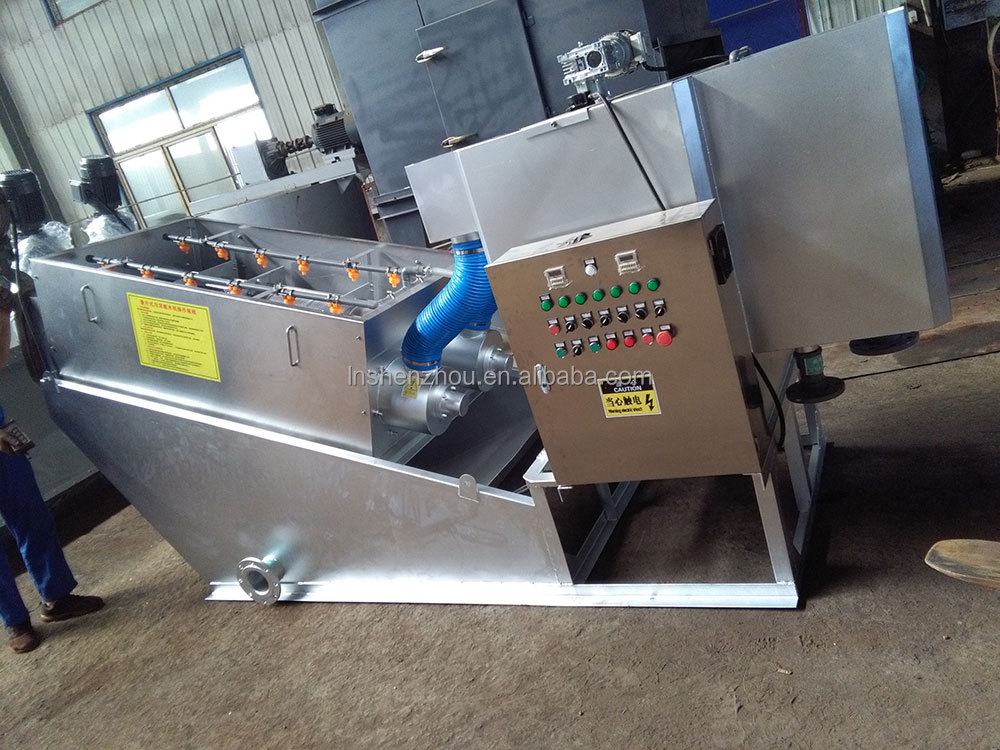

CE Volute screw press sludge dehydrator/Algae sludge dewatering machine manufacturer
The stacked screw sludge dewatering machine follows the principles of the same direction of power and water, thin-layer
dewatering, proper pressure and extension of the dewatering path, which solves the problem of the easy clogging of previous generations of sludge dewatering equipment and the inability to treat low-concentration sludge and oily sludge. , High energy consumption, complex operation and other technical problems, to achieve the goal of efficient and energy-saving dehydration. The dewatering machine can realize high-efficiency flocculation under the condition of fully automatic operation, and continuously complete the sludge thickening and squeezing dewatering work, and finally return or discharge the collected filtrate. It is widely used in municipal sewage treatment projects and water treatment systems in food, starch, oil, pharmaceutical, chemical, paper, leather and other industries.
★Measuring tank: SUS304 material, equipped with sludge inlet and return port, which can adjust the sludge inlet volume.
★Flocculation mixing tank: SUS304 material, dissolved PAM (sometimes need to add PAC, depending on the nature of the sludge) is pumped into the flocculation mixing tank by a metering pump, and the mixing device (SUS304) and the sludge are mixed and flocculated to form a suitable alum. flower.
★Dehydration body: a cylindrical filter device composed of a fixed ring, a swimming ring (SUS304 special material, wear-resistant) and a gasket (SUS304 material), a screw shaft (SUS304 material, special wear-resistant treatment) runs through it, flocculation is good The muddy water mixture enters the main body and is physically squeezed to achieve the effect of full dehydration.
★Filtrate tank: SUS304 material, collect the filtrate, return to the original pool or other collection device through the pipeline.
★Motor: The general standard configuration is Nissei imported motor, and the explosion-proof standard configuration is Mitsubishi and Nissei.
★Electric control cabinet: basically imported components, SUS304 shell, can be changed according to customer needs.
★ Bracket: 100 and 200 series are all SUS304, 300 series standard configuration is anti-corrosion carbon steel, which can be changed according to customer needs.
Model | DS Sludge Treating Capacity | Sludge Flow Treating Capacity | | | | | |
| | 10000mg/L | 20000mg/L | 30000mg/L | 40000mg/L | 50000mg/L | |
SZ101 | 5-7kg/h | ~0.5m3/h | ~0.25m3/h | ~0.2m3/h | ~0.15m3/h | ~0.14m3/h | 220 |
SZ131 | 10-14kg/h | ~1m3/h | ~0.5m3/h | ~0.4m3/h | ~0.3m3/h | ~0.28m3/h | 250 |
SZ201 | 15-20kg/h | ~1.5m3/h | ~0.75m3/h | ~0.6m3/h | ~0.5m3/h | ~0.4m3/h | 420 |
SZ202 | 30-40kg/h | ~3m3/h | ~1.5m3/h | ~1.2m3/h | ~1.0m3/h | ~0.8m3/h | 550 |
SZ203 | 45-60kg/h | ~4.5m3/h | ~2.25m3/h | ~1.8m3/h | ~1.5m3/h | ~1.2m3/h | 700 |
SZ301 | 50-70kg/h | ~5m3/h | ~2.5m3/h | ~2m3/h | ~1.5m3/h | ~1.4m3/h | 900 |
SZ302 | 100-140kg/h | ~10m3/h | ~5m3/h | ~4m3/h | ~3m3/h | ~2.8m3/h | 1350 |
SZ303 | 150-210kg/h | ~15m3/h | ~7.5m3/h | ~6m3/h | ~4.5m3/h | ~4.2m3/h | 1900 |
SZ304 | 200-280kg/h | ~20m3/h | ~10m3/h | ~8m3/h | ~6m3/h | ~5.6m3/h | 2500 |
SZ351 | 100-120kg/h | ~10m3/h | ~5m3/h | ~4m3/h | ~3m3/h | ~2.4m3/h | 1100 |
SZ352 | 200-240kg/h | ~20m3/h | ~10m3/h | ~8m3/h | ~6m3/h | ~4.8m3/h | 2100 |
SZ353 | 300-360kg/h | ~30m3/h | ~15m3/h | ~12m3/h | ~9m3/h | ~7.2m3/h | 3100 |
SZ354 | 400-480kg/h | ~40m3/h | ~20m3/h | ~16m3/h | ~12m3/h | ~9.6m3/h | 4100 |
SZ401 | 130-160kg/h | ~13m3/h | ~6.5m3/h | ~5m3/h | ~4m3/h | ~3.2m3/h | 2200 |
SZ402 | 260-320kg/h | ~26m3/h | ~13m3/h | ~10m3/h | ~8m3/h | ~6.4m3/h | 3500 |
SZ403 | 390-480kg/h | ~39m3/h | ~19.5m3/h | ~15m3/h | ~12m3/h | ~9.6m3/h | 5500 |
SZ404 | 520-640kg/h | ~52m3/h | ~26m3/h | ~20m3/h | ~16m3/h | ~12.8m3/h | 7000 |
Advantages1. It is suitable for the dewatering of high and low concentration sludge. When dewatering low-concentration (2000mg/L～) sludge, there is no need to build thickening tanks and storage tanks, which reduces construction costs and reduces the release of phosphorus and the generation of anaerobic odors. (Highly concentrated sludge must have fluidity)
2. No clogging, reducing the amount of flushing water, saving water costs, and reducing the burden of internal circulation caused by the backflow of cleaning water.
3, the electric control cabinet, the flocculation mixing tank and the dehydration main body are integrated, which reduces the floor space and is simple and convenient to install.
4. The dehydrator is basically in closed operation, and the processing is stable and timely, so that the on-site odor is reduced to an ideal level and the working environment of the workers is improved.
5. Realize fully automatic 24-hour operation and reduce the labor intensity of operators.
6. The screw shaft has a low running speed, 2-3 revolutions per minute, low power consumption, and no vibration and noise on site.
7. The body is all made of stainless steel, which can extend the service life to a large extent. The only replacement parts are the screw shaft and the moving ring, which has a long service life.
8. The daily maintenance time is short and the maintenance operation is simple.
The base holder is in integration industrial design,streamline appearance which looks more artistic.Compact design which makes the occupied areasmaller.Electric control cabinet holder: can increase the bearing of thebase, prevent the electric control cabinet from damage
duringtransportation.
Add a gasket between the cleaning pipeline and stainlesssteel plate to prevent the pipeline from being worn out bythe stainless
steel plate after long-term use.

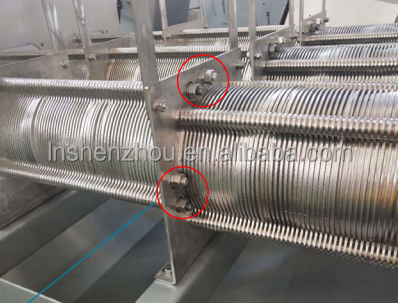

The screws are anti-loose screw which makes the bodytighter. The body designed in section, it will be convenience forinstall and
disassemble.

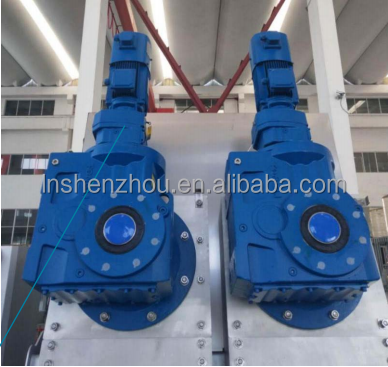

Use K serie reducer, it is gear drive with low energyconsumption and large torque.

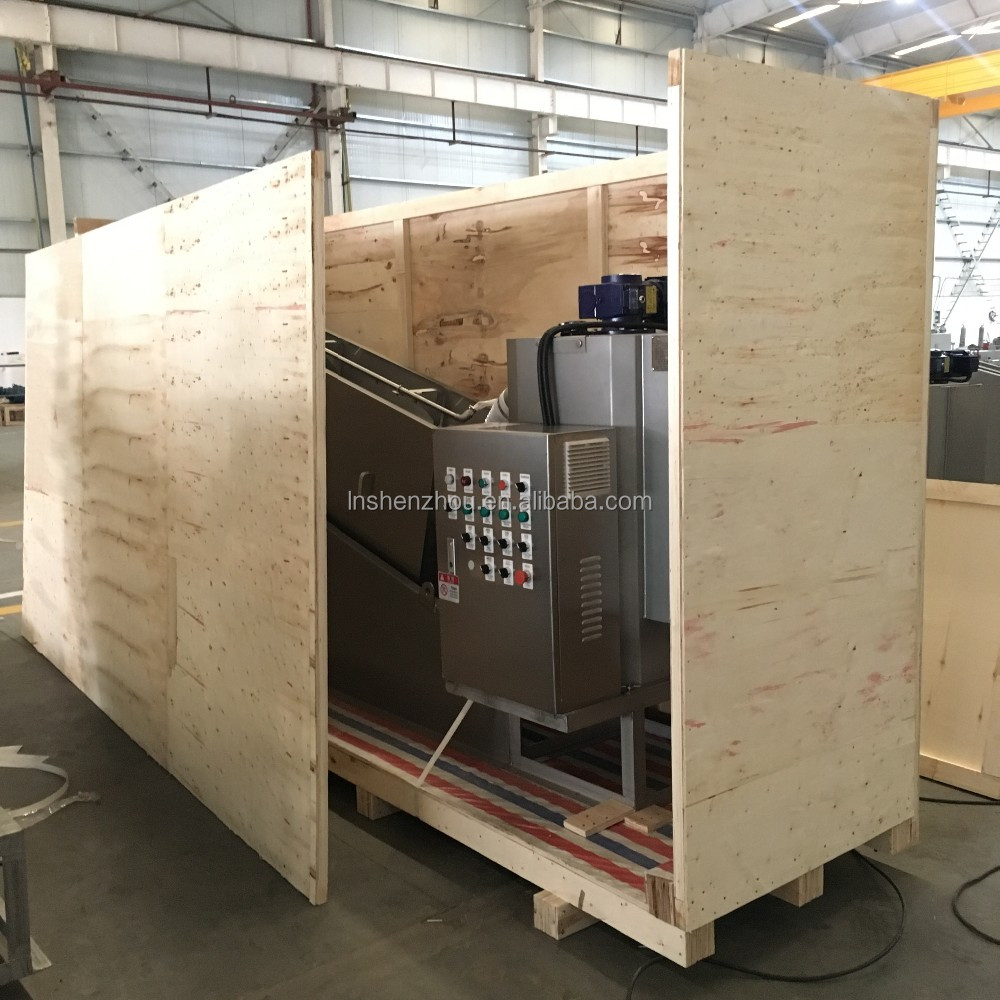

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
Q1.What's your advantage? Why we choose you?
A:1) More than 50 years experience of centrifuge & separator production and R&D.We have the most professional techniques and team. More advantage in price
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use famouse good quality materials and the best production process
Q2.What's the Payment?
A:T/T would be better with quick transfer and few bank fees. LC could also be accept, but the
procedure is complex and the fee is high. You can also use Western Union and Paypal.
Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Q4.How long is the warranty period ?
A:12 months.
