  • Products Details

With immense market knowledge, we have been able to provide optimum quality High Speed Continuous Oil Water Separator Laboratory Small Scale Centrifugation Decanter Centrifuge. It is designed to cater to the changing demands and requisites of customers. We regard High Speed Continuous Oil Water Separator Laboratory Small Scale Centrifugation Decanter Centrifuge product features as its core competitiveness. Adopting high-quality raw materials purchased from reliable suppliers,Shenzhou has the guaranteed quality and advantages of Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge. Moreover, it has a look designed by our creative designers, making it highly attractive in its appearance.

Place of Origin:Liaoning, ChinaType:Centrifuge
Product Type:PlantCondition:New
Video outgoing-inspection:ProvidedMachinery Test Report:Provided
Marketing Type:New Product 2020Warranty of core components:1 Year
Core Components:PLC, Bearing, Gearbox, MotorBrand Name:Shenzhou
Voltage:380V/50HZ,3/2PhasePower:4kw
Weight:160Dimension(L*W*H):950*650*550cm
Warranty:1 YearKey Selling Points:Easy to Operate
Applicable Industries:Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works , Food & Beverage Shops, Chemical plant, pharmaceutical plantShowroom Location:None
Certification:GMP/CE

Product Description

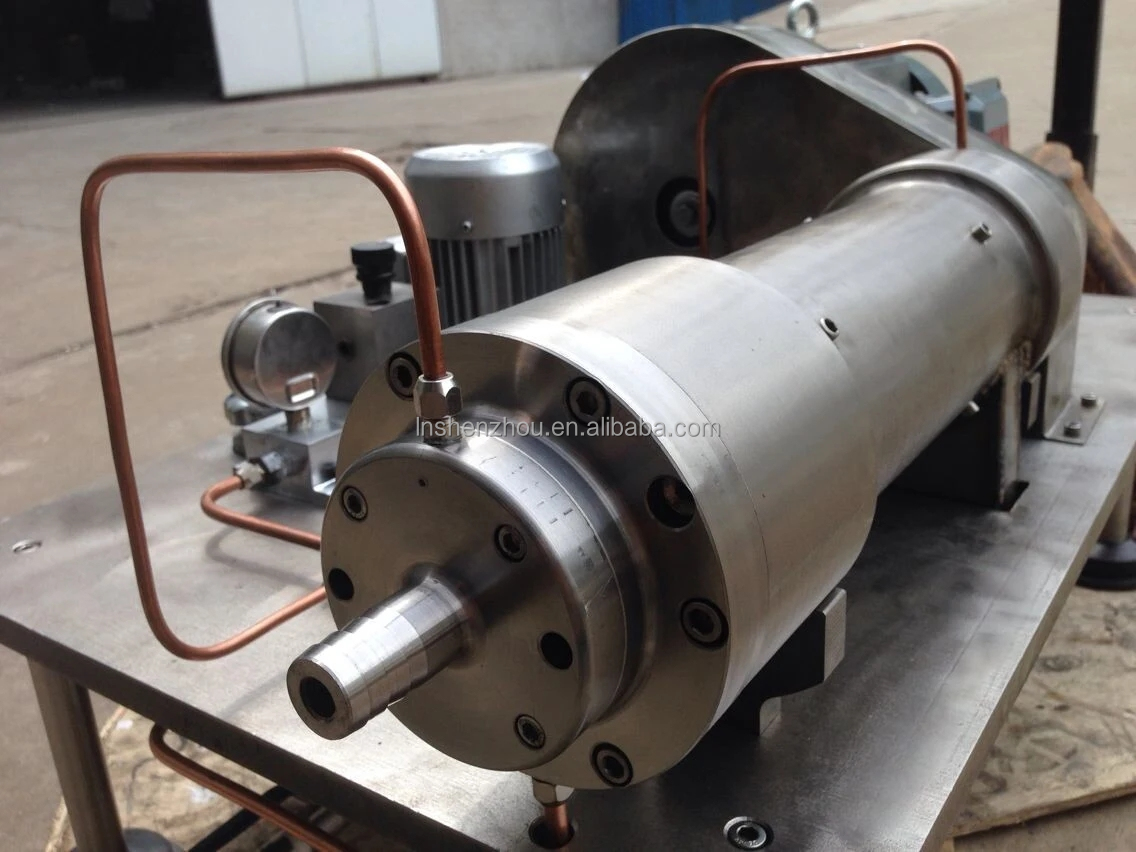

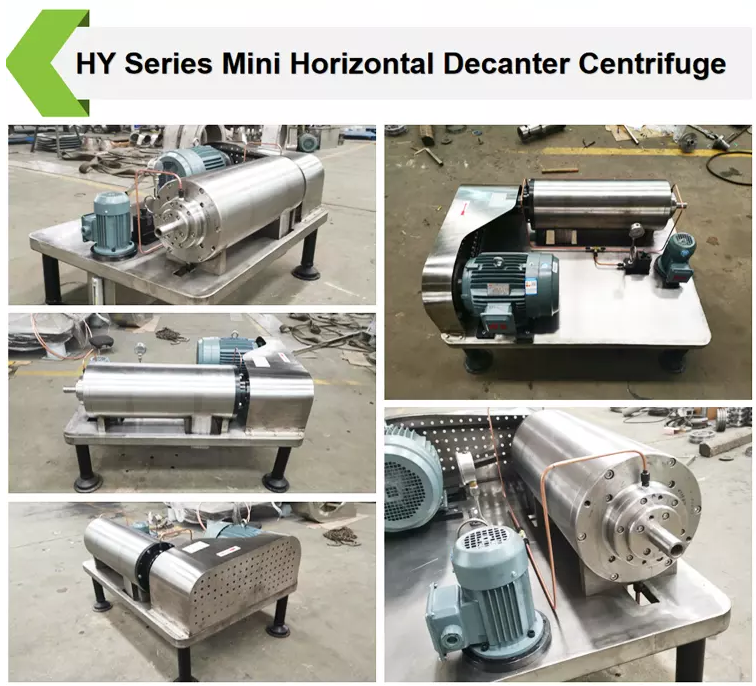

Lab decanter centrifuge:
This lab decanter centrifuge is specially designed for laboratory two-phase separation process , widely reduce human work .
They are mainly used for small batch continuous processing operations from 1L/H to 200L/H.

Specification
Model
HY-80
Drum diameter(mm)
80
Half cone Angle
Feed tube diameter(mm)
12
Speed(r/min)
10000
Capacity(L/H)
5-100
Length to diameter ratio
3.75
Motor power(kw)
4
Maximum separation factor
4400
Product competitive advantage:
Working principle:
The working principle of horizontal screw centrifuge is very simple. The drum and screw are supported by separate suspension, the
material is entered by the inlet tube, and the core drum is accelerated by the drum.

Separation process:
The core part consists of a cylinder and a conical rotary drum. The centrifuge forces deposit solid material on the drum wall.

Solid discharge:
The helix and the drum have the same shape and angle, and the rotating speed is slightly faster than the drum, so that the
separated solid is pushed to the narrow cone and discharged from the drum. Dehydration degree of solid depends on many factors,besides the reason of material itself, it also depends on the separation time of solid in centrifuge and the helical cone angle of conveying solid. In addition, the difference between helix and drum is also an important factor.
Working shop show
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Why Choose Us?
Our Service
1. Professional Engineer will recommend you the most suitable model according to your requirement.

2. Supply reference process flow chart .

3. Supply on-site installation and operation test

4. Integration for control system and process

5. Customized size and structure

6. 12 Months guarantee period from machine arriving date.

7. Sufficient spare parts in stock are available .

8. Technicians are available for overseas service.

9. 24 hours technical consultation .

10. The customer could get trained by our experienced technician.
FAQ
Q1.What's your advantage? Why we choose you?
A:1) More than 50 years experience of centrifuge & separator production and R&D.We have the most professional techniques and team. More advantage in price
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use famouse good quality materials and the best production process

Q2.What's the Payment?
A:T/T would be better with quick transfer and few bank fees. LC could also be accept, but the
procedure is complex and the fee is high. You can also use Western Union and Paypal.

Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.

Q4.How long is the warranty period ?
A:12 months.
