Shenzhou - 3 Phase Disc Stack Separator Centrifuge & Separator

Name: Shenzhou - 3 Phase Disc Stack Separator Centrifuge & Separator
Uploaded: 2022-04-24T21:49:34+08:00
Duration: 42 s
Description: 3 Phase Disc Stack Separator can be produced in varied specifications to cater to different needs of customers,which has a vast variety of application.Besides,it adheres to concise structure and high quality is the design principle.

3 Phase Disc Stack Separator can be produced in varied specifications to cater to different needs of customers,which has a vast variety of application.Besides,it adheres to concise structure and high quality is the design principle.

SEND INQUIRY NOW

Model Number:: SZSD

shipping:: Support Sea freight · Land freight

Customization:: Customized logo (Min. Order: 1 Units) , Customized packaging (Min. Order: 1 Units) , Graphic customization (Min. Order: 1 Units)

SEND INQUIRY NOW

Products Details

Having set up a team who are always involved in the product R&D,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd keeps developing products on a regular basis. Our 3 Phase Disc Stack Separator is launched to all customers from different fields. The measured data indicates that meets the market requirements. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will provide high-quality services, and bring customers a better experience. In this way, the company can continue to strengthen its future strength in technological innovation and strive to create complete products Ecological chain.

Place of Origin:	China	Type:	Separating Plant
Condition:	New	Video outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2021
Warranty of core components:	1 Year	Core Components:	PLC, Motor
Brand Name:	Shenzhou	Voltage:	220v/300v/380v/optional
Power:	4-5.5kw	Weight:	1050
Dimension(LWH):	variable	Warranty:	1 Year
Key Selling Points:	Easy to Operate	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Showroom Location:	None

Product Description

3 Phase Disc Stack Separator

SZ 3 phase disc stack separator is a high-speed, stable, sealed, efficient, and automatic slag discharge 3 phase separation equipment. It is widely used for liquid, liquid, solid 3-phase separation or liquid-liquid separation. The 2-phase solid-liquid separation disc separator has only one liquid discharge port and one slag discharge port, while the 3-phase disc separator has two liquid discharge ports and one slag discharge port, which can separate two liquids with different specific gravity at the same time. It can also discharge solid phase materials. Compared with the 3 phase decanter centrifuge, the 3 phase disc Separator has larger rotation speed and G force. The 3 phase decanter centrifuge usually has a separation factor of about 3000G, while the 3 phase disc stack separator G force is up to 12000G. Therefore, the 3 phase disc separator can more thoroughly separate liquids with different specific gravity and the liquid phase discharged is more clarified. However, compared to 3 phase decanter centrifuges, 3 phase disc separator is more used to separate materials containing fine particles, with less solids content. So
before entering the 3 phase disc separator, the material can separated by the decanter centrifuge for pre-stage separation to reduce the solids content and remove big particles.

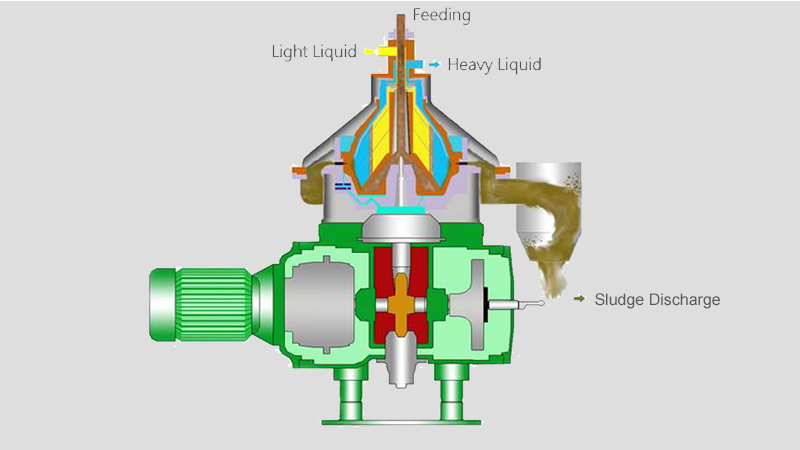

3 PHASE DISC STACK SEPARATOR WORKING PRINCIPLE:

The separated material enters into the heart of the machine, that is, the inside of the bowl. Under the action of strong centrifugal force, the material passes through a set of disc bundle separation intervals. With the neutral holes of the disc as the interface, the liquid with larger specific gravity moves along the disc wall towards the outside the neutral hole, where heavy slag accumulates in the sediment area, and the heavy phase liquid flows upward to the centripetal pump; the lighter liquid with a smaller specific gravity moves along the disc wall into the neutral hole and converges to the lower centrifugal pump. The light and heavy liquid phases are discharged by the lower centrifugal pump and the upper centripetal pump respectively; the heavy slag is regularly discharged; continuous production is implemented.

Specification

3 PHASE DISC SEPARATOR TECHNICAL PARAMETER

Model	SZSD-40	SZSD-90	SZSD-125	SZSD-225
Type	Liquid-Liquid Separation (or Liquid-Liquid-Solid)
Bowl Dia	440mm	580mm	620mm	800mm
Sliding Piston	380mm	500mm	550mm	700mm
Theoretical Capacity	1-2 m3/h	5-10m3/h	10-15 m3/h	20-25m3/h
Max Speed	7100RPM	6150RPM	6000RPM	4500RPM
Max G Force	12409G	12273G	12488G	9063G
Motor Power	11KW	18.5KW	30KW	45KW
Feeding Pressure	0-0.1Mpa
Starting Time	10-15Minutes
Feeding Material	Solids content less 3%

SZ 3 PHASE DISC SEPARATOR FEATURES
All parts contacting with the material are made of high-grade stainless steel, which effectively reduces the chemical interaction between the separated material and the surface of the contacting part. The separated light and heavy phase liquid materials are output by two centripetal pumps of different sizes. This machine adopts upper feeding, which has lower inlet pressure on the material. Hydrodynamic coupling and a pair of helical gears or belt drive are used in the power transmission. The speed increase is stable and overload protection can be performed.
The slag discharge action of the sliding piston is automatically controlled by a PLC fully automatic control cabinet specially designed with safety protection devices. It is high level automation, strong adaptability for process adjustment, and convenient adjustment, low noise and good separation effect. Professionally designed centripetal pump system is with stable output pressure, large adjustment range and easy operation.
3 PHASE DISC SEPARATOR APPLICATION
* Animal and vegetable oil separation:Vegetable oils mainly include: rapeseed oil, cottonseed oil, corn oil, palm oil, soybean oil, peanut oil, sunflower oil, rice bran oil, sesame oil, and safflower oil. Animal oils mainly include: fish oil, and fat purification of various animals.
* Beverage industry: dairy purification, separation of milk and cream, fruit juice (orange juice, apple juice, etc.), vegetable juice, tea drinks, coffee, beer and other industries.
* Pharmaceutical industry: separation of extracts (such as penicillin, vitamins, E. coli, antibiotics, hormones, etc.),concentration of microorganisms, concentration and clarification of fermentation broth, and separation of blood.
* Plant extraction and separation: pigments, peppers, tea leaves, loquat leaves, honeysuckle, ginkgo biloba, salvia, amygdalin, traditional Chinese medicine extraction, etc.
* Chemical industry separation: lubricant additives, viscose, PVC, cellulose and derivatives, ink and dye, phosphoric acid,herbicide, latex (synthesis), boiler ash, catalyst, etc.
* Fuel and marine oil industry: separation of methyl ester, glycerin, catalyst, soap removal, methanol, water washing methyl ester, extraction of fatty acids, glycerin desalination in the field of bio oil. Recovery and clarification of marine oil, and removal of moisture and mechanical impurities in fuel oil (light diesel, heavy diesel, fuel oil) and lubricating oil of marine diesel engine equipment.
* Environmental protection industry: food waste treatment, water treatment industry

Packing & Delivery

wooden case

Company Profile

Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!

FAQ

1. who are we?
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine

4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
