Model Number:: LSJ-W

shipping:: Support Sea freight · Land freight

Customization:: Customized logo (Min. Order: 1 Units) , Customized packaging (Min. Order: 1 Units) , Graphic customization (Min. Order: 1 Units)

SEND INQUIRY NOW

Products Details

Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has become a recognized leader in the Separation Equipment industry with its high-quality product and excellent service. After the sludge decanter cnetrifuge was launched, most customers have given positive feedback, believing that this type of product meets their expectations for high-quality products. With years of familiarity and expertise in this work area, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has evolved as an affluent manufacturer and supplier in the market, and there is a great possibility that the company will have a better development in the future.

Place of Origin:	China	Type:	Centrifuge
Product Type:	Plant	Condition:	New
Video outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2020	Warranty of core components:	1 Year
Core Components:	PLC, Bearing, Gearbox, Motor	Brand Name:	Shenzhou
Voltage:	380V/50HZ,3Phase	Power:	Model
Weight:	30000	Dimension(LWH):	Model
Warranty:	1 Year	Key Selling Points:	Easy to Operate
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works , Food & Beverage Shops, Chemical plant, pharmaceutical plant	Showroom Location:	Thailand, Sri Lanka
Local Service Location:	Sri Lanka

Product Description

sludge decanter cnetrifuge

Main Application of Decanter Equipment in The Chemical and Mining Industry:

SZ industrial centrifuge has a wide range of application scenarios in the chemical and mining industry. Mechanical separation technology plays a very important role in environmental protection treatment of waste water, waste oil and harmful substances in chemical industry. SZ industrial centrifuge can effectively separate liquid mixture, realize mixture classification, and simultaneously dehydrate solid and extract components. Therefore, it is widely used in various chemical production industries such as grey water treatment, coal tar recovery treatment and sulfur foam treatment.

Shenzhou decanters are virtuosos in the mining industry - above all when it comes to processing ore and minerals. Ore processing is highly important, particularly in the production of precious metals and non-precious metals. This process uses decanters in various mining applications: gold and silver, lead and zinc, nickel and copper, platinum, lanthanoids.

There are numerous possible applications and processing methods for minerals: from the ceramics industry through to cosmetics for the paint industry - from straightforward mechanical processing through to use in chemical processes - everything is possible.
This is why use of a decanter is particularly suitable. The decanter plays a central role in processing minerals for the following applications: kaolin, calcium carbonate, titanium dioxide, barite, zinc sulphate, aluminium hydroxide.

Our separation technology solutions can be used in almost all extractive processes of minerals, raw materials and ores. For more than 30years, we have supported our customers to increase their profits and optimise their procedures with clever solutions. The core of all mining processes is the Shenzhou decanter developed for them. It is the optimum solution for processing minerals and ore, and has innumerable possible applications. Our engineers have continuously developed the centrifuge and adapted it perfectly to meet the requirements of mining - for example through magnificent wear protection.

Your advantages in the processing of ore and minerals
Lower operating costs

* Straightforward processing of large product quantities increases the effectiveness of production
* Resistance against wear and corrosion reduces maintenance costs
* Long service life and service intervals, combined with very short repair times, reduce the costs of upkeep
* High quality and purity of the end product lead to a rapid return on investment
* Continuous and fully automatic operation reduces personnel costs

A sustainable solution

* Energy saving - also in the subsequent processing of the solids
* A completely closed machine design prevents emissions and protects the environment
* Highest quality and safety - Made in China

Competent support and service

Every process is different. There are many different factors which influence the processing of minerals and ore, and all have a decisive influence on success. We support our customers throughout the process sequence, and offer you special technical knowledge in the mining area. Our worldwide network guarantees you the best service and individual support:

* Laboratory samples - discover new potential
* Process analysis - optimise your performance with our separation technology solutions
* Individual project planning - we adapt the machines according to your requirements and conditions
* Specialists - benefit from our specialist knowledge and decades of experience

Searched for and now found: New centrifuges for a processing plant.

Due to the high sulphur content, it is often difficult for mining and processing plants to extract waste water.

With the help of modern processing technology, the mine was able to solve the problem. In this article you will learn how the mine solved the problem and the results.

Scope of application:

Application fields

1. Food

A flesh processing,aquatic products process and edible protein recovery;
B Extract plant protein from soybean,oily seeds and leguminous plants;
C Recovery of brewing leach liquor malt and yeast
D Treatment and recovery of wine lees liquid;
E Extract of instant coffee and tea;
F Clarification of palm oil,olive oil and seed oil;
G Extract juice from fruits ,berries and vegetables;
H Recovery of refined pectin;
I Clarification of grape juice and grape wine.

2. Environmental protection

Drilling mud ,industrial effluent ,waste water of municipal works,fertilizer,organic waste water,paint sludge,plastic
particles,gravel washing water,waste water in steel-making ,flue gas desulfurization,sewage sludge treatment of waterworks.

3. Petroleum and chemical industry

A Processing of kaolin and calcium carbonate,production of bentonite and titanium dioxide;
B Exploration of petroleum oil,natural gas,crude oil refining and related industries,additive of lube oil and waste oil recovery;
C Intermediate products and final products of organic chemistry industry;
D Thermoplastic materials,includes PVC,polypropylene,polystyrene,synthetic rubber and fiber;
E Inorganic chemical industry ,includes bleach,acid,silica products and fertilizers;
F Treatment of spent wash and molasses fermentation residues;
G Extraction of starch from wheat,corn ,cassava and potato;
H Waste liquid recovery and recycling from above industries.

Other fields
Pharmaceutical intermediates,salts and manures,etc.

Specification

Model	Diameter(mm)	Lenght(mm)	Max speed	L/D ratio	G-force	Capacity(m3/h)	Main motor power(Kw)	Weight(kg)	Dimension (mm)
LW250*1000	250	1000	5000	4	2722	0.5-5	7.5	950	21201250680
LW300*900	300	900	4200	3	2964	1-6	11	1160	21501300900
LW300*1200	300	1200	4000	4	2784	2-6	11	1350	24501300900
LW355*1160	355	1160	3600	3.3	2576	2-8	15	1400	24701350830
LW355*1460	355	1460	3600	4	2576	2-10	15	1800	27501350830
LW400*1200	400	1200	3200	3	2294	3-12	18.5	1800	273016001080
LW400*1600	400	1600	3000	4	2016	3-15	22	2000	313016001080
LW450*1800	450	1800	2800	4	1976	4-25	37	2500	332017001130
LW500*2000	500	2000	2800	4	1750	5-35	45	4000	352018001170
LW530*1855	530	1855	2600	3.5	2006	5-38	55	4680	388513501600
LW530*2120	530	2120	2400	4	1709	5-40	55	4800	415013501600
LW550*2000	550	2000	2800	4	2414	6-40	55	5700	457013801600
LW650*1950	650	1950	2200	3	1761	6-45	75	5000	484015101720
LW650*2600	650	2600	2000	4	1456	6-65	90	6000	549015101720
LW720*2160	720	2160	2000	3	1612	7-80	120	6000	520016001800
LW720*2880	720	2880	2000	4	1306	7-90	120	8000	310016001800
LW800*2400	800	2400	1800	3	1451	20-100	150	12000	582020001300
LW800*3200	800	3200	1800	4	1451	20-120	150	1300	710020001300

Main technical features

1. Industrial design

Whole machine set design follows concept of advanced industrial design,ensures stability,functionality and safety of whole machine.Also effectively absorbs shear force of dynamic load during operation.

2. Effectively ease resonance during rotating of bi-rotor

When centrifuge works,there is no obvious first-order and two-order resonance regions within designed speed range,meanwhile ,whole vibration intensity of bearing seat is definited within 2mm/s-4mm/s.All of this eliminates extra fatigue damage to components and assembly units from high frequency vibration during operation and sudden vibration when shut down.

3. Thoroughly eliminate phenomenon of liquid ring stalling

Phenomenon of liquid ring stalling happens during heavy duty boot or shutdown process of complete set machine,especially for LW550 and even larger models,It would makes bounce or wild shake,causes extra impact fatigue damage to main bearings,screw bearings and inner parts of rotary bowl.Fortunately ,our engineers have solved this problem thoroughly.
4. Unique technique adopt in main component work-blanks

The manufacturing methods of main component work-blanks are adopt centrifugal casting technique and overall mould-making forging technique,thoroughly avoid risks such as inter-granular corrosion and relaxation of residual stress release in welding joint.

5. Main bearing selection

We use origin bearings of international first-line brands such as SKF,FAG and so on.

6. Constant temperature detection

All fashioning components and assembly units are detected in constant temperature condition,to make sure of actual processing quality meets the requirements of designed precision accuracy.

7. Inter-change ability

Whole machine physical design and processing technique adopted in critical position,ensure all assembly units and bowls of the same centrifuge model interchangeable.It is not only easy to maintain ,but also greatly improve the reliability and safety of equipment.

8. Simplyand safely in bearing disassemblement

One layer of oil film is injected into contact surfaces between bearing and work-piece by high-
pressure,during disassemblement bearing from the machine.which would fundamentally eliminate friction within different parts.As a result,it would reduce 90% of pulling force and lower the risk of damage to high-precision parts when disassemble bearing.
9.Main bearing lubrication system
There are two kinds of lubrication system for specific product models :
A thin oil lubrication
* Oil pump offers an uninterruptedly power to ensure oil works circularly;
* Jet oil lubrication constantly clean and lubricate bearings and reduce temperature;
* Oil filter system ensure lubricant’s cleanliness;
* Oil pressure energy storage system ensure lubrication pump offers an extra oil supply(the pressure is no less than 0.4Mpa) for 5-6 minutes,when power fails accidentally;
* Constant temperature system is available.

B grease lubrication
* Adopt a grease with properties of extreme pressure resistance ,oxidation resistance ,abrasion resistance,water scour
resistance,corrosion-proof and high temperature resistance.
* Optional automatic grease system fills grease on main bearing at designed hours and quantity.

10. Main bearing BH device (patent design)

There are two spare safe bearings at either end of main bearing.When machine works well,they keep certain clearance from bearing inside track to chief axis.When unexpected condition occurs,main bearing got damaged or circle center deviation causing an amplitude of vibration reaches to designed clearance,safe bearings begin to work as main bearing Meanwhile,computer automatic control system would get a feedback of abnormal vibration value on bearing position immediately then activates emergency shutdown and goes a smooth shut down.This system protects machine free from damaging and ensure production safety.

11. GSRL feeding device (potent design)

New design of internal spiral core tube has got following achieves.Without reducing centrifugal acceleration,shorten triangle belt's traction time,reduce disorder of swirling flow and extend separation time.Meanwhile increases inner working pressure of centrifuge,and restrains liquid foaming.

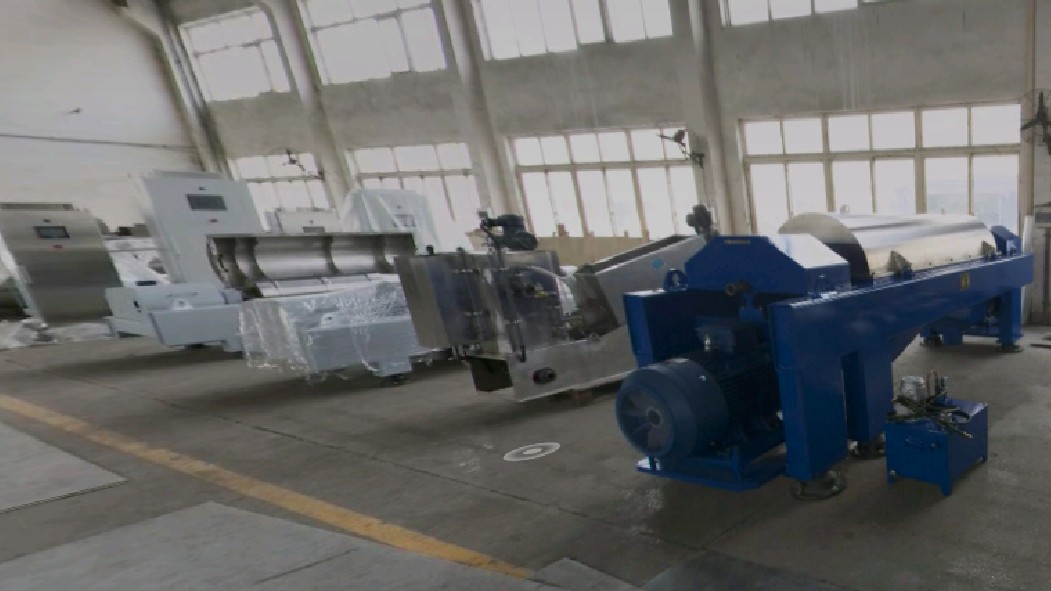

Production workshop

Screw production1

Screw production2:

High speed dynamic balance detection1

High speed dynamic balance detection2

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q1.What's your advantage? Why we choose you?
A:1) More than 50 years experience of centrifuge & separator production and R&D.We have the most professional techniques and team. More advantage in price
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use famouse good quality materials and the best production process

Q2.What's the Payment?
A:T/T would be better with quick transfer and few bank fees. LC could also be accept, but the
procedure is complex and the fee is high. You can also use Western Union and Paypal.

Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.

Q4.How long is the warranty period ?
A:12 months.
