Shenzhou - Cannabissative Ethanol Extraction Centrifuge Industry

Advanced high-end technologies are applied to making the manufacturing process efficient possible.With multiple properties, Cannabissative Ethanol Extraction Centrifuge Industry, Lab 220V/380V/440V 3 Phase, 60hz Hot Selling in Shenzhou Customized SS304 can be widely used in the field(s) of Separation Equipment.

SEND INQUIRY NOW

Model Number:: SZPP

shipping:: Support Sea freight · Land freight

Customization:: Customized logo (Min. Order: 1 Units) , Customized packaging (Min. Order: 1 Units) , Graphic customization (Min. Order: 1 Units)

SEND INQUIRY NOW

Product Details

We always create a perfect quality of product at prices that meet a customer’s budget. We pride ourselves on our personalized and efficient service. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd always adhere to the principle of 'creating values for customers and bringing benefits to stakeholders'. In the process of development, we highly focus on the quality and ensure no flawless product delivered to customers.

Place of Origin:	China	Type:	Centrifuge
Product Type:	Centrifuge	Condition:	New
Video outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2020	Warranty of core components:	1 Year
Core Components:	PLC, Motor, Pump	Brand Name:	shenzhou
Voltage:	220V/380V/440V 3 Phase, 60Hz	Power:	1.1-5kw
Weight:	220	Dimension(LWH):	According to the model
Warranty:	1 Year	Key Selling Points:	Easy to Operate
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company	Showroom Location:	None
Customized:	Customized	Material:	SS304
Application:	Industry, Lab	Keyword:	Ex-Proof
Volume(L):	15-140L

Product Description

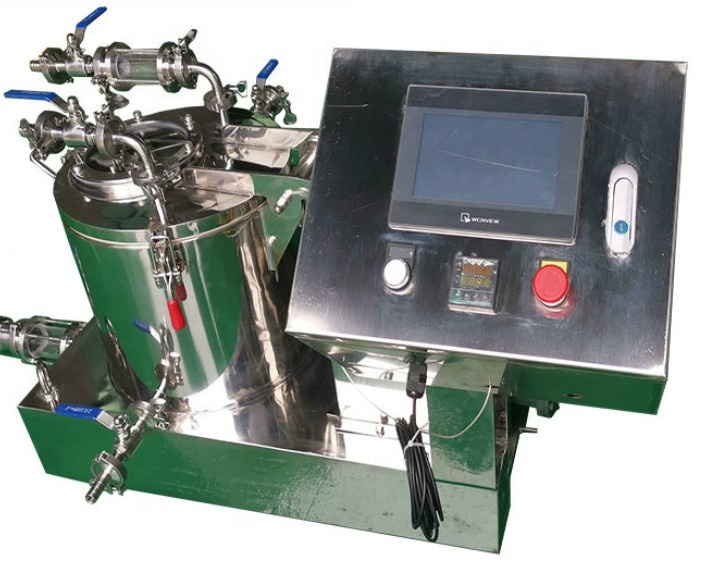

Hemp oil extraction centrifuge

The centrifuge can be used to extract and filter centrifuges for cannabis and other plants. The series of centrifuges extract the active ingredients in plants through a built-in program, which is single-handed, easy to use and large in capacity.The Centrifuge Machine is top discharging, hermetic closure type equipment. The material is fed into the drum through the feeding pipe on the hermetic closure casing; under the action of the centrifuge force field, the liquid-phase passes through the filter medium and the discharged out of the machine, while the solid-phase material is retained inside the drum and, after the machine is stopped, the material is discharged from the top. The centrifuge has such features as smooth running, easy & convenient operation as well as conducting feeding, washing and dehydrating under the state of hermetic closure, etc.

Specification

item	value
Place of Origin	China
Type	Centrifuge
Product Type	Centrifuge
Condition	New
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	PLC, Motor, Pump
Brand Name	shenzhou
Voltage	220V/380V/440V 3 Phase, 60Hz
Power	1.1-5kw
Weight	According to the model
Dimension(LWH)	According to the model
Certification	GMP/CE
Warranty	1 Year
Key Selling Points	Easy to Operate
Applicable Industries	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
After Warranty Service	Video technical support, Online support
Local Service Location	None
Showroom Location	None
Customized	Customized
Material	SS304
Application	Industry, Lab
Keyword	Ex-Proof
Volume(L)	15-140L

Details Images

Technical Parameters

Model	Drum diameter （mm）	Drum height(mm)	Volume(L)	Revolving speed (r/min	Motor Power(KW)	Size(mm)	Weight(KG)
SZPP-15	300	250	15	2000	1.1	950500480	210
SZPP-25	300	350	25	2000	1.5	950500580	220
SZPP-45	450	300	45	1500	2.2	1250700760	450
SZPP-60	450	400	60	1500	3	1250700860	470
SZPP-85	600	300	85	1250	3	1500900950	970
SZPP-110	600	400	110	1250	4	15009001050	1000
SZPP-140	600	500	140	1250	5.5	15009001150	1030

SZPP-15 Charge per batch around 5Kg(10 pound) Amount of ethanol each time around 30L(8 gallon)
SZPP-25 Charge per batch around 8Kg(18 pound) Amount of ethanol each time around 40L(11 gallon)
SZPP-45 Charge per batch around 14kg(30pound) Amount of ethanol each time around 85L(23 gallon)
SZPP-60 Charge per batch around 20kg(45pound) Amount of ethanol each time around 105L(28 gallon)
SZPP-85 Charge per batch around 25kg(55pound) Amount of ethanol each time around140L(37 gallon)
SZPP-110 Charge per batch around 35kg(75pound) Amount of ethanol each time around175L(46 gallon)
SZPP-140 Charge per batch around 45kg(100pound) Amount of ethanol each time around 210L(55 gallon)

Working principles of hemp oil extraction centrifuge

* Patented technology of double sealing of Teflon(PTFE) and FV rubber ensures the negative pressure level.
* Automatic switch valve makes continuous collection possible without affecting vacuum degree and without stopping distillation.
* Teflon discharge valve is corrosion resistant and contamination free.
* Water bath jacket protecting operator from scalding by hot liquid.
* Motorized water bath lifting for precise control.
* Quick clamp connections for easy and fast installation.
* PID temperature controller ensures accurate temperature control is maintained.
* Optional stainless steel evaporating flask carrier with silicone cushions is designed for safer and easier loading and
unloading of the flask. It can also be used as a flask stand

.Environmental, transportation, storage requirements

1 Working environment: temperature -50 ° C -50 ° C; air relative humidity is not more than 85%.
2 Transportation: Centrifuges must not be rolled and inverted during shipment, and must not be stacked to prevent rainwater intrusion.
3 Handling: The centrifuge must be hoisted according to the position of the center of gravity of the centrifuge during the
handling process. The machine is equipped with 4 lifting rings. When lifting, try to keep the level of the centrifuge. Do not roll and invert.
4 Storage: The centrifuge should be placed at a temperature of 0-40 ° C, the relative humidity of the air is not more than 85%, and there is no corrosive medium to avoid the place.
The centrifuge must be kept by a person before installation and use to ensure the integrity of the centrifuge. The technical
status and installation of the centrifuge should be confirmed by the manufacturer before operation.

Machine installation and adjustment

1 Installation Precautions
1.1 The machine must be kept in storage before and after installation. Pay attention to the moisture protection of the motor and pay attention to the protection of the electronic control system.
1.2 Safety must be taken during lifting to prevent the machine from being damaged by collision.
1.3 The centrifuge installation must be horizontal and the reference surface is the upper plane of the machine base (level ≤ 3mm).
1.4 There should be sufficient space between the equipment and other equipment installed adjacent to the centrifuge and the centrifuge to prevent the machine from colliding with it and causing damage or noise, and to facilitate inspection and maintenance of the machine.The space required for the use and maintenance of the centrifuge should be considered during the installation position of the centrifuge.There should be a pedestrian passage of not less than 1 meter around the centrifuge main unit. There must be more than 2 meters of assembly and disassembly maintenance space above the centrifuge main unit.
1.5 Because the centrifuge has slight vibration during high-speed operation, the pipe (feeding pipe, outlet pipe, washing pipe, exhaust pipe, cable pipe, etc.) connected to the centrifuge must be flexibly connected, and the connection must be reliable. Sealed or insulated to ensure no leakage and safe use of electricity. The diameter of the external outlet pipe shall not be less than the diameter of the machine outlet pipe, and shall not have dead bends or blockages. The pipe arrangement shall be lower than the height of the outlet pipe outlet and have a certain height difference so that the liquid discharge is unblocked.
1.6 Select the appropriate filter cloth type to make the filter bag according to the characteristics of the separated materials.
And ensure the filter bag and the drum body have a good fit according to the filter bag provided by the manufacturer.
1.7 The electrical wiring is connected by an electrician according to the electrical control schematic diagram of the PP series
centrifuge to wait for the operation and adjustment of the centrifuge.
1.8 After the centrifuge is installed, turn on the motor power, adjust the tension of the motor’s V-belt, and prepare for the test run.

Warning
2.1 The cover must be covered and locked before the centrifuge for hemp oil extraction is running!
2.2 Do not open the cover when the machine is running!
2.3 It is strictly forbidden to use rigid connection among the feeding tube, the washing tube and the liquid discharging tube on
the main machine of the centrifuge, so as not to affect the vibration damping system of the main machine itself and damage the
machine.

Packing & Delivery

wooden case

Company Profile

Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
