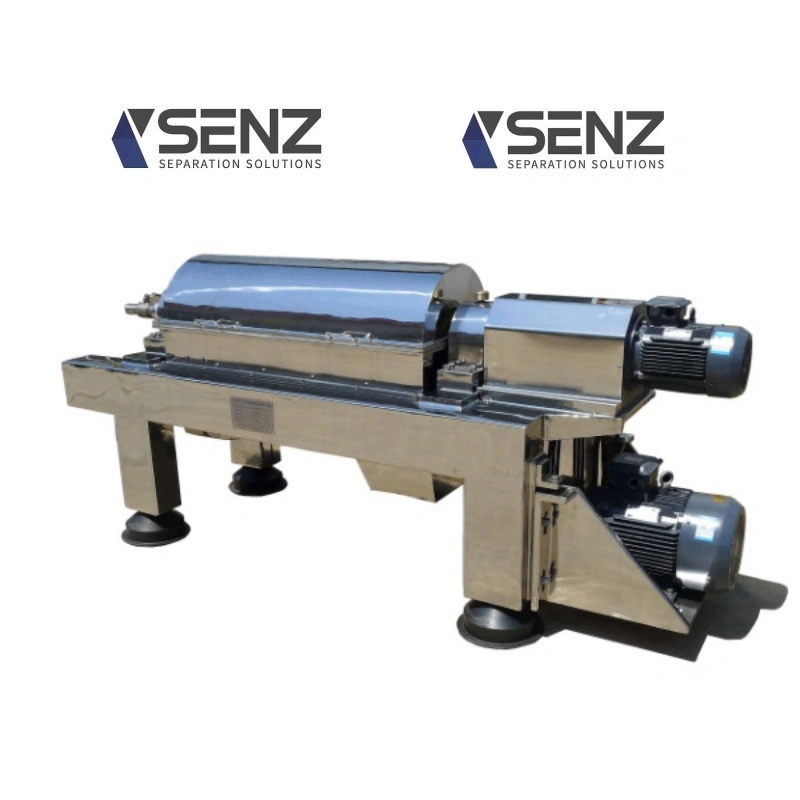

Horizontal sedimentation centrifuge2
The working principle of the horizontal spiral settling centrifuge is that the slurry mixture enters the drum through the feed pipe and spiral discharge port. Under the centrifugal force generated by the high-speed rotation of the host, solid particles with a high density deposit on the inner wall of the drum. The spiral blades that move relative to the drum continuously scrape off the solid particles deposited on the inner wall of the drum and push them out of the slag discharge outlet. The separated clear liquid flows out of the drum through the opening of the weir plate. The relative motion between the spiral and the drum is achieved by a differential. The differential housing is connected to the drum, the output shaft is connected to the screw, and the input shaft is connected to the auxiliary motor. The main motor drives the rotation of the drum and also drives the rotation of the differential housing. Due to the connection between the input shaft and the auxiliary motor, the auxiliary motor generates braking torque, which drives the planetary gears to operate according to the designed transmission relationship and transmits the torque to the screw in a certain proportion, achieving continuous separation of materials in the horizontal spiral settling centrifuge
About Shenzhou
Shenzhou Machinery is a subsidiary of Shenzhou Group.Which was established in 1980,conveying an area of 80000M2 ,there are 2500 staffs and employee in our company.200 of them are technicians and engineers.It has obtained the approvals and certifications of both CE and ISO. Some of our machines gained the new technology invent patent.We are on of the world’s leading manufacturers of decanter centrifuge,disc centrifuge,tubular centrifuge,separation systems and drying equipment.Now there are over 180 series or decanter centrifuges and disc separators used home and abroad.Including U.S.A , Canada ,Australia,Russia ,Brazil,Singapore and so on totally 70 countries. We own various kinds of inspection and testing facilities with value over USD10 million .18 testing tables,high speed dynamic balancing machine,ultrasonic flaw detection machines.etc. We are equipped with complete testing,inspection,analysis control system ,advanced testing machines and stimulative working condition test table and automatic control testing system,which guarantees our new product research ,processing validation and quality. We also welcome OEM and ODM orders.Whether selecting a current product from our catalog or seeking engineering assistance for your application,you can talk to our customer service center about your sourcing requirements Welcome all who care engaged in the separation and filtration to work with us,and we are also looking for the qualified world wide agents to provide better service and deep marketing.
A decanter centrifuge is a sedimentation centrifuge for separation of suspended solids from one or two liquids. The characteristic which distinguishes a decanter centrifuge from other types of centrifuges such as disc stack
Description / Advantages
A decanter centrifuge; consists of a solid cylindrical bowl rotating at high speed, a scroll rotating at the same axis with a slightly different speed, a drive group adjusting the speed difference and the body which carries all the rotating elements.
Application flexibility
Easy installation
Corrosion and wear protection
Personnel safety
Operational conditions
Automation
Low space requirement
Applications
Municipal waste water treatment plants
Industrial waste water treatment plant
Paper production mills treatment plants
Corrosion and wear protection
Personnel safety
Dewatering
Fish meal and fish oil extraction
Foods & Beverages Plants
| Model | Diameter(mm) | Lenght(mm) | Max speed | L/D ratio | G-force | Capacity(m3/h) | Main motor power(Kw) | Weight(kg) | Dimension(mm) |
| LW250*1000 | 250 | 1000 | 5000 | 4 | 2722 | 0.5-5 | 7.5 | 950 | 2120*1250*680 |
| LW300*1200 | 300 | 1200 | 4000 | 4 | 2784 | 2-6 | 11 | 1350 | 2450*1300*900 |
| LW355*1460 | 355 | 1460 | 3600 | 4 | 2576 | 2-10 | 15 | 1400 | 2730*1600*1080 |
| LW400*1600 | 400 | 1600 | 3000 | 4 | 2016 | 3-15 | 22 | 1800 | 3130*1600*1080 |
| LW450*1800 | 450 | 1800 | 2800 | 4 | 1976 | 4-25 | 37 | 2500 | 3320*1700*1130 |
| LW500*2000 | 500 | 2000 | 2800 | 4 | 1750 | 5-35 | 45 | 4000 | 3520*1800*1170 |
| LW550*2200 | 550 | 2200 | 2800 | 4 | 2414 | 6-40 | 55 | 4680 | 4570*1380*1600 |
