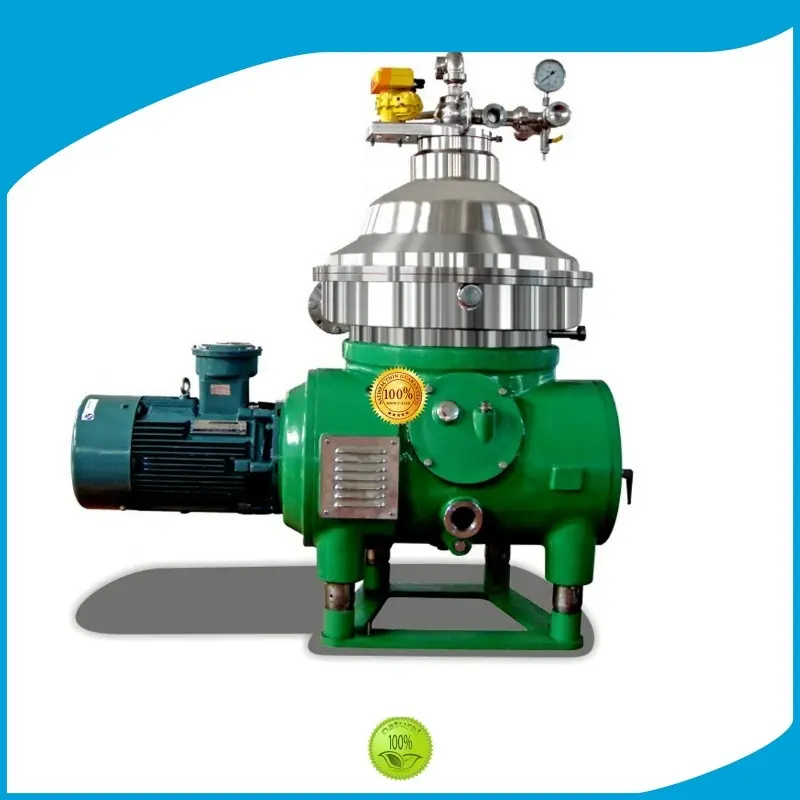

    3 Phase Disc Centrifuge - High Performance Oil Water Separator

    The 3 Phase Disc Centrifuge is a high-performance oil-water separator designed to efficiently separate oil, water, and solids from a variety of industrial fluids. Its advanced technology ensures thorough separation, making it ideal for applications where purity and efficiency are critical. Users can benefit from its reliable performance, high processing capacity, and low maintenance requirements, making it a cost-effective solution for their separation needs.
    SEND INQUIRY NOW
    Products Details
  • Feedback

    • Product features

    The 3 Phase Disc Centrifuge is a high-performance oil water separator that utilizes powerful centrifugation to remove oil, grease, and sludge impurities, while providing strong emulsification ability. With low energy consumption and the option for full automation with a PLC automatic control panel, this separator boasts high reliability in drive train system and bowl design for superior separation performance. The compact structure and professional automatic domination case with safety protection device make this separator an efficient and easy-to-use solution for liquid-liquid-solid separation. With a pilot valve for regulating discharge of solids and options for a super partial discharger, this disc centrifuge offers maximum efficiency and performance in a compact and reliable package.

    We serve

    At our company, we serve our customers by providing a top-of-the-line 3 Phase Disc Centrifuge that offers high performance in separating oil and water. Our product is built with precision and reliability in mind, ensuring efficient operation and optimal results. With a focus on quality and durability, this centrifuge is perfect for industries that require strict separation requirements. We stand by our commitment to serve our customers by offering a product that exceeds expectations and delivers exceptional value. Trust us to provide you with the solution you need for all your oil and water separation needs.

    Why choose us

    At our company, we serve our customers with high-quality 3 Phase Disc Centrifuges, designed to provide exceptional performance as oil water separators. Our commitment to excellence means you can trust in a reliable and efficient product that will meet your specific needs. With a focus on innovation, durability, and precision engineering, our centrifuges deliver outstanding results in separating oil from water with ease. We pride ourselves on serving our customers with top-tier products that exceed expectations, ensuring optimal efficiency and effectiveness in any industrial setting. Trust in us to provide the best solution for your oil water separation needs.

    Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd is considered one of the leading suppliers of Compact Structure Centrifugal Oil Water Separator For Liquid - Liquid - Solid Separation. Talents and technology are indispensable supporting factors for the Compact Structure Centrifugal Oil Water Separator For Liquid - Liquid - Solid Separation to be widely praised. Compared with the traditional ones, it better meets the market demands.

    Place of Origin:ChinaType:Separating Plant
    Condition:NewVideo outgoing-inspection:Provided
    Machinery Test Report:ProvidedMarketing Type:Hot product
    Warranty of core components:1 YearCore Components:Bearing, Motor
    Brand Name:ShenzhouVoltage:220v/300v/380v/optional
    Power:ModelWeight:variable
    Dimension(L*W*H):variableWarranty:1 Year
    Key Selling Points:Easy to OperateApplicable Industries:Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops, Advertising Company, Pharmaceutical plant, Chemical plant
    Showroom Location:NoneMaterial:Stainless Sheel
    After-sales Service Provided:Video technical support, Online supportAfter Warranty Service:Video technical support, Online support
    Local Service Location:NoneCertification:CE BV ISO


    Product Description
    Compact Structure Centrifugal Oil Water Separator For Liquid - Liquid - Solid Separation
    automatic discharging separator is special equipment for oil and fat refining, it has the traits as high rotating speed, operating stability, completely sealed up of the inlet and outlet system, lower noist and fine separating affection. Centripetal pump system designed by our professional designer has the traits as stability outlet pressure, large regulating sphere and operating easily.
    Also this series separator has professional automatic domination case with safety protection device, advanced automatic vibrating testing instrument can view vibrating testing instrument can view vibrating number at any time. We can make separating and discharing to the best affection from regulate separting parameter directly at the screen.
    Feature:
    Features
    * High speed centrifugation to remove oil grease and sludge impurities
    * Strong emulsification ability
    * Low energy consumption,saves money
    * Full automation possible with PLC automatic control panel.
    * Centrifugal separation requiring no filter media.
    * High reliability drive train system backed by delivery of over 1,000 units a year.
    * Bowl design with superior separation performance and with good response to discharge loads.
    * Pilot valve regulates total/partial discharge of solids.
    * Super partial discharger (option) minimizes liquid loss and maximizes thickening of solid
    * Fraction for discharge.
    * Vibration-proof design realizes long working life.
    Working Principle
    How does Disc Separator work?
    The disc separator is in vertical structure. The drum is mounted on the upper end of the vertical axis, which is driven by a motor and rotates at a high speed. There is a set of disc - shaped parts that are stacked together in the drum, with a small gap among them. When the suspension (or emulsion), which is pumped into the drum by feeding tube located in the center of the drum, pass through the gap between the discs, solid particles (or droplets) would settle down to form sediment (or liquid layer) on the disc by centrifuge force, and then the sediment slid along the surface of the disc and separated from the disc to accumulate in the largest diameter of the drum. At last, the separated liquid discharged from the outlet. The disc is utilized to shorten the settling distance of solid particles or droplets, enlarge the settlement area of the drum, and improve the production capacity of the separator. The solids accumulated in the drum are removed from the drum by manual after the machine stop, or out of the drum in the case of a dregs machine without stopping.
    Main Structure
    Powerful Motor provide power through the thermal coupling to drive drum in high-speed rotating around the main axis. And the liquid material is carried by feeding pipe located in the upper center into the bottom of the drum, and then led in the porthole below the disc and driven to the drum wall. Under centrifugal force, solid- liquid-liquid do the below motion to complete thorough separation:solid phrase, which is heavier than liquid, would sink into the inner wall of the drum for sediment formation; light liquid flow in centripetal pump, and be discharged by liquid outlet; The heavy liquid tends to the drum wall along the cone inside the disc, and then flows upward through through the heavy liquid concentric pump to be discharge from the outlet.
    Due to the double-conical design of the inner cavity of the drum, it can compress the slag and increase its concentration.
    Besides, some nozzles is mounted around the drum to spray slurry sediment, whose number and aperture are determined on the properties of the suspension, the degree of concentration and the amount of treatment.
    In order to improve the slag concentration, recovery device is configured with this disc separator to the discharged sediment for reuse. For the solid concentration of the slag can be increased by 5~20 times than that of the feeding materials.
    The processing capacity of the separator is up to 30t/h, which is suitable for suspension with solid phrase in diameter of 0.1~100 microns and concentration less than 10% (maximum to 25%).
    Disc Oil Separator Application:
    Treatment of lube
    Treatment of oil, water and solid substances
    Treatment of drilling slurry
    Water removal of crude oil
    Treatment of cooling lubricant
    Treatment and water removal of lubricant and hydraulic oil
    Treatment of waste emulsion and waste oil
    Treatment of aging oil
    Specification
    Model
    Treatment Capacity L/H
    Inlet Pressure MPa
    Outlet Pressure MPa
    Motor Power kw
    Weight(Kg)
    Outline Dimension mm







    DHKY360
    1000-5000
    0.05
    0.1-0.25
    7.5
    1280
    1500*1150*1500







    DHKY470
    3000-10000
    0.05
    0.1-0.25
    15
    1880
    1800*1200*1800







    DHKY550
    5000-20000
    0.05
    0.1-0.25
    22
    2200
    1850*1550*2050
