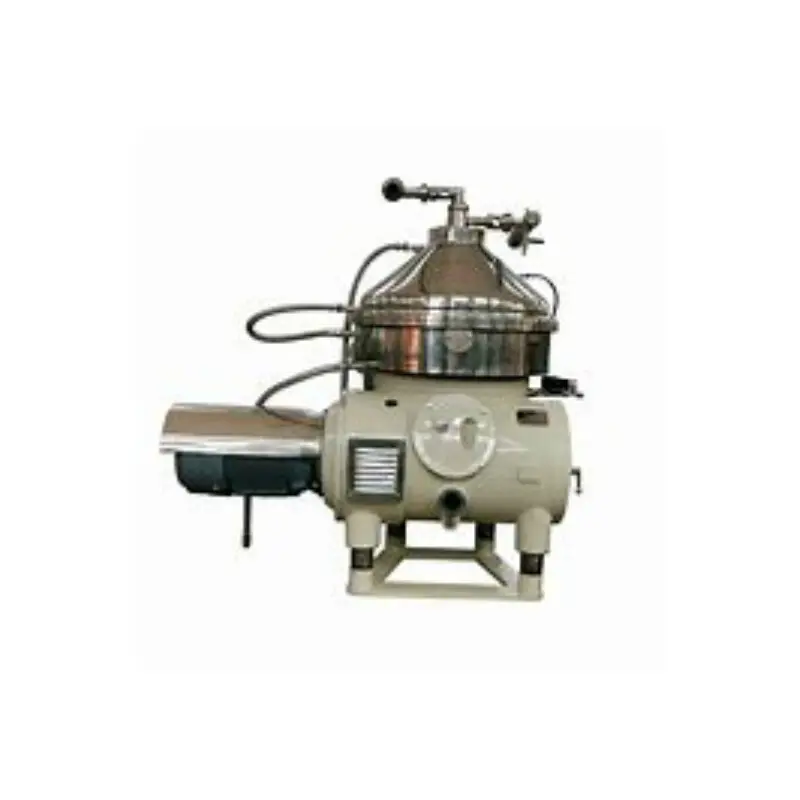

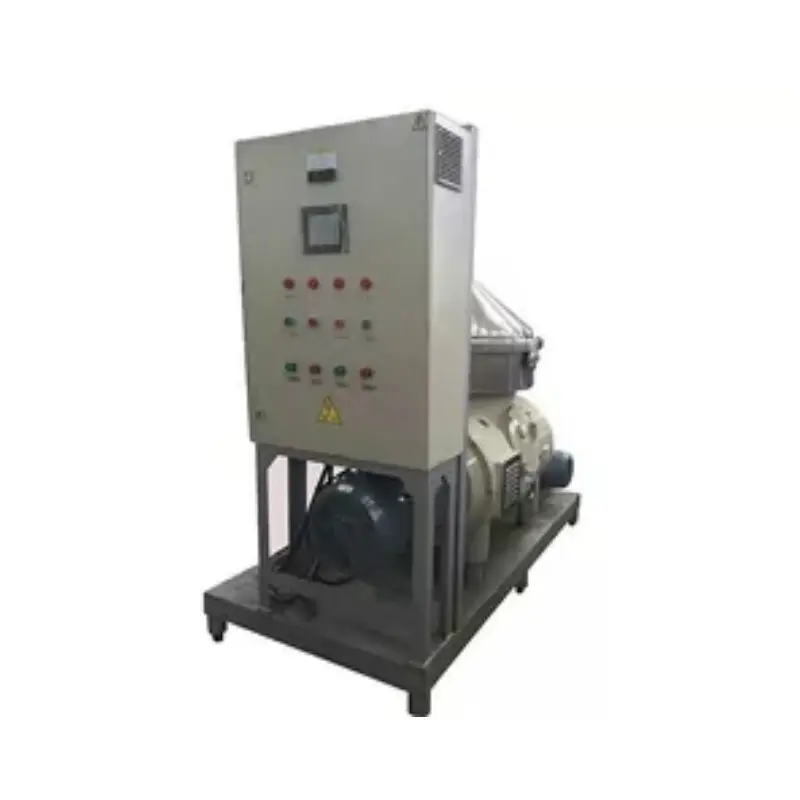

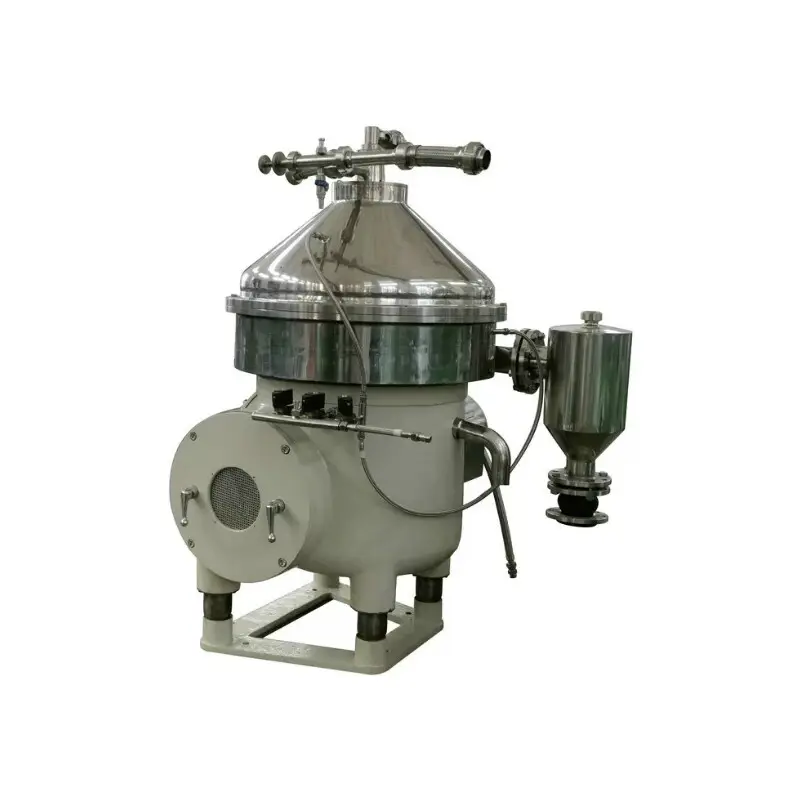

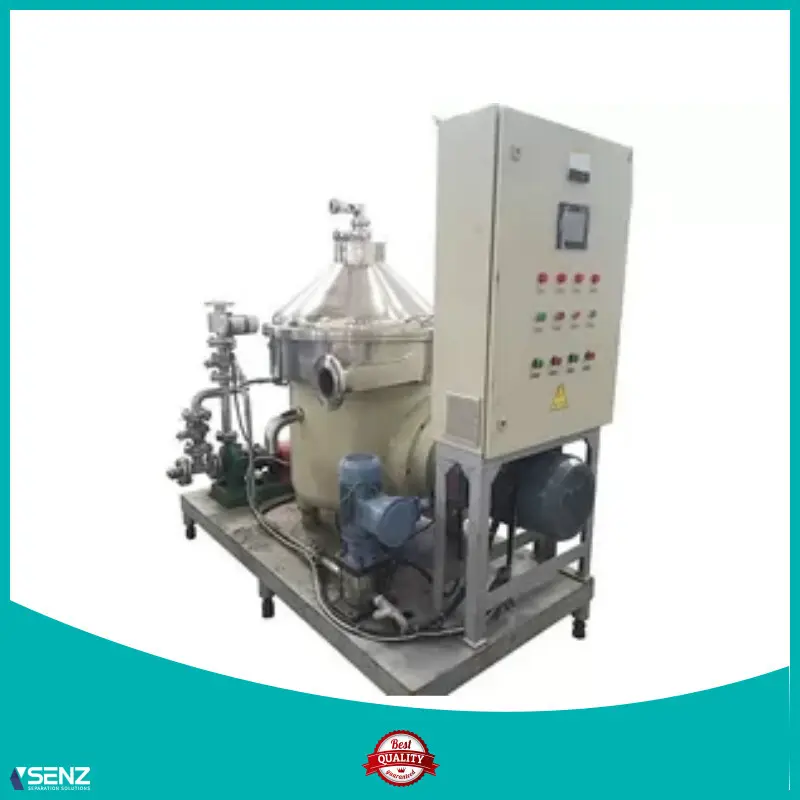

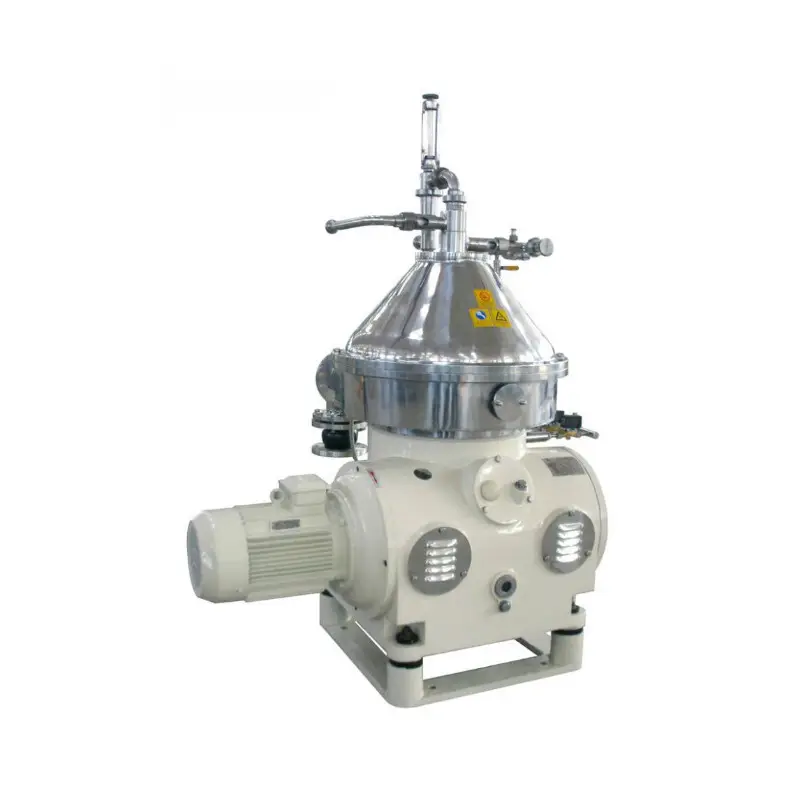

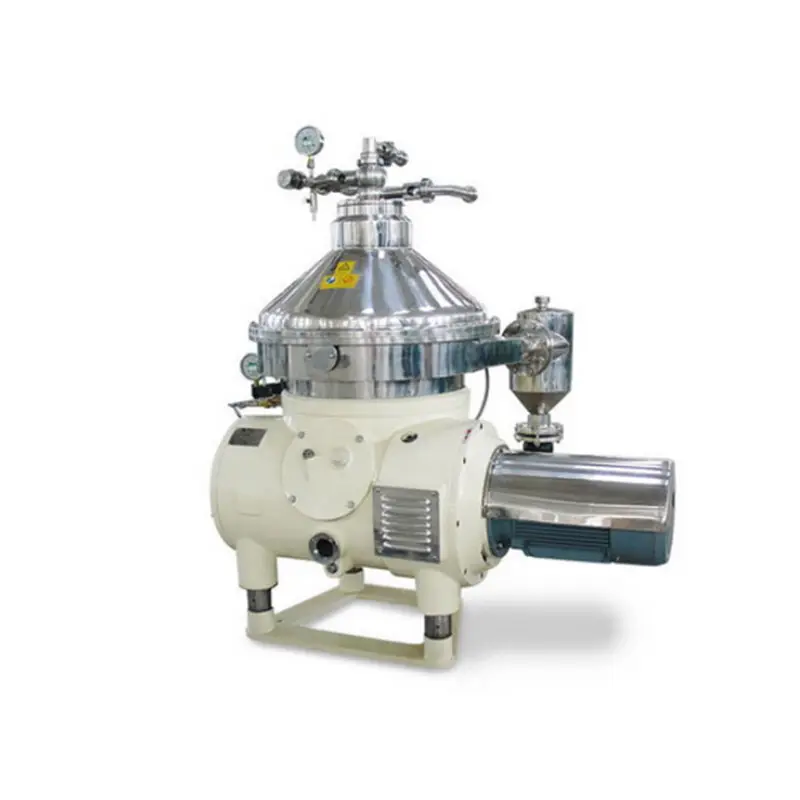

3 Phase Disc Centrifuge System for Milk Separation
Product features
The 3 Phase Disc Centrifuge System for Milk Separation is designed with high rotating speed for effective removal of oil, grease, and sludge impurities. With an impressive emulsification ability and low energy consumption, this system offers a cost-effective solution for milk separation. The fully automated PLC control panel ensures easy operation, while the completely sealed inlet and outlet system guarantees operating stability. The superior bowl design provides excellent separation performance, making this system a reliable choice for large and medium-sized milk companies.
Company profile
Our company specializes in providing innovative separation solutions for the food industry, including our 3 Phase Disc Centrifuge System for Milk Separation. With a proven track record of delivering high-quality products, we are dedicated to ensuring efficiency and precision in milk processing. Our system is designed to separate milk into its various components, such as skim milk, cream, and whey, with minimal wastage and maximum yield. By investing in our cutting-edge technology, customers can improve their production process and enhance the quality of their dairy products. Trust us to help you streamline your operations and elevate your business to new heights.
Why choose us
Our company specializes in providing state-of-the-art 3 Phase Disc Centrifuge Systems for milk separation. With years of experience in the industry, we have perfected our technology to ensure efficient and precise separation of milk components. Our systems are designed to enhance productivity and maximize profitability for dairy producers. We pride ourselves on delivering high-quality, reliable products that meet the needs of our customers. By choosing our 3 Phase Disc Centrifuge Systems, you can trust that you are investing in a solution that will optimize your milk separation process and ultimately improve your bottom line.
With the help of our technicians and workers,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has finally developed the quality-guaranteed product. The product is called Electric Power Milk Water And Dairy Cream Separator System With PLC Control. Electric Power Milk Water And Dairy Cream Separator System With PLC Control performs powerful function and has strong advantages. In the future,Electric Power Milk Water And Dairy Cream Separator System With PLC Control will always adhere to the road of quality development, increase the investment in technology and talent introduction, always improve the core competitiveness of the enterprise, to achieve the goal of sustainable development.
| Place of Origin: | China | Type: | Separating Plant |
| Condition: | New | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot product |
| Warranty of core components: | 1 Year | Core Components: | Bearing, Motor |
| Brand Name: | Shenzhou | Voltage: | 220v/300v/380v/optional |
| Power: | Model | Weight: | variable |
| Dimension(L*W*H): | variable | Warranty: | 1 Year |
| Key Selling Points: | Easy to Operate | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops, Advertising Company, Pharmaceutical plant, Chemical plant |
| Showroom Location: | None | Material: | Stainless Sheel |
| After-sales Service Provided: | Video technical support, Online support | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | None | Certification: | CE BV ISO |
DHNZ/DHN milk separator is mainly used to degrease the cow's milk and to separator the whey, fat and cream. It is suitable for the large and medium size milk company. It is closed system and all the parts which in contact with the milk are made of super stainless steel and in conformity with the Food grade. We have many models ,from smaller to largest .
Disc Oil Separator advantage:
1, High rotating speed
2, Operating stability
3, Completely sealed up of the inlet and outlet system
The milk has so wide diversity, even the simplest milk sold on the market contains different fat contents. If list, there are somany types of dairy products to be mentioned, such as butter, cheese, quark, yogurt etc.
Shenzhou dairy separator has such features as large capacity, good deoiling performance, high efficiency and lower energy consumption. The advanced inlet and outlet design guarantees soft treatment during the whole separation process, preventing destructive air from entering and ensuring product quality.
* High speed centrifugation to remove oil grease and sludge impurities
* Strong emulsification ability
* Low energy consumption,saves money
* Full automation possible with PLC automatic control panel.
* Centrifugal separation requiring no filter media.
* High reliability drive train system backed by delivery of over 1,000 units a year.
* Bowl design with superior separation performance and with good response to discharge loads.
* Pilot valve regulates total/partial discharge of solids.
* Super partial discharger (option) minimizes liquid loss and maximizes thickening of solid
* Fraction for discharge.
* Vibration-proof design realizes long working life.
· 2 Cold milk separation
· 3 Whey separation
· 4 Buttermilk separation
The disc separator is in vertical structure. The drum is mounted on the upper end of the vertical axis, which is driven by a motor and rotates at a high speed. There is a set of disc - shaped parts that are stacked together in the drum, with a small gap among them. When the suspension (or emulsion), which is pumped into the drum by feeding tube located in the center of the drum, pass through the gap between the discs, solid particles (or droplets) would settle down to form sediment (or liquid layer) on the disc by centrifuge force, and then the sediment slid along the surface of the disc and separated from the disc to accumulate in the largest diameter of the drum. At last, the separated liquid discharged from the outlet. The disc is utilized to shorten the settling distance of solid particles or droplets, enlarge the settlement area of the drum, and improve the production capacity of the separator. The solids accumulated in the drum are removed from the drum by manual after the machine stop, or out of the drum in the case of a dregs machine without stopping.
Besides, some nozzles is mounted around the drum to spray slurry sediment, whose number and aperture are determined on the properties of the suspension, the degree of concentration and the amount of treatment.
In order to improve the slag concentration, recovery device is configured with this disc separator to the discharged sediment for reuse. For the solid concentration of the slag can be increased by 5~20 times than that of the feeding materials.
The processing capacity of the separator is up to 30t/h, which is suitable for suspension with solid phrase in diameter of 0.1~100 microns and concentration less than 10% (maximum to 25%).
2. Palm oil, Coconut oil, linseed oil
3. Peanut , Corn Germ , Rice bran oil
4. Special oil, such as sesame oil, orange peel oil, safflower oil and so on
Core capacity
1. Degumming
2. Deacidification
3. Dewaxing
4. Fractionation
5. Water washing
6. Squeezed oil clarification
7. Lecithin deoiling
8. Frying oil refining
Model | Treatment capacity (L/H) | Inlet Pressure (Mpa) | Outlet pressure (Mpa) | Motor power (Kw) | Weight (Kg) | Outline dimension (mm) |
DHN360 | 2000-5000 | 0.05 | 0.1-0.35 | 7.5 | 1200 | 1530*1150*1500 |
DHN470 | 5000-10000 | 0.05 | 0.1-0.4 | 15 | 1600 | 1800*1200*1750 |
DHN550 | 10000-20000 | 0.05 | 0.1-0.4 | 22 | 2300 | 1950*1550*1960 |
DHN616 | 25000-35000 | 0.1 | 0.3 | 37 | 3000 | 2185*1728*2082 |
