Product Description

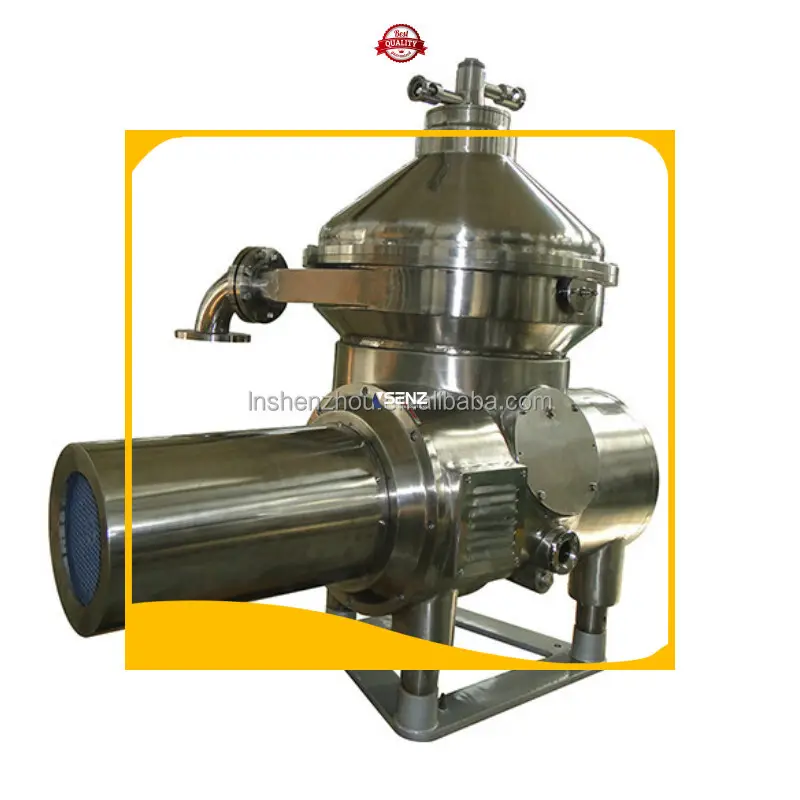

High Power Centrifugal Cream Separator Cream Separator Machine 0.05 MPa milk centrifuge separator

The separator mainly consists of inlet/outlet, drum, cover, vertical shaft, cross shaft, base, motor and automatic control box, etc.

High Power Centrifugal Cream Separator

The DHNZ series centrifugal cream separators have been sepeially designed for the separation of the whey and of the buttermilk from dairy production,and are designed for the small and medium size dairy industries. The DHNZ series cream separator from SHENZHOU have been designed to create a soft separation environment which could ensure the active ingredient in the material is not destroyed. Max. capacity: 10,000 L/h

Model	Treatment capacity (L/H)	Inlet Pressure (Mpa)	Outlet pressure (Mpa)	Motor power (Kw)	Weight (Kg)	Outline dimension (mm)
DHN360	2000-5000	0.05	0.1-0.35	7.5	1200	1530*1150*1500
DHN470	5000-10000	0.05	0.1-0.4	15	1600	1800*1200*1750
DHN550	10000-20000	0.05	0.1-0.4	22	2300	1950*1550*1960
DHN616	25000-35000	0.1	0.3	37	3000	2185*1728*2082

Specification

Model	DHNZ360
Treatment capacity (L/H)	2000-5000
Inlet Pressure (Mpa)	0.05
Outlet pressure (Mpa)	0.1-0.35
Motor power (Kw)	7.5
Weight (Kg)	1200
Outline dimension (mm)	1530*1150*1500

Application area:
* 1Warm milk separation
* 2 Cold milk separation
* 3 Whey separation
* 4 Buttermilk separation
* 5 Milk and whey clarification
* 6 Milk standardisation

milk centrifuge separator

This series cream separator come complete with control unit, electric motor, inlet and outlet devices, set of erosion-protective parts, illuminated sight glass box for light phase outlet, vibration switch, base plate, set of tools and standard set of spares

Working Principle

How does Disc Separator work?

Cream Separator Machine 0.05 MPa
The disc separator is in vertical structure. The drum is mounted on the upper end of the vertical axis, which is driven by a motor and rotates at a high speed. There is a set of disc - shaped parts that are stacked together in the drum, with a small gap among them. When the suspension (or emulsion), which is pumped into the drum by feeding tube located in the center of the drum, pass through the gap between the discs, solid particles (or droplets) would settle down to form sediment (or liquid layer) on the disc by centrifuge force, and then the sediment slid along the surface of the disc and separated from the disc to accumulate in the largest diameter of the drum. At last, the separated liquid discharged from the outlet. The disc is utilized to shorten the settling distance of solid particles or droplets, enlarge the settlement area of the drum, and improve the production capacity of the separator. The solids accumulated in the drum are removed from the drum by manual after the machine stop, or out of the drum in the case of a dregs machine without stopping.

Main Structure

Powerful Motor provide power through the thermal coupling to drive drum in high-speed rotating around the main axis. And the liquid material is carried by feeding pipe located in the upper center into the bottom of the drum, and then led in the porthole below the disc and driven to the drum wall. Under centrifugal force, solid- liquid-liquid do the below motion to complete thorough separation:solid phrase, which is heavier than liquid, would sink into the inner wall of the drum for sediment formation; light liquid flow in centripetal pump, and be discharged by liquid outlet; The heavy liquid tends to the drum wall along the cone inside the disc, and then flows upward through through the heavy liquid concentric pump to be discharge from the outlet.

Due to the double-conical design of the inner cavity of the drum, it can compress the slag and increase its concentration.
Besides, some nozzles is mounted around the drum to spray slurry sediment, whose number and aperture are determined on the properties of the suspension, the degree of concentration and the amount of treatment.
In order to improve the slag concentration, recovery device is configured with this disc separator to the discharged sediment for reuse. For the solid concentration of the slag can be increased by 5~20 times than that of the feeding materials.
The processing capacity of the separator is up to 30t/h, which is suitable for suspension with solid phrase in diameter of 0.1~100 microns and concentration less than 10% (maximum to 25%).
