Product Description

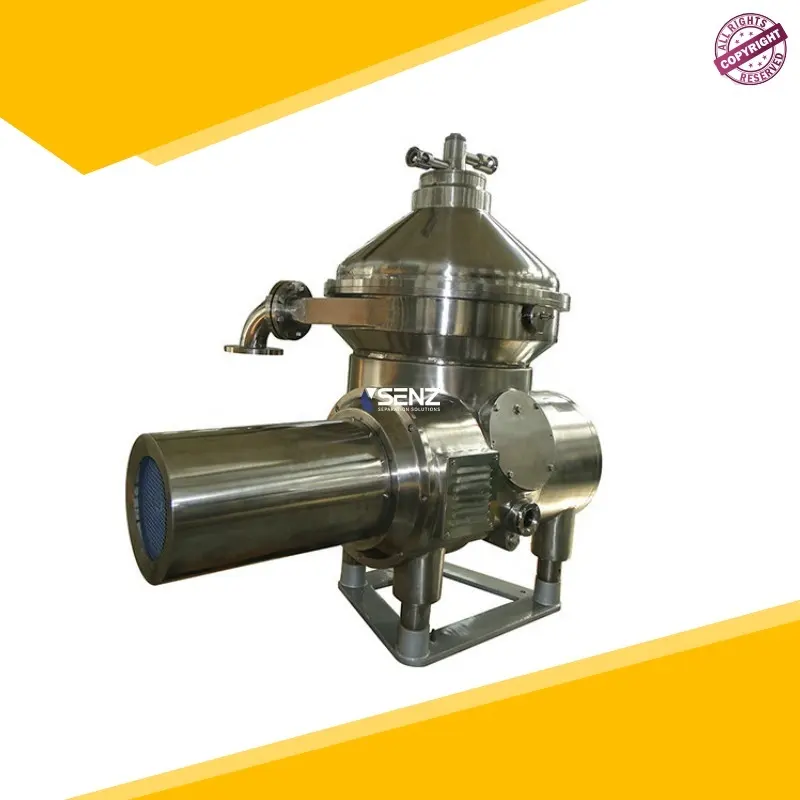

Centrifugal Separator

LYSZ separators are designed for liquid-based applications. Using centrifugal force, they are used for separating suspensions consisting of two or more phases of different densities, i.e. they can be used for liquid-liquid separation, for liquid-liquid-solid separation or for liquid-solid separation. They are equally as effective at separating liquid mixtures at the same time as removing solids.

The main functions of the blood centrifuge series include the ability to handle high flow rates, high solids content and high temperature processing. These features make it ideal for dealing with harsh conditions in the animal and fish processing industries.

SHEN ZHOU Disc centrifuge is an automatic centrifugal separator for precipitated proteins, microbial broths, hormones and other biopharma applications. This separation system embodies more than 100 years of technical know-how and development and delivers the performance of centrifugal machines in pilot or medium scale set-ups. Designed for excellence, this solid-liquid separator can be used as a clarifier or a purifier and concentrator.

Feature:

Features
* High speed centrifugation to remove oil grease and sludge impurities
* Strong emulsification ability
* Low energy consumption,saves money
* Full automation possible with PLC automatic control panel.
* Centrifugal separation requiring no filter media.
* High reliability drive train system backed by delivery of over 1,000 units a year.
* Bowl design with superior separation performance and with good response to discharge loads.
* Pilot valve regulates total/partial discharge of solids.
* Super partial discharger (option) minimizes liquid loss and maximizes thickening of solid
* Fraction for discharge.
* Vibration-proof design realizes long working life.

Working Principle

How does Disc Separator work?
The disc separator is in vertical structure. The drum is mounted on the upper end of the vertical axis, which is driven by a motor and rotates at a high speed. There is a set of disc - shaped parts that are stacked together in the drum, with a small gap among them. When the suspension (or emulsion), which is pumped into the drum by feeding tube located in the center of the drum, pass through the gap between the discs, solid particles (or droplets) would settle down to form sediment (or liquid layer) on the disc by centrifuge force, and then the sediment slid along the surface of the disc and separated from the disc to accumulate in the largest diameter of the drum. At last, the separated liquid discharged from the outlet. The disc is utilized to shorten the settling distance of solid particles or droplets, enlarge the settlement area of the drum, and improve the production capacity of the separator. The solids accumulated in the drum are removed from the drum by manual after the machine stop, or out of the drum in the case of a dregs machine without stopping.

Main Structure

Powerful Motor provide power through the thermal coupling to drive drum in high-speed rotating around the main axis. And the liquid material is carried by feeding pipe located in the upper center into the bottom of the drum, and then led in the porthole below the disc and driven to the drum wall. Under centrifugal force, solid- liquid-liquid do the below motion to complete thorough separation:solid phrase, which is heavier than liquid, would sink into the inner wall of the drum for sediment formation; light liquid flow in centripetal pump, and be discharged by liquid outlet; The heavy liquid tends to the drum wall along the cone inside the disc, and then flows upward through through the heavy liquid concentric pump to be discharge from the outlet.

Due to the double-conical design of the inner cavity of the drum, it can compress the slag and increase its concentration.
Besides, some nozzles is mounted around the drum to spray slurry sediment, whose number and aperture are determined on the properties of the suspension, the degree of concentration and the amount of treatment.
In order to improve the slag concentration, recovery device is configured with this disc separator to the discharged sediment for reuse. For the solid concentration of the slag can be increased by 5~20 times than that of the feeding materials.
The processing capacity of the separator is up to 30t/h, which is suitable for suspension with solid phrase in diameter of 0.1~100 microns and concentration less than 10% (maximum to 25%).

The fields of application range from separating processes in the chemical and pharmaceutical industries through oil and fat recovery to the production of dairy products, beer, wine, fruit and vegetable juices, as well as the processing of mineral oil and mineral oil products.

Separators have disk or annular chamber bowls. They operate continuously in respect of the discharge of the liquid phases. Inrespect of solids discharge they work either discontinuously (e.g. discontinuous disk-type centrifuges which must be stopped so that the collected solids can be removed by hand), semi-continuously (self-desludging disk type centrifuges = self-cleaning separators) or fully continuously (nozzle-type separators).

LYSZ separators are available with different types of drives: gear drive, belt drive, direct drive and integrated direct drive. The later is the next genuine stage in evolution in the separator construction process and works without motor shaft, gear, belts, coupling and motor bearing. The smaller number of installed components not only reduce the energy losses – they also reduce the maintenance costs, thus enhancing the availability of the machine. The space requirement of the integrated direct drive is approximately one third lower than is the case with equivalent gear or flat belt machines.

LYSZ separators with integrated direct drive can also be used in a very flexible manner. The bowl speed is infinitely variable within a specific range without change in transmission ratio. In addition, the maintenance process itself has been very much simplified. For instance, it is possible for the spindle to be taken out of the bearing housing only by loosening the bolts. The
innovative design of the integrated direct drive also enables the motor to be replaced complete with the drive within only a few hours when maintenance work has to be carried out – this is time which is very valuable and which can be used productively elsewhere.

Specification

Model	Treatment capacity (L/H)	Inlet Pressure (Mpa)	Outlet pressure (Mpa)	Motor power (Kw)	Weight (Kg)	Outline dimension (mm)
DHSZ360	1200-2500	0.05	0.1-0.25	7.5	1280	1500*1150*1500
DHSZ470	2500-7000	0.05	0.1-0.25	15	1880	1800*1200*1800
DHSZ550A	5000-10000	0.05	0.1-0.25	18.5	2200	1850*1550*2050
DHSZ550E	6000-15000	0.05	0.1-0.25	22	2200	1850*1550*2050
DHSZ700	15000-30000	0.1	0.2	30	3300	2100*1650*2300
DRSZ360	1200-2500	0.05	0.1-0.25	5.5	750	1250*1050*1500
DRSZ400A	2000-6000	0.05	0.1-0.3	7.5	1150	1300*900*1450
DRSZ400E	4000-7500	0.05	0.1-0.3	7.5	1300	1300*900*1500
DRSZ550	6000-18000	0.05	0.1-0.3	22	2200	1620*1300*2200
