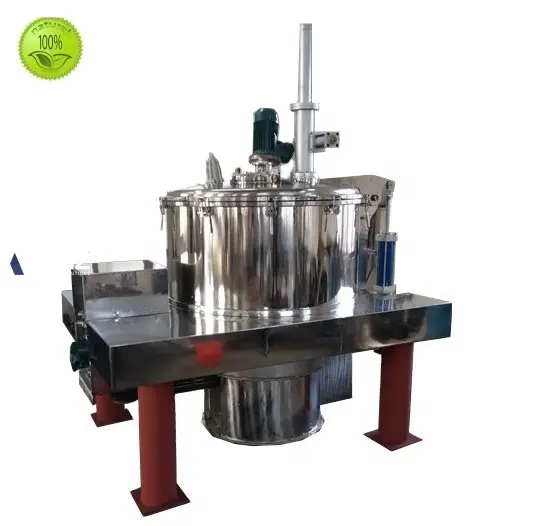

PLD Series Bag-Pulling Centrifuge - Ideal for Separation
Product features
The PLD Series Bag-Pulling Centrifuge, also known as the mini plate spinner centrifuge, offers solid-liquid separation and scraper discharge functions, with an additional feature of removing residual solid cakes through a bag-pulling method. This centrifuge prevents mixing of different batches of products and eliminates the effects of residual solid cake on the basket wall. It is ideal for industries like pharmacy, food, gourmet powder, and chemistry, offering efficient and effective separation processes. The centrifuge is designed with a removable lip ring in the basket for easy filter cloth replacement, a reliable external cylinder+rod drive design, and a fully-enclosed discharge hopper for separating materials from driving components.
Team strength
The PLD Series Bag-Pulling Centrifuge is the ultimate team player when it comes to separation tasks. With its innovative design and high-quality construction, this centrifuge can handle even the toughest challenges with ease. Its team strength lies in its ability to efficiently separate solids from liquids, resulting in superior outcomes every time. The reliable performance and durability of this centrifuge make it an invaluable asset to any team. Whether you're in the industrial or laboratory setting, this centrifuge is sure to boost productivity and streamline operations. Trust in the team strength of the PLD Series Bag-Pulling Centrifuge for all your separation needs.
Enterprise core strength
Team strength is at the core of the PLD Series Bag-Pulling Centrifuge. This powerful machine is designed for efficient separation processes, leveraging the collective expertise and cooperation of a strong team. Its advanced technology and precision engineering ensure reliable performance, making it ideal for a wide range of applications. The team behind this centrifuge is dedicated to continuous improvement, innovation, and customer satisfaction. With their combined strengths in research, development, and customer support, they deliver a superior product that exceeds expectations. Trust in the team strength behind the PLD Series Bag-Pulling Centrifuge for your separation needs.
After years of development, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has gained strong capabilities in production and R&D, which allows us to develop new products to keep close up with industry development. It's designed out of the needs of our customers. Following scientific and advanced production standards, we have successfully made PLD Series Bag-pulling Bottom Discharge Scraper Centrifuge excellent in its performance. Through multiple times of tests, the Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge is proved to be of great and so on. Before its launch, it has passed the certifications of several international and national authorities.
| Place of Origin: | Liaoning,China | Type: | Centrifuge |
| Product Type: | Paint | Condition: | New |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Bearing, Motor, Pump | Brand Name: | shenzhou |
| Voltage: | 380v | Power: | 15kw |
| Weight: | 3500 | Dimension(L*W*H): | 2210*1530*2200 |
| Warranty: | 1 Year | Key Selling Points: | Easy to Operate |
| Applicable Industries: | Food & Beverage Factory, Food Shop, Food & Beverage Shops, Other | Showroom Location: | None |
OPERATING PRINCIPL
* Removing the residual solid cake by bag - pulling method. Eliminate all solid cakes left over the process of scraper
discharging through reciprocal movement of the pneumatic pulling bag device, to realize complete discharging and filtering cloth regeneration.
* External cylinder+rod drive design, reliable in work
* Fully-enclosed discharge hopper design separating the material from the driving components of the centrifuge.
Feed type: Inclined feed disk, side feed pipe, middle feed pipe and material level detection device
Scraper discharge: Pneumatic, hydraulic and liquid-phase skimming disc
Motor drive: Common motor, inverter-duty motor and explosion- proof motor
Safety protection: Nitrogen protection (anti-explosion) system, vibration protection, temperature protection, electric-mechanical interlocking, speed monitoring and overload protection.
CIP system: Cleaning ball and spray pipe
Washing mode: Atomized nozzle rinsing, feed disk washing, pulse type washing
Nitrogen protection system: Automatic control device, hydraulic sealing device and gas -liquid separator.
Items | Model | ||||||||
PLD1000 | PLD1250 | PLD1400 | PLD1600 | PLD1800 | |||||
Basket Dia(mm) | 1000 | 1250 | 1400 | 1600 | 1800 | ||||
Basket Volume(L) | 180 | 400 | 600 | 800 | 1250 | ||||
Max. load(kg) | 230 | 500 | 700 | 1000 | 1500 | ||||
Max.Rotating speed (r/min) | 1100 | 1000 | 950 | 850 | 800 | ||||
Centrifuge force | 677 | 700 | 700 | 647 | 645 | ||||
Motor (kw) | 15 | 22 | 30 | 37 | 55 | ||||
Dimension (LxWxH) (mm) | 2210*1530*2200 | 2550*1800*2550 | 3020*2100*2720 | 3200*2400*3000 | 3500*2500*3300 | ||||
Weight (kg) | 3500 | 5000 | 9000 | 12000 | 17000 | ||||
2. Supply reference process flow chart .
3. Supply on-site installation and operation test
4. Integration for control system and process
5. Customized size and structure
6. 12 Months guarantee period from machine arriving date.
7. Sufficient spare parts in stock are available .
8. Technicians are available for overseas service.
9. 24 hours technical consultation.
10. The customer could get trained by our experienced technician.
A:1) More than 50 years experience of centrifuge & separator production and R&D.We have the most professional techniques and team.More advantage in price
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use famous good quality materials and the best production process
Q2.What's the Payment?
A:T/T would be better with quick transfer and few bank fees. LC could also be accept, but the
procedure is complex and the fee is high. You can also use Western Union and Paypal.
Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Q4.How long is the warranty period ?
A:12 months.
