Shenzhou | Bulk buy 2 phase disc Centrifuge supply

Set up years ago, Shenzhou is a professional manufacturer and also a supplier with strong capabilities in production, design, and R&D. 2 phase disc Centrifuge Today, Shenzhou ranks the top as a professional and experienced supplier in the industry. We can design, develop, manufacture, and sell different series of products on our own combining the efforts and wisdom of all our staff. Also, we are responsible for offering a wide range of services for customers including technical support and prompt Q&A services. You may discover more about our new product 2 phase disc Centrifuge and our company by directly contacting us.Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd provides superior customer service, costs saving and  excellent communication to agents and clients.

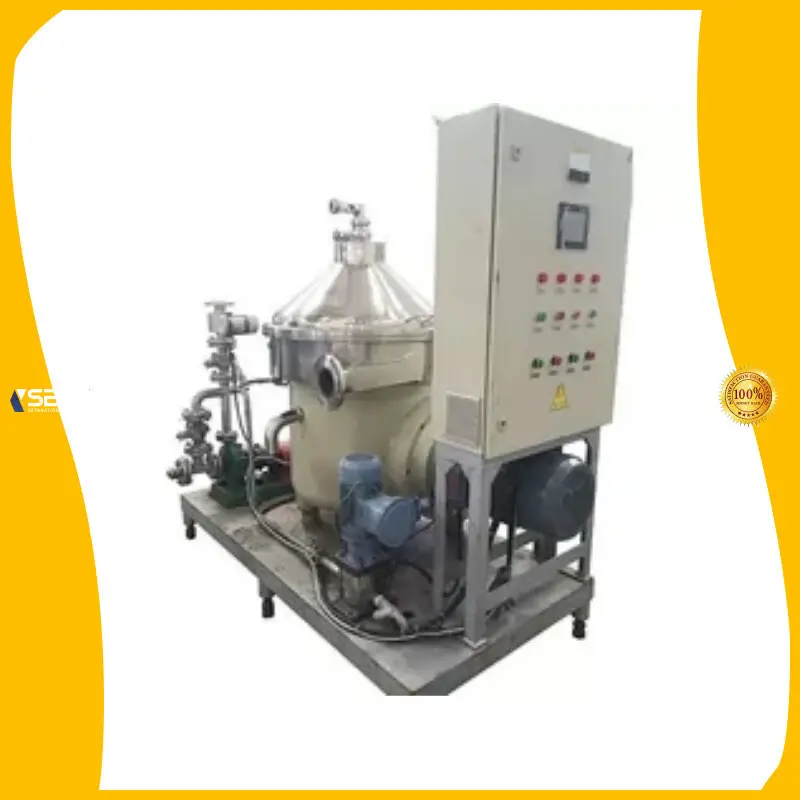

With the help of our technicians and workers,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has finally developed the quality-guaranteed product. The product is called Electric Power Milk Water And Dairy Cream Separator System With PLC Control. Electric Power Milk Water And Dairy Cream Separator System With PLC Control performs powerful function and has strong advantages. In the future,Electric Power Milk Water And Dairy Cream Separator System With PLC Control will always adhere to the road of quality development, increase the investment in technology and talent introduction, always improve the core competitiveness of the enterprise, to achieve the goal of sustainable development.

Product Description

DHNZ/DHN series separator is mainly used in milk cream industry.

DHNZ/DHN milk separator is mainly used to degrease the cow's milk and to separator the whey, fat and cream. It is suitable for the large and medium size milk company. It is closed system and all the parts which in contact with the milk are made of super stainless steel and in conformity with the Food grade. We have many models ,from smaller to largest .

Disc Oil Separator advantage:

1, High rotating speed

2, Operating stability

3, Completely sealed up of the inlet and outlet system

The milk has so wide diversity, even the simplest milk sold on the market contains different fat contents. If list, there are somany types of dairy products to be mentioned, such as butter, cheese, quark, yogurt etc.
Shenzhou dairy separator has such features as large capacity, good deoiling performance, high efficiency and lower energy consumption. The advanced inlet and outlet design guarantees soft treatment during the whole separation process, preventing destructive air from entering and ensuring product quality.

Feature:

Features
* High speed centrifugation to remove oil grease and sludge impurities
* Strong emulsification ability
* Low energy consumption,saves money
* Full automation possible with PLC automatic control panel.
* Centrifugal separation requiring no filter media.
* High reliability drive train system backed by delivery of over 1,000 units a year.
* Bowl design with superior separation performance and with good response to discharge loads.
* Pilot valve regulates total/partial discharge of solids.
* Super partial discharger (option) minimizes liquid loss and maximizes thickening of solid
* Fraction for discharge.
* Vibration-proof design realizes long working life.

Dairy Cream Separator Application

1 Warm milk separation
· 2 Cold milk separation
· 3 Whey separation
· 4 Buttermilk separation

Working Principle

How does Disc Separator work?
The disc separator is in vertical structure. The drum is mounted on the upper end of the vertical axis, which is driven by a motor and rotates at a high speed. There is a set of disc - shaped parts that are stacked together in the drum, with a small gap among them. When the suspension (or emulsion), which is pumped into the drum by feeding tube located in the center of the drum, pass through the gap between the discs, solid particles (or droplets) would settle down to form sediment (or liquid layer) on the disc by centrifuge force, and then the sediment slid along the surface of the disc and separated from the disc to accumulate in the largest diameter of the drum. At last, the separated liquid discharged from the outlet. The disc is utilized to shorten the settling distance of solid particles or droplets, enlarge the settlement area of the drum, and improve the production capacity of the separator. The solids accumulated in the drum are removed from the drum by manual after the machine stop, or out of the drum in the case of a dregs machine without stopping.

Main Structure

Powerful Motor provide power through the thermal coupling to drive drum in high-speed rotating around the main axis. And the liquid material is carried by feeding pipe located in the upper center into the bottom of the drum, and then led in the porthole below the disc and driven to the drum wall. Under centrifugal force, solid- liquid-liquid do the below motion to complete thorough separation:solid phrase, which is heavier than liquid, would sink into the inner wall of the drum for sediment formation; light liquid flow in centripetal pump, and be discharged by liquid outlet; The heavy liquid tends to the drum wall along the cone inside the disc, and then flows upward through through the heavy liquid concentric pump to be discharge from the outlet.

Due to the double-conical design of the inner cavity of the drum, it can compress the slag and increase its concentration.
Besides, some nozzles is mounted around the drum to spray slurry sediment, whose number and aperture are determined on the properties of the suspension, the degree of concentration and the amount of treatment.
In order to improve the slag concentration, recovery device is configured with this disc separator to the discharged sediment for reuse. For the solid concentration of the slag can be increased by 5~20 times than that of the feeding materials.
The processing capacity of the separator is up to 30t/h, which is suitable for suspension with solid phrase in diameter of 0.1~100 microns and concentration less than 10% (maximum to 25%).

Application Case:

1. Soybean, Rapeseed, sunflower seed, cotton seed
2. Palm oil, Coconut oil, linseed oil
3. Peanut , Corn Germ , Rice bran oil
4. Special oil, such as sesame oil, orange peel oil, safflower oil and so on
Core capacity
1. Degumming
2. Deacidification
3. Dewaxing
4. Fractionation
5. Water washing
6. Squeezed oil clarification
7. Lecithin deoiling
8. Frying oil refining

Specification

Model	Treatment capacity (L/H)	Inlet Pressure (Mpa)	Outlet pressure (Mpa)	Motor power (Kw)	Weight (Kg)	Outline dimension (mm)
DHN360	2000-5000	0.05	0.1-0.35	7.5	1200	1530*1150*1500
DHN470	5000-10000	0.05	0.1-0.4	15	1600	1800*1200*1750
DHN550	10000-20000	0.05	0.1-0.4	22	2300	1950*1550*1960
DHN616	25000-35000	0.1	0.3	37	3000	2185*1728*2082
