With the help of our technicians and workers,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has finally developed the quality-guaranteed product. The product is called Shenzhou Large Capacity Rock Salt Separation Double Stage Pusher Centrifuge. The Shenzhou Large Capacity Rock Salt Separation Double Stage Pusher Centrifuge launched by the company are made using the company's newly developed advanced technology, which perfectly solves the long-standing pain points of the industry. In order to be able to successfully meet the challenges,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will continue to forge ahead on the road of technological innovation. In addition, it will also work hard to analyze the changing needs of the market and create better products for customers according to their needs.

Product Description

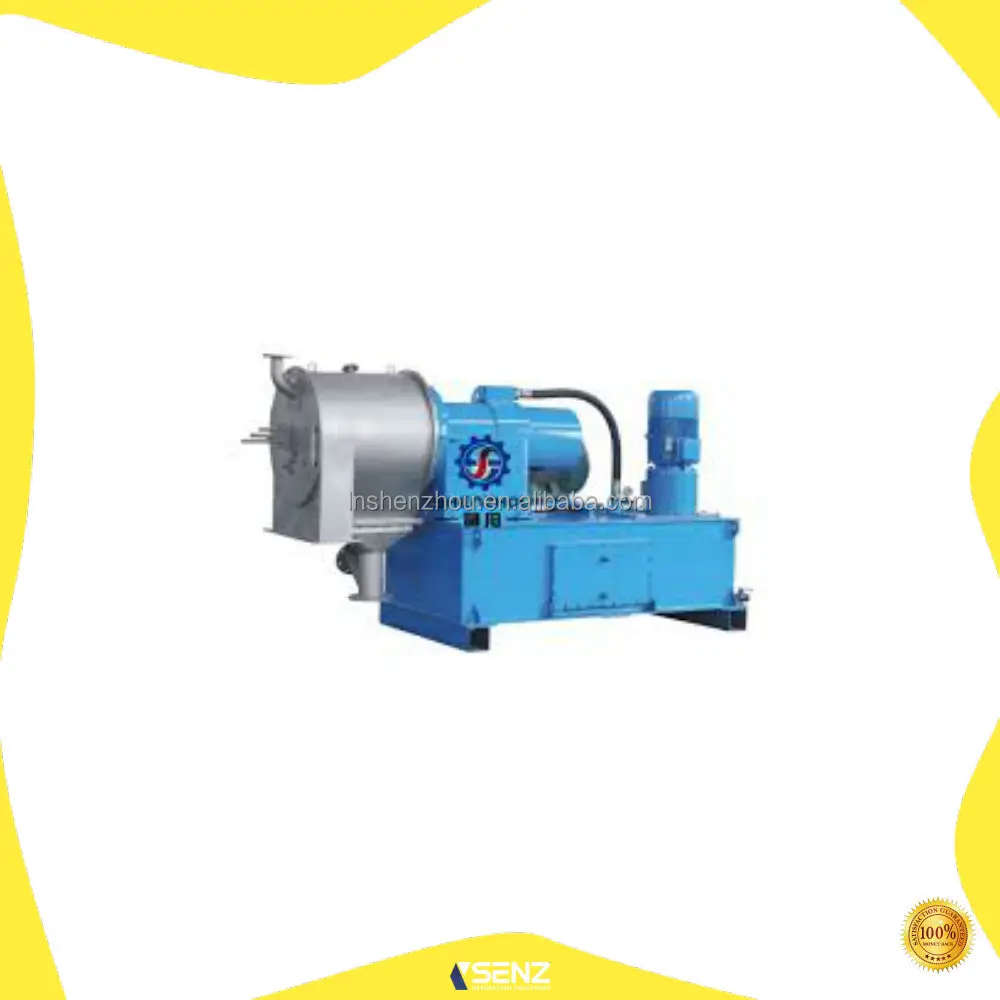

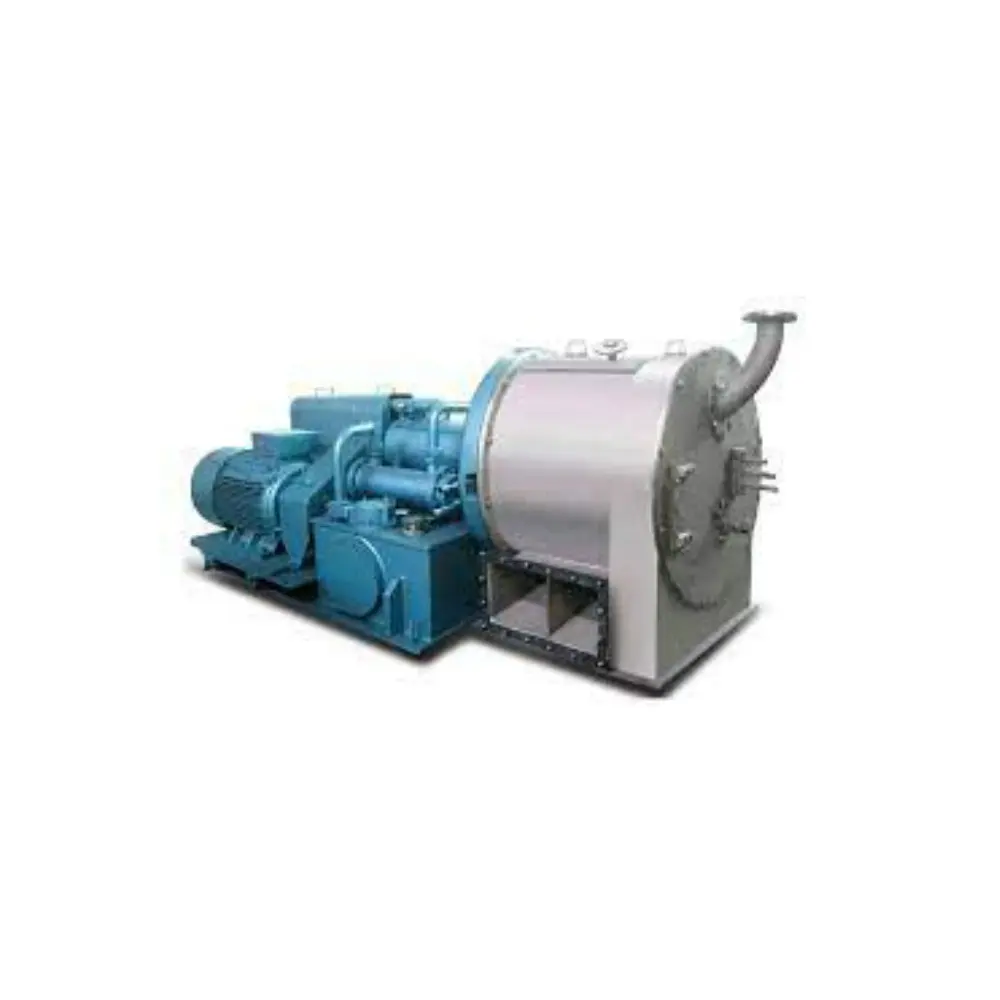

Shenzhou Large Capacity Rock Salt Separation Double Stage Pusher Centrifuge

Application: Sea salt and mineral salt dewatering
Advantages: Full automatic, large capacity
Bearing: Famous brand, such as SKF
MOC: SS316, DSS2205
Separation effection: Moisture in the cake less than 4%

It is suitable for the material with solid content 40-60%,particle size larger than 0.15mm,widely used in the mineral salt ,sea salt and chemical field as CuSO4.5H2O,etc.

Two-stage Pusher Centrifuge is a kind of perforated basket centrifuge, both continuous and effective. The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket. Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket .The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed. Afterwards, the cake is continuously discharged out of the basket.
In case of high purity for the solid product, the effective washing can be carried out in the centrifuge. If necessary, the
washing agent and the mother-liquor can be discharged separately.

Salt Production Line

·Crushing and Washing
The 'four washings and three crushings' production process represents the highest level of refined salt produced by the Chinese crushing method, of which four washes are:
——One-stage spiral washing
——Secondary spiral washing
——Vertical mixing and washing
- countercurrent washing
Three powder is:
- primary crush
- wet crushing
- dry crushing
Through the reasonable combination of wet pulverization and dry pulverization, various washing methods are matched to each other to ensure that the product salt reaches a high quality.

Specification

Domestic Model			P-40	P-50	P-60	P-85	P-100
International Model			HR400	HR500	HR630	HR850	HR1000
Basket	Diameter (mm)	290/360	438/500	560/630	740/828	920/1000
		Length Of Filtering Area (mm)	180/180	180/180	240/240	300/300	310/350
	Max Solid Loading Capacity (kg)	25	80	80	160	300
	Max. Speed (r/min)	2500	2000	1900	1500	1300
	Max.G.Force	1015/1260	981/1120	1132/2174	932/1043	871/946
	Length of Stroke (mm)	50	50	50	50	50
	Pushing Times	30~80	40-80	40-108	30-108	30-80
Motor	Main Motor	11~18.5KW	37~55 KW	45~75KW	55~90KW	75~132KW
		Oil Motor	4~7.5 KW	15~30Kw	22~37kw	37~55 KW	45~75 KW
Working Oil Pressure MPa			2.5	2	8	8	8
Net Weight (kg)			2480	4050	4260	6500	9000
Working Weight (kg)			3000	4500	4800	7000	9800
Elastic Weight (kg)			800	4000	4200	6000	8000
Feeding Capacity t/h			0.5~9	1~20	16~40	12~65	16~75
Solid Water Content After Separation ( Dehydration)			2.5 % ( sea salt )	3 % ( sea salt )	4 % ( sea salt )	4-5 % ( sea salt )

Details Images

Feature:

Continuous operation with large capacity
Ideal washing effect
Low moisture content of cake
Less solid content loss and crystal broken
Suitable for abrasion filtering cake

Typical separation

1.Chemical Industry: gypsum, thiamin, salt, ferric sulfate, boric acid, borax, rubber additive, dye, heavy oil and other chemical products.
2.Food industry: kitchen salt, sodium glutamate, food additive, Chemical seasonings, sugar
3.Pharmaceutical:Extraction of vitamin, biotic, traditional Chinese medicine and other various drugs
4.Mine and Metallurgy: Copper, zinc, minerals, and metal refining
5. Environmental Protection: with acid discharge, pure water sludge and sewage sludge, etc

Application

This type of centrifuge is well used to separate suspension with its solid size is over 0.1mm and density is over 30%.It can be used in chemical,light,pharmacy and food industry to produce sodium chloride ammonium fluoride ammonium bicarbonate, sodium sulphate, urea, caffeine, polyethylene, polystyrene, oxalate, nitrate.
