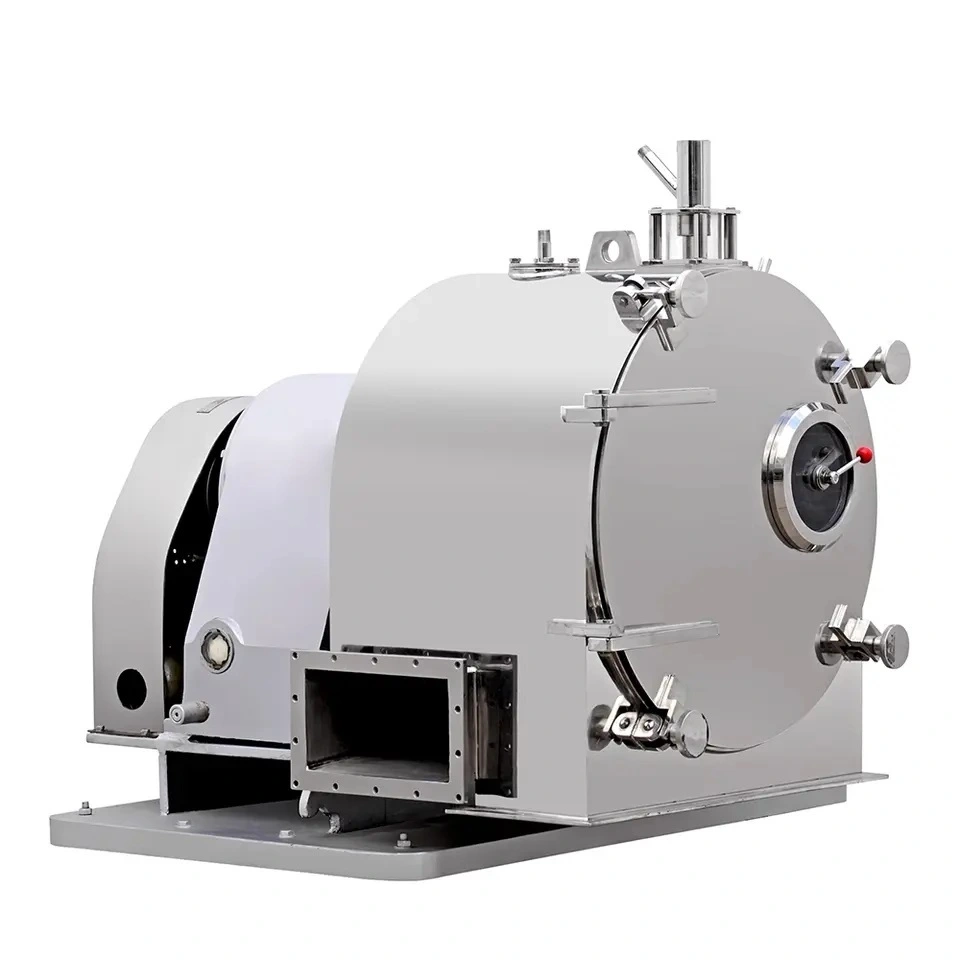

Centrifugel Applied Successfully for Bisphenol LWL Horizontal Filtration Screw Discharge Filtering Centrifuge
Main Characteristics:
1. Continuous working, spiral discharging, high capacity
2. Compact structure and easy maintenance
3. Wide applicability for chemical, oil, foodstuff, pharmacy industries and green industry in which solid-liquid separation is required
4. Suitable for various products, capable for separating wide-ranging solid phase grains (0.005-2mm), especially when separating solid phase has different size grains.
Properties and Uses
LLW Screen Filtration Centrifuge is a horizontal with the function of continuous working, continuous spiral discharging. It is mainly used for separating and dehydrating suspension with solid-phase grains ranging from 0.05 to 10mm.

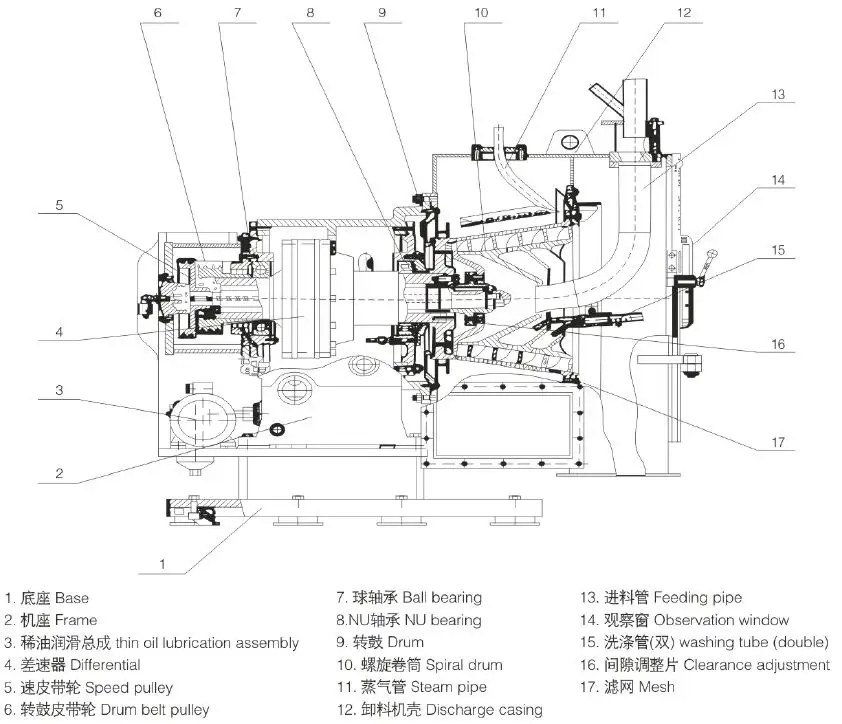

Operating Principle
Operations such as feeding, dehydrating, washing and discharging etc, can all be processed continuous by LWL centrifuge on its full speed.
Host machine starts with power on and speeds up automatically. Open the feeding valve when predertermined condition is met. Products to be separated enters into centrifuge along pipeline and is distributed onto drum all through feeding holes on the smaller end of spiral wheel. Under the effect of centrifuge force, liquid phase in suspension will be thrown out through screen and holes on drum wall and discharged from centrifuge, while solid phase remains in the screen to form a thin filter residue.
Special Allocation
Following allocation can be possible to meet customers' demand
1. Frequency conversion plus PLC controlling system
2. Protection system for vibration and temperature rising
3. Feeding speed control
