Petrole Oil Sludge Dewatering Machine
The horizontal screw discharge sedimentation centrifuge is a mechanical device for continuously separating the suspension containing the density difference by the principle of centrifugal sedimentation. The centrifuge produced by the company can clarify, dehydrate or classify the suspension containing solid phase particles with a particle size of 0.002~3mm and a concentration range of 0.5~40%.
Shenzhou--Decanter Centrifuge For Petrole Oil Sludge Dewatering
The horizontal screw discharge sedimentation centrifuge is a mechanical device for continuously separating the suspension containing the density difference by the principle of centrifugal sedimentation. The centrifuge produced by the company can clarify, dehydrate or classify the suspension containing solid phase particles with a particle size of 0.002~3mm and a concentration range of 0.5~40%.
Product Details
The Petrole oil Sludge Dewatering Decanter Centrifuge is a a versatile and efficient solid particle control equipment used in drilling mud solid control systems. It utilizes centrifugal sedimentation separation to separate suspended particles from drilling fluids. This centrifuge plays a crucial role in maintaining the viscosity and specific gravity balance of drilling fluids, recovering valuable materials such as heavy diamond powder, and reducing drilling costs.
Separation Effect Factors:
Centrifuging factor, length to diameter ratio of cavity ,depth of fluid pool.
Field Control：
Bowl rotating speed ,rotative speed difference,between,spiral pusher and bowl depth of liquid pool.
| Product Name: | Decanter Centrifuge | Model No.: | LWS |
| Origin: | China | Brand Name: | Shenzhou |
| Marketing Type: | Hot Product 2022 | Condition: | New |
| Application: | Liquid-Liquid-Solid Separation (3 Phase) | Certification: | CE/ISO9001/GMP |
| Voltage: | 220V/380V/Customized | Warranty: | 1 Year |
| Key Selling Points: | Easy to Operate | Main Power: | Model(See below technical parameter) |
| Operation: | Automatical Continuous Operation | Dimension(L*W*H): | Model(See below technical parameter) |
| Bearing: | NSK/SKF Bearing | Weight | Model(See below technical parameter) |
| Motors: | Double | Max Speed: | Model(See below technical parameter) |
| Core Components: | PLC, Bearing, Gearbox, Motor | Material: | 304/316L/2205 Ect |
| Transport Package: | Wooden Box | Production Capacity: | 1t/h-100t/h |
| Video Outgoing-Inspection: | Provided | Control Type: | PLC Control Box |
Product Description

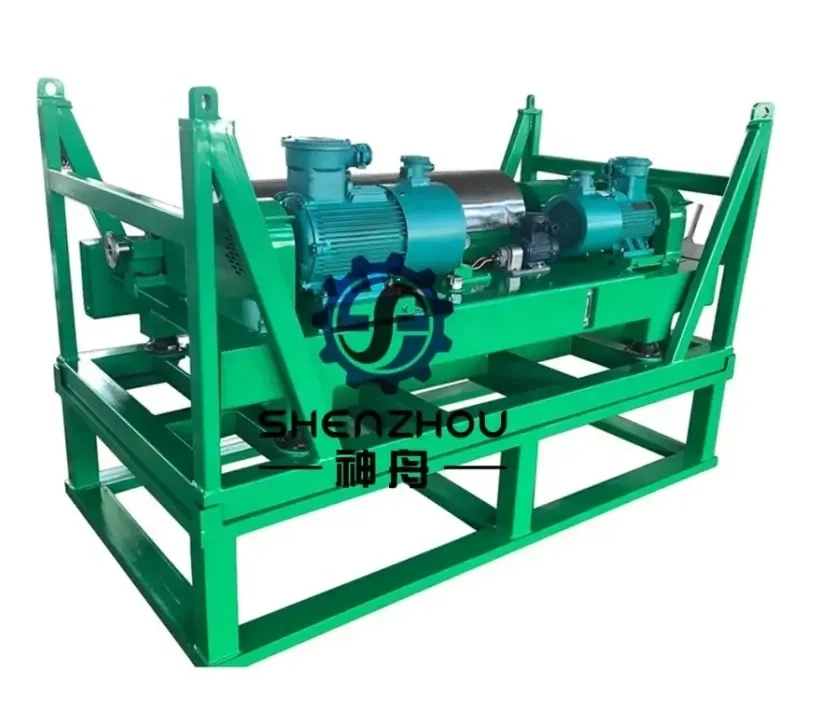

The horizontal screw centrifuge is a versatile solid particle control equipment used in drilling mud solid control systems. It employs centrifugal sedimentation separation to effectively separate suspended particles from drilling fluids, ensuring optimal viscosity and specific gravity balance in the drilling field. With its specialized design, including an integrated frame body for convenient installation and lifting, explosion-proof and corrosion-resistant treatment, and equipped with a heating and ventilation system, this centrifuge is ideal for field operations.
Key Features:
● Integrated Frame Design: Simplifies on-site installation and lifting.
● Optimal Sludge Dewatering: High-speed rotational force effectively separates solid particles from liquid, reducing sludge volume and minimizing waste disposal costs.
● Enhanced Solid-Liquid Separation: Decanter design maximizes removal of contaminants and enables resource recovery, promoting environmental sustainability.
● Explosion-Proof And Corrosion-Resistant: Ensures safety and longevity with anti-corrosion, weather resistance, and vibration reduction treatment.
● Robust Construction: Built with high-quality materials to withstand demanding petroleum industry conditions, ensuring reliable operation with minimal downtime and maintenance.
● Flexible Drive Options: Available in single motor drive, frequency conversion double motor drive, or hydraulic drive to meet various operational requirements.
● Intelligent Hydraulic Drive: Allows for easy speed adjustment of the drum and ejector while providing real-time feedback on load changes. It offers intelligent functions like "discharging blockage," "stopping feeding," "alarm," and "shutdown" for enhanced operational efficiency.
● Reliable Hydraulic System: Incorporates integrated technology for high reliability and convenient maintenance.
● Customization Options: Can be customized with additional features such as automatic cake discharge, advanced control systems, and remote monitoring for seamless integration and enhanced operational efficiency.

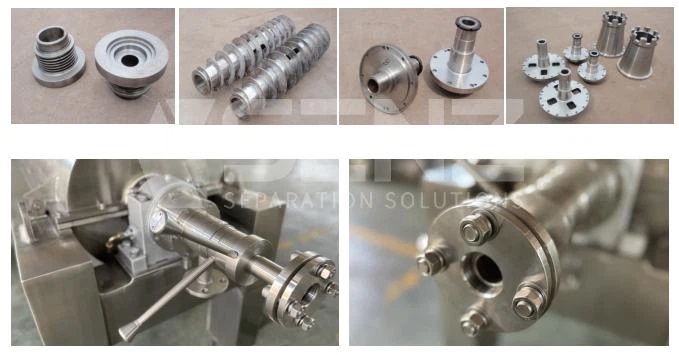

Material:
Bowl Material: Duplex Stainless Steel SS2205
Solids Discharge Port: Tungsten Carbide insert
Bearing: SKF or Japan NSK Brand
Gearbox Type: planetary wheel type
Screw Conveyor Material: Duplex Stainless Steel SS2205
Material Distribution Nozzle: Tungsten Carbide insert
Screw Conveyor Wear Protection: Tungsten Carbide Tiles
Differential Speed: Adjustable according to conditions
Bearing: SKF or Japan NSK Brand
Motor: Two motors (Explosion-proof)
Main Choices
According to user’s requirement, the product contact parts can be made of austenite stainless (321, 316L….), Haynes alloy, titanic alloy or other anti-erosion materials.
Technical Parameter
| Model | Diameter(mm) | Length | Max Speed | L/D Ratio | G-Force | Capacity(M3/H) | Main Motor Power(kw) | Weight(kg) | Dimension （L*W*H）(mm) |
| LWS355*1160 | 355 | 1160 | 3600 | 3.3 | 2576 | 2-8 | 15 | 1400 | 2470*1350*830 |
| LWS355*1460 | 355 | 1460 | 3600 | 4 | 2576 | 2-10 | 15 | 1800 | 2750*1350*830 |
| LWS450*1800 | 450 | 1800 | 2800 | 4 | 1976 | 4-25 | 37 | 2500 | 3320*1700*1130 |
| LWS500*2000 | 500 | 2000 | 2500 | 4 | 1750 | 5-35 | 45 | 4000 | 3520*1800*1170 |
| LWS520*2080 | 520 | 2080 | 3200 | 4 | 3154 | 5-38 | 55 | 5000 | 4510*1410*1170 |
| LWS550*2000 | 550 | 2000 | 2800 | 4 | 2414 | 6-40 | 55 | 5700 | 4570*1380*1600 |
| LWS650*1950 | 650 | 1950 | 2200 | 3 | 1761 | 6-45 | 75 | 5000 | 4840*1510*1720 |
| LWS650*2600 | 650 | 2600 | 2000 | 4 | 1456 | 6-65 | 90 | 6000 | 5490*1510*1720 |
Application
| Industry | Examples |
| Food Processing | ● Edible animal fat ● Animal protein ● Protein recovery ● Plant oils such as olive oil and vegetable oil ● Wine (clarification) ● Fruit, berries and vegetable juice ● Soy protein ● Dairy (recovery of lactose, whey fines and cheese fines) ● Coffee and tea ● Pectin |
| Petrochemical/Oil | ● Refining ● Dewatering ● Oil well drilling ● Lubricating oil additives ● Waste oil stream recycling |
| Waste Recycling | ● Municipal wastewater ● Cleaning of wash water |
| Fish Processing | ● Fish meal ● Fish oil |
| Chemical | ● Herbal medicines ● Chemical extraction |
| Mineral Processing | ● Bentonite and titanium dioxide manufacturers ● Kaolin clay and calcium carbonate processing |
● Bentonite and titanium dioxide manufacturers ● Kaolin clay and calcium carbonate processing | ● Organic intermediate and end products |
| Polymer Industry | ● Thermoplastics for example PVC, synthetic rubber and fibres |
| Inorganic Chemical Industry | ● Bleaching agents ● Acids ● Silica products ● Fertilisers |
Why Choose Shenzhou Decanter Centrifuge
1. Over 40 years' experience in Decanter centrifuge
2. High performance and high value
3. Professional technical team
4. Exported to more than 70 countries
5. Delivery in time.
6. Big company, good reputation, more reliable ( 30,000 m² Area)
7. Have obtained CE & ISO9001
8. Equipped with all kinds of precision equipment and supporting technology used for centrifuge production.
9. Considerable after-sales service.
