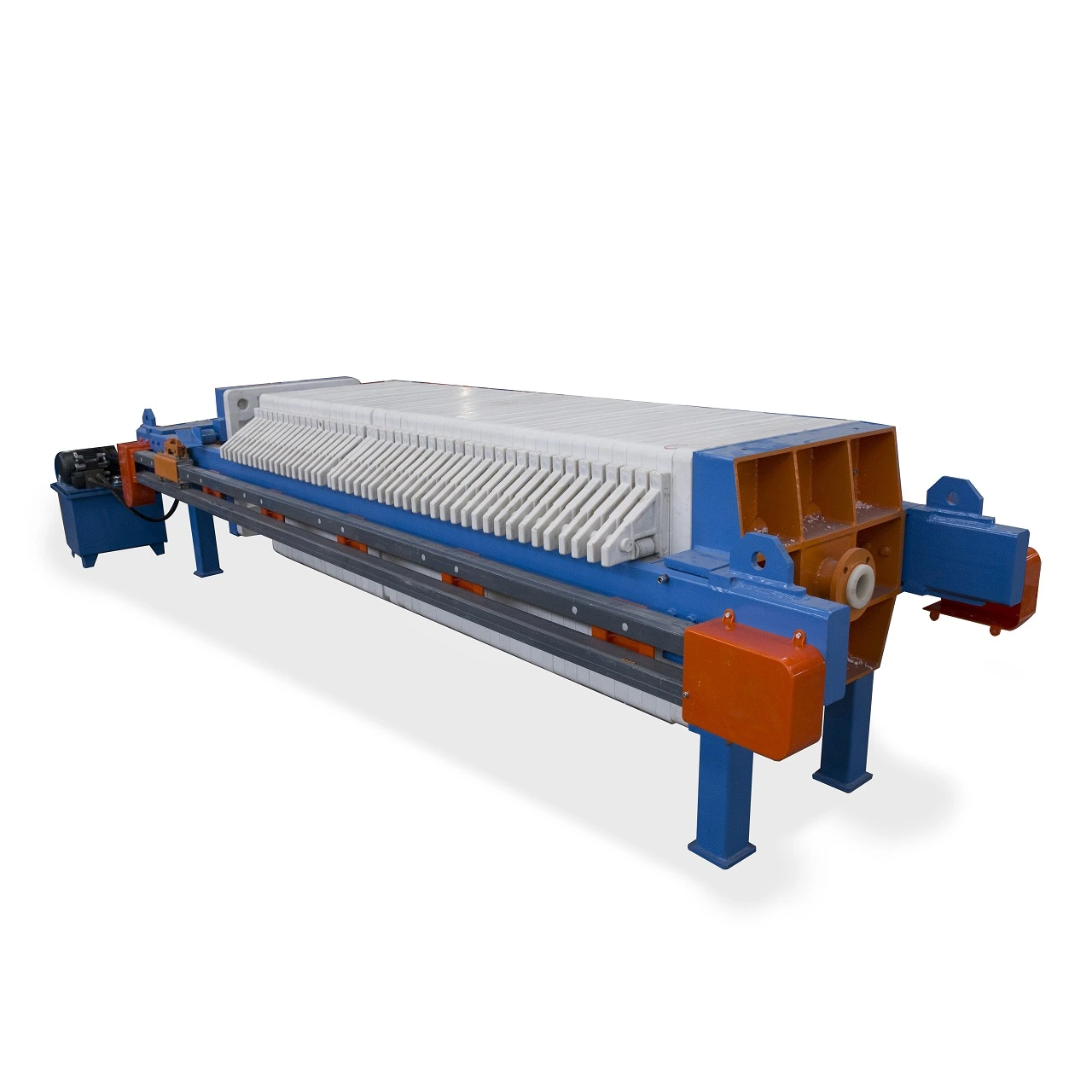

Sludge Water Extruder Machine Automatic Discharging Filter Press

A filter press is a batch operation, fixed volume piece of equipment ranging from 0.1m3 -20m3 that separates liquids and solids using pressure filtration. Slurry is pumped into the filter press and dewatered under pressure. A filter press can be used for solid-liquid separation or wastewater treatment in a variety of different industries and applications, such as mining, metallurgy, petrol, chemical, medical, dyeing, paper, food, alcohol, textile production, etc..

Main components of filter press:
> Frame: The steel frame acts as a clamping device for the filter plates.
> Filter Plates: A filter cake forms in the chambers between filter plates.
> Filter Cloth: A cloth filter that is attached to both sides of a filter plate. Solids build up on cloth to form a filter cake,
separating liquids from solids.

Types of Filter Press according to:
> Closing mode: manual, gear drive, hydraulic;
> Filtrate flow: open flow, close flow, cake washing, non-cake washing, center feeding, corner feeding,etc..
> Filter plate structure: recessed plate, plate &frame, diaphragm squeeze (membrane) plate;
> Filter plate material: PP, rubber, cast iron, stainless steel;
> Filter Plate size: 320, 450, 630, 800,1000, 1250, 1500, 2000

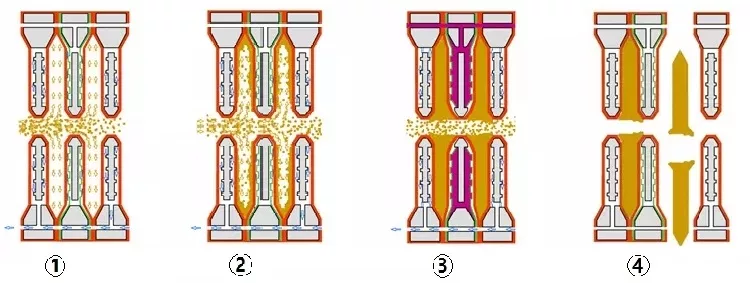

* 1. Slurry is pumped into the filter press. The solids are distributed evenly on the filter cloths during the feed (fill) cycle.
* 2. Solids begin to build on the filter cloth, trapping the ensuing particles and building a filter cake. The filter cake acts
as a depth filter for solid/liquid separation. Filtrate exits the plates through the corner ports into the manifold.
* 3. When the correct valves in the manifold are open, the filtrate exits the press through the filtrate outlet. As the filter
press feed pump builds pressure, the solids build within the chambers until they are completely full of filter cake.
* 4. Once the chambers are full, the fill cycle is complete and the filter press is ready to be emptied.

wooden case

Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!

1. who are we?
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine

4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
