Name: Shenzhou - Biological Diesel Lube Oil Separator High Oil Rate Fully Automatic For Glycerin separator Disc Centrifuge
Uploaded: 2022-04-24T19:26:52+08:00
Duration: 12 s
Description: There are millions of buyers around the world who are willing to buy the top quality of Biological Diesel Lube Oil Separator High Oil Rate Fully Automatic For Glycerin separator.Shenzhou has always helped the buyers of the product to reach sellers who offered them the prices that were according to their budget. We make easy and better ways for the people to get the best product that they need.

There are millions of buyers around the world who are willing to buy the top quality of Biological Diesel Lube Oil Separator High Oil Rate Fully Automatic For Glycerin separator.Shenzhou has always helped the buyers of the product to reach sellers who offered them the prices that were according to their budget. We make easy and better ways for the people to get the best product that they need.

SEND INQUIRY NOW

Model Number:: LSPD-360

shipping:: Support Sea freight · Land freight

Customization:: Customized logo (Min. Order: 1 Sets) , Customized packaging (Min. Order: 1 Sets) , Graphic customization (Min. Order: 1 Sets)

SEND INQUIRY NOW

Products Details

Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd is excited that we will make our Biological Diesel Lube Oil Separator High Oil Rate Fully Automatic For Glycerin separator widely known to the market. The product is the result of our hardworking staff and strong technical capabilities. By virtue of continuous technological innovation, we have mastered the core and most advanced technology in the industry, and will use advanced technology to produce Biological Diesel Lube Oil Separator High Oil Rate Fully Automatic For Glycerin separator, effectively solving the pain points that have always plagued the industry. With years of familiarity and expertise in this work area, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has evolved as an affluent manufacturer and supplier in the market, and there is a great possibility that the company will have a better development in the future.

Place of Origin:	China	Type:	Separating Plant
Condition:	New	Video outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot product 2022
Warranty of core components:	1 Year	Core Components:	Bearing, Motor
Brand Name:	Shenzhou	Voltage:	220v/300v/380v/optional
Power:	Model	Weight:	1200
Dimension(LWH):	variable	Warranty:	1 Year
Key Selling Points:	Easy to Operate	Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops, Advertising Company, Pharmaceutical plant, Chemical plant
Showroom Location:	None

Product Description

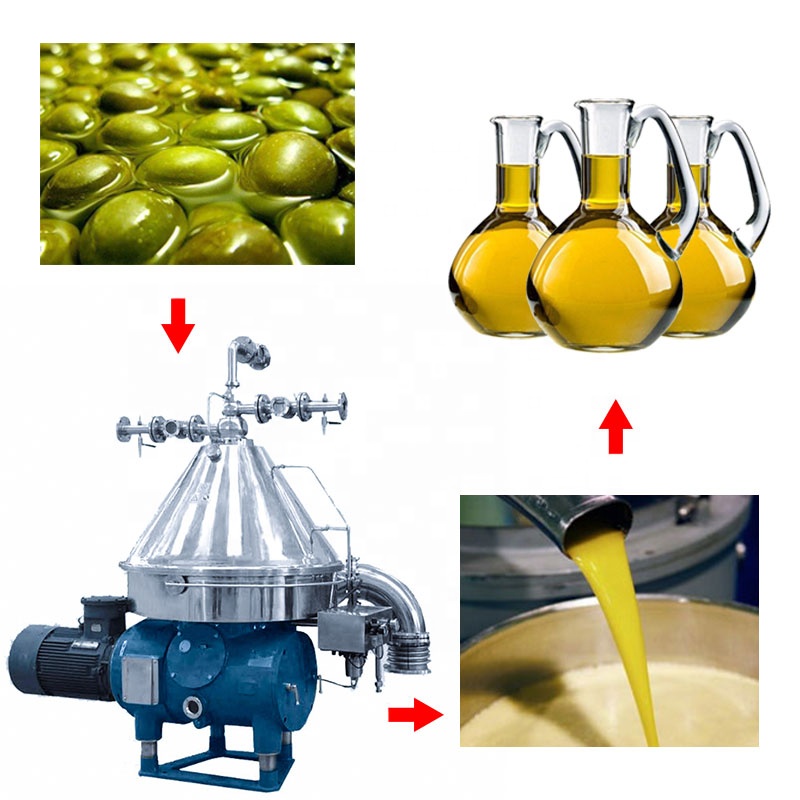

Biological Diesel Lube Oil Separator High Oil Rate Fully Automatic For Glycerin separator

The separator mainly consists of inlet/outlet, drum, cover, vertical shaft, cross shaft, base, motor and automatic control box, etc.

Biological Diesel Lube Oil Separator High Oil Rate Fully Automatic For Glycerin separator

DHZ series disc centrifuge for vegetable oil refining are widely used in continuous degumming, neutralizing, dewaxing, and washing of vegetable oils. The DHNZ series cream separator from SHENZHOU have been designed to create a soft separation environment which could ensure the active ingredient in the material is not destroyed. Max. capacity: 10,000 L/h

Model	Treatment capacity (L/H)	Inlet Pressure (Mpa)	Outlet pressure (Mpa)	Motor power (Kw)	Weight (Kg)	Outline dimension (mm)
DHN360	2000-5000	0.05	0.1-0.35	7.5	1200	153011501500
DHN470	5000-10000	0.05	0.1-0.4	15	1600	180012001750
DHN550	10000-20000	0.05	0.1-0.4	22	2300	195015501960
DHN616	25000-35000	0.1	0.3	37	3000	218517282082

Specification

Model	DHNZ360
Treatment capacity (L/H)	2000-5000
Inlet Pressure (Mpa)	0.05
Outlet pressure (Mpa)	0.1-0.35
Motor power (Kw)	7.5
Weight (Kg)	1200
Outline dimension (mm)	153011501500

Application area:
Biological Diesel Lube Oil Separator High Oil Rate Fully Automatic For Glycerin separator

* 1Warm milk separation
* 2 Cold milk separation
* 3 Whey separation
* 4 Buttermilk separation
* 5 Milk and whey clarification
* 6 Milk standardisation

This series cream separator come complete with control unit, electric motor, inlet and outlet devices, set of erosion-protective parts, illuminated sight glass box for light phase outlet, vibration switch, base plate, set of tools and standard set of spares

Working Principle

How does Disc Separator work?
The disc separator is in vertical structure. The drum is mounted on the upper end of the vertical axis, which is driven by a motor and rotates at a high speed. There is a set of disc - shaped parts that are stacked together in the drum, with a small gap among them. When the suspension (or emulsion), which is pumped into the drum by feeding tube located in the center of the drum, pass through the gap between the discs, solid particles (or droplets) would settle down to form sediment (or liquid layer) on the disc by centrifuge force, and then the sediment slid along the surface of the disc and separated from the disc to accumulate in the largest diameter of the drum. At last, the separated liquid discharged from the outlet. The disc is utilized to shorten the settling distance of solid particles or droplets, enlarge the settlement area of the drum, and improve the production capacity of the separator. The solids accumulated in the drum are removed from the drum by manual after the machine stop, or out of the drum in the case of a dregs machine without stopping.

Main Structure

Powerful Motor provide power through the thermal coupling to drive drum in high-speed rotating around the main axis. And the liquid material is carried by feeding pipe located in the upper center into the bottom of the drum, and then led in the porthole below the disc and driven to the drum wall. Under centrifugal force, solid- liquid-liquid do the below motion to complete thorough separation:solid phrase, which is heavier than liquid, would sink into the inner wall of the drum for sediment formation; light liquid flow in centripetal pump, and be discharged by liquid outlet; The heavy liquid tends to the drum wall along the cone inside the disc, and then flows upward through through the heavy liquid concentric pump to be discharge from the outlet.

Due to the double-conical design of the inner cavity of the drum, it can compress the slag and increase its concentration.
Besides, some nozzles is mounted around the drum to spray slurry sediment, whose number and aperture are determined on the properties of the suspension, the degree of concentration and the amount of treatment.
In order to improve the slag concentration, recovery device is configured with this disc separator to the discharged sediment for reuse. For the solid concentration of the slag can be increased by 5~20 times than that of the feeding materials.
The processing capacity of the separator is up to 30t/h, which is suitable for suspension with solid phrase in diameter of 0.1~100 microns and concentration less than 10% (maximum to 25%).

Company Profile

Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!

Packing & Delivery

wooden case

FAQ

1. who are we?
We are based in Liaoning, China, start from 1980 sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine

4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian

Basic Information

Year Established

--
Business Type

--
Country / Region

--
Main Industry

--
Main Products

--
Enterprise Legal Person

--
Total Employees

--
Annual Output Value

--
Export Market

--
Cooperated Customers

--

Professional Bacteria disc separator manufacturers

This DHC730 bacterial separator is purchased by our American customer and is the largest model in the Chinese market at present. Capacity up to 35M3 per hour. Trial successful! Ready for delivery!Bacteria Disc Stack Centrifugal Separator disc centrifugeIntroduction: Disc separator can complete two operations: liquid-solid separation (low concentration slurry separation), said clarifyingoperation; liquid-liquid (or liquid-liquid-solid) separation (emulsion separation), said separating operation. Disc separator with its compact, small footprint, high production capacity and other characteristics, is widely used in chemical, pharmaceutical, light industry, food, biological engineering, and transportation.
Shenzhou - Centrifugal Diesel Oil Separator , Fast Coconut Oil Centrifuge Separator Disc Centrifuge

Our Centrifugal Diesel Oil Separator , Fast Coconut Oil Centrifuge Separator is developed by our creative designers, experienced technicians, and well-educated R&D experts. It is made to be of an attractive look and reasonable structure. Moreover, made of high-quality raw materials, Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge has so many advantages.
Shenzhou - Stainless Steel Cream Separator Centrifugal Separation Of Milk DHNZ Series Disc Centrifuge

After Stainless Steel Cream Separator Centrifugal Separation Of Milk DHNZ Series launching into the market, we have gained a lot of support and praise. Most customers think that this kind of products are in line with their expectations in terms of appearance and performance.In addition, is widely used in Separation Equipment.
Shenzhou - Liquid Liquid Centrifugal Separator /Centrifugal Solids Separator For Animal Disc Centrifuge

Thanks to the efforts of our staff, we have successfully broken the barriers in technology innovation and upgrades. We have mastered technologies, which ensures the whole manufacturing process is efficient.It covers a wide application range and has found its great use in the field(s) of Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge up till now.
