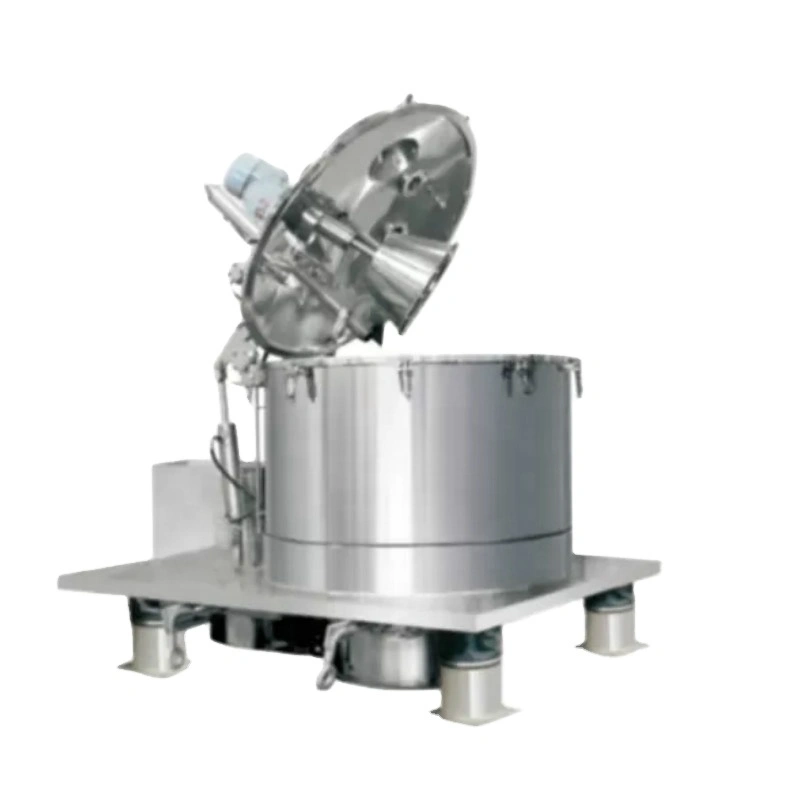

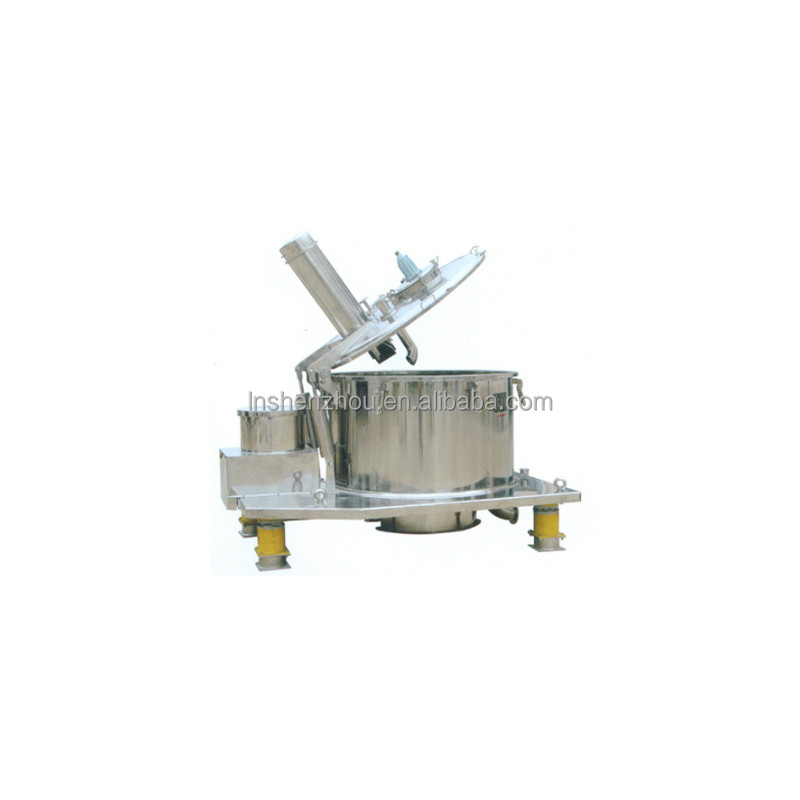

Shenzhou - PGZ automatic scraper Centrifugal Machine for Food Light industry Solid-liquid separation suit for Particles Centrifuge & Separator

Applying the technology to the manufacturing process of the product turns out to be highly helpful. Featuring stability and durability, the product is suitable for the field(s) of Centrifuge & Separator. PGZ automatic scraper Centrifugal Machine for Food Light industry Solid-liquid separation suit for Particles attaches great importance to technological innovation in the research and development process. In the future,PGZ automatic scraper Centrifugal Machine for Food Light industry Solid-liquid separation suit for Particles will increase more capital and technology investment to continuously improve the comprehensive competitiveness of the enterprise, and strive to remain invincible in the market forever.

Products Description

PGZ centrifuges have a perfect automatic performance and a large processing capacity. In accordance with users' demand, procedures such as feeding, separating, washing, dehydrating and discharging can all be automatically finished followed by remote control. It's suitable for solid-liquid separation of fibroid products as well as suspension which contains fine grains and medium size grains solid.

Operating principle

1.The automatic bottom discharge scraper centrifuge is vertical fully-automatic filtration centrifuge.

2.The motor drives the drum to rotate at high speed through the belt, and under the control of pre-written program, the material to be separated is fed into the drum through the feed system.

3.After the material is filtered through the filtration medium ( filter cloth/screen) under the action of centrifugal force, the
liquid phase discharges out of the centrifuge through the liquid pipeline, and the solid phase is retained in the drum.

4.A material detection device is used to detected material filling position in real-time manner, and when the solid cake deposited
in the basket reaches the specified holding capacity of the centrifuge, feeding stops.
5.Then wash and dry the solid cake.

6.After the solid cake meets requirements for knock-out, the centrifuge reduces to the scraping rate, under the hydraulic control, the scraper device removes the solid cake, and then the cake discharged at the bottom outlet of the centrifugal.

7.Once the materials to be separated enter the fast-spinning basket, it will be filtrated by the filter liner under the centrifugal force.The liquid flows out through the liquid outlet, but solids deposit on the internal wall of the basket.

8.Once the solid cake reaches the rate capacity, feeding stops.

9.Wash the solids cake,and then drain out the washing water.

10.Finally stop the machine.The solid cake is discharged manually and move to next batch.

Technical Parameters

model	Drum Diameter(mm)	Drum Volume(L)	Loading Limit(kg)	Rotating Speed(r/min)	Separation Factor(ω²/g)	Motor Power(kw)	Machine Weight(kg)	Overall Dimension(L*W*H)(mm)
PGZ800	800	100	140	1200	645	7.5	2500	1800*1300*1800
PGZ1000	1000	140	200	1000	560	11	4000	2100*1500*2020
PGZ1250	1250	280	380	900	567	18.5	5000	2300*1800*2150
PGZ1500	1500	500	680	850	530	30	5500	2880*2180*2575

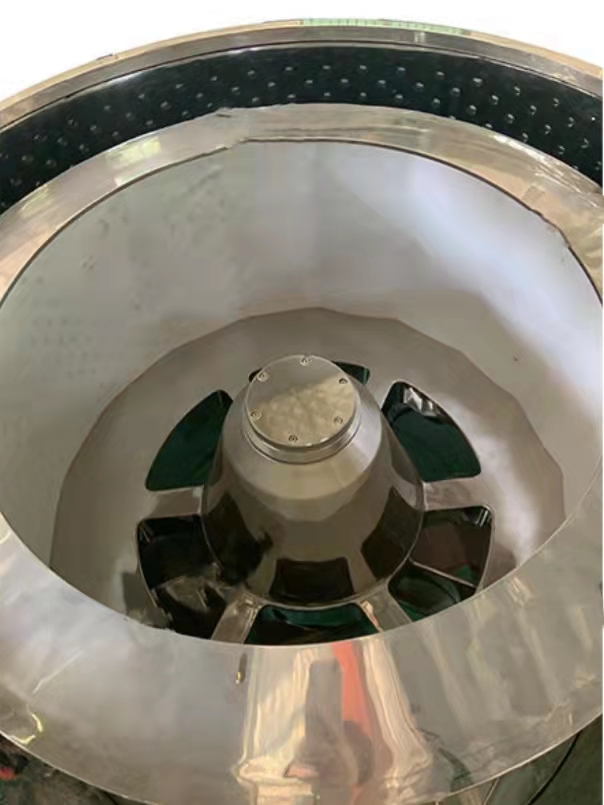

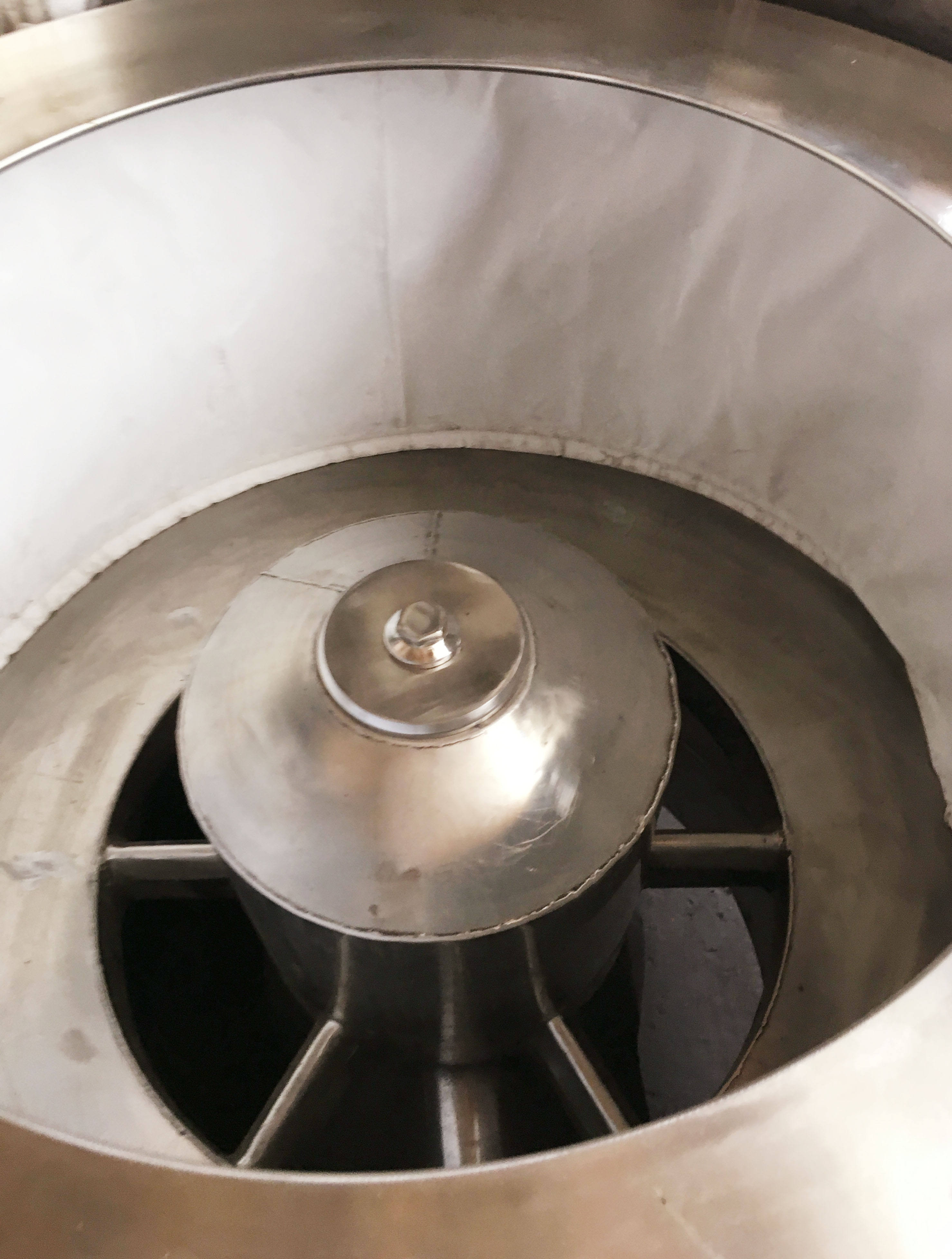

Details

Performance characteristics

1. Platform base structure could lower the center of gravity and stabilize the machine. No foundation construction makes
convenient installation and repairing.
2. Platform base with liquid damping isolators:Applying the liquid damping technique improves performance of vibration absorption
in centrifuge.
3. Inclined feed disk:we discarded the central feed or side feed method.
4. Air recoil and pneumatic auxiliary scraper:this technology effectively reduces the solids remained in the basket and effective
resume the performance of the filter cloths.
5. Nitrogen protection system:ensuring the safety during the operation.
6. Big hinged cover and CIP system, which avoiding cross contamination against the products.
7. Multiple safety protection devices: over-vibration protection,over-current protection, thermal control protection, cake layer
controller, protection for scraper movement, protection when open the cover,various signs and warning identifications.
8. PLC control, touch screen, inverter control, dynamic braking, feedback braking, self-diagnosis of equipment fault,
automaticcontrol panel and DCS control interface.
9. Polished internal/external surfaces with roughness up to Ra0.2~0.4μm, complying with the related requirements of cGMP.
