Shenzhou - 2 Phase Disc Stack Separator Centrifuge & Separator
The utilization of technologies facilitates the high-efficiency and cost-saving manufacturing process.With those advantages,2 Phase Disc Stack Separator has been tested to be suitable for the application range(s) of Separation Equipment.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Our months of efforts in product R&D has finally paid off. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has successfully transformed the innovative idea into a reality - 2 Phase Disc Stack Separator. It is the newest product series of our company now. Compared with other similar China products in the market, Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge it can be very stable and long-lasting when applied in the field(s) of Separation Equipment. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd always stick to the core value of 'integrity and honesty' since established. We will strive forward to manufacture and provide the fine-quality products and try hard to provide the best services for our customers.
| Place of Origin: | China | Type: | Separating Plant |
| Condition: | New | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2021 |
| Warranty of core components: | 3 years | Core Components: | PLC, Motor |
| Brand Name: | Shenzhou | Voltage: | country |
| Power: | model | Weight: | 580 |
| Dimension(L*W*H): | 600*1100*1650 | Warranty: | 3 years |
| Key Selling Points: | Easy to Operate | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
| Showroom Location: | None |
Product Description

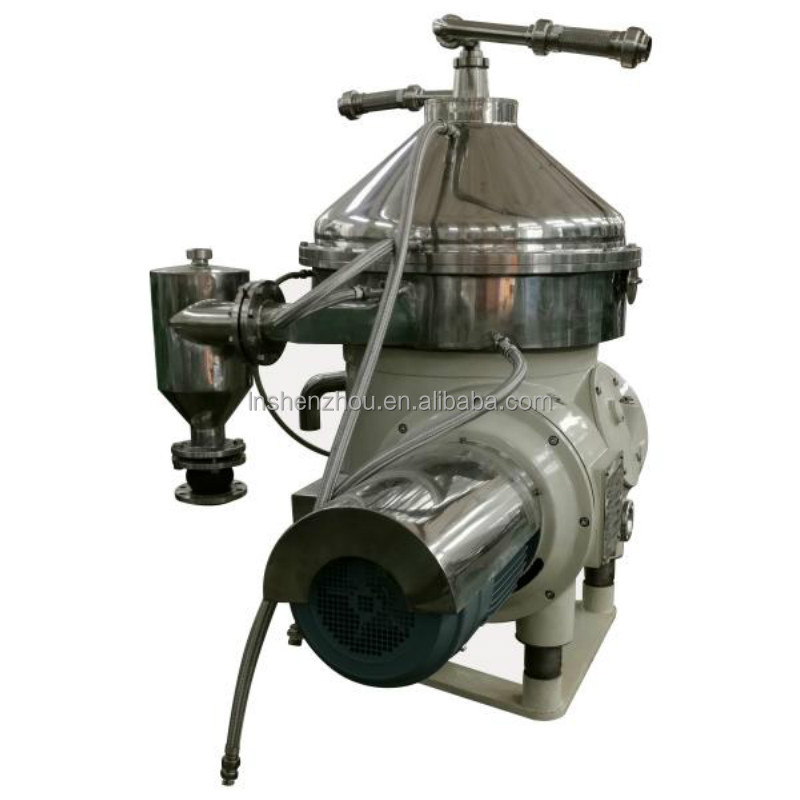

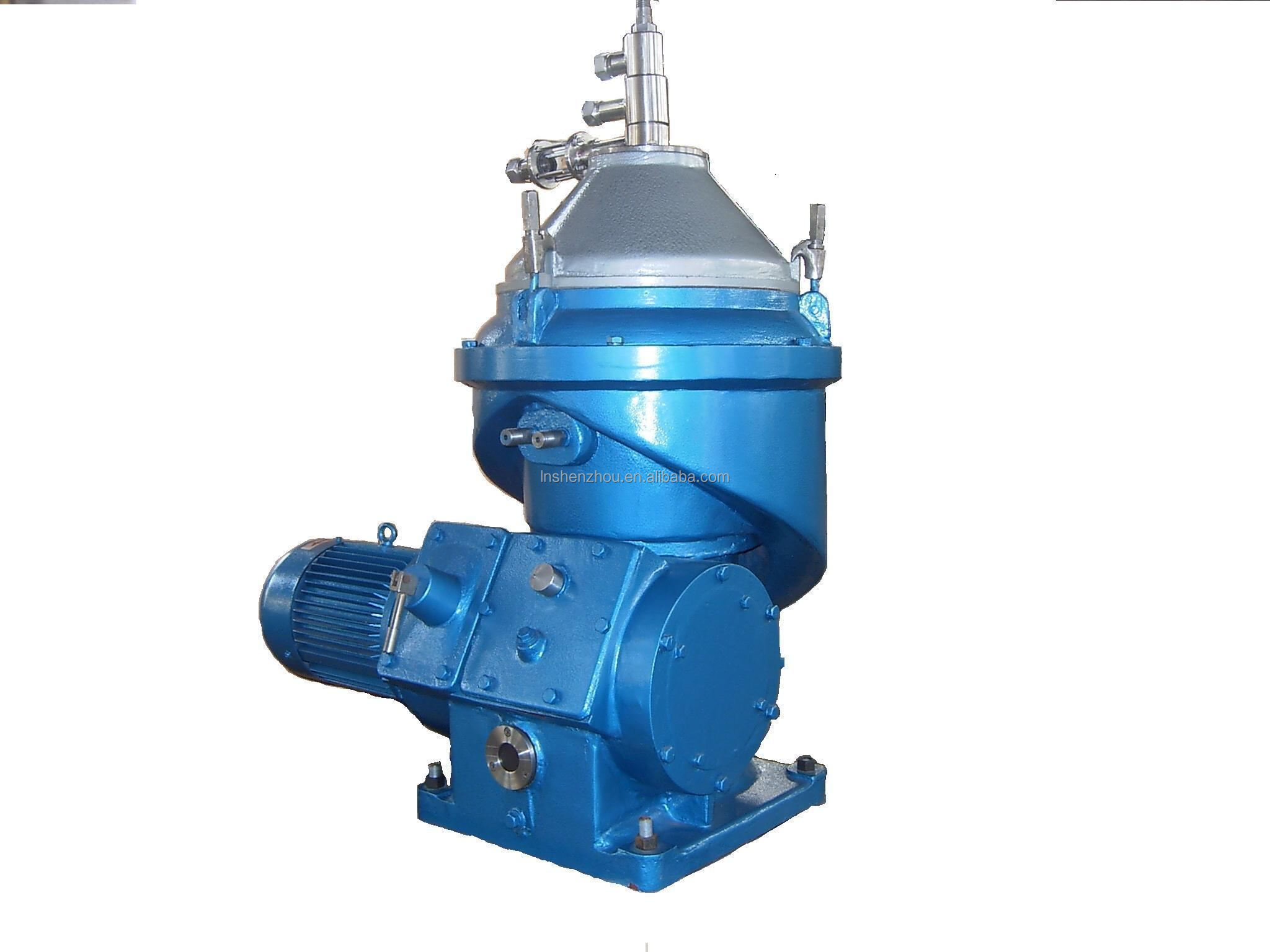

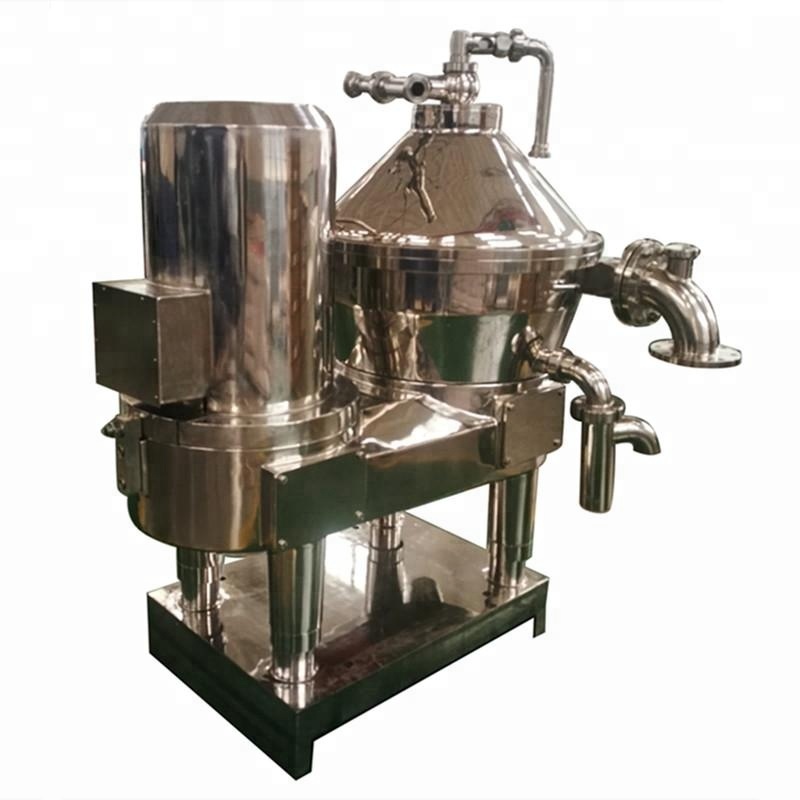

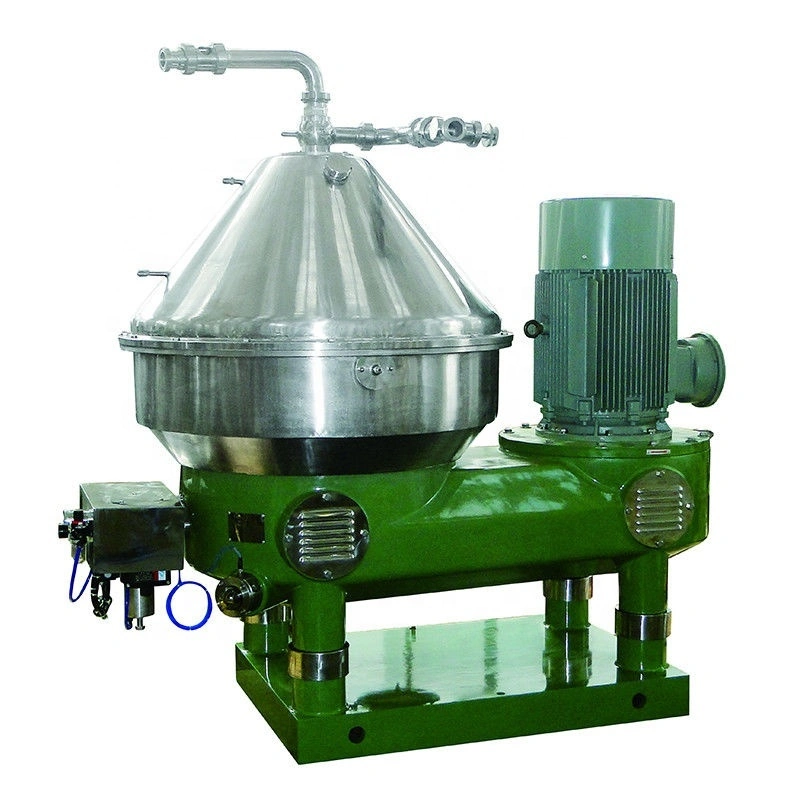

2 Phase Disc Stack Separator
The 2 phase disc stack separator is used to separate the fine particles from the liquid and discharge clarified liquid. Compared with decanter centrifuge, the G force of 2 phase disc stack separator is much higher than decanter centrifuge.
The 2 phase disc stack separator is used to separate the fine particles from the liquid and discharge clarified liquid. Compared with decanter centrifuge, the G force of 2 phase disc stack separator is much higher than decanter centrifuge. The disc stack separator G force is up 12000g. Generally, the G force of the decanter centrifuge is about 3000G. The high speed and G force makes the disc stack separator to produce high clarified liquid. However, the materials separated by disc separator should not have high
solid content or big particles. Usually the particles content should be less than 3%, it’s better to be 1%. Therefore, in some application, pre-treatment will be carried out by decanter centrifuge or other separation equipment, and then clarification and separation will be carried out in the 2 phase disc stack separator. The 2 phase disc stack separator is widely used in vegetable oil clarification, biological and chemical pharmaceutical industry, dairy and beverage industry, biofuel and marine oil clarification, etc.
solid content or big particles. Usually the particles content should be less than 3%, it’s better to be 1%. Therefore, in some application, pre-treatment will be carried out by decanter centrifuge or other separation equipment, and then clarification and separation will be carried out in the 2 phase disc stack separator. The 2 phase disc stack separator is widely used in vegetable oil clarification, biological and chemical pharmaceutical industry, dairy and beverage industry, biofuel and marine oil clarification, etc.

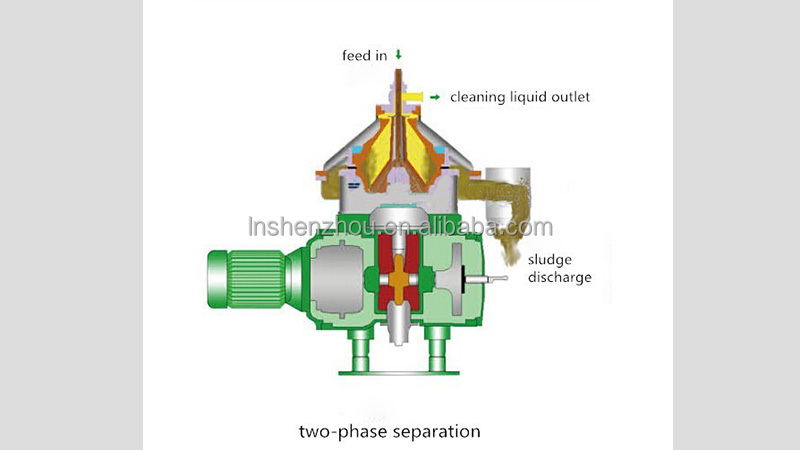

2 PHASE DISC STACK SEPARATOR WORKING PRINCIPLE
The material to be clarified enters the bowl through a feed pipe. In the distribution cabinet of the disc separator, the material is smoothly accelerated until it is synchronized with the speed of the rotary bowl. The disc stack in the rotating cylinder divides the material into many thin layers, forming a large area of clarification area. The high-speed centrifugal force makes the solid slag separated from the liquid in the disc stack deposit into the solid slag collection cavity at the edge of the bowl. The self-discharging 2 phase disc separator can be adjusted according to the material.
Specification
2 PHASE DISC STACK SEPARATOR TECHNICAL PARAMETER
Model | SZLD-40 | SZLD-90 | SZLD-125 | SZLD-225 | |||
Type | Solid-Liquid Separation（Liquid Clarification） | ||||||
Bowl Diameter | 440mm | 580mm | 620mm | 800mm | |||
Sliding Piston | 380mm | 500mm | 550mm | 700mm | |||
Max Capacity | 1-2 m3/h | 5-10m3/h | 10-15 m3/h | 20-25m3/h | |||
Max Speed | 7100RPM | 6150RPM | 6000RPM | 4500RPM | |||
Max G Force | 12409G | 12273G | 12488G | 9063G | |||
Motor Power | 11KW | 18.5KW | 30KW | 45KW | |||
Feeding Pressure | 0-0.1Mpa | ||||||
Starting Time | 10-15Minutes | ||||||
Feeding Material | Solids content less 3% | ||||||
Packing & Delivery
wooden case
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
