Shenzhou - Grain Grinding Corn Flour Mill Machine Drying & granulator Machine

We use chemically-stable and environmental-friendly raw materials to manufacture the Grain Grinding Corn Flour Mill Machine.Therefore, it is excellent in stable performance and totally safe for users. In addition, it is excellent performance making it highly practical in many fields and valuable.

Customization:

Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

Thanks to the efforts of our employees including technicians and designers, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd is able to introduce our .Grain Grinding Corn Flour Mill Machine to the public. Drying & granulator Machine Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will introduce more advanced and innovative technology, and will gather more professional talents together.

Applicable Industries:	Manufacturing Plant, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops	Showroom Location:	None
Condition:	New	Place of Origin:	China
Brand Name:	Shenzhou	Production Capacity:	40kg/h, 50kg/h, 60kg/h, 75kg/h, 80kg/h, 120kg/h, 150kg/h, 300KG/H, 400kg/h, 440kg/h, 500kg/h, 1 ton/h, 2 ton/h
Voltage:	220V/380V	Power:	2.2 KW
Weight:	120 KG	Dimension(LWH):	5205101000
Warranty:	one year	Marketing Type:	Hot Product 2019
Machinery Test Report:	Provided	Video outgoing-inspection:	Provided
Warranty of core components:	1 Year	Core Components:	Motor
Key Selling Points:	Easy to Operate	After Warranty Service:	Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:	None	Certification:	CE

Product Description

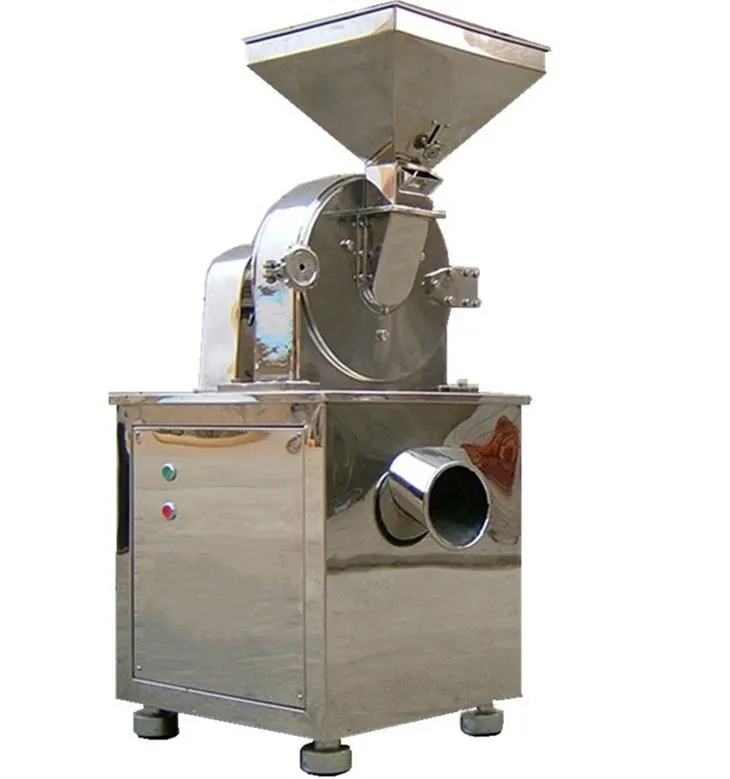

The flour mill machine use of the high-speed relative movement of the movable fluted disc and the fixed fluted disc to crush thematerials through the comprehensive effect of striking and friction of the fluted disc as well as the mutual striking of the materials. Besides, This crusher has simple structure, stable operation and good crushing effect, the crushed materials can be discharged directly from the grinding chamber of the host machine, and the desired granule size can be obtained by installing screens with different apertures. The flour mill machine can mill all kinds of beans, grape seed, coffee, corn, rice, wheat, cassava.

Advantages of the Chilli Grinding Machine
1. The whole machine is designed according to GMP standards, all made of stainless steel
2. The inner wall is finely processed, smooth and flat, and overcomes the shortcomings of the old model, such as the roughness of the old model.
3. Water cooling device, conveying screw can be equipped according to customer needs.

Shenzhou - Grain Grinding Corn Flour Mill Machine Drying & granulator Machine 7

Details Images

Shenzhou - Grain Grinding Corn Flour Mill Machine Drying & granulator Machine 8

Shenzhou - Grain Grinding Corn Flour Mill Machine Drying & granulator Machine 9

Shenzhou - Grain Grinding Corn Flour Mill Machine Drying & granulator Machine 10

Shenzhou - Grain Grinding Corn Flour Mill Machine Drying & granulator Machine 11

Shenzhou - Grain Grinding Corn Flour Mill Machine Drying & granulator Machine 12

Shenzhou - Grain Grinding Corn Flour Mill Machine Drying & granulator Machine 13

Working Principle
* The powder grinder machine utilizes the relatively high-speed rotating between the movable toothed disc and the fixed toothed disc, so that the material is pulverized by the impact of the sprocket.

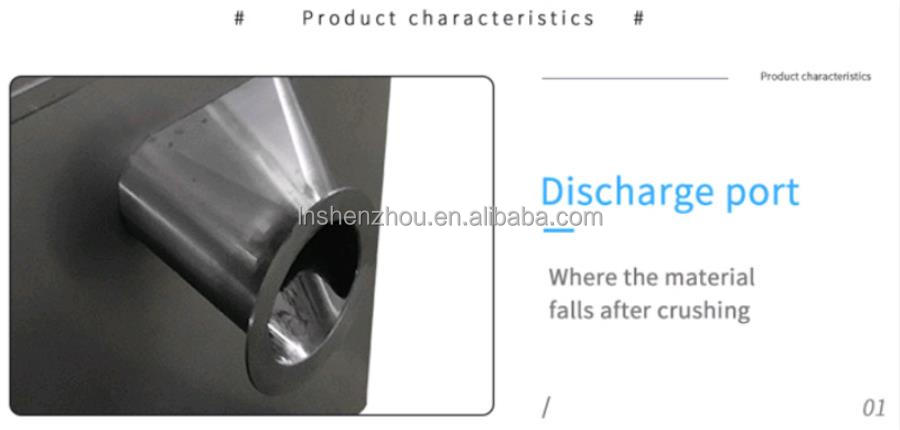

* The pulverized material is directly discharged from the grinding chamber through the outlet. The final powder is collected with the cotton bag.

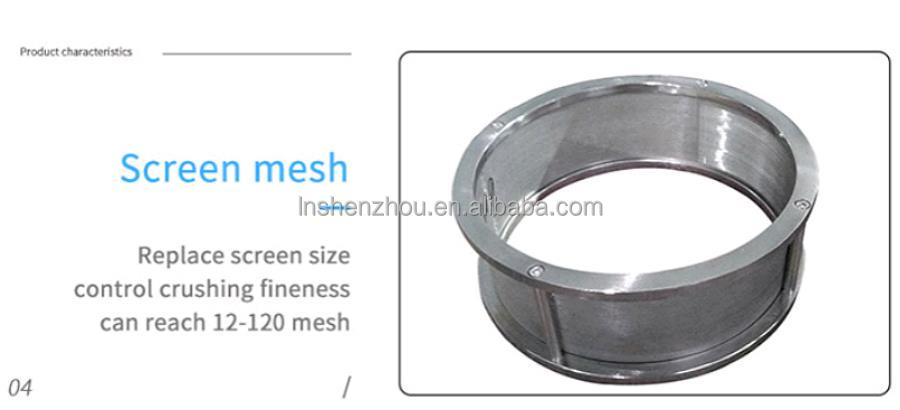

* The final powder size is determined by the screen meshes.
* The structure of the powder grinder machine is simple, sturdy, stable, and the pulverized material is fast and uniform.
* This machine is made of stainless steel 304l. All the grinding chamber are precision machined to achieve smooth surface and easy to clean.

Applications
1. Pharmaceutical industry: Chinese medicine, medicinal herbs, roots, branches and mass material.
2. Spices: chili, pepper, turmeric, curry, cinnamon, clove, nutmeg, cumin, ginger, garlic, mustard seeds, lemongrass, black
pepper, star anise, bay leaf, basil, moringa leaves ans seeds etc,
3. Food industry: salt, sugar, icing sugar, dehydrated fruit and vegetables
4. Chemical industry: resin

Specification

Model			20B	30B	40B	60B	80B	100B
Capacity	Kg/h	50-150	100-300	200-500	500-800	600-2000	1000-3000
Spindle speed	R/min	4500	3800	3200	2800	2200	1800
Feed particle size	mm	6	6	10	12	15	15
Fineness after crushing	mesh	20-120	20-120	20-120	20-120	20-120	20-120
Crushing motor	kw	4	7.5	11	18.5	37	55
Vacuum motor	kw	3	5.5	7.5	11	15	18.5
Discharge motor	kw	0.75	0.75	0.75	1.1	1.5	2.2
Machine weight	kg	580	880	1200	2000	3000	6000
Dimensions	mm	4500x800x2300	4800x850x2380	5500x900x2600	7800x1200x3000	7800x1300x3500	9980x1500x4500

Shenzhou - Grain Grinding Corn Flour Mill Machine Drying & granulator Machine 14

Packing & Delivery

Shenzhou - Grain Grinding Corn Flour Mill Machine Drying & granulator Machine 15

WOODEN CASE

Company Profile

Shenzhou - Grain Grinding Corn Flour Mill Machine Drying & granulator Machine 16

Shenzhou - Grain Grinding Corn Flour Mill Machine Drying & granulator Machine 17

Shenzhou - Grain Grinding Corn Flour Mill Machine Drying & granulator Machine 18

Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
