Shenzhou - Automatic Linear Type Viscous Liquid/cream/lotion/cosmetic Filling Machine Filling&Packing Machine
The technologies can ensure our manufacturing process is streamlined and upgraded, which saves a lot of time and energies for us.Its coverage of application has been expanded to the field(s) of Filling&Packing Machine.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd devotes many years to developing and producing superb Automatic Linear Type Viscous Liquid/cream/lotion/cosmetic Filling Machine as well as offering professional customer service. The research and development team is the core competence to Automatic Linear Type Viscous Liquid/cream/lotion/cosmetic Filling Machine. It enables us to become a leader in the Filling&Packing Machine. Our capable staff has been devoted to the improvement and upgrades of technology.In the Filling Machines,the product is widely used.
| Type: | Filling Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| Showroom Location: | None | Condition: | New |
| Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco | Packaging Type: | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Pouch, Capsule, case, Other |
| Packaging Material: | Plastic, Paper, Metal, Glass, Wood, Other | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 110V/220/,50HZ/60HZ |
| Place of Origin: | China | Brand Name: | LYSZ |
| Dimension(L*W*H): | 2500*1000*1600 mm | Weight: | 1000 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy to Operate |
| Machinery Capacity: | 2000BPH | Filling Material: | Beer, Other, Milk, Water, Oil, Juice, Powder |
| Filling Accuracy: | less than 1% | Marketing Type: | Hot Product 2022 |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Motor |
Product Description

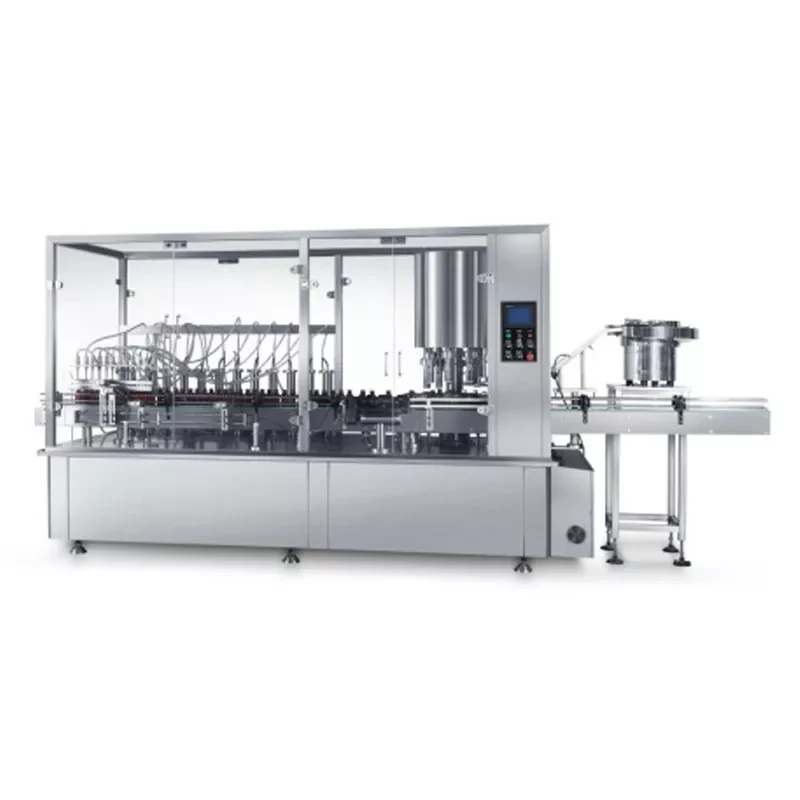

Filling and cap screwing (sealing) integrated machine for plastic bottles and glass bottles
The YGS linear filling cap screwing (sealing) integrated machine is a new product developed by our company after introducing internationally advanced technology to meet market demand. The machine adopts the 316L stainless steel plunger metering pump to perform filling, and combines automatic cap feeding and automatic cap screwing (sealing) with mechanical, electrical and pneumatic integration. It is economical and practical, taking small floor space. It is widely used for liquid packaging in such industries as medicine, food, pesticide, chemical industry, cosmetics, etc., fully conforming to GMP requirements.
Performance Features
1.Integrating filling and cap screwing (sealing) and taking small floor space. With servo driving, the filling volume is adjusted on the man-machine interfsce, featured by convenient operation and quick adjustment.
2.It adopts the plunger metering pump to fill liquids of various viscosities with high precision. The pump can be easily
disassembled, making cleaning and sterilization convenient. It can be equipped with CIP/SIP cleaning and sterilization system.
3.The seal ring of the plunger metering pump is made of silicon rubber, Teflon or other materiais depending on different
industries and liquid ingredients. Ceramic material can be used in special applications. The filling principle also includes the use of peristaltic pump, negative pressure type, weighing type, self-flow type, reflux defoaming type, etc.
4.PLC control system with variable frequency speed control and high degree of automation.
5.The filling system is provided with the anti-leaking device, realizing filling from the bottom of the bottle, rising slowly and
avoiding bubbles.
6.The tightness of the air gripper type cap screwing head can be adjusted without damaging the bottle and cap. It can be equipped with servo motor driving with adjustable torque. The capping head adopts flexible design with easy adjustment, and can also be designed to be used for pull caps.
7.It can be equipped with the cap storage and lifting mechanism and the mechanism for identifying reverse caps and eliminating nonconforming products.
8.The whole machine is suitable for various specifications of bottles and adjustments can be completed conveniently within a short time.
9.The whole machine is designed according to GMP requirements.
1.Integrating filling and cap screwing (sealing) and taking small floor space. With servo driving, the filling volume is adjusted on the man-machine interfsce, featured by convenient operation and quick adjustment.
2.It adopts the plunger metering pump to fill liquids of various viscosities with high precision. The pump can be easily
disassembled, making cleaning and sterilization convenient. It can be equipped with CIP/SIP cleaning and sterilization system.
3.The seal ring of the plunger metering pump is made of silicon rubber, Teflon or other materiais depending on different
industries and liquid ingredients. Ceramic material can be used in special applications. The filling principle also includes the use of peristaltic pump, negative pressure type, weighing type, self-flow type, reflux defoaming type, etc.
4.PLC control system with variable frequency speed control and high degree of automation.
5.The filling system is provided with the anti-leaking device, realizing filling from the bottom of the bottle, rising slowly and
avoiding bubbles.
6.The tightness of the air gripper type cap screwing head can be adjusted without damaging the bottle and cap. It can be equipped with servo motor driving with adjustable torque. The capping head adopts flexible design with easy adjustment, and can also be designed to be used for pull caps.
7.It can be equipped with the cap storage and lifting mechanism and the mechanism for identifying reverse caps and eliminating nonconforming products.
8.The whole machine is suitable for various specifications of bottles and adjustments can be completed conveniently within a short time.
9.The whole machine is designed according to GMP requirements.
Specification
Product model | YGS16/8 | YGS12/8 | YGS8/4 | YGS6/1 | YGS4/1 | ||||
Number of filling heads | 16 | 12 | 8 | 6 | 4 | ||||
Number of cap screwing (sealing)heads | 8 | 8 | 4 | 1 | 1 | ||||
Filling range | 20-1000ml | ||||||||
Ideal filling range | 20-500ml | ||||||||
Optional cap types | Anti-theft cap, screw cap, ROPP aluminum cap | ||||||||
Filling speed bottles/minute | 100-120 | 90-120 | 60-80 | 45-50 | 40-50 | ||||
Filling accuracy | ≤1% | ||||||||
Cap screwing and (pressing) pass rate | ≥99.8% | ||||||||
Power supply | 220V 50/60Hz | ||||||||
Power | ≤2.2kw | ≤2.2kw | ≤1.2kw | ≤1.2kw | ≤1.2kw | ||||
Compressed air pressure | 0.4-0.6Mpa | ||||||||
Net weight | 2000kg | 2000kg | 1200kg | 1000kg | 800kg | ||||
Outline dimensions(mm) | 3600*1000*1800 | 3600*1000*1800 | 3000*1000*1800 | 2800*1000*1600 | 2500*1000*1600 | ||||
Note:The products of our company may always be updated, and are subject to change without (the real products shall prevail).
Packing & Delivery
wooden case
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
FAQ
1. who are we?
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
