With the help of our technicians and workers,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has finally developed the quality-guaranteed product. The product is called Professional Disc Oil Separator / Liquid Solid Separation Centrifuge High Rotating Speed. The measured data indicates that meets the market requirements. We have been in the trade for over many years and are a well established business with a wealth of experience and expertise.

Place of Origin:ChinaType:Separating Plant
Condition:NewVideo outgoing-inspection:Provided
Machinery Test Report:ProvidedMarketing Type:Hot product
Warranty of core components:1 YearCore Components:Bearing, Motor
Brand Name:ShenzhouVoltage:220v/300v/380v/optional
Power:ModelWeight:460
Dimension(L*W*H):variableWarranty:1 Year
Key Selling Points:Easy to OperateApplicable Industries:Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops, Advertising Company, Pharmaceutical plant, Chemical plant
Showroom Location:NoneMaterial:Stainless Sheel
Certification:CE BV ISO

Product Description

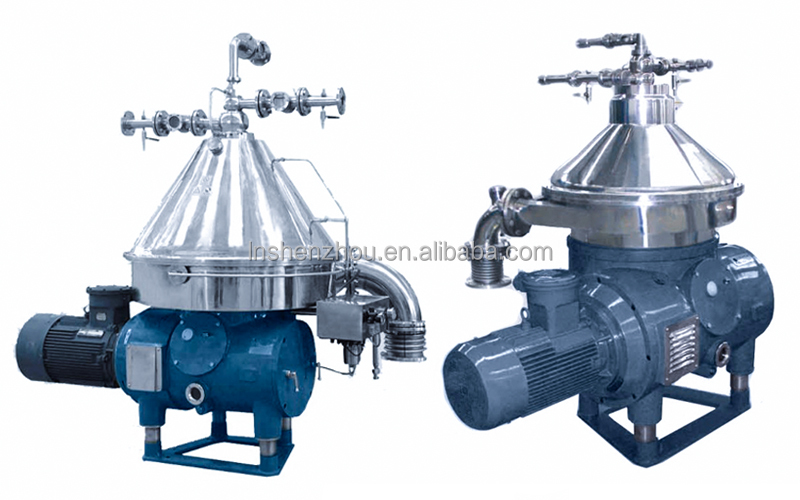

Professional Disc Oil Separator / Liquid Solid Separation Centrifuge High Rotating Speed
The main functions of the blood centrifuge series include the ability to handle high flow rates, high solids content and high temperature processing. These features make it ideal for dealing with harsh conditions in the animal and fish processing industries.
SHEN ZHOU Disc centrifuge is an automatic centrifugal separator for precipitated proteins, microbial broths, hormones and other biopharma applications. This separation system embodies more than 100 years of technical know-how and development and delivers the performance of centrifugal machines in pilot or medium scale set-ups. Designed for excellence, this solid-liquid separator can be used as a clarifier or a purifier and concentrator.
Feature:
Features
* High speed centrifugation to remove oil grease and sludge impurities
* Strong emulsification ability
* Low energy consumption,saves money
* Full automation possible with PLC automatic control panel.
* Centrifugal separation requiring no filter media.
* High reliability drive train system backed by delivery of over 1,000 units a year.
* Bowl design with superior separation performance and with good response to discharge loads.
* Pilot valve regulates total/partial discharge of solids.
* Super partial discharger (option) minimizes liquid loss and maximizes thickening of solid
* Fraction for discharge.
* Vibration-proof design realizes long working life.
Working Principle
How does Disc Separator work?
The disc separator is in vertical structure. The drum is mounted on the upper end of the vertical axis, which is driven by a motor and rotates at a high speed. There is a set of disc - shaped parts that are stacked together in the drum, with a small gap among them. When the suspension (or emulsion), which is pumped into the drum by feeding tube located in the center of the drum, pass through the gap between the discs, solid particles (or droplets) would settle down to form sediment (or liquid layer) on the disc by centrifuge force, and then the sediment slid along the surface of the disc and separated from the disc to accumulate in the largest diameter of the drum. At last, the separated liquid discharged from the outlet. The disc is utilized to shorten the settling distance of solid particles or droplets, enlarge the settlement area of the drum, and improve the production capacity of the separator. The solids accumulated in the drum are removed from the drum by manual after the machine stop, or out of the drum in the case of a dregs machine without stopping.
Main Structure
Powerful Motor provide power through the thermal coupling to drive drum in high-speed rotating around the main axis. And the liquid material is carried by feeding pipe located in the upper center into the bottom of the drum, and then led in the porthole below the disc and driven to the drum wall. Under centrifugal force, solid- liquid-liquid do the below motion to complete thorough separation:solid phrase, which is heavier than liquid, would sink into the inner wall of the drum for sediment formation; light liquid flow in centripetal pump, and be discharged by liquid outlet; The heavy liquid tends to the drum wall along the cone inside the disc, and then flows upward through through the heavy liquid concentric pump to be discharge from the outlet.
Due to the double-conical design of the inner cavity of the drum, it can compress the slag and increase its concentration.
Besides, some nozzles is mounted around the drum to spray slurry sediment, whose number and aperture are determined on the properties of the suspension, the degree of concentration and the amount of treatment.
In order to improve the slag concentration, recovery device is configured with this disc separator to the discharged sediment for reuse. For the solid concentration of the slag can be increased by 5~20 times than that of the feeding materials.
The processing capacity of the separator is up to 30t/h, which is suitable for suspension with solid phrase in diameter of 0.1~100 microns and concentration less than 10% (maximum to 25%).

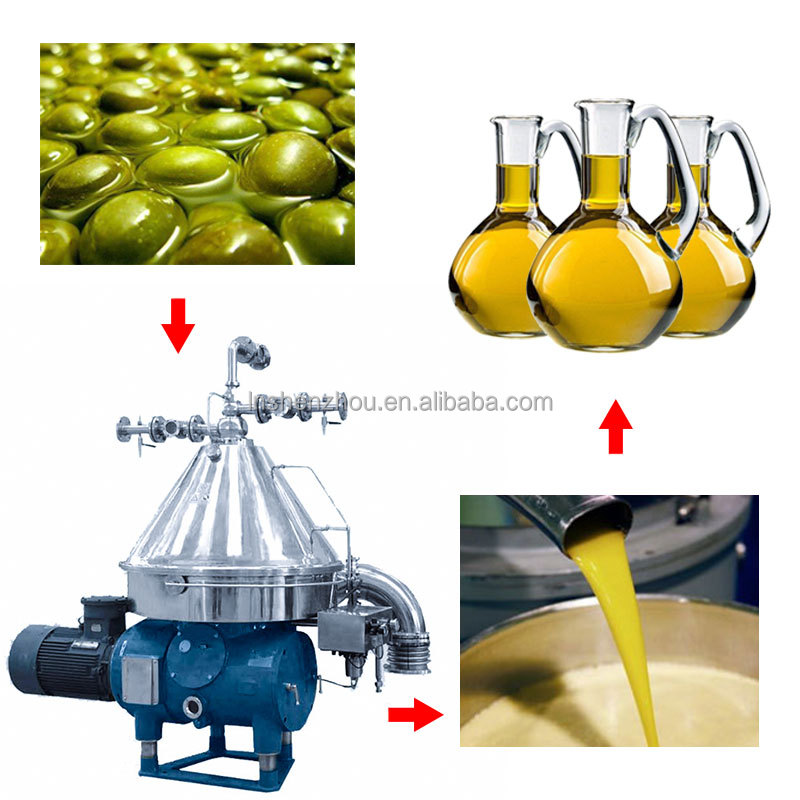

Disc Oil Separator Application:
Treatment of lube
Treatment of oil, water and solid substances
Treatment of drilling slurry
Water removal of crude oil
Treatment of cooling lubricant
Treatment and water removal of lubricant and hydraulic oil
Treatment of waste emulsion and waste oil
Treatment of aging oil

Specification
Model
Treatment capacity (L/H)
Inlet Pressure (Mpa)
Outlet pressure (Mpa)
Motor power (Kw)
Weight (Kg)
Outline dimension (mm)
DHZ360
1200-2500
0.05
0.1-0.25
7.5
1280
1500*1150*1500
DHZ470
2500-7000
0.05
0.1-0.25
15
1880
1800*1200*1800
DHZ550A
5000-10000
0.05
0.1-0.25
18.5
2200
1850*1550*2050
DHZ550E
6000-15000
0.05
0.1-0.25
22
2200
1850*1550*2050
DHZ700
15000-30000
0.1
0.2
30
3300
2100*1650*2300
DRZ360
1200-2500
0.05
0.1-0.25
5.5
750
1250*1050*1500
DRZ400A
2000-6000
0.05
0.1-0.3
7.5
1150
1300*900*1450
DRZ400E
4000-7500
0.05
0.1-0.3
7.5
1300
1300*900*1500
DRZ550
6000-18000
0.05
0.1-0.3
22
2200
1620*1300*2200
