1. Ex proof motor
2. Viton Seals
3. Touch screen panel with PLC program
4. Inverter control box
5. On spot ex button
6. Closed type filter bags
7. Tri clamp fittings for feed and drain port
8. Drum without curl inward

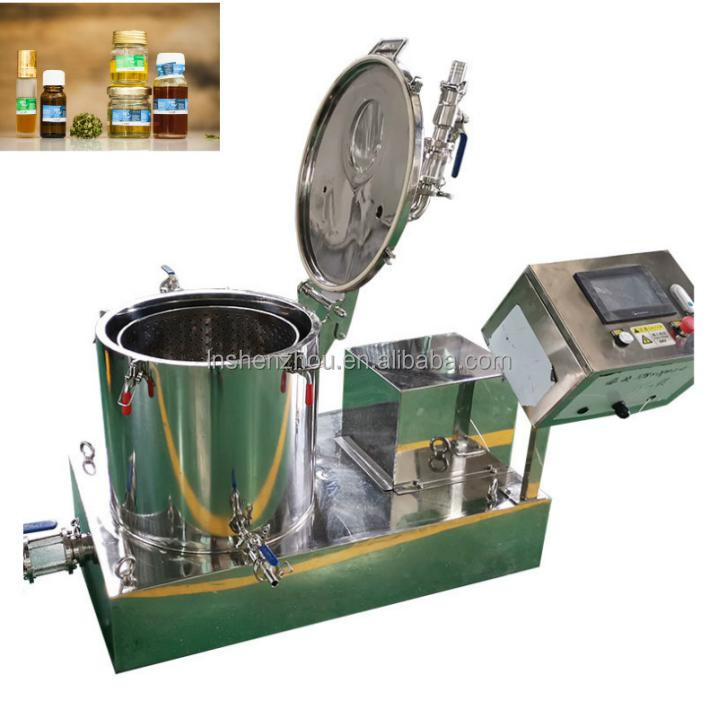

Shenzhou - SS316L Basket herbal extract Machine 100% natural Max Top Marketing Hot Key Motor Box Hot selling machine
SS316L Basket herbal extract Machine 100% natural Max Top Marketing Hot Key Motor Box has the significance of taking a leap forward and injects new impetus into the development of the industry.What'more,It is designed in accordance with the national standard.
5.0
Customization:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Keeping close up with the latest trend, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has made SS316L Basket herbal extract Machine 100% natural Max Top Marketing Hot Key Motor Box a competitive product in the market. It is expected to lead the industry trend and bring benefits to customers. Now you can easily find the best suppliers to get the top of the line quality of SS316L Basket herbal extract Machine 100% natural Max Top Marketing Hot Key Motor Box and get lower prices. Having collected customers' needs and analyzed trends, we have spent a lot in developing new and versatile features of Extractor in innovative ways.And the Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge is designed to be unique and attractive enough to catch people's attention.
| Brand Name: | LYSZ | Model Number: | HHP |
| Application: | Pharmaceutical | Condition: | New |
| Warranty: | 1 Year | Applicable Industries: | Food & Beverage Factory |
| Key Selling Points: | High Safety Level | Weight (KG): | 230 |
| Showroom Location: | None | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty of core components: | 1 Year | Core Components: | PLC |
| Power (kW): | 1.1 | Material: | 316L Stainless Steel |
| After-sales Service Provided: | Video technical support, Field installation, commissioning and training | After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location: | None |
Product Description
SS316L Basket herbal extract Machine 100% natural Max Top Marketing Hot Key Motor Box
The HHP series of centrifuges can be used for extracting and filtering centrifuges for cannabis and other plants. The series of centrifuges extract the active ingredients in plants through a built-in program, which is single-handed, easy to use and large in capacity.The machine adopts a closed structure, and the seal is sealed with PTEF; the explosion-proof motor, frequency converter, PLC, touch screen and other devices can be used to achieve the sealed explosion-proof requirements.
Collocation
Standard Features
}304 and 316L Sanitary Stainless Steel Construction Low temperature rating: -40c ReinforcedSight Glass
Bi-Directional Agitation
Auto/Manual Controls
Digital HMI Interface
Variable Speed Control
Easy Material Loading/ Unloading Heavy-Duty Spin Drying No foundation required
Direct Drum type, without curl inward
Bi-Directional Agitation
Auto/Manual Controls
Digital HMI Interface
Variable Speed Control
Easy Material Loading/ Unloading Heavy-Duty Spin Drying No foundation required
Direct Drum type, without curl inward
Process Overview
Operator fills filter bag with milled plant material and places it in the machine.
The centrifuge is then flooded, and bi-directionally agitated for full target compound removal.
After the wash, the plant material undergoes a medium duty spin dry till high speed spin dry to remove the liquid as much as possible.
The alcohol wash is then collected to some container for further processing Working Steps
1. System loading: A pre-loaded closed filter bag is placed into the basket
2. Program Menu: The 'Spray Wash' or 'Agitation Wash' program is selected on the HMI where the RPM and cycle times are set to the operator's specifications.
3. Fill: Alcohol is connected from source tank into the centrifuge.
4. The Wash cycle: The plant material undergoes an agitated wash with a set number of bi-directional agitations.
5. System Draining: When the wash cycle is complete, the outlet valve is manually opened and the liquid drained. The alcohol wash is pumped to a properly rated storage reservoir for further processing.
6. Spin Dry Cycle: The 'Spin Dry' menu is selected on the HMI and the drying cycle is started. The wet plant solids are spun dry of the remaining alcohol mixture within.
7. System Unloading: Upon completion of the 'Dry cycle', centrifuge is unloaded by taking the filter bag out from the basket.
8. Repeat Process.
Operator fills filter bag with milled plant material and places it in the machine.
The centrifuge is then flooded, and bi-directionally agitated for full target compound removal.
After the wash, the plant material undergoes a medium duty spin dry till high speed spin dry to remove the liquid as much as possible.
The alcohol wash is then collected to some container for further processing Working Steps
1. System loading: A pre-loaded closed filter bag is placed into the basket
2. Program Menu: The 'Spray Wash' or 'Agitation Wash' program is selected on the HMI where the RPM and cycle times are set to the operator's specifications.
3. Fill: Alcohol is connected from source tank into the centrifuge.
4. The Wash cycle: The plant material undergoes an agitated wash with a set number of bi-directional agitations.
5. System Draining: When the wash cycle is complete, the outlet valve is manually opened and the liquid drained. The alcohol wash is pumped to a properly rated storage reservoir for further processing.
6. Spin Dry Cycle: The 'Spin Dry' menu is selected on the HMI and the drying cycle is started. The wet plant solids are spun dry of the remaining alcohol mixture within.
7. System Unloading: Upon completion of the 'Dry cycle', centrifuge is unloaded by taking the filter bag out from the basket.
8. Repeat Process.
Specification
Model | Drum diameter mm | Drum height (mm) | Volume (L) | Revolving speed (r/min) | Motor Power (KW) | Size (mm) | Weight (KG) |
HHP-15 | 300 | 250 | 15 | 2000 | 1.1 | 950*500*480 | 210 |
HHP-25 | 300 | 350 | 25 | 2000 | 1.5 | 950*500*580 | 220 |
HHP-45 | 450 | 300 | 45 | 1500 | 2.2 | 1250*700*760 | 450 |
HHP-60 | 450 | 400 | 60 | 1500 | 3 | 1250*700*860 | 470 |
HHP-85 | 600 | 300 | 85 | 1250 | 3 | 1500*900*950 | 970 |
HHP-110 | 600 | 400 | 110 | 1250 | 4 | 1500*900*1050 | 1000 |
HHP-140 | 600 | 500 | 140 | 1250 | 5.5 | 1500*900*1150 | 1030 |
HHP-15 Charge per batch around 5Kg(10 pound)Amount of ethanol each time around 30L(8 gallon)
HHP-25 Charge per batch around 8Kg(18 pound) Amount of ethanol each time around 40L(11 gallon)
HHP-45 Charge per batch around 14kg(30pound) Amount of ethanol each time around 85L(23 gallon)
HHP-60 Charge per batch around 20kg(45pound) Amount of ethanol each time around 105L(28 gallon)
HHP-85 Charge per batch around 25kg(55pound) Amount of ethanol each time around140L(37 gallon)
HHP-110 Charge per batch around 35kg(75pound) Amount of ethanol each time around175L(46 gallon)
HHP-140 Charge per batch around 45kg(100pound) Amount of ethanol each time around 210
HHP-25 Charge per batch around 8Kg(18 pound) Amount of ethanol each time around 40L(11 gallon)
HHP-45 Charge per batch around 14kg(30pound) Amount of ethanol each time around 85L(23 gallon)
HHP-60 Charge per batch around 20kg(45pound) Amount of ethanol each time around 105L(28 gallon)
HHP-85 Charge per batch around 25kg(55pound) Amount of ethanol each time around140L(37 gallon)
HHP-110 Charge per batch around 35kg(75pound) Amount of ethanol each time around175L(46 gallon)
HHP-140 Charge per batch around 45kg(100pound) Amount of ethanol each time around 210
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
