Shenzhou - High efficiency corrugated carton box making machine prices Filling&Packing Machine
The technologies have been upgraded to adapt to the fast-changing needs of the competitive market. As the manufacturing technologies advance, the performance of the finished High efficiency corrugated carton box making machine prices has been improved a lot.It has an enormous effect on the field(s) of Packaging Line.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd boasts strong R&D capabilities and has been working on product development for years. High efficiency corrugated carton box making machine prices is our newly-developed product and goes on sale starting now. The Packaging Line product will supply to all over the world, such as Europe, America, Australia,Uganda , Oman ,Sri Lanka , Surabaya . Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will keep focusing on customers' needs and keep up with the industry trends so as to develop High efficiency corrugated carton box making machine prices that better satisfy customers. Our wish is to cover a wide range of global markets and win wider recognition from customers all over the world.
| Type: | Packaging Line | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
| Showroom Location: | None | Condition: | New |
| Application: | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco | Packaging Type: | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule, case |
| Packaging Material: | Plastic, Paper, Metal, Glass, Wood | Automatic Grade: | Automatic |
| Driven Type: | Hydraulic | Voltage: | 220v |
| Place of Origin: | China | Brand Name: | LYSZ |
| Dimension(L*W*H): | 2300mmx1140mmx1800mm | Weight: | 1200 KG |
| Warranty: | 2 years | Key Selling Points: | Easy to Operate |
| Marketing Type: | New Product 2021 | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Other |
Product Description

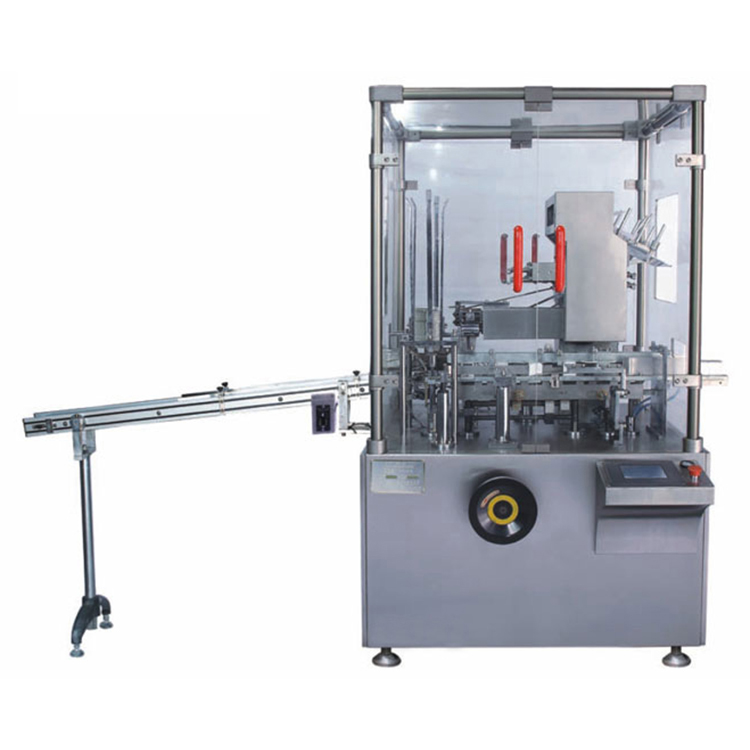

The equipment is a new type of machine developed by our company in combination with advanced technology at home and abroad.Thus, the performance and working efficiency of the equipment have been greatly improved, and the requirements of fast packing have been realized. Moreover, the equipment still maintains a stable and reliable state during fast operation. This machine is suitable for automatic feeding and packing of similar bag-like items.The whole process of online material detection, manual folding (1-4 times folding) and transmission, carton absorption forming and transmission, material entering the carton, stamping batch number, paper tongue packaging at both ends of the carton (also applicable to hot melt adhesive), missing material elimination and finished product output are all completed automatically

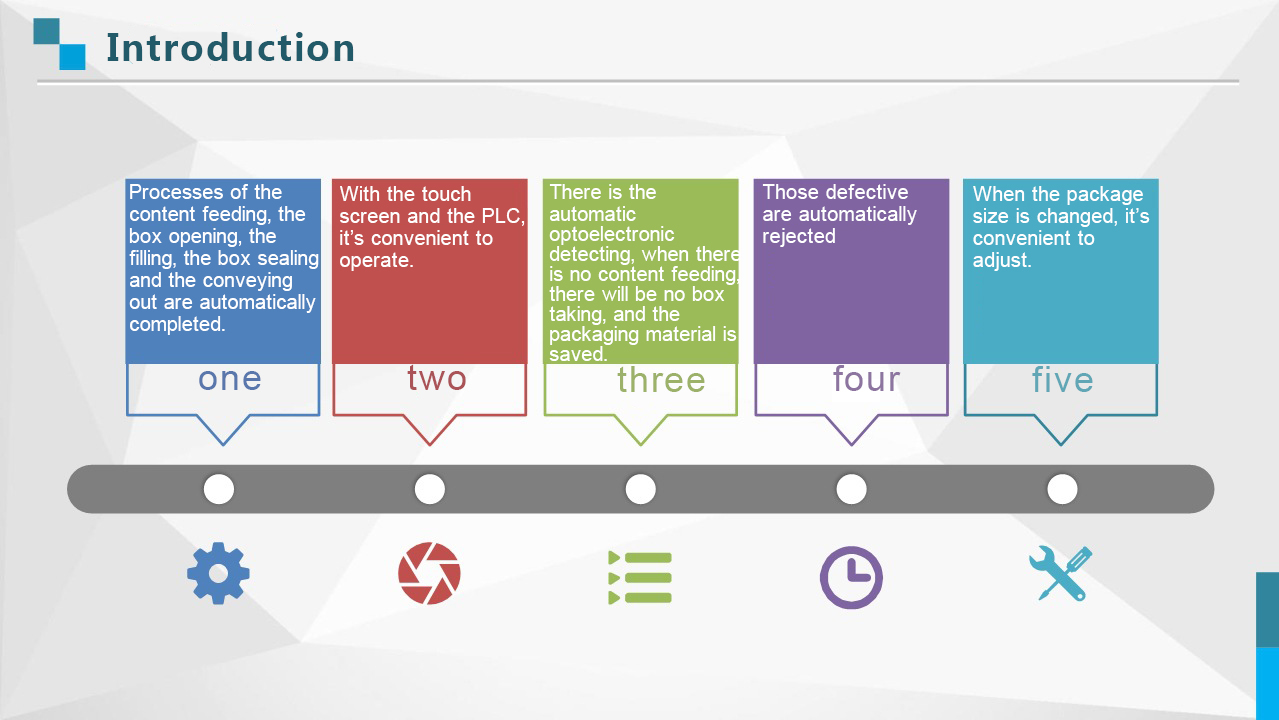

Features：
a.Electric appliances, including the PLC, the touch screen and the frequency convertors are from well-known international brands.
b.There is the HMI.
c.Errors, working speed and the final-product counting can be automatically displayed.
d.When the box’s feeding position is not correct, or there is no box, or there is no leaflet’s feeding, the machine will be
stopped automatically.
e.When there is no content, there is no leaflet’s taking. When there is no leaflet feeding, there will be no cartonning.
f.There is the protecting if it’s overloaded.
g.Stable properties & convenient operation.
a.Electric appliances, including the PLC, the touch screen and the frequency convertors are from well-known international brands.
b.There is the HMI.
c.Errors, working speed and the final-product counting can be automatically displayed.
d.When the box’s feeding position is not correct, or there is no box, or there is no leaflet’s feeding, the machine will be
stopped automatically.
e.When there is no content, there is no leaflet’s taking. When there is no leaflet feeding, there will be no cartonning.
f.There is the protecting if it’s overloaded.
g.Stable properties & convenient operation.
model | SINOJDZ-120G( vertical) | ||||
Packing speed | 30-120box/min | ||||
Box | Quality | 250-350g/m2 (It’s decided by the box size.) | |||
Size, L×W×H | (65-155) × (30-85) × (15-50), mm | ||||
Leaflet | Quality | 60-70g/m2 | |||
Size when it’s unfolded, L×W | (80-250) × (90-170), mm | ||||
Folding | 1-4folds | ||||
Compressed air | Working pressure | Not less than 0.6Mpa | |||
Consumption | About 120 ~ 160L/min | ||||
Power supply | 220V, 50Hz | ||||
Main power | 0.75kw | ||||
Overall dimension, L×W×H | 2300× 1140 × 1800, mm | ||||
Net weight | About 1200Kg | ||||

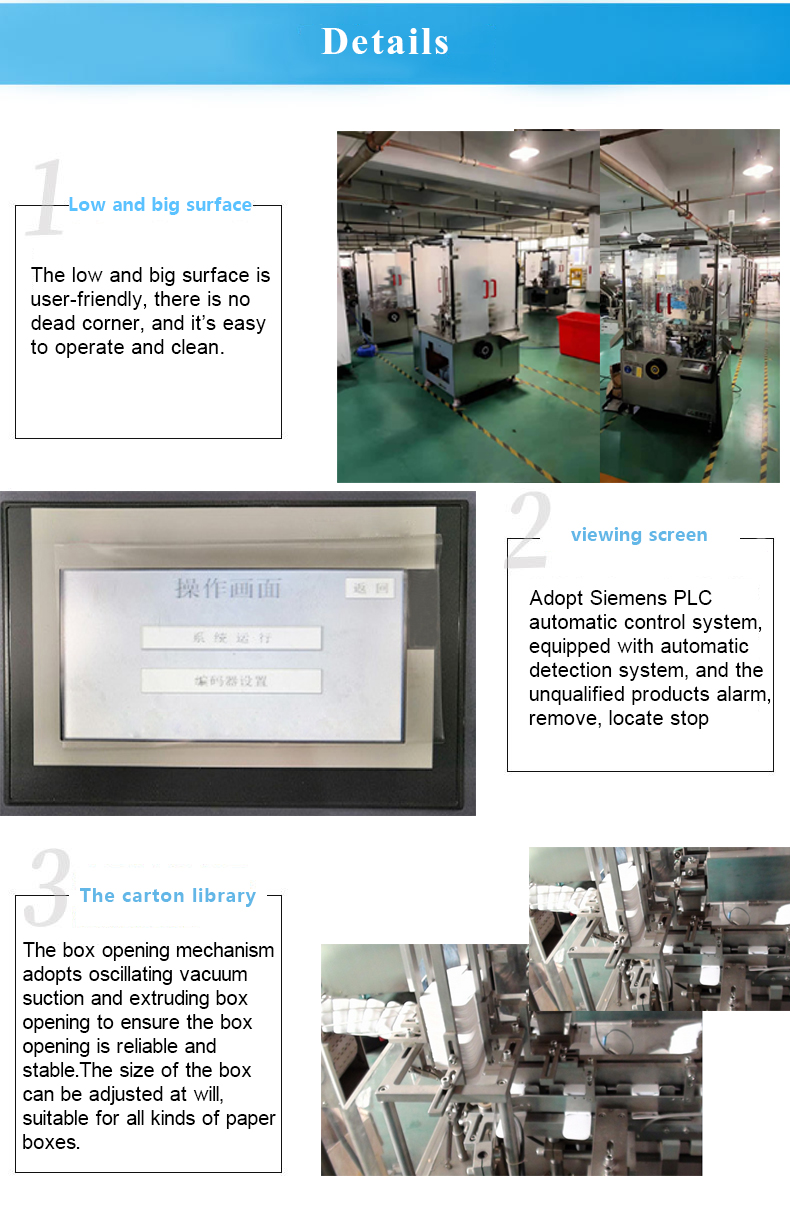

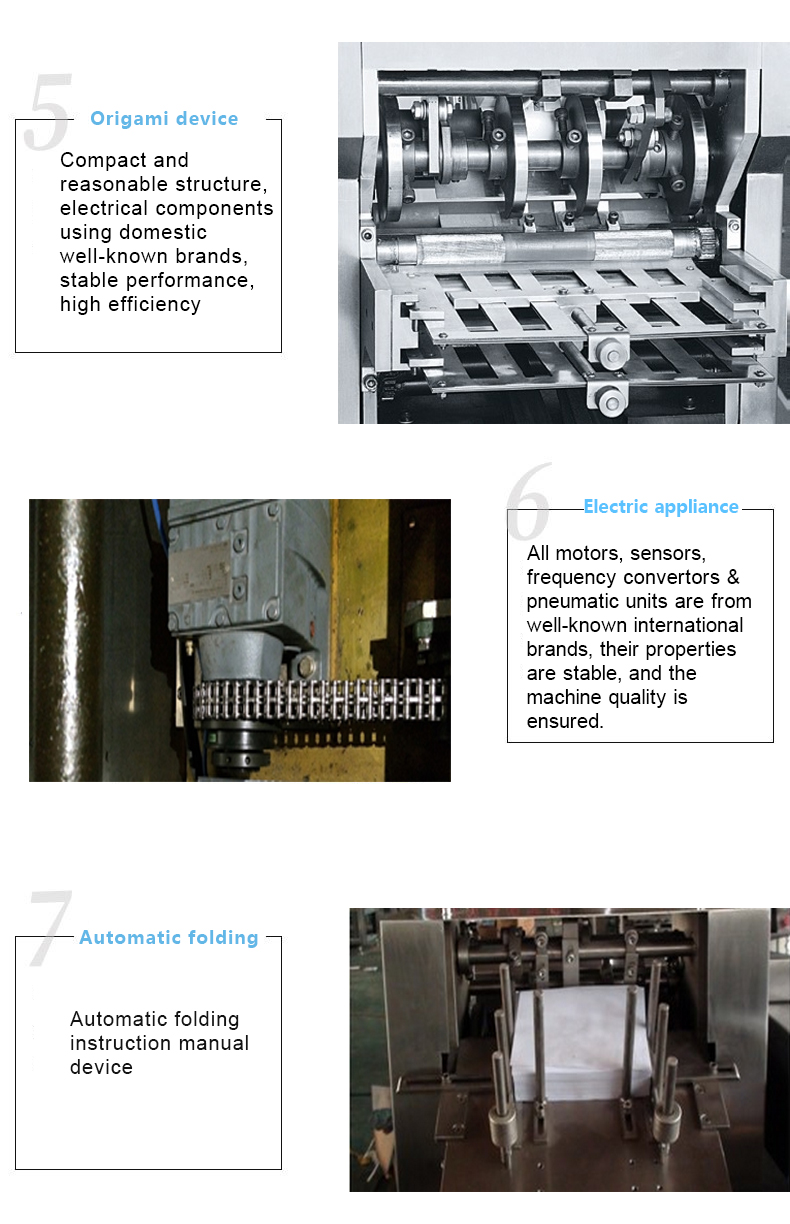

Detailed Images.

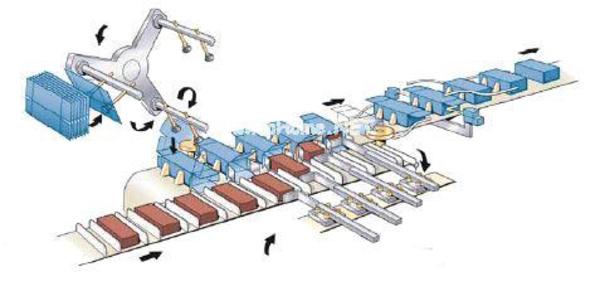

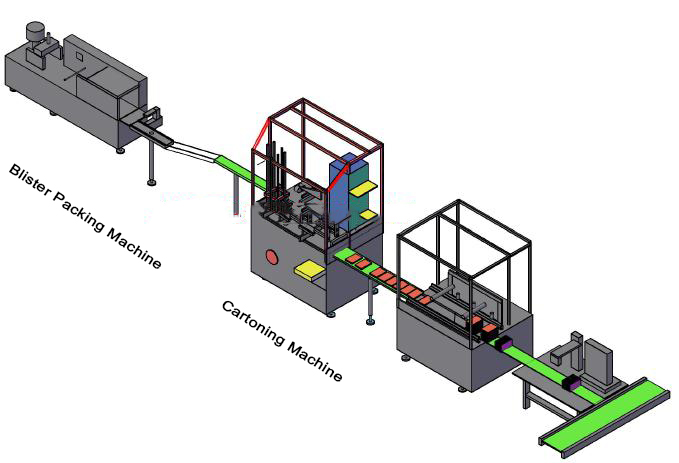

Working principle:

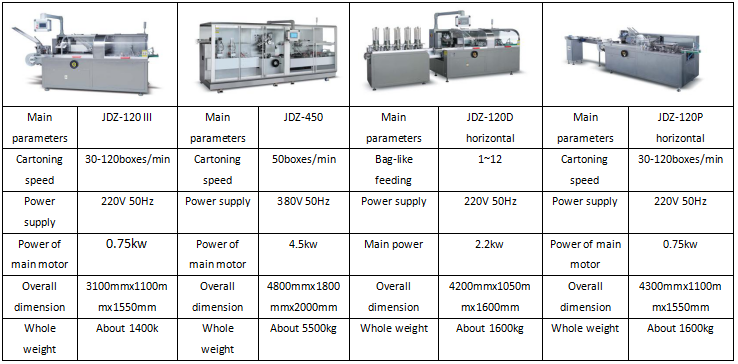

Related Products.
Packing & Delivery
wooden case
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
