Label: sticker label, adhesive film, electronic supervision code, bar code and so on.Industry : Widely used in food , medicine ,
cosmetics , daily , electronic , hardware , plastic and other industriesApplication examples: PET circular bottle labeling,
plastic bottle labeling, food canned and so on
Shenzhou - Shenzhou Vertical Automatic Thermal Shrink Labelling Machine for Round Bottles Labeling & Weighting Machine
To a large extent,the Labeling Machines's appearance, features, packages, etc. can be the important factors that attract customers. In the process of development of Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge, our designers have been following the latest trend and analyzing customers' tastes, thereby, making the Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge unique in its structure and design style. As for its features, we try to make it outstanding by adopting high-level raw materials.
5.0
Customization:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
It is one of the hot-selling products of Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd. Apart from the benefits for general consumers, Shenzhou Vertical Automatic Thermal Shrink Labelling Machine for Round Bottles can offer amazing advantages to businesses in terms of sales and customer satisfaction. Guided by market forces,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will use a comprehensive range of measures to enhance our strength. For example, we will invest heavily in the R&D project and keep developing new products so as to lead the market trend.
| Type: | LABELING MACHINE | Applicable Industries: | Hotels, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Energy & Mining, Food & Beverage Shops, Other |
| Showroom Location: | None | Condition: | New |
| Application: | Beverage, Chemical, Commodity, Food, Medical | Packaging Type: | Bottles |
| Packaging Material: | Glass, Plastic, Paper, Metal | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V/380V |
| Place of Origin: | China | Brand Name: | shenzhou |
| Dimension(L*W*H): | 1850(L)*1200(W)*1530(H)(mm) | Weight: | 200 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy to Operate |
| Machinery Capacity: | 20-50PCS/MIN | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | PLC, Motor |
| Product name: | Labeling Machine | Bottle type: | Round Square Flat Pet Bottle |
| Labeling speed: | 20-50PCS/MIN | Keyword: | Automatic Labeling Machine |
| After Warranty Service: | Video technical support |
Product Description

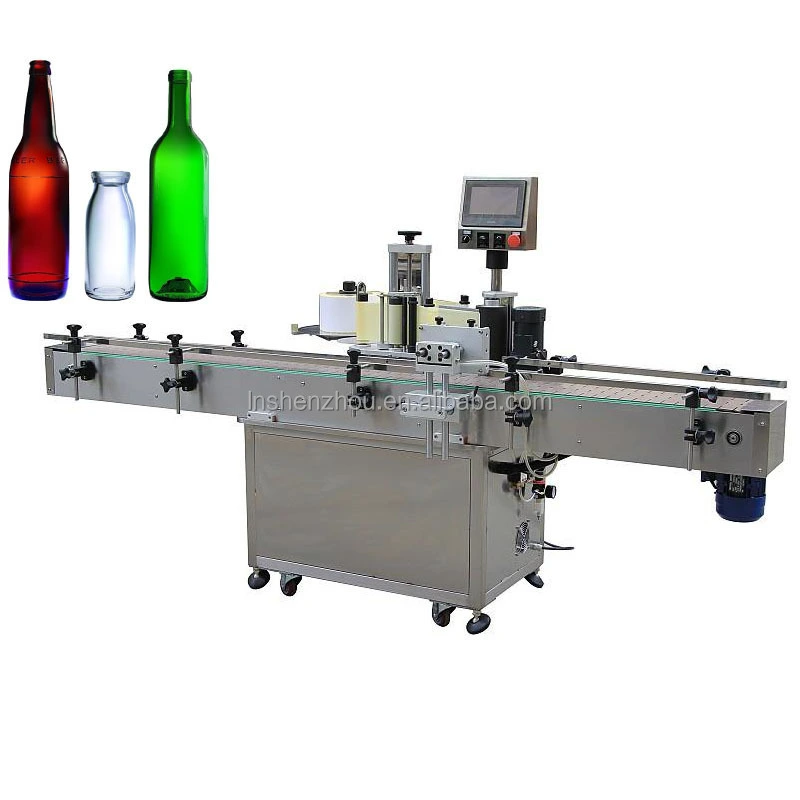

Shenzhou Vertical Automatic Thermal Shrink Labelling Machine for Round Bottles
This equipment is widely used in the labeling of cylindrical objects of various specifications, and the labeling of small taper round bottles. Circumferential positioning detection device can be selected to realize circular fixed-point labeling; optional color matching tape coder and inkjet printer can print the production date, expiration date, batch number and other information while labeling, reducing packaging process and improving production efficiency and equipment stability High, good labeling effect, labeling accuracy +0.5mm。
Features
1. Simple adjustment, configuration before and after, left and right and up and down directions, plane inclination, vertical
inclination adjustment seat, different bottle shape switch without dead Angle, simple and quick adjustment；
inclination adjustment seat, different bottle shape switch without dead Angle, simple and quick adjustment；
2. Automatic bottle division, star wheel bottle division mechanism, effectively eliminate the bottle itself error caused by the bottle is not smooth, improve the stability；
3. Touch screen control, man-machine interaction interface with operation teaching function, simple operation；
4. Intelligent control, automatic photoelectric tracking, automatic label detection function, to prevent leakage and
label waste；
label waste；
5. Solid health, mainly made of stainless steel and senior aluminum alloy, solid quality, in line with GMP production
requirements.
requirements.
Specification
Product Name | Sticker Bottle Labeling Machine |
Model | SZT212 |
Size(mm) | 1850 *1200*1530 |
Weight (kg) | 200 |
Voltage/Frequency | 220V/380V / 50HZ |
Applicable label length(mm) | 20～290 |
Applicable label width(mm) | 20～150 |
Applicable product size(mm) | Diameter 25~100mm, Height 25 ~300mm |
Labeling accuracy(mm) | ±1 |
Labeling speed(pcs/min) | 25~50 |
Air pressure(Mpa) | 0.6-0.8 |
Matching function
1.Scanner:Read two-dimensional code，bar code and other information the establishment of product database for product traceability.
2.Printer: supporting the inkjet printer, label on the specified position to spurt the code, perfect and labeling machine compatible.
3.Universal electric eye: general electric eye cannot detect the transparent label, need to use imported Leuze electronic eyes matched.
4.Fight Code Machine: using thermal code printer characters to print production date, expiration date, batch number.
Details Images
More stable performance, high labeling quality
Adjustable paper supply tray, can be adjusted according to needs, simple and convenient operation
Roll stock label
Label Accuracy
The label accuracy is good, the label detour adopts the rectifying mechanism, the label does not deviate,with multi angle
adjusting system,and the adjustment has no dead angle.
adjusting system,and the adjustment has no dead angle.
Stability
Full stainless steel 304 frame,and very think aluminum block part,with unique supporting design,makes machine stable and durable.
Bottle Dispersing
The application is flexible , the bottle standing type labeling machine is provided with an automatic bottle separating function ,
can be produced in a single machine , and also can be connected with the production line . The adjustment is simple , the labeling
speed , the conveying speed and the bottle separating speed can realize stepless speed regulation , and the adjustment is carried
out according to the requirement.
can be produced in a single machine , and also can be connected with the production line . The adjustment is simple , the labeling
speed , the conveying speed and the bottle separating speed can realize stepless speed regulation , and the adjustment is carried
out according to the requirement.
Applications:
Round and square bottle,jar,can,tin. Material:Plastic,glass,metal. Label:preprinted label or transparent label
Other Corollary Equipment Introduction:
1. Different labeling solutions for flat surface, round labeling, taper wraping labeling can be supplied. One product can
accomplish one sticker, two stickers or more stickers labeling, also can one sticker to finish one side, two sides, three sides or more sides labeling.
2. We can supply you the optional rotary table bottle unscrambler machine, which can be connected directly before the labeling machine, the operators can put the bottles on the rotary table, then the rotary table will send the bottles to the labeling machine to the labeling machine automatically.
3. It also can match with weight checker, metal detector, bottle filling machine, capping machine, can seaming machine, cover impressing machine, inkjet /laser / TTO printer etc.
accomplish one sticker, two stickers or more stickers labeling, also can one sticker to finish one side, two sides, three sides or more sides labeling.
2. We can supply you the optional rotary table bottle unscrambler machine, which can be connected directly before the labeling machine, the operators can put the bottles on the rotary table, then the rotary table will send the bottles to the labeling machine to the labeling machine automatically.
3. It also can match with weight checker, metal detector, bottle filling machine, capping machine, can seaming machine, cover impressing machine, inkjet /laser / TTO printer etc.
