Photo eye-mark device
This device can ensure the automatic right position of the tube. It is driven by the motor and which is controlled by PLC.

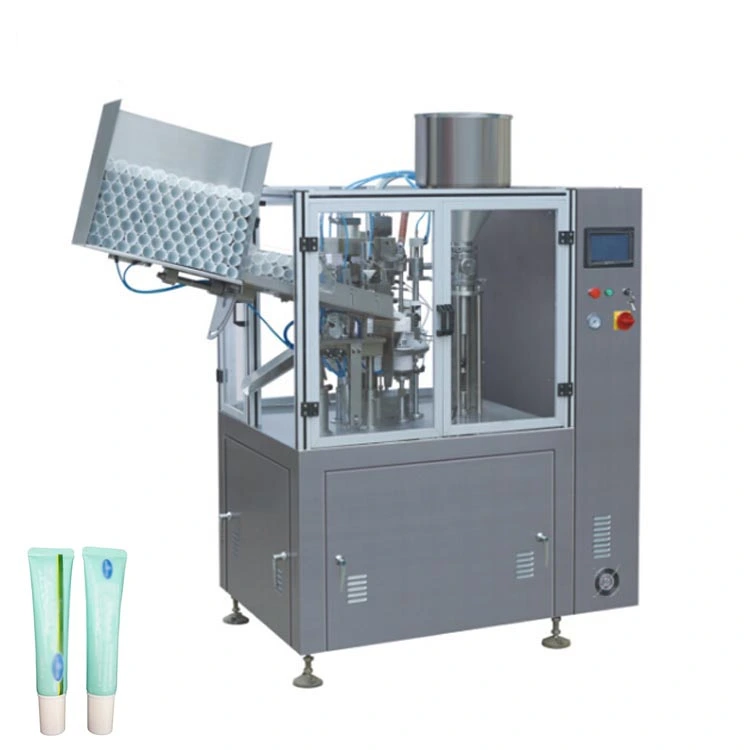

Shenzhou - NF-60 Automatic Ointment Toothpaste Tube Filling Machine Filling&Packing Machine
The applied technologies are utilized to ensure NF-60 Automatic Ointment Toothpaste Tube Filling Machine performance is stable.Its scopes of application are wide enough to cover the field(s) of Filling Machines.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has been manufacturing, exporting and supplying excellent quality NF-60 Automatic Ointment Toothpaste Tube Filling Machine. At Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd, it is our goal to provide the highest quality products and superior service to our customers, both being our top priority. Looking back to the good old days,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd have done our best to achieve our goal of serving customers with the best quality products and services. In the future, we will keep improving our capabilities and upgrading technologies to provide more and better products to satisfy the growing needs of customers.
| Type: | Filling Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
| Showroom Location: | None | Condition: | New |
| Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco | Packaging Type: | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Pouch, Capsule, case, Other |
| Packaging Material: | Plastic, Metal, Glass, Wood, Other | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220v |
| Place of Origin: | China | Brand Name: | LYSZ |
| Dimension(L*W*H): | 2300mmx1400mmx2200mm | Weight: | 900 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy to Operate |
| Machinery Capacity: | 20000BPH | Filling Material: | Beer, Other, Milk, Water, Oil, Juice, Powder |
| Marketing Type: | New Product 2021 | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine |
Product Description
Working Process
1.Manually feeding the tubes
2.Automatic mark positioning (photo electrical sensor
3.Automatic dosing filling
4.Tail inner heating
5.Tail sealing and pressing the batch, dates
6.Tail trimming
7.Automatic ejection
1.Manually feeding the tubes
2.Automatic mark positioning (photo electrical sensor
3.Automatic dosing filling
4.Tail inner heating
5.Tail sealing and pressing the batch, dates
6.Tail trimming
7.Automatic ejection
Model | SNNF-60A |
Power Supply | 220V/380V 50Hz/60Hz |
Power Rate | 4.5KW (9.5KW with hopper heating) |
Air pressure | 0.6-0.7MPa |
Filling Range | 5-250ml |
Filling Precision | ≤±1℅ |
Filling capacity | 40-60pcs/min |
Tube Diameter | ф13-ф50mm |
Dimension | 1900mm×1000mm×1800mm |
Weight | 800kg |
Detailed Images
Specification
The Sealing and batching system
It adopts scissor to–and-fro press way, and can seal and batch on the tube. Thanks to the equivalent heating, the sealed tube end is firm and can afford large pressure. The tube would not open and this technics gains great reputation from our customers.
It adopts scissor to–and-fro press way, and can seal and batch on the tube. Thanks to the equivalent heating, the sealed tube end is firm and can afford large pressure. The tube would not open and this technics gains great reputation from our customers.
The internal-heating system
The internal-heating system adopts electrothermal copper block to keep heat supply, at the same time, the electric hot wind blows
into the inner side of the tube to achieve equivalent heating. It has many advantages: I. This technics is more advanced than the
past exterior heating only. II. The sealing hardness is better. III. The heating head is customized by customer’s sample tube.
The internal-heating system adopts electrothermal copper block to keep heat supply, at the same time, the electric hot wind blows
into the inner side of the tube to achieve equivalent heating. It has many advantages: I. This technics is more advanced than the
past exterior heating only. II. The sealing hardness is better. III. The heating head is customized by customer’s sample tube.
The outside heating system
The outside heating adopts scissor to–and-fro press way, and heats the tube (already through the internal-heating process)from outside. This promotes the heating quality, and is better for the sealing and batching process.
The outside heating adopts scissor to–and-fro press way, and heats the tube (already through the internal-heating process)from outside. This promotes the heating quality, and is better for the sealing and batching process.
