Shenzhou - pilot complete system High-speed separator Centrifuge & Separator
To achieve the stable performance of the Shenzhou,high-quality reliable raw materials are used. pilot complete system High-speed separator has all the superior performance of those raw materials such as durability and stability. In summary, Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge has the excellent characteristics. Once it is applied in the industries, its great role will be fully played out.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has been focusing on developing products regularly, of which Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge is the newest. It is the newest series of our company and is expected to surprise you. Talents and technology are indispensable supporting factors for the pilot complete system High-speed separator to be widely praised. Next,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will introduce more outstanding talents, invest more research and development funds, and improve market competitiveness.
| Place of Origin: | Liaoning, China | Type: | Centrifuge |
| Product Type: | Soap | Condition: | New |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2021 | Warranty of core components: | 2 years |
| Core Components: | Bearing | Brand Name: | LYSZ |
| Voltage: | Customized | Weight: | 220 |
| Dimension(L*W*H): | 580*650*750 mm | Warranty: | 2 years |
| Key Selling Points: | High Productivity | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| Showroom Location: | None |
Product Description
Product information：
The high-speed separator pilot complete system is developed for universities, scientific research institutions, and enterprise R&D centers. It integrates functions such as stirring, feeding, speed regulation, and separation. Users can obtain key process parameters through experiments, providing reference for scientific research and industrial applications. At the same time, this system can also be used as small-scale production equipment for small batch production of biological fermentation broth, food additives, microbial culture fluid, etc. The system adopts Siemens touch screen frequency conversion speed control system, which is easy to operate, intuitive, reliable, easy to clean, high degree of integration, small footprint, etc.

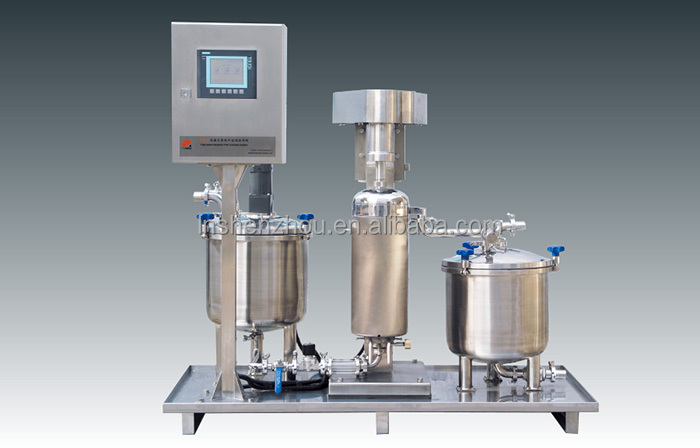

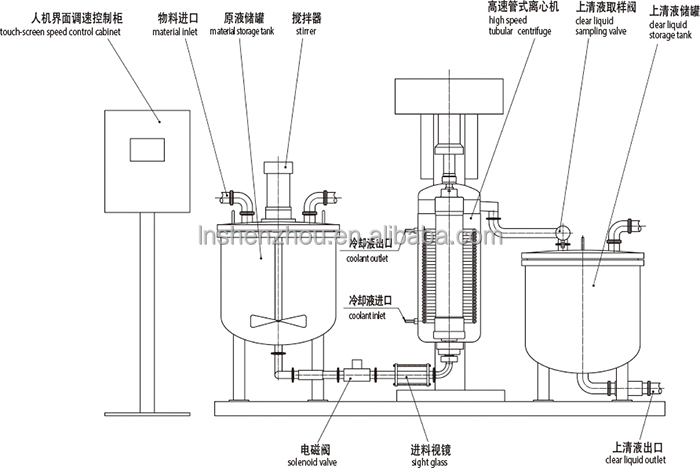

The high-speed separator pilot plant is composed of storage tank cubage, feed pipe, high-speed tubular centrifuge, clear liquid tank cubage, electrical control cabinet, etc. The materials are stored in the original liquid storage tank, which is gently stirred by the mixer. The operator operates the electrical control cabinet to turn on the host, and the high-speed tubular centrifuge rises to the preset speed in a short time. Afterwards, the solenoid valve opens the feed regulating valve. The feed liquid flows into the bowl of the high-speed tubular centrifuge from the raw liquid storage tank for continuous separation. The separated supernatant enters the clear liquid tank cubage, and the solid stays in the bowl which manually unloaded after shutdown.
The outlet pipe is equipped with a sampling valve, the user can sample at any time to view the separation effect, and at the same time, the speed of the centrifuge can be adjusted according to the separation effect.
The high-speed separator pilot complete system is developed for universities, scientific research institutions, and enterprise R&D centers. It integrates functions such as stirring, feeding, speed regulation, and separation. Users can obtain key process parameters through experiments, providing reference for scientific research and industrial applications. At the same time, this system can also be used as small-scale production equipment for small batch production of biological fermentation broth, food additives, microbial culture fluid, etc. The system adopts Siemens touch screen frequency conversion speed control system, which is easy to operate, intuitive, reliable, easy to clean, high degree of integration, small footprint, etc.
The high-speed separator pilot plant is composed of storage tank cubage, feed pipe, high-speed tubular centrifuge, clear liquid tank cubage, electrical control cabinet, etc. The materials are stored in the original liquid storage tank, which is gently stirred by the mixer. The operator operates the electrical control cabinet to turn on the host, and the high-speed tubular centrifuge rises to the preset speed in a short time. Afterwards, the solenoid valve opens the feed regulating valve. The feed liquid flows into the bowl of the high-speed tubular centrifuge from the raw liquid storage tank for continuous separation. The separated supernatant enters the clear liquid tank cubage, and the solid stays in the bowl which manually unloaded after shutdown.
The outlet pipe is equipped with a sampling valve, the user can sample at any time to view the separation effect, and at the same time, the speed of the centrifuge can be adjusted according to the separation effect.
Specification
Model | SZX-1 |
Storage tank cubage | 50 L |
Stirrer motor power | 90 w |
Stirrer speed | 75 r/min |
Centrifuge bowl diameter | 75 mm |
Centrifuge bowl cubage | 2 L |
Centrifuge bowl speed | 0~20000 r/min |
Maximum centrifugal force | 16700g |
Centrifuge motor power | 1.5 kw |
Clear liquid tank cubage | 50 L |
Power supply | AC380/220V 50Hz |
Weight | 460 kg |
Dimensions | 1580×880×1500 mm |
More information：
1.This tubular centrifuge belongs to liquid-solid separation type.
2.The actual production capacity of this tubular centrifuge depends on the material characteristics and separation requirements.
3.The shell of the tubular centrifuge is made of stainless steel, and the bowl and other parts in contact with materials are made of 316L stainless steel.
1.This tubular centrifuge belongs to liquid-solid separation type.
2.The actual production capacity of this tubular centrifuge depends on the material characteristics and separation requirements.
3.The shell of the tubular centrifuge is made of stainless steel, and the bowl and other parts in contact with materials are made of 316L stainless steel.
Packing & Delivery
wooden case
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
FAQ
1. who are we?
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
