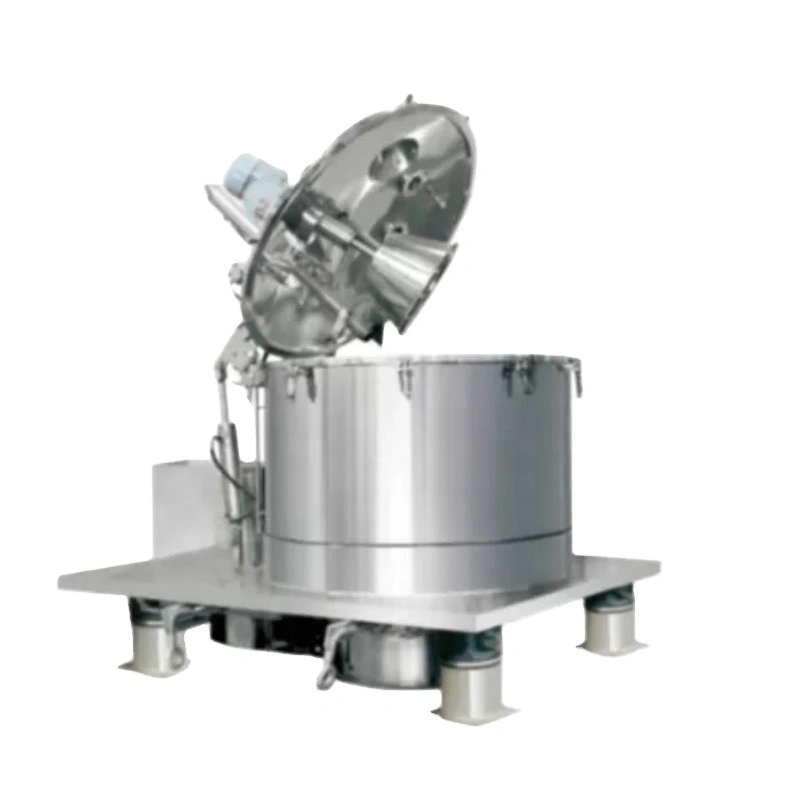

Shenzhou - plat scraper discharge Hot selling pgz flat plate bottom discharging solid-liquid separator centrifuge
Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd conforms to the development trend of the industry, integrates internal superior resources, adopts the industry's cutting-edge manufacturing technology and production technology, and successfully creates plat scraper discharge Hot selling pgz flat plate bottom discharging solid-liquid separator centrifuge with low price with excellent performance and reliable quality.
5.0
Customization:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Products Description
PGZ centrifuges have a perfect automatic performance and a large processing capacity. In accordance with users' demand, procedures such as feeding, separating, washing, dehydrating and discharging can all be automatically finished followed by remote control. It's suitable for solid-liquid separation of fibroid products as well as suspension which contains fine grains and medium size grains solid.
Operating principle
1.The automatic bottom discharge scraper centrifuge is vertical fully-automatic filtration centrifuge.
2.The motor drives the drum to rotate at high speed through the belt, and under the control of pre-written program, the material to be separated is fed into the drum through the feed system.
3.After the material is filtered through the filtration medium ( filter cloth/screen) under the action of centrifugal force, the
liquid phase discharges out of the centrifuge through the liquid pipeline, and the solid phase is retained in the drum.
liquid phase discharges out of the centrifuge through the liquid pipeline, and the solid phase is retained in the drum.
4.A material detection device is used to detected material filling position in real-time manner, and when the solid cake deposited
in the basket reaches the specified holding capacity of the centrifuge, feeding stops.
5.Then wash and dry the solid cake.
in the basket reaches the specified holding capacity of the centrifuge, feeding stops.
5.Then wash and dry the solid cake.
6.After the solid cake meets requirements for knock-out, the centrifuge reduces to the scraping rate, under the hydraulic control, the scraper device removes the solid cake, and then the cake discharged at the bottom outlet of the centrifugal.
7.Once the materials to be separated enter the fast-spinning basket, it will be filtrated by the filter liner under the centrifugal force.The liquid flows out through the liquid outlet, but solids deposit on the internal wall of the basket.
8.Once the solid cake reaches the rate capacity, feeding stops.
9.Wash the solids cake,and then drain out the washing water.
10.Finally stop the machine.The solid cake is discharged manually and move to next batch.
Technical Parameters
model | Drum Diameter(mm) | Drum Volume(L) | Loading Limit(kg) | Rotating Speed(r/min) | Separation Factor(ω²/g) | Motor Power(kw) | Machine Weight(kg) | Overall Dimension(L*W*H)(mm) |
PGZ800 | 800 | 100 | 140 | 1200 | 645 | 7.5 | 2500 | 1800*1300*1800 |
PGZ1000 | 1000 | 140 | 200 | 1000 | 560 | 11 | 4000 | 2100*1500*2020 |
PGZ1250 | 1250 | 280 | 380 | 900 | 567 | 18.5 | 5000 | 2300*1800*2150 |
PGZ1500 | 1500 | 500 | 680 | 850 | 530 | 30 | 5500 | 2880*2180*2575 |
Details
Performance characteristics
1. Platform base structure could lower the center of gravity and stabilize the machine. No foundation construction makes
convenient installation and repairing.
2. Platform base with liquid damping isolators:Applying the liquid damping technique improves performance of vibration absorption
in centrifuge.
3. Inclined feed disk:we discarded the central feed or side feed method.
4. Air recoil and pneumatic auxiliary scraper:this technology effectively reduces the solids remained in the basket and effective
resume the performance of the filter cloths.
5. Nitrogen protection system:ensuring the safety during the operation.
6. Big hinged cover and CIP system, which avoiding cross contamination against the products.
7. Multiple safety protection devices: over-vibration protection,over-current protection, thermal control protection, cake layer
controller, protection for scraper movement, protection when open the cover,various signs and warning identifications.
8. PLC control, touch screen, inverter control, dynamic braking, feedback braking, self-diagnosis of equipment fault,
automaticcontrol panel and DCS control interface.
9. Polished internal/external surfaces with roughness up to Ra0.2~0.4μm, complying with the related requirements of cGMP.
convenient installation and repairing.
2. Platform base with liquid damping isolators:Applying the liquid damping technique improves performance of vibration absorption
in centrifuge.
3. Inclined feed disk:we discarded the central feed or side feed method.
4. Air recoil and pneumatic auxiliary scraper:this technology effectively reduces the solids remained in the basket and effective
resume the performance of the filter cloths.
5. Nitrogen protection system:ensuring the safety during the operation.
6. Big hinged cover and CIP system, which avoiding cross contamination against the products.
7. Multiple safety protection devices: over-vibration protection,over-current protection, thermal control protection, cake layer
controller, protection for scraper movement, protection when open the cover,various signs and warning identifications.
8. PLC control, touch screen, inverter control, dynamic braking, feedback braking, self-diagnosis of equipment fault,
automaticcontrol panel and DCS control interface.
9. Polished internal/external surfaces with roughness up to Ra0.2~0.4μm, complying with the related requirements of cGMP.
