Shenzhou - Low price Automatic Pencil/Ball pen cartoning machine manufacturer Filling&Packing Machine
Innovation is a factor in the long-term quality assurance of Low price Automatic Pencil/Ball pen cartoning machine manufacturer.The measured data indicates that products meets the market requirements.In additon,we can customize size, shape or color to suit the specific need of our customers.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Everyone needs Low price Automatic Pencil/Ball pen cartoning machine manufacturer, and we can offer you the best quality product of the world. It is designed to meet the industry criterion. Since our inception, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd have been striving forward with the aim of being a leading company in the globe. We will focus more on improving our R&D capabilities and upgrading technologies in order to develop more creative products, therefore leading the industry trends and keeping us competitive in the market.
| Type: | Multi-Function Packaging Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
| Weight (KG): | 3000 | Showroom Location: | None |
| Condition: | New | Function: | FILLING, Wrapping, Labeling, Laminating, Capping, COATING, Sealing, BOXING, Embossing, Gluing, SLITTING, counting |
| Application: | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco | Packaging Type: | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule, case |
| Packaging Material: | Plastic, Paper, Metal, Glass, Wood | Automatic Grade: | Automatic |
| Driven Type: | Pneumatic | Voltage: | 220v |
| Place of Origin: | China | Brand Name: | LYSZ |
| Dimension(L*W*H): | 4800 x 1600 x 1860mm | Warranty: | 1 Year |
| Key Selling Points: | Easy to Operate | Marketing Type: | New Product 2021 |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Motor, Pressure vessel, PLC, Gear, Bearing, Engine, Gearbox |
| Production Capacity: | 260bag/min |
Product Description

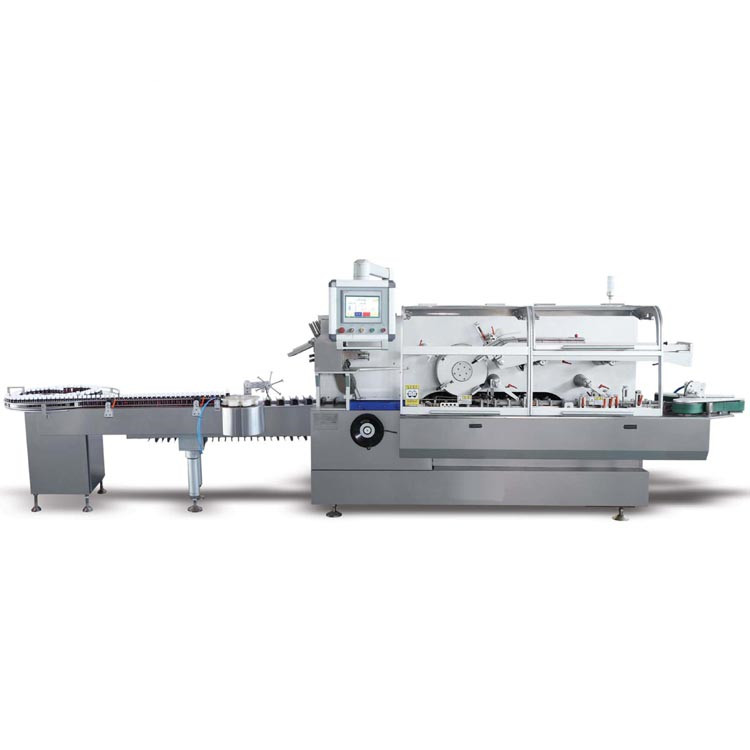

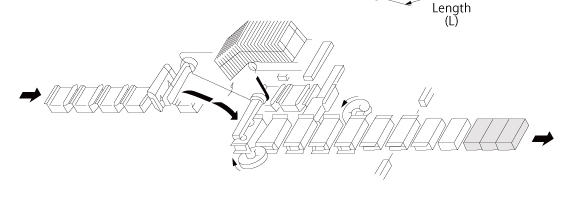

SINO-260 continuous-type high-speed cartonning machine is newly designed by our company, and meets the GMP standard. There are features of high efficiency, stable properties and high capacity, etc. Many technologies, including the leaflet’s automatic folding & conveying, boxes forming and the post pushing unit, etc. meet the European & American standards. With the tidy appearance and the post continuous pushing structure, it’s convenient to operate and maintain. With the 4-indexing double-planet-wheel’s external-loop rotation, boxes can be opened, and there are twice pre-forming devices, so it’s ensures that boxes can be supported completely. The machine integrates the mechanism-optical-electric- pneumatic in one, and when it’s connected with other matched machines, it’s a complete packing line.
Features：
a.Electric appliances, including the PLC, the touch screen and the frequency convertors are from well-known international brands.
b.There is the HMI.
c.Errors, working speed and the final-product counting can be automatically displayed.
d.When the box’s feeding position is not correct, or there is no box, or there is no leaflet’s feeding, the machine will be
stopped automatically.
e.When there is no content, there is no leaflet’s taking. When there is no leaflet feeding, there will be no cartonning.
f.There is the protecting if it’s overloaded.
g.Stable properties & convenient operation.
a.Electric appliances, including the PLC, the touch screen and the frequency convertors are from well-known international brands.
b.There is the HMI.
c.Errors, working speed and the final-product counting can be automatically displayed.
d.When the box’s feeding position is not correct, or there is no box, or there is no leaflet’s feeding, the machine will be
stopped automatically.
e.When there is no content, there is no leaflet’s taking. When there is no leaflet feeding, there will be no cartonning.
f.There is the protecting if it’s overloaded.
g.Stable properties & convenient operation.
model | SINO-260( horizontal) | ||||
Items | Specification | ||||
Cartonning speed | 260boxess/min | ||||
Box | Quality | 250-350g/m2 (It’s decided by the box size.) | |||
Size, L×W×H | (70-180) × (35-85) × (14-50), mm | ||||
Leaflet | Quality | 60-70g/m2 | |||
Size when it’s unfolded, L×W | (80-250) × (90-170), mm | ||||
Folding | 1-4folds | ||||
Compressed air | Working pressure | Not less than 0.6Mpa | |||
Consumption | About 160 ~ 200L/min | ||||
Power supply | 380V, 50Hz | ||||
Main power | 5Kw | ||||

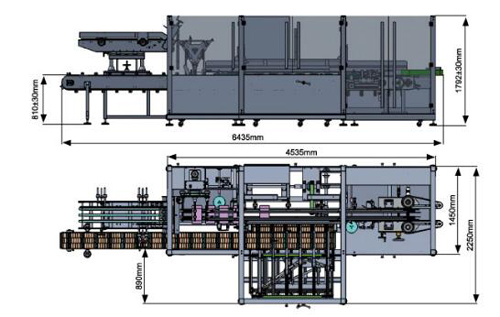

Overall dimension, L×W×H | 4800 × 1600 × 1860, mm | ||||
Net weight | 3000Kg | ||||

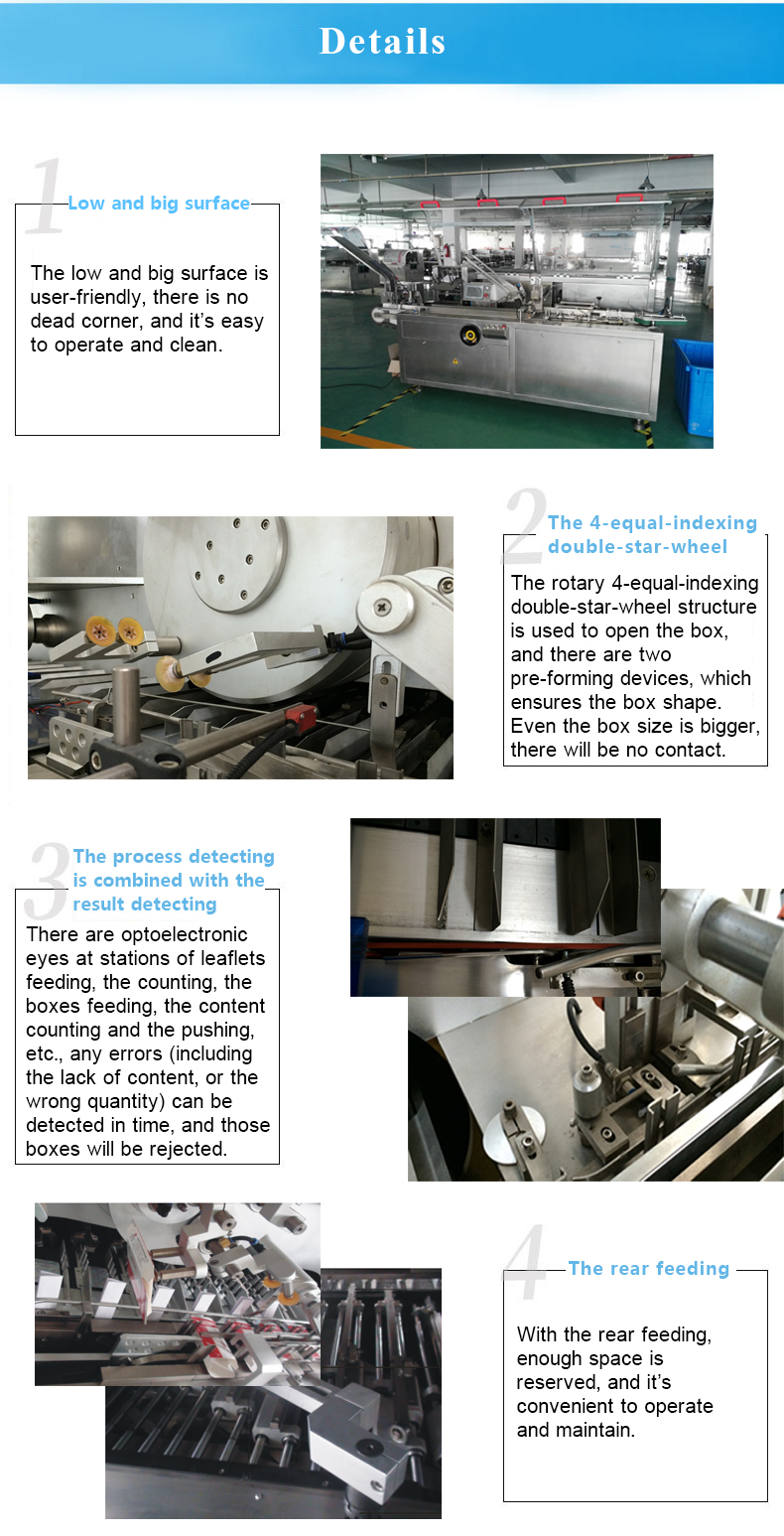

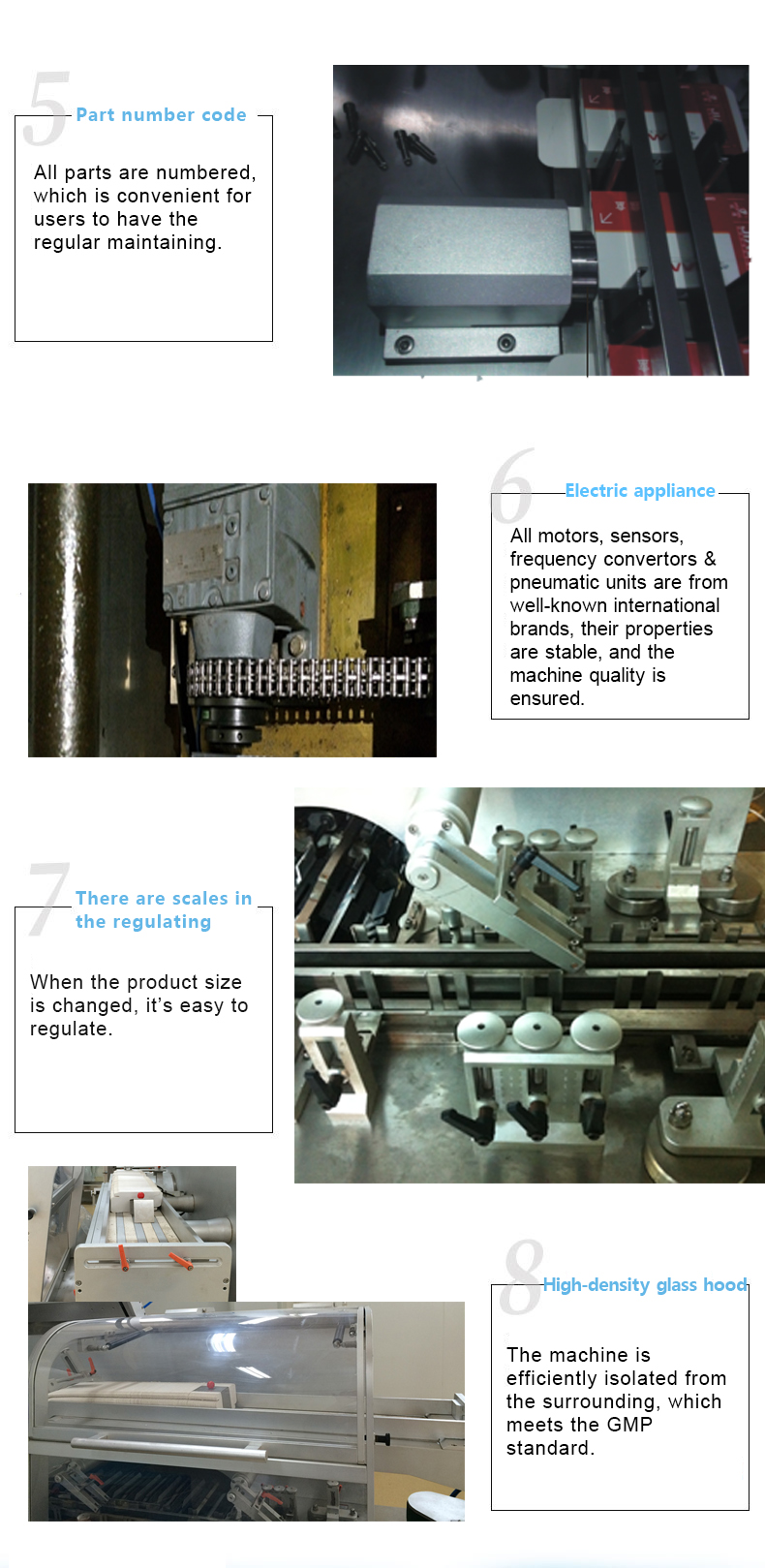

Detailed Images
Related Products
Packing & Delivery
wooden case
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
FAQ
1. who are we?
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
