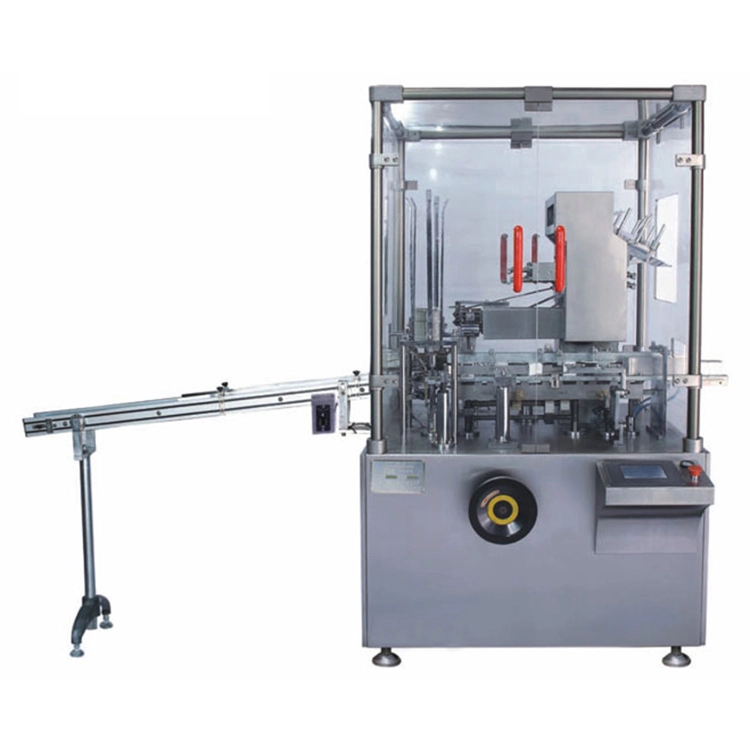

Shenzhou - Fully automatic Condom Bottle Cartoning Box Packaging Machine Drugs Sachet Cartoning Packing Machinery Filling&Packing Machine1

Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd relying on years of development, it clearly understands the needs of users and the pain points of the industry, and relying on strong technical capabilities to develop high-quality Fully automatic Condom Bottle Cartoning Box Packaging Machine Drugs Sachet Cartoning Packing Machinery that can meet the needs of users and solve the pain points of the industry. Technology is the core competitiveness of a company. Since established, we have been researching and developing high-level technologies to make sure highly efficient manufacturing process.It covers a wide range and is commonly seen in the application field(s) of Packaging Line. The design of Fully automatic Condom Bottle Cartoning Box Packaging Machine Drugs Sachet Cartoning Packing Machinery is carefully thought to fit the market trend, keeping us one step ahead of other manufacturers. It is made of raw materials that have been tested by our QC inspectors. By processing those materials with improved technologies, we ensure the product has so many advantages .Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge will bring convenience and benefits to customers.

Product Description

The equipment is a new type of machine developed by our company in combination with advanced technology at home and abroad.Thus, the performance and working efficiency of the equipment have been greatly improved, and the requirements of fast packing have been realized. Moreover, the equipment still maintains a stable and reliable state during fast operation. This machine is suitable for automatic feeding and packing of similar bag-like items.The whole process of online material detection, manual folding (1-4 times folding) and transmission, carton absorption forming and transmission, material entering the carton, stamping batch number, paper tongue packaging at both ends of the carton (also applicable to hot melt adhesive), missing material elimination and finished product output are all completed automatically

Features：

a.Electric appliances, including the PLC, the touch screen and the frequency convertors are from well-known international brands.
b.There is the HMI.
c.Errors, working speed and the final-product counting can be automatically displayed.
d.When the box’s feeding position is not correct, or there is no box, or there is no leaflet’s feeding, the machine will be
stopped automatically.
e.When there is no content, there is no leaflet’s taking. When there is no leaflet feeding, there will be no cartonning.
f.There is the protecting if it’s overloaded.
g.Stable properties & convenient operation.

model					SINOJDZ-120G( vertical)
Packing speed					30-120box/min
Box	Quality			250-350g/m2 (It’s decided by the box size.)
		Size, L×W×H			(65-155) × (30-85) × (15-50), mm
Leaflet	Quality			60-70g/m2
		Size when it’s unfolded, L×W			(80-250) × (90-170), mm
		Folding			1-4folds
Compressed air	Working pressure			Not less than 0.6Mpa
		Consumption			About 120 ~ 160L/min
Power supply					220V, 50Hz
Main power					0.75kw
Overall dimension, L×W×H					2300× 1140 × 1800, mm
Net weight					About 1200Kg

Detailed Images.

Working principle:

Related Products.

Packing & Delivery

wooden case

Company Profile

Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!

FAQ

1. who are we?
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine

4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
