Shenzhou Machinery - Professional Industrial Centrifuge Machine Manufacturer and Centrifugal Separators Supplier in China

Shenzhou - Commerical spray dryer Coffee Egg Milk Powder Making Centrifugal Spray Drying Machine Drying & granulator Machine 1

Shenzhou - Commerical spray dryer Coffee Egg Milk Powder Making Centrifugal Spray Drying Machine Drying & granulator Machine 2

Shenzhou - Commerical spray dryer Coffee Egg Milk Powder Making Centrifugal Spray Drying Machine Drying & granulator Machine 3

Shenzhou - Commerical spray dryer Coffee Egg Milk Powder Making Centrifugal Spray Drying Machine Drying & granulator Machine 4

Shenzhou - Commerical spray dryer Coffee Egg Milk Powder Making Centrifugal Spray Drying Machine Drying & granulator Machine 5

Shenzhou - Commerical spray dryer Coffee Egg Milk Powder Making Centrifugal Spray Drying Machine Drying & granulator Machine 6

Shenzhou - Commerical spray dryer Coffee Egg Milk Powder Making Centrifugal Spray Drying Machine Drying & granulator Machine

Because of the technologies, the product can maintain its stable chemical and physical properties. Having passed relevant tests, Commerical spray dryer Coffee Egg Milk Powder Making Centrifugal Spray Drying Machine has been proved to be suitable for the field(s) of Drying Equipment.

Customization:

Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

Since its establishment, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has always strengthened exchanges and cooperation with outstanding domestic and foreign companies. Based on scientific strategic decision-making, driven by strong operating capabilities, and driven by technology and R&D capabilities, the products developed and manufactured have clear positioning and goals. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will continually adopt positive marketing strategies to develop new markets, therefore establishing a more sound sales network. Moreover, we will reinforce the scientific research and try hard to gather more talents to focus on the research and development of new products. Our wish is to become one of the most competitive enterprises in the market.

Type:	Drying Oven	Application:	Medicine Processing, Plastics Processing, Food Processing
Condition:	New	Place of Origin:	Liaoning, China
Brand Name:	LYSZ	Voltage:	380V
Power:	18-50kw	Dimension(LWH):	1.80.92.2mm-5.54.57mm
Key Selling Points:	High Safety Level	Warranty:	1 Year
Weight (KG):	1500	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location:	None	Marketing Type:	Hot Product 2019
Machinery Test Report:	Provided	Video outgoing-inspection:	Provided
Warranty of core components:	1 Year	Core Components:	PLC
Evaporation Capacity(kg/h):	100	Heating Method:	Electric Heating
Material:	SUS304

Product Description

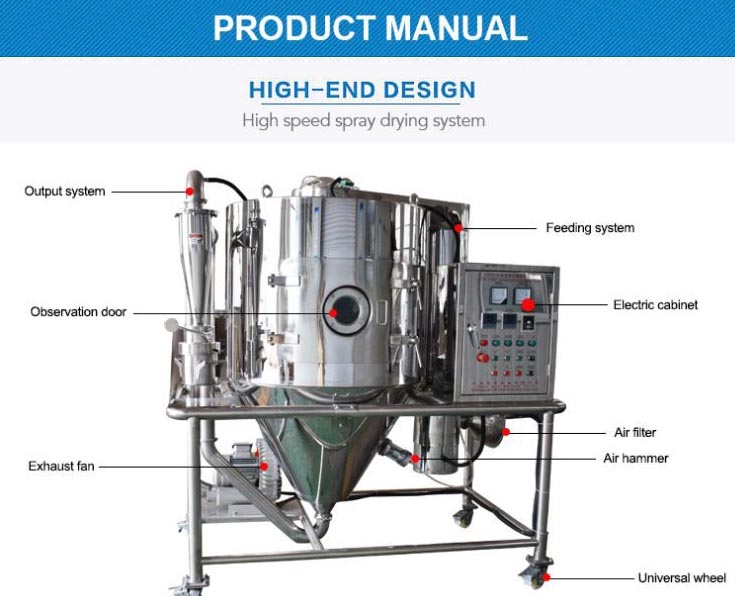

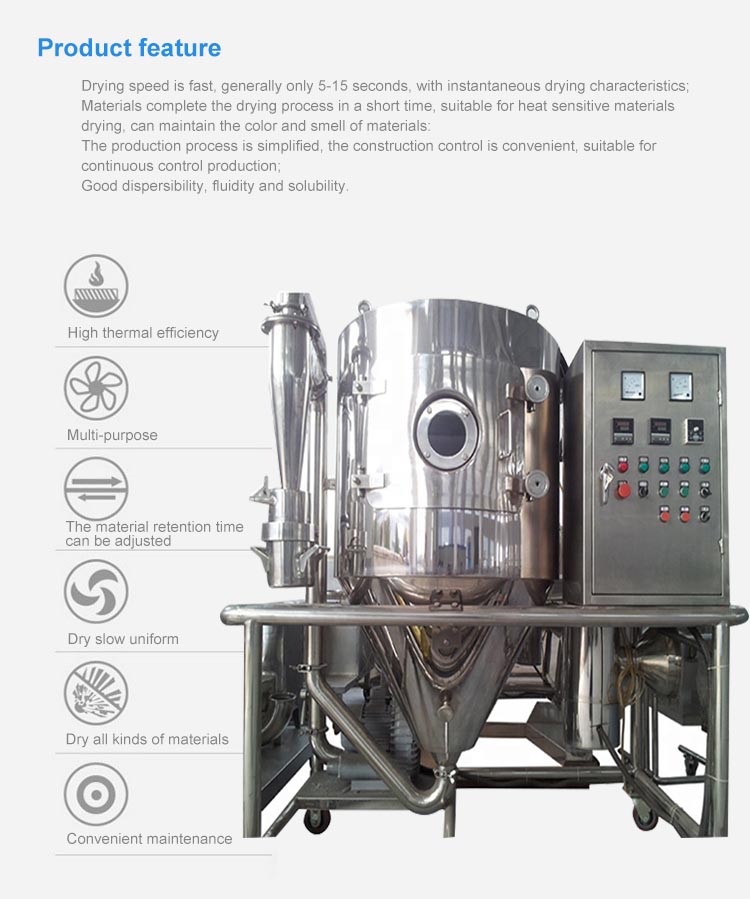

LPG Series High Speed Centrifugal Spray Dryer is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing solid powder or particle products from liquid materials, such as solution , emulsion, suspension and pumpable paste states, For this reason, when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.

Working Process soymilk dryer.

After been filtered and heated the Air enters into the air distributor on the top of the dryer .The Hot Air enters into the drying room in the spiral form and uniformly. Passing through the high-speed centrifugal Sprayer/Atomizer on the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads .Through the very short time of contacting the heat air, the materials can be dried into the Final products .The final products will be Discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower..

Specification

Technical parameters
Model	5	25	50	100	150	200	500	1000	2000-6000
Inlet temperature(℃)	Technical parameters
Outlet temperature( ℃)	80-90
Spraying method	High-speed centrifugal atomizer (Mechanical transmission or stepless variable frequency speed regulating)
Moisture evaporating ability(kg/h)	5	25	50	100	150	200	500	1000	2000-6000
Rotary speed(rpm)	25000	22000	21500	18000			16000			12000-13000	It is decided by the process, the site condition and the user's requirement.
Body diameter(m)	1.2	1.9	2.2	2.56	2.96	3.36	5.2	7.6
Diameter of atomizing disc	60			120			150					180-210
Transmission power(kw)	4.2	14	18	28	37	43	76	109
Heating power(kw)	9	36	48	72	84	96	144
Recovered dry power(%)	>95
Nozzle's lifting height(m)	--	2.5			3.2								It is decided by the process.

Shenzhou - Commerical spray dryer Coffee Egg Milk Powder Making Centrifugal Spray Drying Machine Drying & granulator Machine 7

Shenzhou - Commerical spray dryer Coffee Egg Milk Powder Making Centrifugal Spray Drying Machine Drying & granulator Machine 8

Shenzhou - Commerical spray dryer Coffee Egg Milk Powder Making Centrifugal Spray Drying Machine Drying & granulator Machine 9

Shenzhou - Commerical spray dryer Coffee Egg Milk Powder Making Centrifugal Spray Drying Machine Drying & granulator Machine 10

Company Profile

Shenzhou - Commerical spray dryer Coffee Egg Milk Powder Making Centrifugal Spray Drying Machine Drying & granulator Machine 11

Shenzhou - Commerical spray dryer Coffee Egg Milk Powder Making Centrifugal Spray Drying Machine Drying & granulator Machine 12

Shenzhou - Commerical spray dryer Coffee Egg Milk Powder Making Centrifugal Spray Drying Machine Drying & granulator Machine 13

Shenzhou - Commerical spray dryer Coffee Egg Milk Powder Making Centrifugal Spray Drying Machine Drying & granulator Machine 14

Shenzhou - Commerical spray dryer Coffee Egg Milk Powder Making Centrifugal Spray Drying Machine Drying & granulator Machine 15

Shenzhou - Commerical spray dryer Coffee Egg Milk Powder Making Centrifugal Spray Drying Machine Drying & granulator Machine 16

Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!

FAQ

1. who are we?
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine

4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
