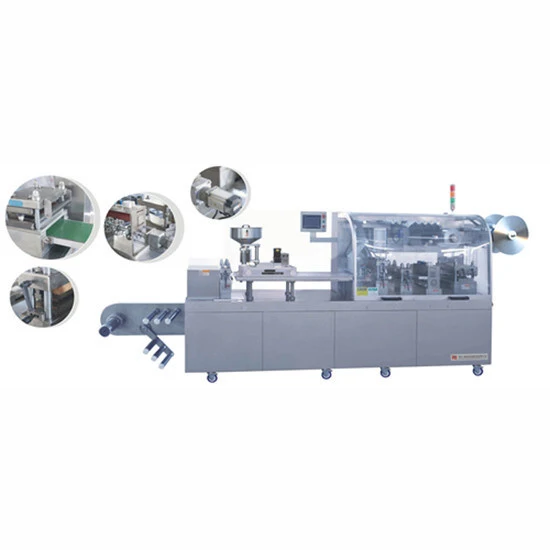

Shenzhou - Hot Sale Automatic Blister Machine DPH260 Pill Packing Machine Filling&Packing Machine
As we realize the importance of technology in this tech-driven business society, we have made some innovations and improvements in our currently-used technologies. Advanced technologies are applied in the manufacturing process now in our company.With those proven advantages,Hot Sale Automatic Blister Machine DPH260 Pill Packing Machine has received wide popularity in the field(s) of Hot Sale Automatic Blister Machine DPH260 Pill Packing Machine.
5.0
Customization:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Since its establishment, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has always strengthened exchanges and cooperation with outstanding domestic and foreign companies. Processed by elaborate craft, the appearance of Hot Sale Automatic Blister Machine DPH260 Pill Packing Machine is vivid. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will continue to work hard to improve our capabilities in R&D strength and technologies because they are the core competitiveness of our company. We aim to provide customers with the most satisfying and cost-effective products with our full efforts.
| Type: | Blister Packaging Machine | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops |
| Showroom Location: | United States, Germany, Mexico, Spain | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty of core components: | 3 years | Core Components: | Motor |
| Application: | Food, Medical | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 380V/50Hz 220V/60Hz |
| Place of Origin: | China | Brand Name: | Shenzhou |
| Dimension(L*W*H): | 2880*950*1980mm | Weight: | 2500 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| After Warranty Service: | Video technical support, Online support | Local Service Location: | United States, Germany, Mexico |
| After-sales Service Provided: | Video technical support, Online support | Certification: | ISO9001 |
Product Description
DPH260 favorable price/high performance blister packing machine is the multifunctional packing machine of integrating machinery, electric, gas and water. The complete machine is controlled by the computer and operate in totally enclosed mode, has rational structure, design and arrangement. It is easy to maintain and clean to examine and repair for each operating parts. Main parts are made of stainless steel and aluminum alloy. It is widely used in many fields. Also it can meet tablet capsule and soft gel packing requirement and other special shaped tablets.
Feature:
1. The machine accommodates forming material reels of up to 600mm in diameter and a waste material trimming cutter, which allow production runs of approximately 90 minutes therefore reducing the material replacement frequency.
2. Equipped with integrated forming material splicer to enhance efficiency.
3. Automatic format positioning system achieves straightforward format changeover.
4. Window frame type no-waste-trimming cutter saves packaging materials.
5. Adopts transverse cutter which easily collects its blister card and rejects faulty blister.
6. The working area is in cantilever construction. Separation of drive and operating zones are in compliance with pharmaceutical requirements.
7. Can be connected to subsequent machines, forming a whole pharmaceutical packaging line.
2. Equipped with integrated forming material splicer to enhance efficiency.
3. Automatic format positioning system achieves straightforward format changeover.
4. Window frame type no-waste-trimming cutter saves packaging materials.
5. Adopts transverse cutter which easily collects its blister card and rejects faulty blister.
6. The working area is in cantilever construction. Separation of drive and operating zones are in compliance with pharmaceutical requirements.
7. Can be connected to subsequent machines, forming a whole pharmaceutical packaging line.
Structure of machine:
1). This medicine blister packing machine adopts plate type forming and roller sealing, is a novel efficient AL/AL, AL/pl
amphibious blister packing machine. The pursuit of intelligent, digital, humanization design is impenetrate through every detail.
Nice and compact appearance, all parts may contact with pills are made of high grade stainless steel or other material with finish machining.
2). The outside material holding mechanism can afford two rolls of foil which reduce the frequency of feeding material. Also material cut and patch up mechanism enhance efficiency.
3). Servo motor traction enables random adjust in traction length and compensation setting. Amphibious design enable AL/AL and AL/pl blister forming function switch freely. Intelligent mould oriental system, convenient in molds changing.

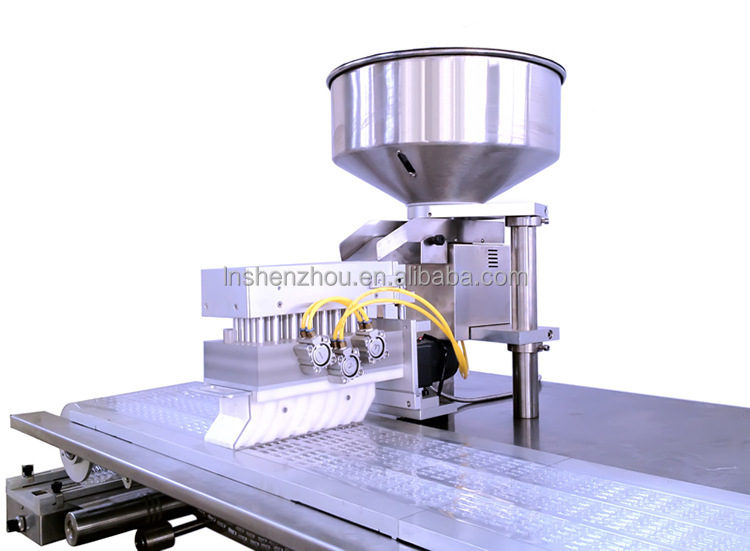

4). High-speed vibrant feeder and photo detect rejection device assures 99.99% certified ratio.
5). Highest punch frequency: Al/Al≤100 times/min, Al/Pl≤220 times/min.
1). This medicine blister packing machine adopts plate type forming and roller sealing, is a novel efficient AL/AL, AL/pl
amphibious blister packing machine. The pursuit of intelligent, digital, humanization design is impenetrate through every detail.
Nice and compact appearance, all parts may contact with pills are made of high grade stainless steel or other material with finish machining.
2). The outside material holding mechanism can afford two rolls of foil which reduce the frequency of feeding material. Also material cut and patch up mechanism enhance efficiency.
3). Servo motor traction enables random adjust in traction length and compensation setting. Amphibious design enable AL/AL and AL/pl blister forming function switch freely. Intelligent mould oriental system, convenient in molds changing.
4). High-speed vibrant feeder and photo detect rejection device assures 99.99% certified ratio.
5). Highest punch frequency: Al/Al≤100 times/min, Al/Pl≤220 times/min.
Specification
Max. Speed: | alu/alu 100 punches/min. alu/PVC 200 punches/min. |
Max. Output: | 600 blisters/min. (alu/PVC blister size 57× 80mm) |
Max. Forming Area: | 245×180mm |
Max Forming Depth | 12mm |
Material: | Max. width 260mm |
Machine Power:: | 15kw |
Machine Dimension: | 4800mm×1250mm×2000mm |
Machine Weight: | 2500kg |
DPH260 Blister Machine for packaging of alu-alu.
·The machine accommodates forming material reels of up to 600mm in diameter
and a waste material trimming cutter, which allow production runs of approximately 90 minutes therefore reducing the material replacement frequency.
·Equipped with integrated forming material splicer to enhance efficiency.
·Automatic format positioning system achieves straightforward format changeover.
·Window frame type no-waste-trimming cutter saves packaging materials.
·Adopts transverse cutter which easily collects its blister card and rejects faulty blister.
·The working area is in cantilever construction. Separation of drive and operating zones are in compliance with pharmaceutical requirements.
·Can be connected to subsequent machines and form a whole pharmaceutical packaging line.
·The machine accommodates forming material reels of up to 600mm in diameter
and a waste material trimming cutter, which allow production runs of approximately 90 minutes therefore reducing the material replacement frequency.
·Equipped with integrated forming material splicer to enhance efficiency.
·Automatic format positioning system achieves straightforward format changeover.
·Window frame type no-waste-trimming cutter saves packaging materials.
·Adopts transverse cutter which easily collects its blister card and rejects faulty blister.
·The working area is in cantilever construction. Separation of drive and operating zones are in compliance with pharmaceutical requirements.
·Can be connected to subsequent machines and form a whole pharmaceutical packaging line.
Performance Advantage
1. High efficiently packing,nice appearance.
2. Supporting the use of general feeder, capsule U-turned feeder and dics feeder.
3. PLC control, HIMI, frequency control, servo motor drive.
4. Enough filling platform to improve rate of finished products, supporting the conveyor.
5. No cross-edge scrap design, no waste. Save material 100%.
1. High efficiently packing,nice appearance.
2. Supporting the use of general feeder, capsule U-turned feeder and dics feeder.
3. PLC control, HIMI, frequency control, servo motor drive.
4. Enough filling platform to improve rate of finished products, supporting the conveyor.
5. No cross-edge scrap design, no waste. Save material 100%.
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
FAQ
1. who are we?
We are based in Liaoning, China, start from 2018,sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
We are based in Liaoning, China, start from 2018,sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
Service:
A. To pick up machine more easy & correct.
First, We need client to provide below information about their product:
1) The requirement of raw material: we require powder or grains with good fluidity & dry, can fall down from cone charging barrel.
2) We need know the size, shape of tablets / pills. Yield(capacity) in your request.
So we can figure out if our machine can compress and which models will meeting with your requirement.
B. We can design, customize and make dies for customers.
A. To pick up machine more easy & correct.
First, We need client to provide below information about their product:
1) The requirement of raw material: we require powder or grains with good fluidity & dry, can fall down from cone charging barrel.
2) We need know the size, shape of tablets / pills. Yield(capacity) in your request.
So we can figure out if our machine can compress and which models will meeting with your requirement.
B. We can design, customize and make dies for customers.
