Shenzhou - Fully Automatic Pneumatic 500ml Liquid Filler Soda Water Bottling Filling Machine For Pet Bottle Filling&Packing Machine
If you are searching for the right Fully Automatic Pneumatic 500ml Liquid Filler Soda Water Bottling Filling Machine For Pet Bottle for diverse requirements. Our products have exquisite quality and service.Surely you at the right place. Experience the top-quality product by authentic manufacturers only at Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd.We provide a broad range of Filling Machines for your daily use.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd boasts strong R&D capabilities and has been working on product development for years. Fully Automatic Pneumatic 500ml Liquid Filler Soda Water Bottling Filling Machine For Pet Bottle is our newly-developed product and goes on sale starting now. Modern technologies innovate means are adopted for the flawless manufacturing of Fully Automatic Pneumatic 500ml Liquid Filler Soda Water Bottling Filling Machine For Pet Bottle.So far, the application areas of the product have been expanded to the Filling Machines. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has successfully expanded its business in market in the past few years and it is very possible for the company to have a better development in the future.
| Type: | Filling Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| Showroom Location: | None | Condition: | New |
| Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco | Packaging Type: | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Pouch, Capsule, case, Other |
| Packaging Material: | Plastic, Paper, Metal, Glass, Wood, Other | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 110V/220/,50HZ/60HZ |
| Place of Origin: | China | Brand Name: | LYSZ |
| Dimension(L*W*H): | 2500*1000*1600 mm | Weight: | 1000 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy to Operate |
| Machinery Capacity: | 2000BPH | Filling Material: | Beer, Other, Milk, Water, Oil, Juice, Powder |
| Filling Accuracy: | less than 1% | Marketing Type: | Hot Product 2022 |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Motor |
Product Description

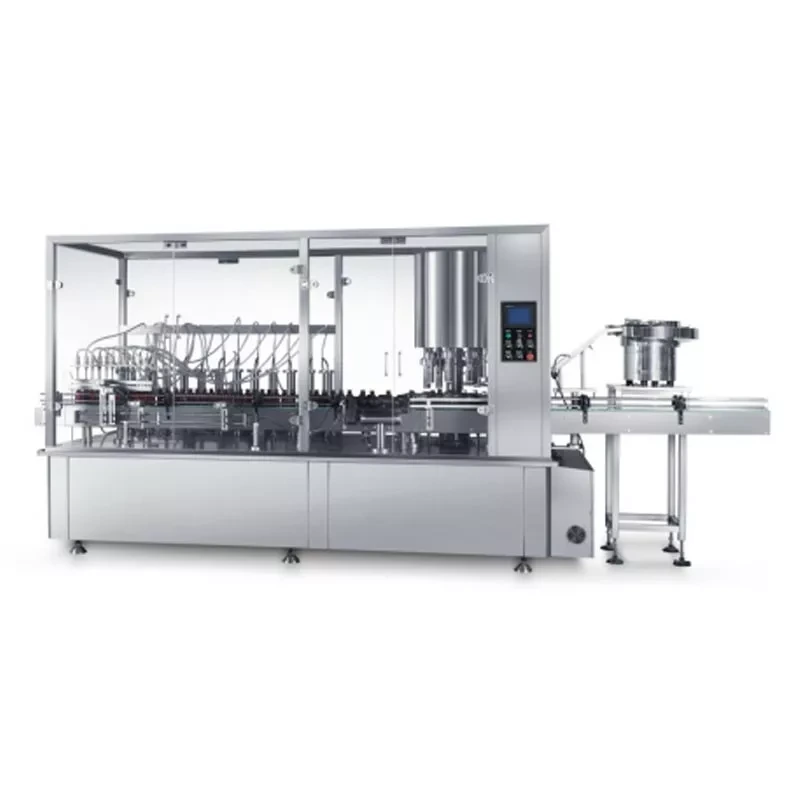

Filling and cap screwing (sealing) integrated machine for plastic bottles and glass bottles
The YGS linear filling cap screwing (sealing) integrated machine is a new product developed by our company after introducing internationally advanced technology to meet market demand. The machine adopts the 316L stainless steel plunger metering pump to perform filling, and combines automatic cap feeding and automatic cap screwing (sealing) with mechanical, electrical and pneumatic integration. It is economical and practical, taking small floor space. It is widely used for liquid packaging in such industries as medicine, food, pesticide, chemical industry, cosmetics, etc., fully conforming to GMP requirements.
Performance Features
1.Integrating filling and cap screwing (sealing) and taking small floor space. With servo driving, the filling volume is adjusted on the man-machine interfsce, featured by convenient operation and quick adjustment.
2.It adopts the plunger metering pump to fill liquids of various viscosities with high precision. The pump can be easily
disassembled, making cleaning and sterilization convenient. It can be equipped with CIP/SIP cleaning and sterilization system.
3.The seal ring of the plunger metering pump is made of silicon rubber, Teflon or other materiais depending on different
industries and liquid ingredients. Ceramic material can be used in special applications. The filling principle also includes the use of peristaltic pump, negative pressure type, weighing type, self-flow type, reflux defoaming type, etc.
4.PLC control system with variable frequency speed control and high degree of automation.
5.The filling system is provided with the anti-leaking device, realizing filling from the bottom of the bottle, rising slowly and
avoiding bubbles.
6.The tightness of the air gripper type cap screwing head can be adjusted without damaging the bottle and cap. It can be equipped with servo motor driving with adjustable torque. The capping head adopts flexible design with easy adjustment, and can also be designed to be used for pull caps.
7.It can be equipped with the cap storage and lifting mechanism and the mechanism for identifying reverse caps and eliminating nonconforming products.
8.The whole machine is suitable for various specifications of bottles and adjustments can be completed conveniently within a short time.
9.The whole machine is designed according to GMP requirements.
1.Integrating filling and cap screwing (sealing) and taking small floor space. With servo driving, the filling volume is adjusted on the man-machine interfsce, featured by convenient operation and quick adjustment.
2.It adopts the plunger metering pump to fill liquids of various viscosities with high precision. The pump can be easily
disassembled, making cleaning and sterilization convenient. It can be equipped with CIP/SIP cleaning and sterilization system.
3.The seal ring of the plunger metering pump is made of silicon rubber, Teflon or other materiais depending on different
industries and liquid ingredients. Ceramic material can be used in special applications. The filling principle also includes the use of peristaltic pump, negative pressure type, weighing type, self-flow type, reflux defoaming type, etc.
4.PLC control system with variable frequency speed control and high degree of automation.
5.The filling system is provided with the anti-leaking device, realizing filling from the bottom of the bottle, rising slowly and
avoiding bubbles.
6.The tightness of the air gripper type cap screwing head can be adjusted without damaging the bottle and cap. It can be equipped with servo motor driving with adjustable torque. The capping head adopts flexible design with easy adjustment, and can also be designed to be used for pull caps.
7.It can be equipped with the cap storage and lifting mechanism and the mechanism for identifying reverse caps and eliminating nonconforming products.
8.The whole machine is suitable for various specifications of bottles and adjustments can be completed conveniently within a short time.
9.The whole machine is designed according to GMP requirements.
Specification
Product model | YGS16/8 | YGS12/8 | YGS8/4 | YGS6/1 | YGS4/1 | ||||
Number of filling heads | 16 | 12 | 8 | 6 | 4 | ||||
Number of cap screwing (sealing)heads | 8 | 8 | 4 | 1 | 1 | ||||
Filling range | 20-1000ml | ||||||||
Ideal filling range | 20-500ml | ||||||||
Optional cap types | Anti-theft cap, screw cap, ROPP aluminum cap | ||||||||
Filling speed bottles/minute | 100-120 | 90-120 | 60-80 | 45-50 | 40-50 | ||||
Filling accuracy | ≤1% | ||||||||
Cap screwing and (pressing) pass rate | ≥99.8% | ||||||||
Power supply | 220V 50/60Hz | ||||||||
Power | ≤2.2kw | ≤2.2kw | ≤1.2kw | ≤1.2kw | ≤1.2kw | ||||
Compressed air pressure | 0.4-0.6Mpa | ||||||||
Net weight | 2000kg | 2000kg | 1200kg | 1000kg | 800kg | ||||
Outline dimensions(mm) | 3600*1000*1800 | 3600*1000*1800 | 3000*1000*1800 | 2800*1000*1600 | 2500*1000*1600 | ||||
Note:The products of our company may always be updated, and are subject to change without (the real products shall prevail).
