Shenzhou - Ampoule Filling And Sealing Machine For 1-2ml And 10-20ml Ampoule Making Machine Filling&Packing Machine
Driven by the fast-changing industry trends, we have been improving and upgrading the manufacturing technologies. With those proven properties, Ampoule Filling And Sealing Machine For 1-2ml And 10-20ml Ampoule Making Machine plays an important role in the field(s) of Filling Machines.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd actively absorb the advanced manufacturing technology and production technology of excellent domestic and foreign companies, and successfully develop Ampoule Filling And Sealing Machine For 1-2ml And 10-20ml Ampoule Making Machine using new technology and new technology. It is designed to cater to the changing demands and requisites of customers. After years of growth and development,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd have constructed characteristic corporate culture systems and confirmed our business principle of 'customer first'. We will always focus on customers' needs and promise that we will provide the most satisfying and valuable products.
| Type: | Filling Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| Showroom Location: | None | Condition: | New |
| Application: | Food, Chemical | Packaging Type: | Capsule |
| Packaging Material: | Wood | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220/380V 50Hz |
| Place of Origin: | Liaoning, China | Brand Name: | lysz |
| Dimension(L*W*H): | 2400*1000*1500mm | Weight: | 680 KG |
| Warranty: | 2 years | Key Selling Points: | Easy to Operate |
| Machinery Capacity: | 4000BPH | Filling Material: | Beer, Other, Milk, Water, Oil, Juice, Powder |
| Filling Accuracy: | 99% | Marketing Type: | Hot Product 2022 |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 2 years | Core Components: | Motor, PLC |
Product Description

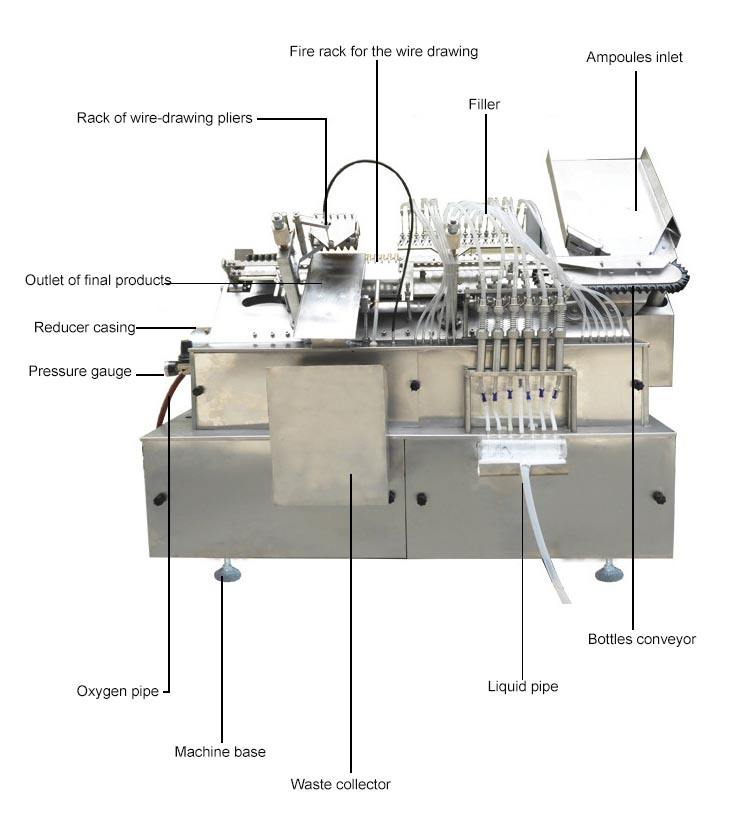

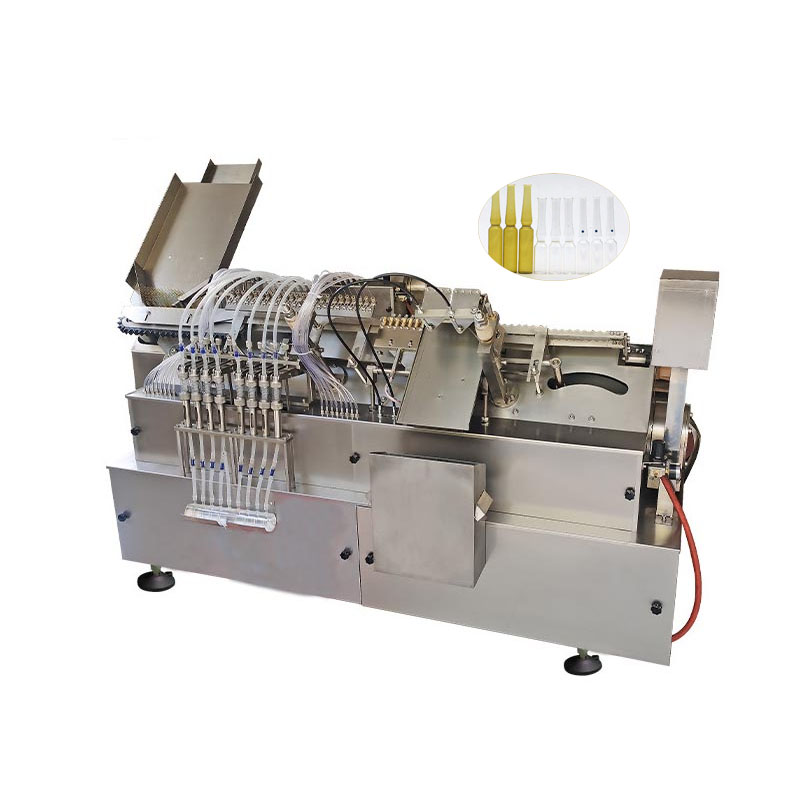

AGL Series Digital Display Glass Ampoule Liquid Filling And Sealing Machine
The machine is a new generation of the ampoule drawing ,filling and sealing combined equipment for injections .It adopts
therectangular feeding instead of the traditional ampoule feeding methods .In such case ,the feeding is steady with no easy broken ampoule .A modern clutch is mouthed under the ampoule feed hopper .Therefore ,the ampoule feeding can be stopped at any time while the machines is still running .So the ampoule lost can be reduced .In the part of stopping filling where changes electromagnetic switch into mechanical switch .It is reliable and durable .Bottle reverse and bottle arranging stricture are used in the device of bottle outlet .It reduces the broken rate of the finished products of ampoules tremendously.
therectangular feeding instead of the traditional ampoule feeding methods .In such case ,the feeding is steady with no easy broken ampoule .A modern clutch is mouthed under the ampoule feed hopper .Therefore ,the ampoule feeding can be stopped at any time while the machines is still running .So the ampoule lost can be reduced .In the part of stopping filling where changes electromagnetic switch into mechanical switch .It is reliable and durable .Bottle reverse and bottle arranging stricture are used in the device of bottle outlet .It reduces the broken rate of the finished products of ampoules tremendously.
Characteristics:
1.The ampoule bottle's feeding can be stopped while the machine is not stopped.
2.The filling can be stopped mechanically when lack of ampoule bottle.
3.There is the adjusting and displaying function for the rotating speed.
4.There are many filling heads in the filling stations.
5.Besides liquid, compressed air or nitrogen can be simultaneously filled from the front and the back.
6.Ampoule bottles' moving in/out is smooth and steady during the production.
1.The ampoule bottle's feeding can be stopped while the machine is not stopped.
2.The filling can be stopped mechanically when lack of ampoule bottle.
3.There is the adjusting and displaying function for the rotating speed.
4.There are many filling heads in the filling stations.
5.Besides liquid, compressed air or nitrogen can be simultaneously filled from the front and the back.
6.Ampoule bottles' moving in/out is smooth and steady during the production.
Technical Parameters | ||||||||
Model | AGL2 | AGL4 | AGL6 | AGL8 | ||||
Filling Needles | 2 | 4 | 6 | 8 | ||||
Specification (ml) | 1-5/5-10 | 1-5/5-10/5-20 | 1-5/5-10/5-20 | 1-5/5-10 | ||||
Output (Pieces/min) | 45-60 | 90-130 | 135-200 | 180-260 | ||||
Power (Kw) | 0.37 | 0.55 | 0.55 | 0.75;1.5 | ||||
Consumption of oxygen (Kg/h) | 7 | 7 | 10 | 12 | ||||
External dimensions (mm) | 1100*720*1500 | 1540*980*1500 | 1980*1000*1500 | 2400*1000*1500 | ||||
Weight (Kg) | 250 | 330 | 470 | 680 | ||||
Power supply | 220V/380V;50HZ | |||||||
Packing & Delivery
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
