Shenzhou - Spice Powder Grinding Making Machine Drying & granulator Machine
The technologies are important in manufacturing the product.As a kind of multi-functional Spice Powder Grinding Making Machine, it can be widely found in the application scenario(s) of Flour Mill.
5.0
Customization:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd is capable of providing a quality range of Spice Powder Grinding Making Machine. High-end technologies are used to manufacture Spice Powder Grinding Making Machine.The product can play out its greatest effect in the field(s) of Flour Mill. Looking to the future, Spice Powder Grinding Making Machine will continue to follow the route of independent innovation, and continue to introduce high-tech talents as intellectual support, and strive to achieve the goal of becoming a world-class enterprise.
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops | Showroom Location: | None |
| Condition: | New | Place of Origin: | China |
| Brand Name: | Shenzhou | Production Capacity: | 40kg/h, 50kg/h, 60kg/h, 75kg/h, 80kg/h, 120kg/h, 150kg/h, 300KG/H, 400kg/h, 440kg/h, 500kg/h, 1 ton/h, 2 ton/h |
| Voltage: | 220V/380V | Power: | 2.2 KW |
| Weight: | 120 KG | Dimension(L*W*H): | 520*510*1000 |
| Warranty: | one year | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Motor |
| Key Selling Points: | Easy to Operate | After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location: | None | Certification: | CE |
Product Description
Black Pepper Grinder Machine
The spice powder grinding making machine is widely used for pharmaceutical industry, chemical industry foodstuff industry, grain industry and so on.
The machine uses the relative motion between movable and fixed fluted discs, the raw materials to be crushed undertakes the comprehensive actions such as impacted by teeth, friction, impacted between raw materials are crushed. Its features are simple and solid in structure, stable in operation, high crushed efficiency.
The machine uses the relative motion between movable and fixed fluted discs, the raw materials to be crushed undertakes the comprehensive actions such as impacted by teeth, friction, impacted between raw materials are crushed. Its features are simple and solid in structure, stable in operation, high crushed efficiency.
Applications
The spice powder grinding making machine is widely used for pharmaceutical industry, chemical industry foodstuff industry, grain industry and so on.

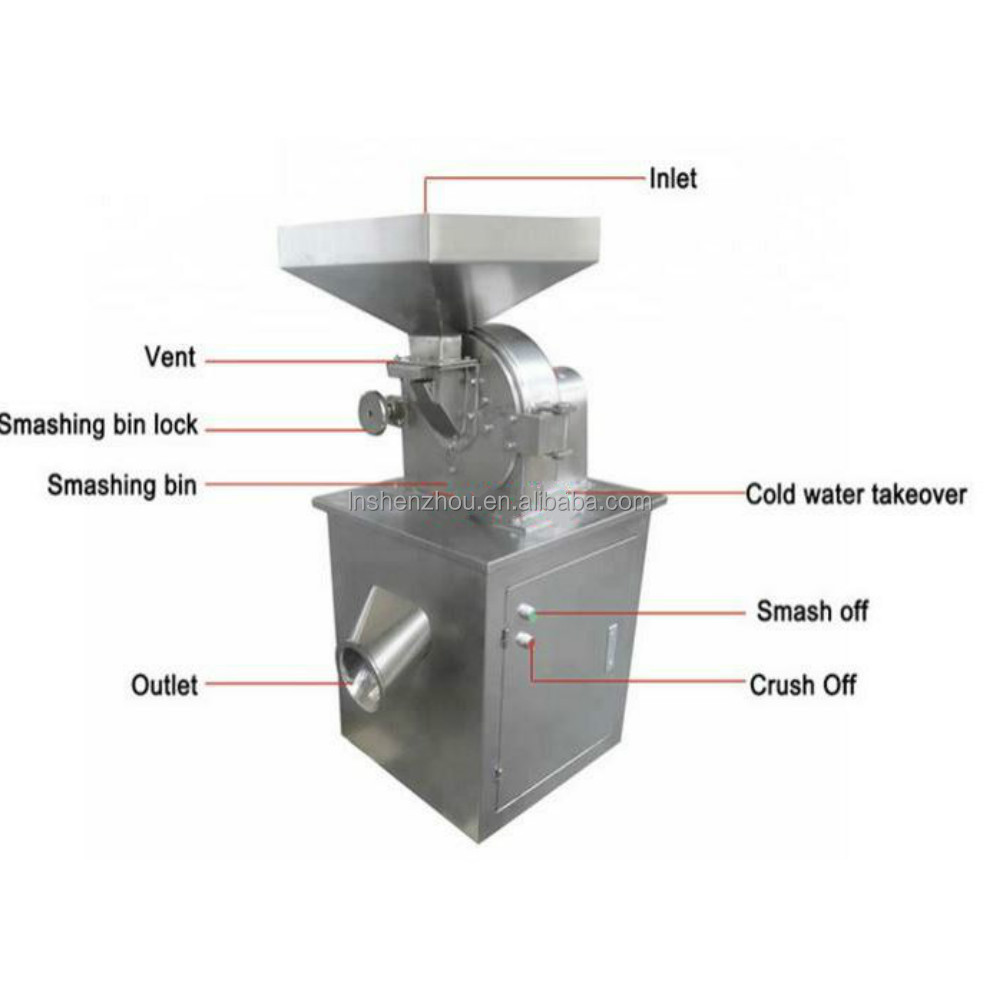

Working Principle
The machine uses the relative motion between movable and fixed fluted discs, the raw materials to be crushed undertakes the comprehensive actions such as impacted by teeth, friction, impacted between raw materials are crushed. Its features are simple and solid in structure, stable in operation, high crushed efficiency.
The crushed raw material can be discharged through the grinding chamber. Moreover, different size of raw material to be crushed can be got through exchanging screen with different mesh.
The spice powder grinding making machine is widely used for pharmaceutical industry, chemical industry foodstuff industry, grain industry and so on.
Working Principle
The machine uses the relative motion between movable and fixed fluted discs, the raw materials to be crushed undertakes the comprehensive actions such as impacted by teeth, friction, impacted between raw materials are crushed. Its features are simple and solid in structure, stable in operation, high crushed efficiency.
The crushed raw material can be discharged through the grinding chamber. Moreover, different size of raw material to be crushed can be got through exchanging screen with different mesh.
Specification
Model | SZWF-180 | SZWF-20B | SZWF-30B | SZWF-40B | SZWF-50B | SZWF-60B | SZWF-80B | SZWF-100B |
Capacity(kg/h) | 5-30 | 60-150 | 100-300 | 160-800 | 300-1500 | 400-2000 | 500-2500 | 600-3000 |
Spindle rotation speed(r/min) | 5300 | 4600 | 3800 | 3400 | 2900 | 2300 | 1800 | 1400 |
Feeding granularity(mm) | ≤6 | ≤6 | ≤10 | ≤12 | ≤15 | ≤15 | ≤20 | ≤20 |
Crushing granularity(mesh) | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 |
Crushing motor(kw) | 2.2 | 4 | 7.5 | 11 | 18.5 | 22 | 30 | 45 |
Dimensions(mm) | 520x510x1000 | 650x570x1240 | 700x670x1370 | 900x800x1550 | 1150x850x1900 | 1250x950x2150 | 1400x1100x2250 | 1500x1300x2400 |
Packing & Delivery
WOODEN CASE
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
FAQ
1. who are we?
We are based in Liaoning, China, start from 2018,sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
We are based in Liaoning, China, start from 2018,sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
