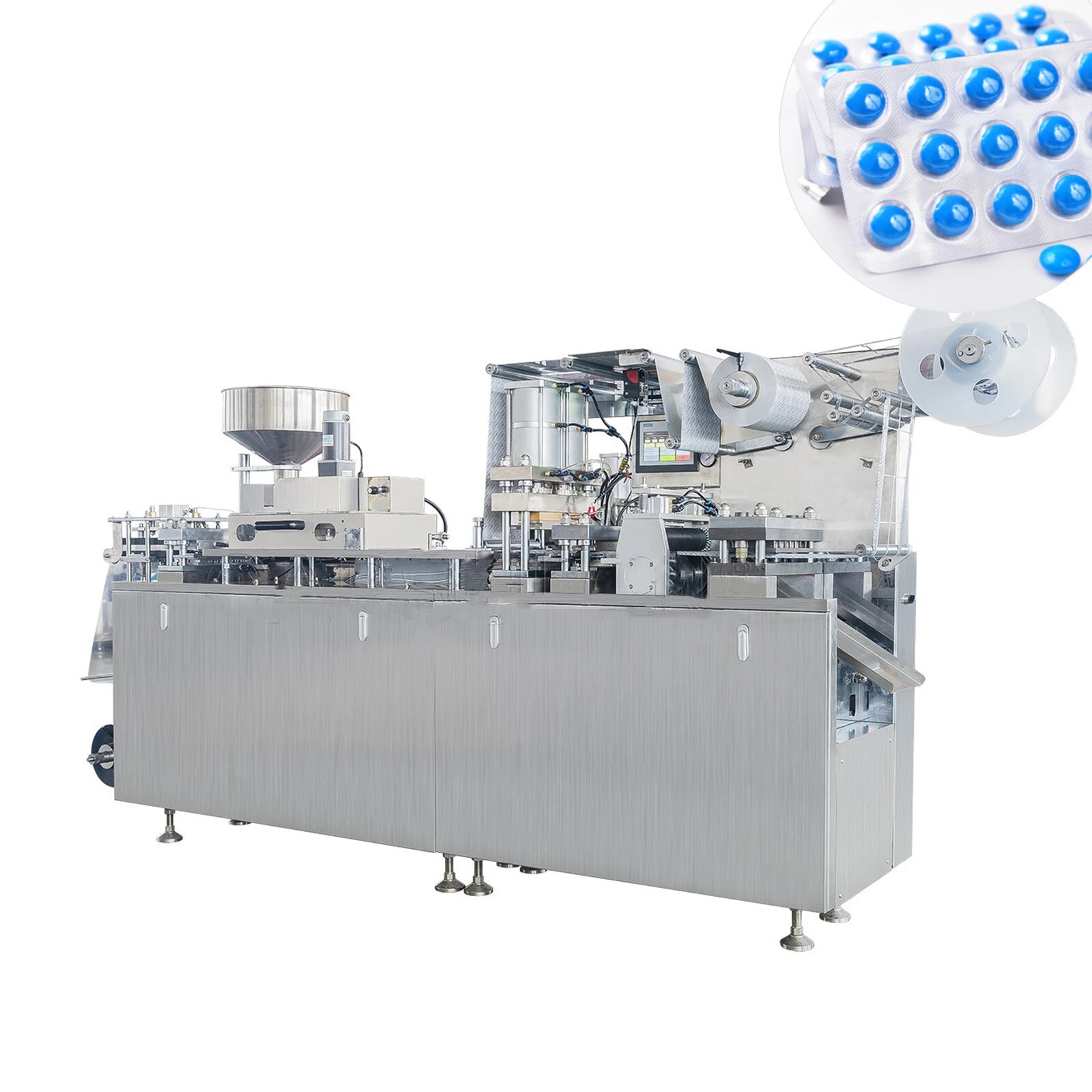

Shenzhou - dpb-250 Pill Flat-Plate Automatic Blister Packing Machine For Medical Devices Filling&Packing Machine

Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd relying on years of development, it clearly understands the needs of users and the pain points of the industry, and relying on strong technical capabilities to develop high-quality dpb-250 Pill Flat-Plate Automatic Blister Packing Machine For Medical Devices that can meet the needs of users and solve the pain points of the industry. By virtue of continuous technological innovation, we have mastered the core and most advanced technology in the industry, and will use advanced technology to produce dpb-250 Pill Flat-Plate Automatic Blister Packing Machine For Medical Devices, effectively solving the pain points that have always plagued the industry. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd adhere to the corporate spirit of 'pragmatism & innovation' and aim to create benefits for our stakeholders. Driven by the fierce competition in the market, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd hold a firm belief that we must focus on R&D and develop new technologies to adapt to the market trends.

Product Description

Flat-plate blister packaging machine is a kind of special equipment for PTP/PVC or PTP/PTP compound sealing packaging of drugs (including tablets, capsules and ampoules), food, medical instruments and similar materials. Due to positive pressure forming, flat pressing heat sealing, the finished blister sheets are even and smooth, which makes this machine favored by the whole industry.

Model	DPP-250
Blanking frequency	PVC-AL: 10-40 times/min AL-AL: 10-30 times/min
Adjustable scope of feed travel	30-140mm(adjustable)
The max forming area and depth	240mm×130mm×26mm
Power of forming heating	600W
Air Consumption	3KW
Main motor power	1.5KW
Machine Voltage	380V/220V 50Hz
Weight	1500KG

Main features:

1）Our DPP series aluminum-plastic packaging machine can be disassembled for transportation, and it is easy to assemble by applying cylindrical pin for positioning and screws for fastening.
2） The molds are pressed and clamped by the pressing plate, which makes assembly and disassembly very convenient.
3）The main motor adopts variable frequency speed control: The corresponding blanking times should be set according to the stroke length and the feeding difficulty of the filling materials. (The blanking times can reach 50 times / min).
4） The mechanical arm clamping traction mechanism is adopted to ensure stable operation and accurate synchronization. The stroke length can be adjusted in the range of 30~120mm, which means that the plate size can be designed at will within this range.Because of aligning and heating by contact, the heating power and temperature are reduced, the energy is saved and the stability of plastic sheet is increased.

5）The forming heating plate closes and opens automatically. The start-up time can be delayed after the heating plate is put down, so no more than one sheet of materials will be wasted.
6）It is equipped with cylinder and chequered plate at the heat seal station. When the machine is stopped, the cylinder will
automatically raise the chequered plate, which helps avoid the deformation of blisters caused by thermal radiation and also facilitates the cleaning of checkered plate. At the same time, it plays a buffer role in overpressure, which contributes to prolonging the service life of the machine.
7）The upper and lower chequered stripes with netted dots cooperate for heat sealing. As there is equal stress on both sides, the sheets are smoother and the sealing performance is improved.
8） If PVC runs out or breaks off, the alarm rings automatically and the machine shuts down immediately. Besides, the machine is equipped with emergency stop device, which improves the safety of operators during the process of debugging and replacing molds.
9）The feeding hopper and all the other parts in contact with materials are made of stainless steel and non-toxic materials, meeting the requirements of GMP.

(Don't Worry! We have several Models. We can recommend you according to your requirement. Just Tell Us: Capacity, packing machine and Capsule Size.) Contact us>>

Packing & Delivery

Company Profile

Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!

FAQ

1. who are we?
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine

4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
