Shenzhou - Automatic Rotary Premade Pouch Nitrogen Packing Machine Potato Chips Packaging Line Filling&Packing Machine
Technologies are essential to the manufacturing of Automatic Rotary Premade Pouch Nitrogen Packing Machine Potato Chips Packaging Line.After being upgraded for several generations, the newest product has been proved to have more extensive uses in Wrapping Machines and other fields.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Automatic Rotary Premade Pouch Nitrogen Packing Machine Potato Chips Packaging Line launched by Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has a clear positioning and is a product designed to solve industry pain points. The product is characterized by multiple advantages.Its application ranges have been expanded to the Wrapping Machines. In the future,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will open up channels for introducing talents, and improve technological innovation capabilities by introducing more outstanding talents as intellectual support, so as to achieve better and faster development.
| Type: | Wrapping Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
| After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service | Local Service Location: | None |
| Showroom Location: | None | Condition: | New |
| Application: | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles | Packaging Type: | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule, case |
| Packaging Material: | Plastic | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 380v |
| Place of Origin: | China | Brand Name: | LYSZ |
| Dimension(L*W*H): | 1635mm*1455mm*1480mm | Weight: | 1000 KG |
| Certification: | CE | After-sales Service Provided: | Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service |
| Warranty: | 1 Year | Key Selling Points: | Easy to Operate |
| Marketing Type: | New Product 20201 | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Motor | Product name: | food packaging machine |
| Bag width: | 10-300mm | Bag length: | 10-400mm |
| Packing speed: | 10-70bags/min | Keyword: | Weighing Filling Packing |
Product Description

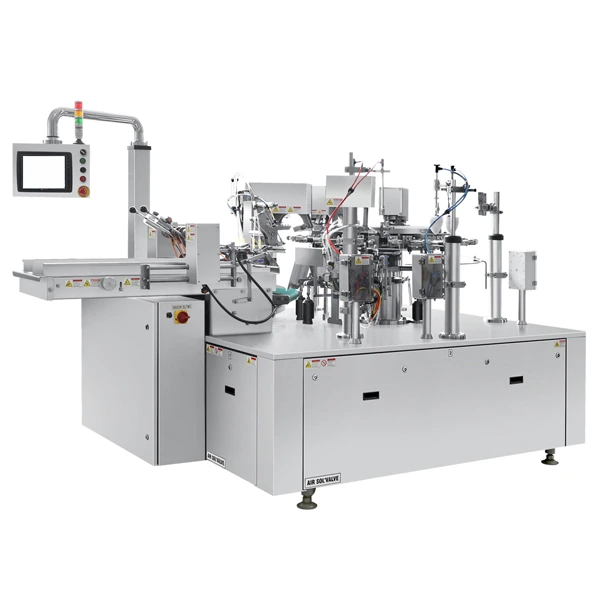

Automatic Rotary Premade Pouch Nitrogen Packing Machine Potato Chips Packaging Line
This machine is suitable for granule into the premade pouch: the granuel such as nuts, snack, wheat, rice, corn, beef jerky, suger and etc, the premade pouch such as stand up pouch, zipper pouch, M-type pouch, spout pouch and etc.
Bag Types:Standup bag, Portable bag, Zipper bag, 4-side sealing bag, 3-side sealing bag etc. and all kinds of compound bags.
Advantage:
1. PLC control, Siemens touch screen, easy to operate.
2. Premade pouch filling and packing, more beautiful.
3. Rotary 8-position working process: open bag, date printing, open zipper, filling, washing & cleaning, sealing 1, sealing 2,
finished product conveyor.
4. Alarm device: no bag alarm, filling position no bag, no filling. Avoid no bag filling, save the premade pouch, materials.
2. Premade pouch filling and packing, more beautiful.
3. Rotary 8-position working process: open bag, date printing, open zipper, filling, washing & cleaning, sealing 1, sealing 2,
finished product conveyor.
4. Alarm device: no bag alarm, filling position no bag, no filling. Avoid no bag filling, save the premade pouch, materials.
Main Technical Parameter:
Solid(Granule) Weigh-Fill-Seal Production Line | ||||
Equipment Model | LZ8-200 | LZ8-300 | ||
Bag Size | W: 65~150mm L: 70~210mm(date coding requires≥ 140mm length) | W:160~300mm L: 100~400mm(date coding requires≥ 140mm length) | ||
Filling Range | 5~1500g | 5~2500g | ||
Packing Speed | 20~55Bags/min(depended on the product and filling weight) | 10~40Bags/min(depended on the product and filling weight) | ||
Package Accuracy | Error≤±1% | |||
Weight | 1000kg | 2000kg | ||
Dimension | 1635mm*1455mm*1480mm (L,W,H) | 1645mm*1645mm*1640mm (L,W,H) | ||
Total Power | 2.3kw | 4kw | ||
Driving Power Source | 380V Three-phase Five-line 50HZ | |||
Control Power Source | DC24V | |||
Compressed Air Requirement | ≥0.45m3/min(Compress air is provided by user) | ≥0.35m3/min(Compress air is provided by user) | ||
Application Range:
All kinds of grains and solids material, like candy, nuts, raisins, peanuts, melon seeds, nuts,nutlet, chocolate, preserved fruit,potato chips,biscuits,confect, camphorball, currant, almond,potato crisps, pet food, dilatant food etc can be weighed by the ration. It is also suitable for weighing small hardware and plastic component.
Station Process:
1.Bag Feeding 2.Date Coding 3.Bag Opening 4.Filling 5.Filling 6.Standby 7.Heat Sealing 8.Forming & Output
1.Bag Feeding 2.Date Coding 3.Bag Opening 4.Filling 5.Filling 6.Standby 7.Heat Sealing 8.Forming & Output
Our Main Premade Pouch Packaging Machine
Auxiliary Equipment:
Packing & Delivery
wooden case
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
FAQ
1. who are we?
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
