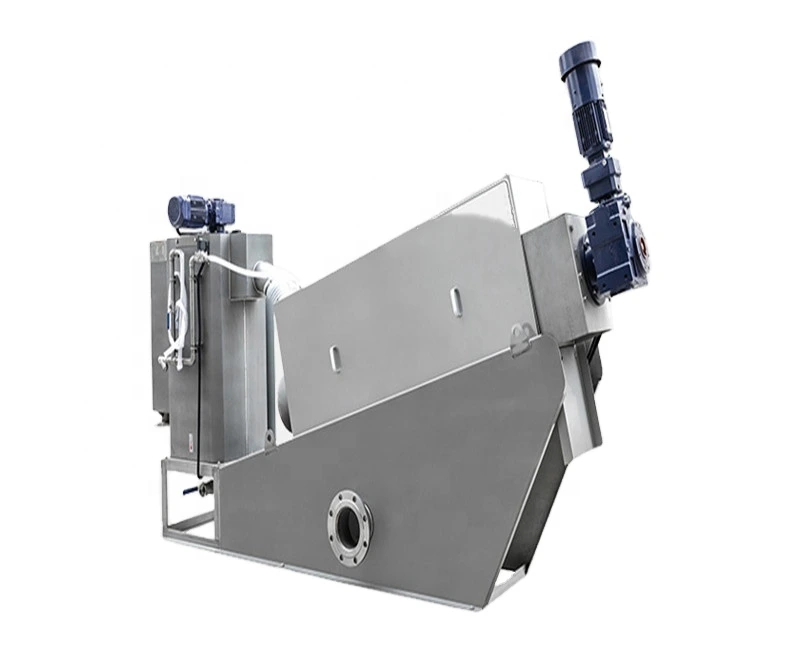

Shenzhou - Multi-Disk Screw Press Sludge Dehydrator Equipment for Dairy Sludge Treatment Hot selling machine
Our Multi-Disk Screw Press Sludge Dehydrator Equipment for Dairy Sludge Treatment has the high-level characteristics of all raw materials. Therefore, it has the multi-functional features which largely decide its applications. At present, the Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge has applications in a wide range of Water Treatment Machinery fields.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
With our fully equipped machines, we can produce Multi-Disk Screw Press Sludge Dehydrator Equipment for Dairy Sludge Treatment to your exact specifications. Our company has been investing heavily in R&D and upgrades of technologies. This has given initial results eventually. As Multi-Disk Screw Press Sludge Dehydrator Equipment for Dairy Sludge Treatment advantages are discovered continually, it has been widely used in the field(s) of Water Treatment Machinery. Used in Water Treatment Machinery,Multi-Disk Screw Press Sludge Dehydrator Equipment for Dairy Sludge Treatmenthas a promising application prospect.
| Condition: | New | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| Showroom Location: | None | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2021 |
| Warranty of core components: | 1 Year | Core Components: | Motor |
| Place of Origin: | China | Brand Name: | LYSZ |
| Material: | Wooden case | Weight: | According to your order |
| Size: | According to your order | Warranty: | 1 Year |
| Productivity: | 50000L/Hour | Weight (KG): | 1000 kg |
Product Description
Manual Screw Press is a kind of economic and environmental friendly sludge dewatering equipment. It is a new type of sludge extrusion dewatering equipment by using the principle of screw extrusion, through the strong squeezing force generated by the change of screw diameter and screw pitch, and the tiny gap between the floating ring and the fixed ring, to realize solid-liquid separation. SZ dewatering screw press is composed of fully automatic control cabinet, flocculation modulation box, sludge thickening and dewatering device, and liquid collecting tank. SZ dewatering screw press is with automatic control technology, which can realize the flocculation fully automatic operation, and continuously complete the sludge thickening and squeezing, finally return or discharge the collected filtrate liquid.
SZ screw press dewatering machine is widely used in sewage treatment projects of municipal, aquaculture, food, starch, oil,pharmaceutical, chemical, paper, leather and other industries
Model 10000mg/L | DS Standard Capacity (Absolute Dry Sludge) 20000mg/L | Capacity for Sludge with Different Concentration 30000mg/L | 40000mg/L | 50000mg/L | ||
SZDL101 | 5~7 kg/h | ~0.5m³/h | ~0.25m³/h | ~0.2m³/h | ~0.15m³/h | ~0.14m³/h |
SZDL201 | 15~20 kg/h | ~1.5m³/h | ~0.75m³/h | ~0.6m³/h | ~0.5m³/h | ~0.4m³/h |
SZDL202 | 30~40 kg/h | ~3m³/h | ~1.5m³/h | ~1.2m³/h | ~1m³/h | ~0.8m³/h |
SZDL301 | 50~70 kg/h | ~5m³/h | ~2.5m³/h | ~2m³/h | ~1.5m³/h | ~1.4m³/h |
SZDL302 | 100~140 kg/h | ~10m³/h | ~5m³/h | ~4m³/h | ~3m³/h | ~2.8m³/h |
SZDL303 | 150~210 kg/h | ~15m³/h | ~7.5m³/h | ~6m³/h | ~4.5m³/h | ~4.2m³/h |
SZDL401 | 130~160 kg/h | ~13m³/h | ~6.5m³/h | ~5m³/h | ~4m³/h | ~3.2m³/h |
SZDL402 | 260~320 kg/h | ~26m³/h | ~13m³/h | ~10m³/h | ~8m³/h | ~6.4m³/h |
SZDL403 | 390~480 kg/h | ~39m³/h | ~19.5m³/h | ~15m³/h | ~12m³/h | ~9.6m³/h |
SZDL404 | 520~640 kg/h | ~52m³/h | ~26m³/h | ~20m³/h | ~16m³/h |
ADVANTAGES OF SCREW PRESS DEWATERING MACHINE
1. Suitable for wide range sludge dewatering and can be used for oily sludge treatment.
2. Operating continuously and automatically, not easy to block.
3. Low investment and operation cost, no secondary pollution.
4. Energy saving and environmental friendly, compact design with small footprint.
5. Sludge can be dewatered under aerobic conditions to avoid phosphorus release from anaerobic sludge dewatering.
2. Operating continuously and automatically, not easy to block.
3. Low investment and operation cost, no secondary pollution.
4. Energy saving and environmental friendly, compact design with small footprint.
5. Sludge can be dewatered under aerobic conditions to avoid phosphorus release from anaerobic sludge dewatering.
FEATURES OF SCREW PRESS DEWATERING MACHINE
1. The main body of the screw press sludge dewatering machine is a filtration device composed of fixed ring and moving ring, in which the screw axis runs through. The front section is for concentration and the back section for dewatering.
2. The filtering gap formed between the fixed ring and the moving ring of the dewatering screw press and the pitch of the screw axis gradually decreased from the concentration section to the dewatering section.
5. Dewatering screw press is generally applicable to sludge concentration of 2000mg / L-50000mg / L
2. The filtering gap formed between the fixed ring and the moving ring of the dewatering screw press and the pitch of the screw axis gradually decreased from the concentration section to the dewatering section.
3. The rotation of the screw press shaft not only pushes the sludge from the concentration section to the dewatering section, but also continuously drives the moving ring to clean the filtering gap to prevent clogging.
4. After gravity concentration in the concentration section, sludge is transported to the dewatering section. In the process of advance, with the gradual decrease of filtering gap and screw pitch, and the blocking effect of back pressure plate, a great internal pressure is generated; leading the volume is constantly reduced, so as to achieve the purpose of full dewatering.
5. Dewatering screw press is generally applicable to sludge concentration of 2000mg / L-50000mg / L
