Shenzhou - Industrial Food Screw Press Hot selling machine
Our professional employees are skilled at utilizing technical resources. By utilizing technology, we ensure the product manufacturing process goes efficiently.In the application field(s) of Water Treatment Machinery, Industrial Food Screw Press can play out its greatest effect.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd after long-term market research, we have created a brand-new product that is different from its peers. It is consistent with industry standards. We strictly stick to the concept of scientific design, which contributes to the unique appearance and easy-to-use performance of our Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge. Also, we never use inferior raw materials and ensure they are all tested by our QC inspectors, thereby, guaranteeing Water Treatment Machinery quality. We believe that our product with so many advantages can bring benefits to all customers.
| Condition: | New | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| Showroom Location: | None | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2021 |
| Warranty of core components: | 1 Year | Core Components: | Motor |
| Place of Origin: | China | Brand Name: | LYSZ |
| Material: | Wooden case | Weight: | According to your order |
| Size: | According to your order | Warranty: | 1 Year |
| Productivity: | 50000L/Hour | Weight (KG): | 1000 kg |
Product Description

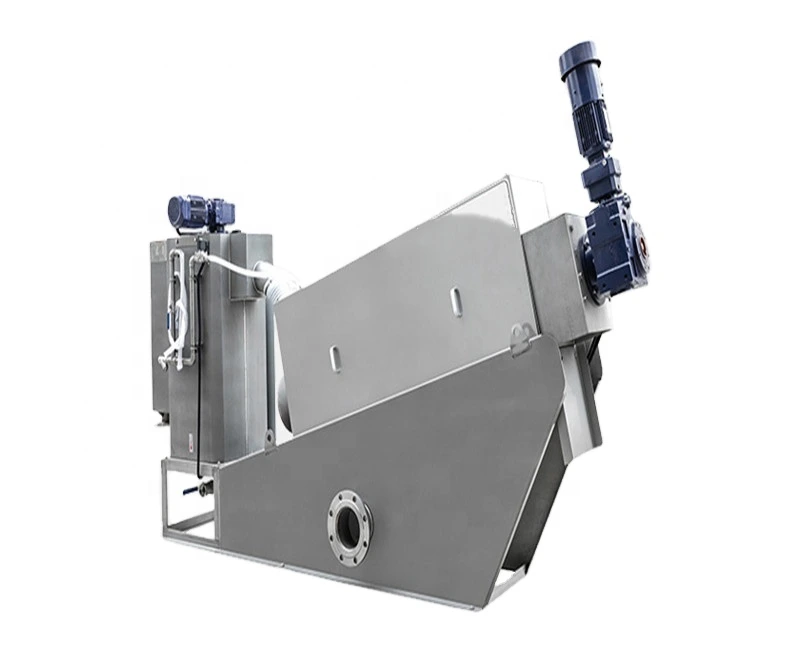

Manual Screw Press is a kind of economic and environmental friendly sludge dewatering equipment. It is a new type of sludge extrusion dewatering equipment by using the principle of screw extrusion, through the strong squeezing force generated by the change of screw diameter and screw pitch, and the tiny gap between the floating ring and the fixed ring, to realize solid-liquid separation. SZ dewatering screw press is composed of fully automatic control cabinet, flocculation modulation box, sludge thickening and dewatering device, and liquid collecting tank. SZ dewatering screw press is with automatic control technology, which can realize the flocculation fully automatic operation, and continuously complete the sludge thickening and squeezing, finally return or discharge the collected filtrate liquid.
SZ screw press dewatering machine is widely used in sewage treatment projects of municipal, aquaculture, food, starch, oil,pharmaceutical, chemical, paper, leather and other industries
Model 10000mg/L | DS Standard Capacity (Absolute Dry Sludge) 20000mg/L | Capacity for Sludge with Different Concentration 30000mg/L | 40000mg/L | 50000mg/L | ||
SZDL101 | 5~7 kg/h | ~0.5m³/h | ~0.25m³/h | ~0.2m³/h | ~0.15m³/h | ~0.14m³/h |
SZDL201 | 15~20 kg/h | ~1.5m³/h | ~0.75m³/h | ~0.6m³/h | ~0.5m³/h | ~0.4m³/h |
SZDL202 | 30~40 kg/h | ~3m³/h | ~1.5m³/h | ~1.2m³/h | ~1m³/h | ~0.8m³/h |
SZDL301 | 50~70 kg/h | ~5m³/h | ~2.5m³/h | ~2m³/h | ~1.5m³/h | ~1.4m³/h |
SZDL302 | 100~140 kg/h | ~10m³/h | ~5m³/h | ~4m³/h | ~3m³/h | ~2.8m³/h |
SZDL303 | 150~210 kg/h | ~15m³/h | ~7.5m³/h | ~6m³/h | ~4.5m³/h | ~4.2m³/h |
SZDL401 | 130~160 kg/h | ~13m³/h | ~6.5m³/h | ~5m³/h | ~4m³/h | ~3.2m³/h |
SZDL402 | 260~320 kg/h | ~26m³/h | ~13m³/h | ~10m³/h | ~8m³/h | ~6.4m³/h |
SZDL403 | 390~480 kg/h | ~39m³/h | ~19.5m³/h | ~15m³/h | ~12m³/h | ~9.6m³/h |
SZDL404 | 520~640 kg/h | ~52m³/h | ~26m³/h | ~20m³/h | ~16m³/h |
ADVANTAGES OF SCREW PRESS DEWATERING MACHINE
1. Suitable for wide range sludge dewatering and can be used for oily sludge treatment.
2. Operating continuously and automatically, not easy to block.
3. Low investment and operation cost, no secondary pollution.
4. Energy saving and environmental friendly, compact design with small footprint.
5. Sludge can be dewatered under aerobic conditions to avoid phosphorus release from anaerobic sludge dewatering.
2. Operating continuously and automatically, not easy to block.
3. Low investment and operation cost, no secondary pollution.
4. Energy saving and environmental friendly, compact design with small footprint.
5. Sludge can be dewatered under aerobic conditions to avoid phosphorus release from anaerobic sludge dewatering.
FEATURES OF SCREW PRESS DEWATERING MACHINE
1. The main body of the screw press sludge dewatering machine is a filtration device composed of fixed ring and moving ring, in which the screw axis runs through. The front section is for concentration and the back section for dewatering.
2. The filtering gap formed between the fixed ring and the moving ring of the dewatering screw press and the pitch of the screw axis gradually decreased from the concentration section to the dewatering section.
5. Dewatering screw press is generally applicable to sludge concentration of 2000mg / L-50000mg / L
2. The filtering gap formed between the fixed ring and the moving ring of the dewatering screw press and the pitch of the screw axis gradually decreased from the concentration section to the dewatering section.
3. The rotation of the screw press shaft not only pushes the sludge from the concentration section to the dewatering section, but also continuously drives the moving ring to clean the filtering gap to prevent clogging.
4. After gravity concentration in the concentration section, sludge is transported to the dewatering section. In the process of advance, with the gradual decrease of filtering gap and screw pitch, and the blocking effect of back pressure plate, a great internal pressure is generated; leading the volume is constantly reduced, so as to achieve the purpose of full dewatering.
5. Dewatering screw press is generally applicable to sludge concentration of 2000mg / L-50000mg / L
Packing & Delivery
wooden case
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
